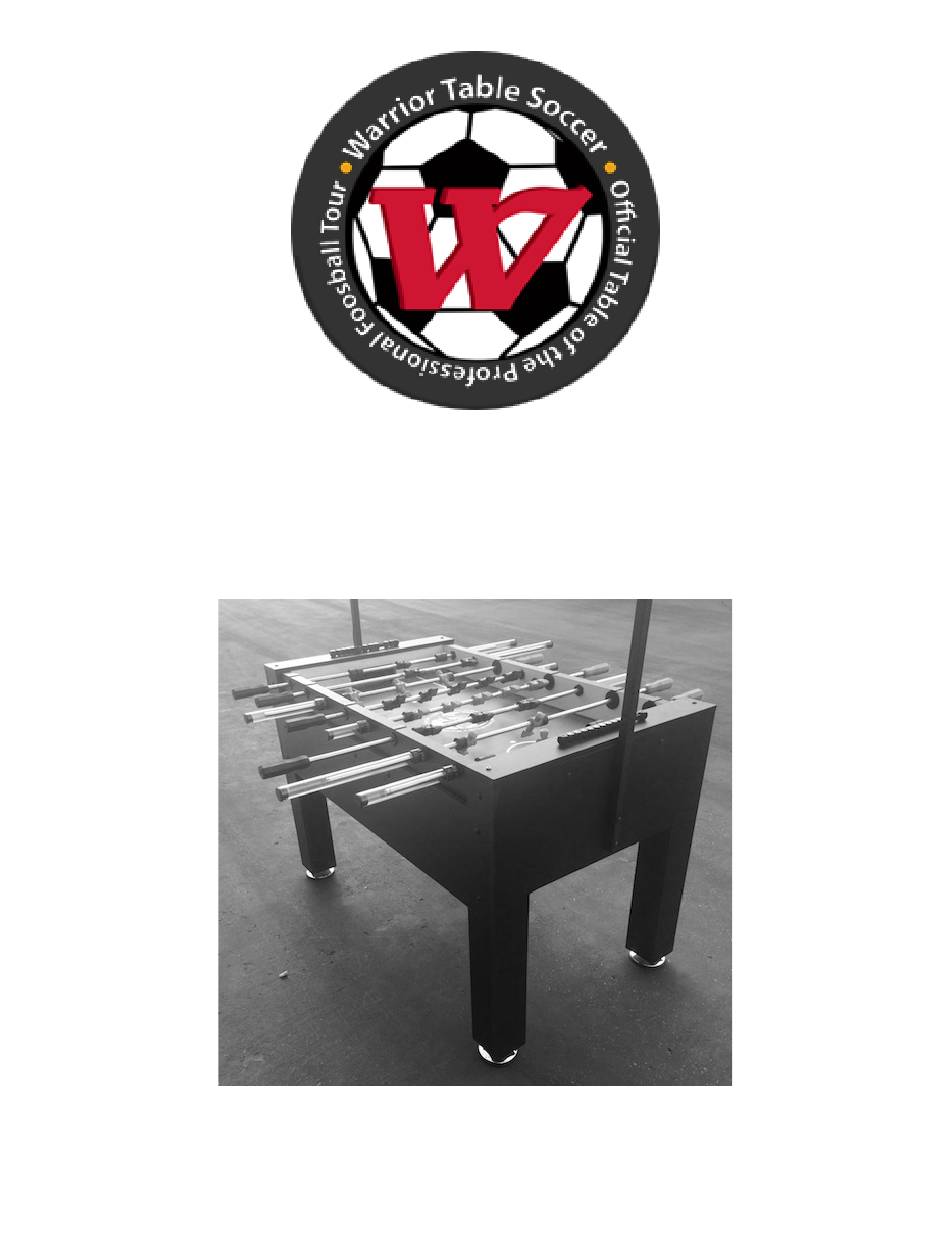

- Page 1 Updated: 5/4/16 www.WarriorTableSoccer.com SOCCER TABLE Assembly Instructions...
- Page 2 Table of Contents Parts Identifier .......... 3 Hardware Identifier…………………………. 4 Table Assembly Instructions ..... 5 Table Assembly Pictures ………..….…….. 6, 7, 8 www.WarriorTableSoccer.com P a g e...
-
Page 3: Parts Identifier
Parts Identifier Box A Side panels (2) Assembled rods with bearings (8), Rod guards (8) Balls (2), Extra Men (2), Bearing wrench (1) Silicone Box B Leg panels (2) Goal boxes (2) Top Cap (2) Box C Table top (1) Leg levelers (4) Ball Catch (1) Score beads (2) -
Page 4: Hardware Identifier
Hardware Identifier Description Purpose 5/16” x 1 ¾” (8) Side Panels / Legs, (6) Play Field 1/4" x 1 ¾” (4) Corner Blocks (4) Goal Boxes (2) Ball Catch (4) Top Plate 3/16” x 1 ½” (4) Score Beads If purchased with light bracket 1/4”... - Page 5 Table Assembly Instructions Note: No additional tools required for assembly, all nuts are pre-installed in the table. It is recommended to get all bolts “Started” only. Once all bolts have been started check alignment of “top plates”, “leg panels” & “side panels” before tightening bolts completely. No Impact or Power tools. 1.
- Page 6 Assembly Pictures 1. Make sure bolt and inner nut are TIGHT Leave TOP nut about ¼” (6mm) from bottom to allow for leveling. When table is level raise TOP nut to meet leg and 2. Leg Panels w/ 1 Side Panel secure 4.
- Page 7 Assembly Pictures 6b – Install runner completely over collar 6c – Install collars into ball catch 6d – Install runner completely over collars 7. Place tabletop into cabinet 9. Attach Top Plate 8. Install Corner Block with black finished sides exposed as shown www.WarriorTableSoccer.com P a g e...
- Page 8 Assembly Pictures 11a. Remove Nut from Rod Guard 10. Attach Score Beads to Top Plate 11b. Install Rod Guard into Round Holes 12.Remove inner nut install rod, tighten Level table by turning leg levelers to raise 13. Wipe rods down with cloth or napkin or lower legs as needed then raise Top then add 1 or 2 drops of silicone Nut to secure...
- Page 9 Notes: www.WarriorTableSoccer.com P a g e...
