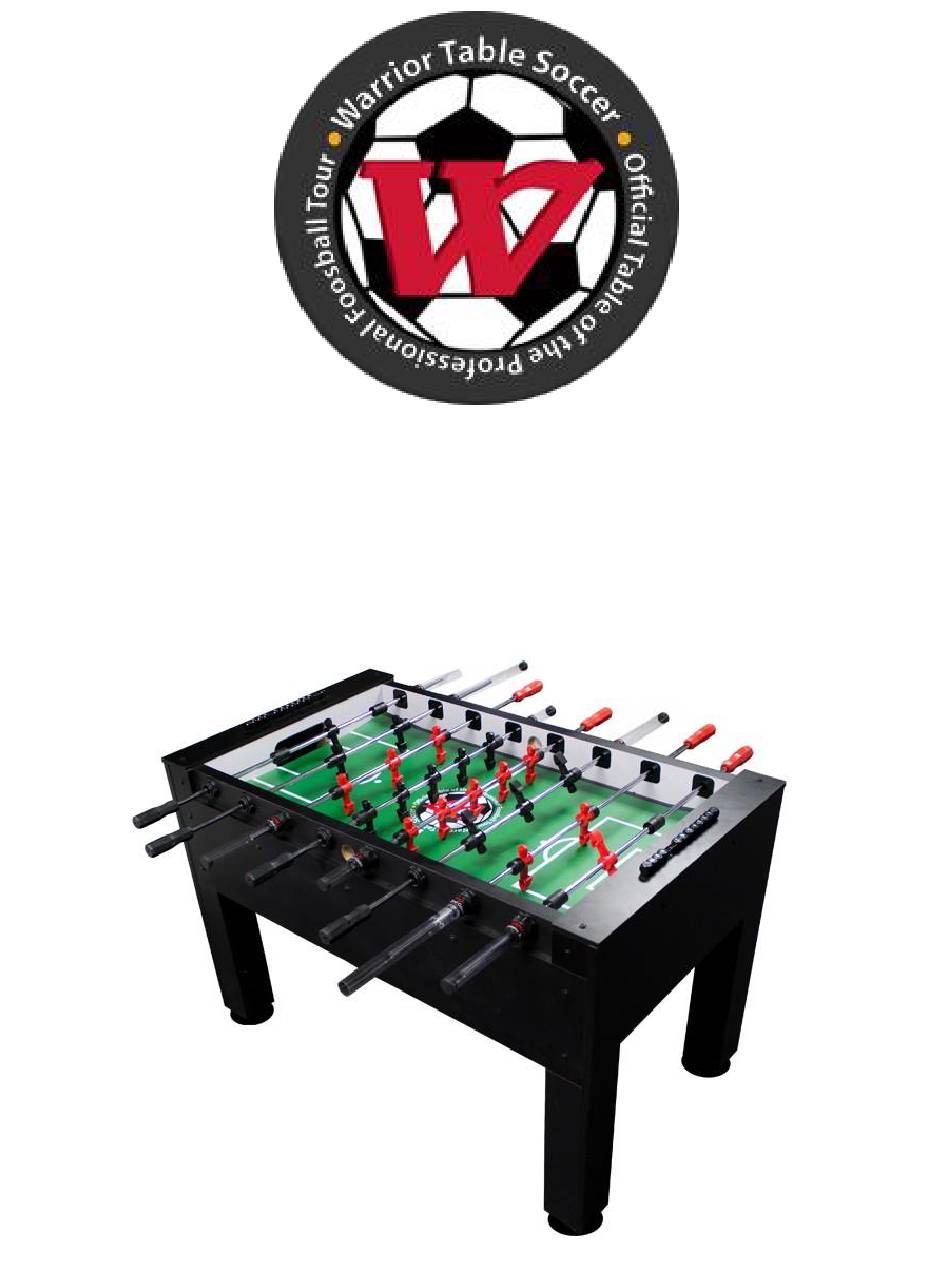

- Page 1 SOCCER TABLE Assembly Instructions...
- Page 2 Table of Contents Parts Identifier .......... 3 Hardware Identifier…………………………. 4 Table Assembly Instructions ..... 5 Table Assembly Pictures ………..….…….. 6, 7, 8 P a g e...
-
Page 3: Parts Identifier
Parts Identifier Box 1 Side panels (2) Assembled rods (8), Bearing Halves (16), Bearing Nuts(8) Balls (2), Extra Men (2), Silicone (1) Box 2 Leg panels (2) Ball Return Board A (1) Top Panels (2) Leg levelers (4) Goal Box (2) Metal Plate (2) Rod Guard (8) Box 3... -
Page 4: Hardware Identifier
Hardware Identifier Description Purpose 5/16” x 1 ¾” (8) Side Panels / Legs, (6) Play Field 1/4" x 1 ¾” (4) Corner Blocks (4) Goal Boxes (4) Top Plate 3/16” x 1 ½” (4) Score Beads (8) Supporting Pins If purchased with light bracket 1/4”... - Page 5 Table Assembly Instructions Note: No additional tools required for assembly. Nuts are pre-installed in the table. It is recommended to get all bolts “Started” only. After bolts have been started check alignment of “top plates”, “leg panels” & “side panels” before tightening bolts completely. No Impact/Power tools 1.
- Page 6 Assembly Pictures 1. Install Leg Leveler by turning clockwise into bottom of legs. Turn all the way into the lowest point in leg. 2. Leg Panels w/ 1 Side Panel 3. Attach Goal Box 4. Insert Metal Plate 5a. Place Supporting pins for legs Place Supporting pins for Side Panel P a g e...
- Page 7 Assembly Pictures 6a – Install Ball Return Board A 6b –Install Ball Return Board B (1) 7. Place tabletop into cabinet 6c –Install Ball Return Board B (2) 9. Attach Top Plate 8. Install Corner Block with black finished sides exposed as shown P a g e...
- Page 8 Assembly Pictures 11.Guide handle through opening in near wall in proper position. Pull all the way in to allow other end of rod to clear far wall. 10. Attach Score Beads to Top Plate 12.Take 2 bearing halves (#1 and #2) and connect them over rod and then place them 13.Slide bearing nut over handle &...
- Page 9 Notes: Page...
