C H A P T E R

Product Overview

This chapter provides an overview of the Cisco MGX 8950 switch. It describes the physical
characteristics, key features, and functionality of the switch.
The MGX 8950 is a high capacity ATM backbone switch that holds up to 12 ATM service module cards,
two processor module cards (PXM45/Bs) and four switching module cards (XM-60s). The switch can
be mounted in either a 19-inch or a 23-inch rack with industry standard EIA/Retma mounting hole
patterns. The system can accept power from either a –48 VDC (–42 + –56 VDC) DC source or an
optional 220 VAC (180–254 VAC) source.
The DC-powered version of the switch is shown in
Figure
2-1.

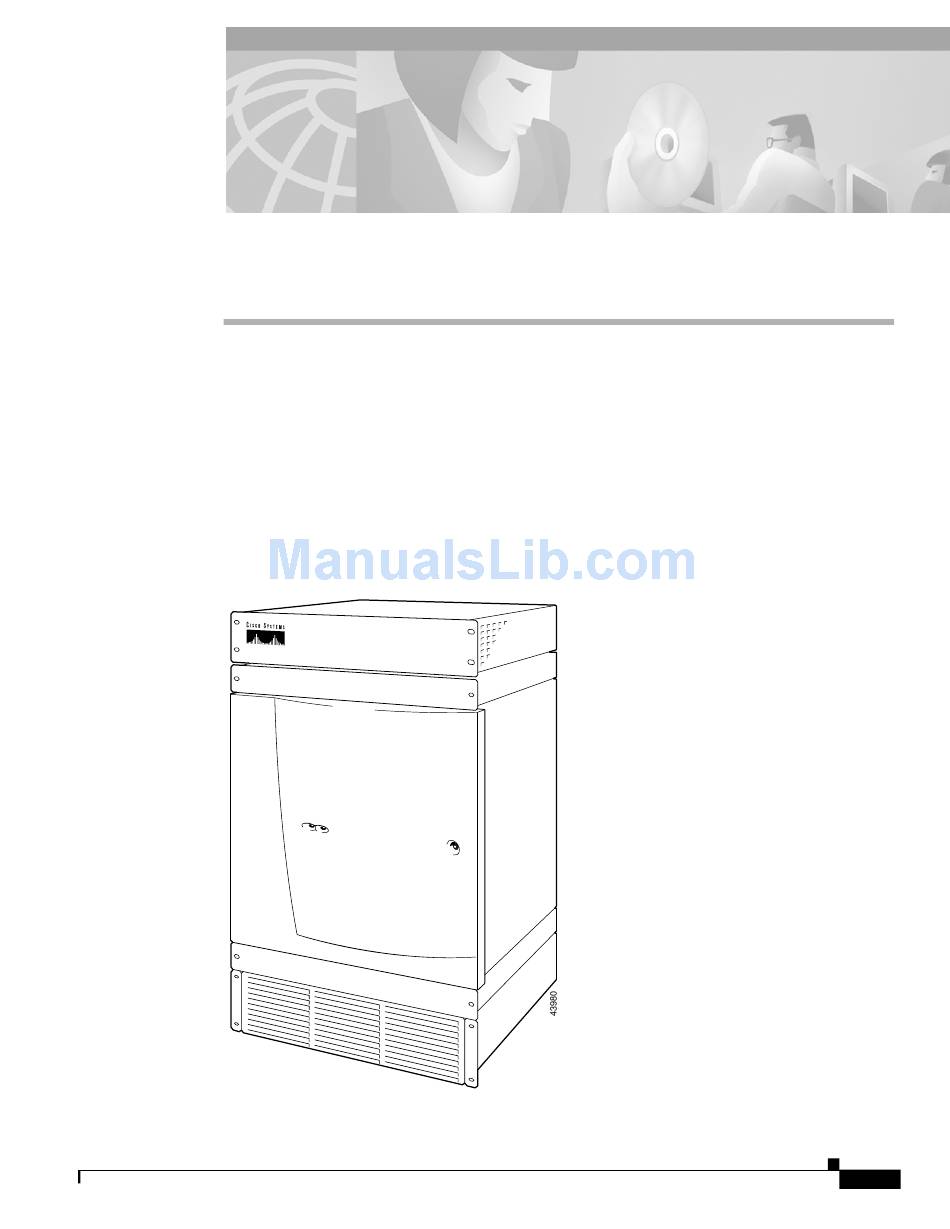

Figure 2-1
MGX 8950 Switch (DC version)
Cisco MGX 8950 Hardware Installation Guide
2-1
Release 2.1, Part Number 78-11273-01 Rev. B0, March 2002
