HILL PUMPS EC-3000 User Instruction Manual

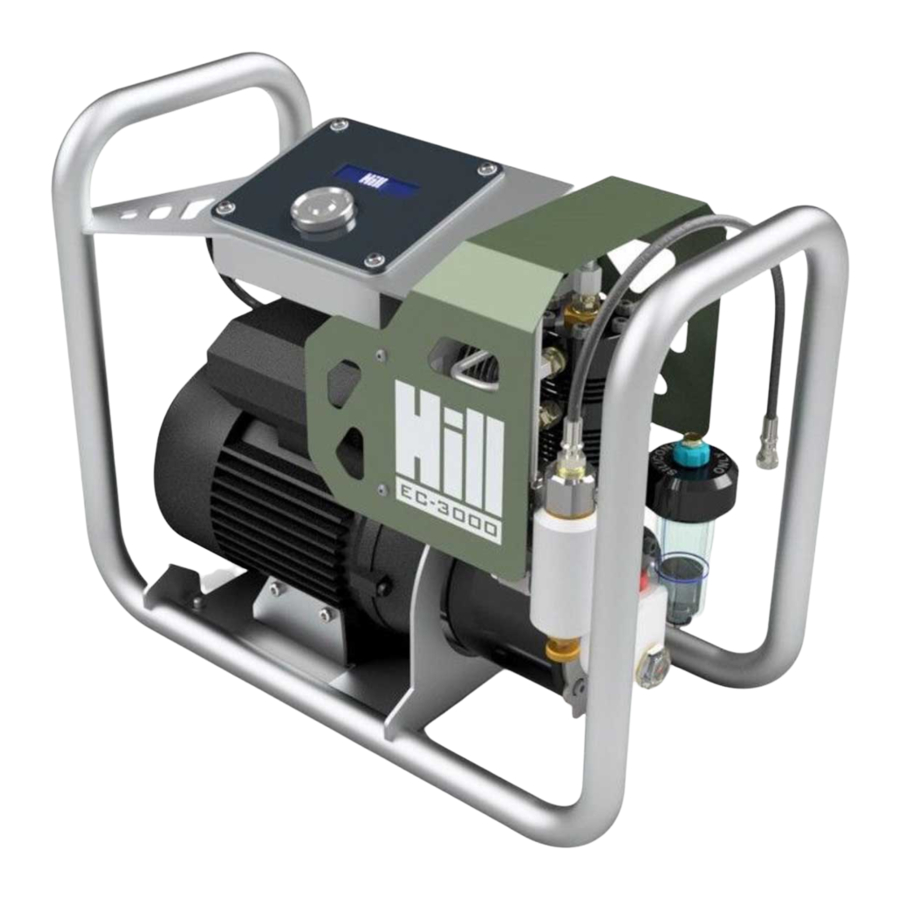

Portable air compressor
Hide thumbs Also See for EC-3000:

Advertisement

Table of Contents

USER INSTRUCTION MANUAL
EC3000 PORTABLE AIR COMPRESSOR
Rev 4.03
March 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for HILL PUMPS EC-3000

Summary of Contents for HILL PUMPS EC-3000

  • Page 1 USER INSTRUCTION MANUAL EC3000 PORTABLE AIR COMPRESSOR Rev 4.03 March 2020...

  • Page 2: Table Of Contents

    Contents Parts Included Set Up Operating Instructions Troubleshooting Closedown Storage Maintenance IMPORTANT THIS PRODUCT IS DESIGNED TO FILL PRE-CHARGED PCP AIR GUNS AND PAINTBALL GUNS DIRECTLY. IT CAN ALSO BE USED TO TOP UP SMALL TANKS, BUDDY BOTTLES, AND CYLINDERS UP TO 4 LITRES.

  • Page 3: Parts Included

    Parts Included 1x EC-3000 Compressor 1x Power Cable 1x High Pressure Filling Hose 1/8” and male Quick Release Coupling 1x Hill H8000 Oil 1x Hill Silicone Oil...

  • Page 4: Set Up

    Set Up CAUTION - please read and understand the following instructions before use. CAUTION - ONCE YOU HAVE CORRECTLY FILLED THE COMPRESSOR WITH LUBRICANTS, THE COMPRESSOR MUST BE KEPT UPRIGHT AND LEVEL AT ALL TIMES. ENSURE THE COMPRESSOR IS USED ON A NON-SLIP FLOOR, PREFERABLE SAT ON ANTI-SLIP MATTING.

  • Page 5: Operating Instructions

    2. Silicone Lubricant Level Fill the lubricant reservoir up to the blue line using the following:   Remove blue cap - screw anticlockwise Slowly squeeze the Hill Silicone Oil through the exposed hole until the oil reaches the limit indicated on the reservoir DO NOT MIX CRANK OIL AND SILICONE OIL Replace blue cap until finger tight...
  • Page 6 Switch compressor on The screen will briefly show the Hill logo, the software version and the accumulated running hours before requesting confirmation that the lubricant levels have been checked and are correct Press the rotary control knob to confirm the lube check The display will then change to “set pressure”.
  • Page 7 To set the pressure, rotate the control knob clockwise to increase the fill pressure required. When you reach the desired pressure, press the control knob to confirm. The maximum pressure that can be set is 300BAR (4350PSI/30MPa). DO NOT SET THE COMPRESSOR ABOVE THE MANUFACTURER’S RECOMMENDED PRESSURE FOR THE CYLINDER YOU ARE FILLING.
  • Page 8 The display will show the progress of the depressurisation until it reaches the minimum display value 0BAR. You can disconnect the cylinder. The display will revert to the “set required pressure screen” After one accumulative hour of pumping, the compressor will stop and request that you check the lubricant levels.

  • Page 9: Troubleshooting

    Troubleshooting - Compressor will not start Make sure that the power cable is inserted correctly and that the compressor is switched on, check that the fuse in the switch has not blown - Pressure does not exceed 50BAR and air escapes from the Pressure Relief Valve See maintenance on website for Disc Valve cleaning - Pressure asked for on compressor is not pressure in cylinder...
