RVM1535MMSA – Hotpoint
rvm1625 1535 Dimensions (in inches)
Dimensions (in inches)
21-3/4
Door open
Important Information: When installing the microwave oven over a range, allow
minimum of 2" from bottom of Counter Saver Plus microwave oven to top of range
backguard to allow for removal of light covers.
Installation Information: This information is not intended to be used for installing
unit described. Before installing, consult installation instructions packed with product/
kit for current dimensional data.
Specification Revised 1/07
440023

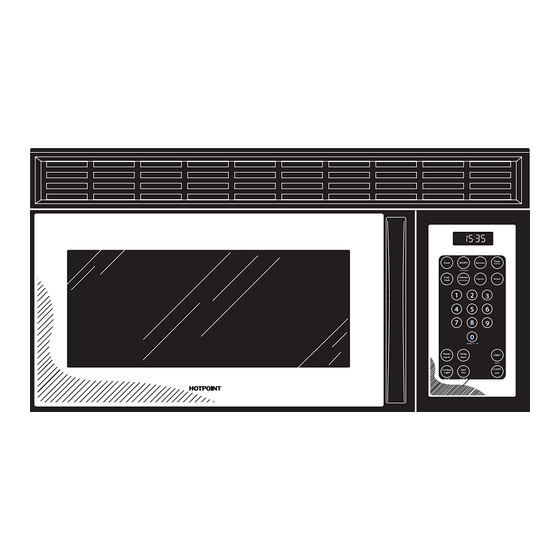

1.5 Cu. Ft. Over-the-Range Microwave Oven
®
66" MIN.
Mounting
30" MIN.
height
width required
from floor
12"
MIN.
15-1/16
16-1/2
15-3/4
Optional Accessories (Available at additional cost)
Exhaust outlet
connects to
3-1/4" X 10" duct
Ventilation Options: The microwave oven is designed for adaptation for the
following three types of ventilation:
Outside Exhaust (Vertical – Delivered from factory in vertical position)
Outside Exhaust (Horizontal)
Recirculating (Non-vented ductless)
Listed by
Underwriters
Laboratories
JX81J –
Recirculating
Charcoal Filter Kit
To be used when the
Counter Saver Plus
microwave oven
cannot be vented to
the outside.
