Summary of Contents for DigiTech AP4014

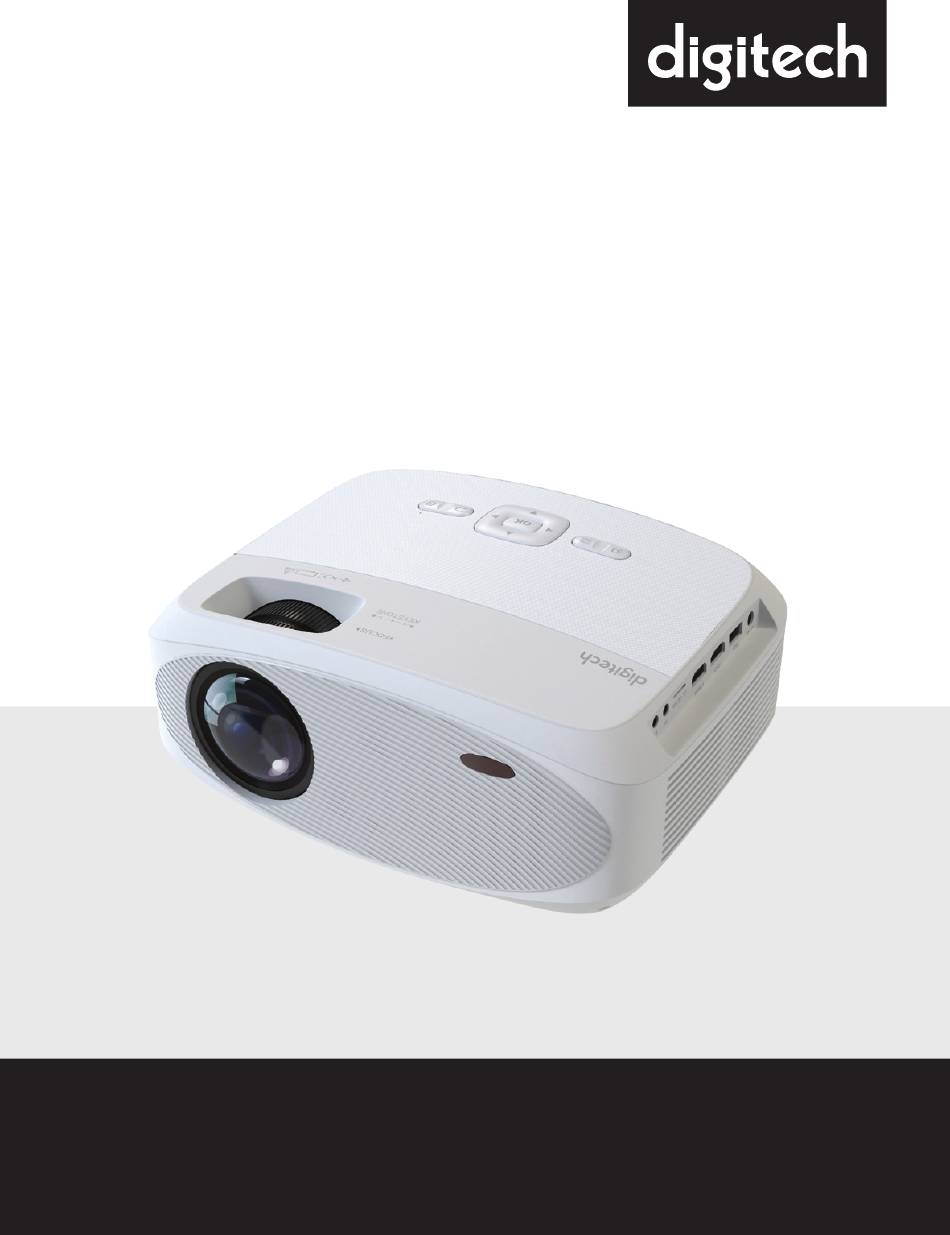

- Page 1 1080p Projector with HDMI, USB, SD + AV Inputs with Built-in Speakers Model: AP4014 Instruction Manual...
-
Page 2: Table Of Contents
Contents Safety Instructions & FCC Warning ..............02 Package Listing ..................... 03 Remove & Close The Lens Cover ................ Boot Operation Guide ..................Distance Between The Projector And Screen ............. Viewing Options ....................Placing Your Projector On Ceiling ................ Adjust the Vertical Location .................. -
Page 4: Package Listing
Package Listing 1080p Projector with HDMI, USB, SD + AV Inputs with Built-in Speakers Model: AP4014 Instruction Manual Remove & Close The Lens Cover Remove the lens cover before using Close the lens cover when unit not using Lens Cover... -
Page 5: Boot Operation Guide
Boot Operation Guide TURN ON 1) Press the power button 2) The projector turned on after 5 seconds. TURN OFF 1: Turn off the power button 2: Unplug the power switch. Note: Please turn off the projector before unplugging the power source , so as not to affect the operation of the projector. -
Page 6: Viewing Options
Viewing Options The projector can be used to project onto a wall or screen, mounted from the ceiling or on a table, When projecting from the rear position, a special screen will be needed (not included) to display the image. Be sure to aim the remote at the sensor on the front or rear of the projector. -
Page 8: Functional Overview
Functional Overview Menu UP OK Return Left Down Right Source Power On/Off AV IN Port Audio Out Port Micro SD(TF) Port HDMI Port 1 HDMI Port 2 USB Port DC Input Port... -
Page 10: Install Remove Battery Of Remote
Install Remove Battery Of Remote Remove the battery compartment cover on the back of your remote by carefully sliding to open. The battery cover can then be lifted away. Fit the correct batteries (2XAAA batteries not included), referring to the polarity markings. Finally, replace the cover. NOTE: Batteries shall not be exposed to excessive heat such as Make sure that the batteries are installed polarity correctly. -
Page 11: Multimedia Connection
Multimedia connection Insert USB / Micro SD card ( TF card ) into the corresponding slots (as shown in the picture). Choose Media source, Select " Video ", " Music ", " Picture " to enter the content you want to play. -
Page 12: Hdmi Device Connection
HDMI device connection The projector can connect to devices with HDMI input function. It is compatible with laptops, DVD players, Blu-ray players, Chromecast, TV Stick, etc. An HDMI cable is not included. The projector is equipped with 2 HDMI input ports, ①If you connect your devices to the projector via "HDM 1"... -
Page 13: Av Video Device Connection
AV video device connection Connect the projector AV interface with the AV cable (Not include ), as is shown in the pictures. HDMI1 HDMI2 Media Player Projector Video CableI: YELLOW Audio Left Channel: WHITE Audio Right Channel: RED AV OUT Female AV Cable(not included) Portable DVD Player / Video Player Male AV Cable... -
Page 14: Using Bluetooth Playback
Using Bluetooth playback OSD Language English PICTURE Bluetooth SOUND Restore Factory Default Projection mode Front OPTION Info TIME Adjust Select Menu Bluetooth On/Off Turn on Bluetooth. The projector will begin searching for a nearby Bluetooth device，choose one and connect successfully. Pairing to Bluetooth Wireless Speaker When successfully connected, the projector will display the... - Page 16 Q: I get a blurry image? A: The recommended projection distance is 3-9ft. Please adjust the Keystone correction ocus to get a clear image. The optimal focus is obtained when the pixels are clearly visible. If the projection size is Q: My projector noise is too loud, is it broken? A: The projector noise comes from the fan of its cooling system .
- Page 17 Light Source Type Display Native Resolution 1080P Supported Video Resolution 1080p, 1080i,720p, 576i,480p,and 480i Included Adapter Connect Input AC100-240V , 50/60HZ DC input of the unit Output DC19V, 5A Display Color 7000K~8000K Connect Types HDMI / USB / Micro USB(TF) / AV / Audio Input HDMI*2 / AV*1 / Micro USB(TF) *1 / USB*1 Output...
