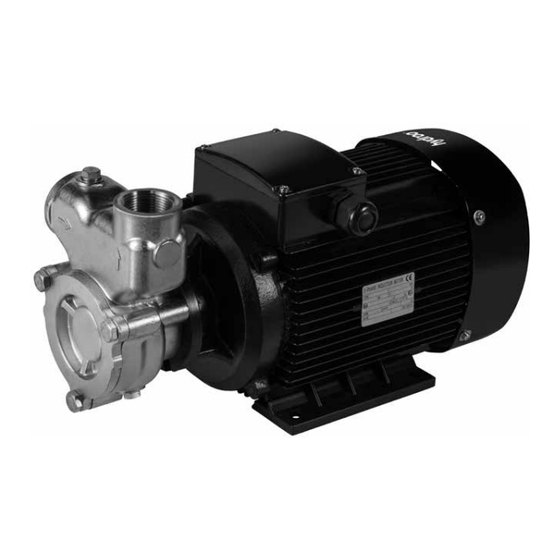

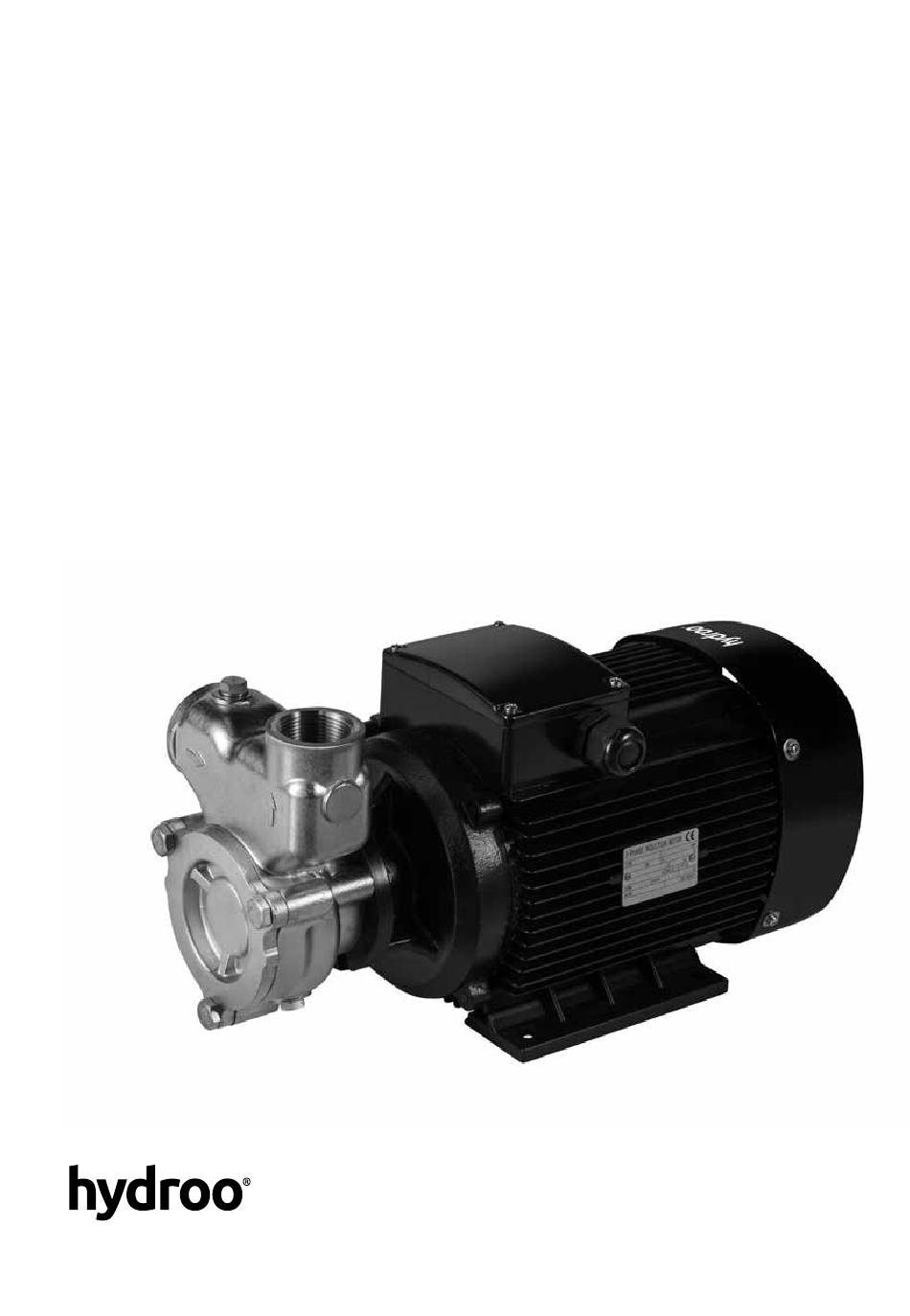

- Page 1 NDROO SERIES Stainless Steel Self-suction Gas-liquid Mixing Pump Operation Manual HYDROO Pump Industries SL...
-
Page 2: Table Of Contents
Low Voltage Directive: 2006/95/EC Electromagnetic Compatibility Directlve: 2004/108/EC Name of manufacturer or supplier HYDROO PUMP INDUSTRIES, S.L. Full postal address including country of origin C/ La Banyeta Nova, 11 - P.I. La Banyeta, 17843 Palol de Revardit (Girona) - Catalonia - Spain Description of product HQX(B), HQXL(B) is a horizontal self-suction gas-liquid mixing pump. -
Page 3: General
III. OpERatING cONDItIONS Read this manual carefully before install, start the pump · Thin, clean, low-viscosity liquid; · PH Value: 3-9 · Liquid temperature: -15°C — +120°C · Ambient temperature: Max +40°C · Gas liquid volume comparison: 1:9 ( Gas suction quantity is 8%-10%) ·... -
Page 4: Drawing
V. DRawING... - Page 5 VI. HQX(B) INStallatION SkEtcH VII. HQXl(B) INStallatION SkEtcH HQX(B) INStallatION DImENSIONS HQXl(B) INStallatION DImENSIONS Size (mm) Size (mm) Weight Weight Model Model (kg) (kg) HB HC HG AB HA HB HC HG AB 20HQX-1 195 150 110 320 120 100 G3/4 G1/2 20HQXL-1...
-
Page 6: Usage Or Operation
VIII. USaGE aND OpERatION 1.- Operation 1) Before the first operation, fill water to the pump fully, then open the inlet valve and The discharge diameter of the pump The volume of the gas liquid separating tank outlet valve completely.After close the gas inlet valve and outlet pressure meter, ~32 mm 4 kilolitre switch on the power shortly to check the pump rota-ting direction. -
Page 7: Maintenance
IX. maINtENaNcE Wearing parts Standard of replacement Normal replacement period Mechanical seal Leakage exceeds required amount Once a year Before maintenance, shut off the power supply. Because it is dangerous that the pump Bearing There is abnormal noise or grease leaks Once in two or three years would start abruptly when in automatic mode. -
Page 8: Fault Finding And Solution Chart
2. Impeller is blocked. 3.- During the guarantee period, the consumer shall hold all liabilities for the quality Motor does not rotate to HYDROO for repair 3. There is grain in the volute problems due to disassembly by himself. 3. Disassemble, remove grain 1. - Page 9 Be pumping partners HYDROO Pump Industries SL 201905-IOM-HQX-EN Ctra. Girona-Banyoles, km. 10 subject to amendments 17843 Palol de Revardit Catalonia. Spain Tel. +34 972 394 654 E-mail: info@hydroo.com www.hydroo.com...
