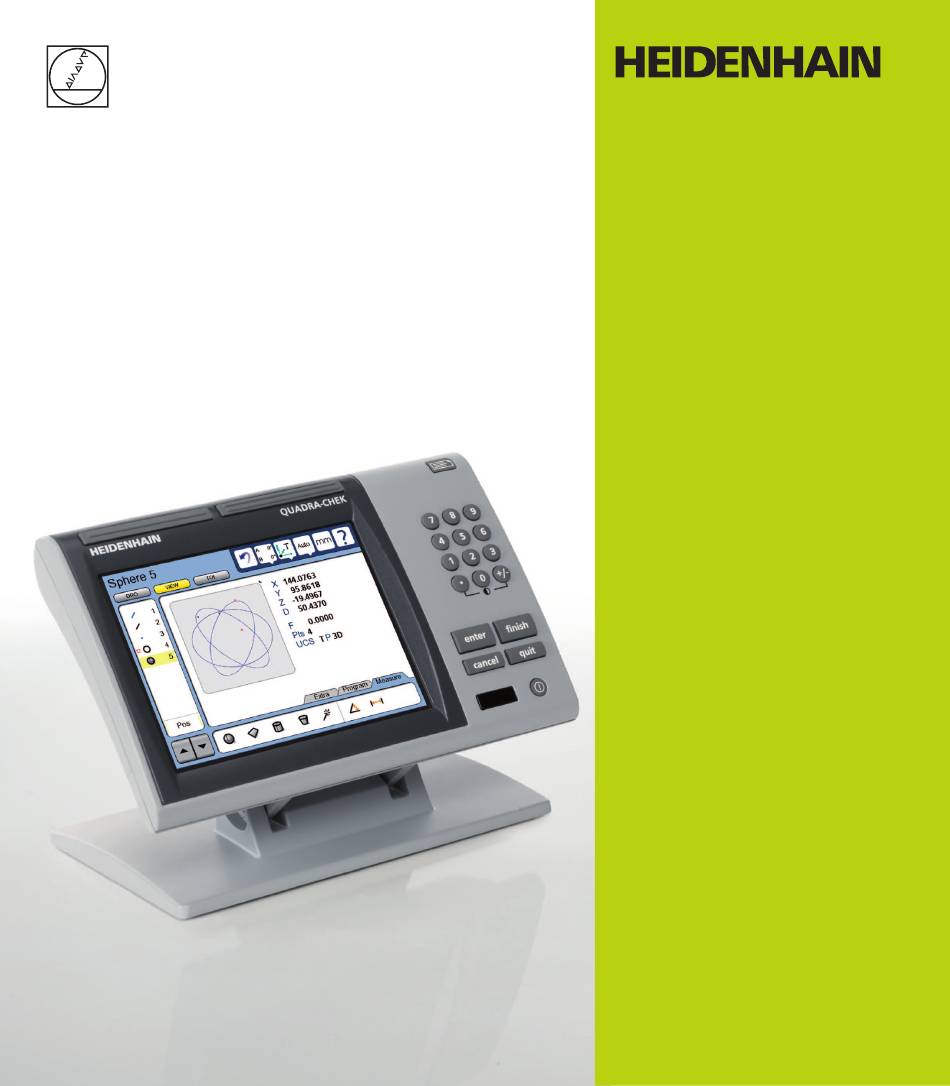

Page 1 Operating Instructions ND 1400 QUADRA-CHEK (QC 330) English (en) 9/2013...
Page 2 QC-330 Series User’s Guide Touch Probe Systems QC-330 and QC-331 ...
Page 3 QC-330 Series Touch Probe Systems User’s Guide User’s Guide part number: 11A10609 Revision 0 Publishing date: June, 2008 Printed in United States of America QC-330 software version: 1.40 All information set forth in this document, all rights to such information, any and all inventions disclosed herein and any patents that might be granted by employing the materials, methods, techniques or apparatus described herein are the exclusive property of Metronics Inc., Bedford, New Hampshire. Terms, conditions and features referenced in this document are subject to change without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permis- sion of Metronics, Inc.. Requests to Metronics, Inc. for permission should be addressed to the Technical Services Department, Metronics, Inc., 30 Harvey Road, Bedford, New Hampshire 03110. Limit of liability and disclaimer of warranty While this guide was prepared with great care, Metronics makes no representations or warranties with respect to the accuracy or completeness of the contents of this book and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. The advice, methods and instructions contained in this book might not be suitable for your situation. When in doubt regarding suitability, you...
Page 4 Conventions & Terms QC-330 refers to any of the QC-330 series of instruments. System refers to the QC-330 and the measuring devices connected to it. Icons This guide uses the following icons to highlight information: WARNINGS The raised hand icon warns of a situation or condition that can lead to personal injury or death. Do not proceed until the warning is read and thoroughly understood. DANGEROUS VOLTAGE The lightning icon warns of the presence of a dangerous voltage within the product en- closure that might be of sufficient magnitude to cause serious shocks or death.
Page 5 WARNINGS Disconnect the QC-330 from power before cleaning. The QC-330 is equipped with a 3-wire power plug that includes a separate ground connection. Always connect the power plug to a 3-wire grounded outlet. The use of accessories that remove the third grounded connection such as a 2-wire power plug adapter create a safety hazard and should not be permitted.
Page 6: Table Of Contents
Contents Chapter 1 Overview Overview of the QC-330 features and functions .......1 Chapter 2 Installation Unpacking the QC-330 ..............5 Assembling the mounting stand ............6 Safety considerations .................6 Power cord and plug ..............6 Electrical wiring and connections ..........6 Location and mounting ...............7 Power surge suppressor ..............7 Connecting axis encoders ..............7 Connecting the touch probe input ............8...
Page 7 Contents 2 QC-300 Series User’s Guide Rotate about axis function ...........19 Multiple Extra tabs ..............19 Feature list ..................20 System functions ................21 Undo ...................21 Probe . holder ................21 Reference frame ................21 Projection ..................22 Unit of measure ................22 Setup ...................22 Command buttons and wide keys ............23 Number keys ..................24 LCD ON/OFF and deleting feature data ..........25 Printing reports and sending data ............26...
Page 8 Contents 3 QC-300 Series User’s Guide Chapter 6 Measuring Measurement activities ..............38 The measurement process ..............38 Establishing a reference frame ............39 Part leveling ................39 Part skew alignment ..............40 Establishing a datum zero point ..........41 Saving the reference frame ............43 Saving reference frames manually ........43 Saving reference frames automatically .......44 Measuring features ................45 Selecting a projection plane ............45...
Page 9 Contents 4 QC-300 Series User’s Guide Chapter 7 Tolerances Applying tolerances to features ............69 Select a feature from the feature list ..........69 Select the desired fit algorithm ............69 Display the TOL screen ..............69 Select a tolerance ................70 Position tolerances ..............
Page 10 Contents 5 QC-300 Series User’s Guide Chapter 8 Programming Creating programs ................83 Start program recording ..............84 Enter a program title (or user message) ......... 85 Create a reference frame for measurements ........86 Measure a feature (include a message) .......... 86 Apply a tolerance ................
Page 11 Contents 6 QC-300 Series User’s Guide Chapter 10 Setup The Setup Menu ..................104 Accessing and using the Setup Menu ..........104 Entering the supervisor password........... 105 Selecting items from the Setup Menu ........106 Selecting setup parameter choices .......... 106 Entering and deleting setup data ..........
Page 12 Contents 7 QC-300 Series User’s Guide Probe screen ................... 123 Probe holder ................123 Hard probe ................123 Probe active level is high............123 Debounce time ................ 123 Probe to probe delay ............... 124 Direction threshold ..............124 Qualification diameter ............124 Qualify at startup ..............
Page 13 Contents 8 QC-300 Series User’s Guide Header screen ..................135 Creating report headers ...............135 Print screen ..................136 Specifying a data type ..............136 Specifying a data destination ............136 Report Type ................136 Lines per page ................136 Specifying column separators .............137 Ports screen ..................138 Baud rate ..................138 Word length ................138 Stop bits ..................138...
Page 14 Contents 9 QC-300 Series User’s Guide Chapter 12 Reference Material Product specifications ..............151 Electrical ................. 151 Environmental ................ 151 Dimensions ................151 LCD ..................151 ENC tests ................151 Footswitch & handswitch wiring ........... 152 RS-232 connector wiring ............... 153 Tolerances ..................
Page 15 Chapter 1: Overview The Quadra-Chek 330 series is a family of advanced digital readout systems for per- forming 2, 3 and 4 axis measurements at very high levels of precision and accuracy. Dimensional inspection of components can be made using CMM touch probe systems as part of in-line production activities or final quality inspection.
Page 16 QC-300 Series User’s Guide Wide keys Print/Send data Touch screen controls Numeric keypad Command keys Color touch screen LCD ON/OFF Speaker and external speaker jack outputs are provided that can be adjusted for quiet or noisy environ- ments. Ear phones can be plugged into the external speaker jack to facilitate silent operation in quiet environments.
Page 17 Description of QC-330 Features External footswitch Touch probe Speaker jack input USB ports Encoder inputs RS-232 port Tilt adjust The compact ergonomic design and adjustable-tilt front panel of the QC-330 allow users to locate and mount the instrument in a wide variety of environments that accommodate nearly any viewing require- ment.
Page 18 QC-300 Series User’s Guide...
Page 19: Installation
Chapter 2: Installation The QC-330 is easy to install in a variety of basic and advanced measurement applications. This chapter describes how to unpack and install the QC-330. Repackaging instructions are also included for return shipments and for distributors and OEM customers that are configuring a QC-330 and shipping it to an end-user.
Page 20: Assembling The Mounting Stand
QC-300 Series User’s Guide Assembling the mounting stand The QC-330 is secured to the swivel slots of the mounting stand by a shoulder screw, a cap screw and associated washers. Assemble the QC-330 to the mounting stand as shown. Tighten the shoulder screw (1), and then tighten the cap screw (5) and washers (3 &...
Page 21: Location And Mounting
Safety and Power Location and mounting Rest the QC-330 on a flat, stable surface, or bolt it to a stable surface from the bot- tom using four 10/32 screws fastened in the pattern shown at the right. Power surge suppressor Connect the QC-330 to power through a high-quality power surge suppressor.
Page 22: Connecting The Touch Probe Input
QC-300 Series User’s Guide Connecting the touch probe input The fixed or manually indexed touch probe is connected to the ® Renishaw connector on the rear of the QC-330. Verify that the QC-330 is off. Connect the touch probe to the Renishaw connector on the rear panel.
Page 23: Connecting A Computer
Connections Connecting a computer Verify that the QC-330 and computer power are off. Connect a computer COM port to the QC-330 RS-232 se- rial port using a standard straight-through serial cable (Metronics part number 11B12176). Make sure the cable connectors are tight, but do not overtighten the connector screws.
Page 24: Warranty Registration Form
QC-300 Series User’s Guide Warranty registration form The warranty registration form included in the shipping carton should be completed and mailed as soon as possible. Also record the purchase and warranty information here so that it will be readily available later to support any necessary interactions with distributor or factory technical support personnel.
Page 25: User Interface
Chapter 3: User Interface The QC-330 user interface consists of hardware front panel buttons and number keys that work in coopera- tion with software menus, buttons, and data fields shown on the color LCD touch screen. The hardware/ software interface is divided into the function areas listed and shown below. •...
Page 26: Lcd Screen Functions
QC-300 Series User’s Guide LCD Screen functions The LCD functions are used to select screens that support operator activities. Touch a button to select the desired screen. • DRO Displays the digital readout • VIEW Displays the selected feature’s data cloud and physical geometry •...
Page 27: Data Display
LCD Screen Functions Data display Data is displayed on the DRO, View and Tol screens. DRO screen Press the DRO button to display the DRO screen. Measurement data, reference frame, projection, part alignment controls and part datum controls are shown on the DRO screen. Part datum controls Feature data:...
Page 28: View Screen
QC-300 Series User’s Guide View screen Press the VIEW button to display the VIEW screen. Measurement data, reference frame, projection and an image of the data cloud and resulting feature geometry are shown on the View screen. Data cloud and feature geometry Feature data: major coefficients...
Page 29: Tol Screen
LCD Screen Functions TOL screen Press the TOL button to display the Tolerance screen. Tolerance data, tolerance type selections and tolerance specification fields are shown on the TOL screen. Tolerance type Measurement results Specification Tolerance of nominal specifications values Tolerance type selection controls...
Page 30: Measurement Functions
QC-300 Series User’s Guide Measurement functions The measurement functions are divided into three tabbed areas: • Measure Select a measurement type, such as circle, line or sphere • Program Record, edit or play back a program of measurement steps • Extra Send data to the RS-232 port Selecting a measurement type Measurement types are selected from the Measure tab.
Page 31: Accessing Programs
Measurement Functions Accessing programs Programming functions are accessed from the Program tab. Touch the Program tab to display a list of programs and show programming tools. Details regarding programming and the use of programming tools are provided in Chapter 8: Programming. Touch the Program tab...
Page 32: Sending Data To A Computer From The Extra Tab
QC-300 Series User’s Guide Sending data to a computer from the Extra tab Touch a data icon shown in the Extra tab to send the corresponding data element for the current position or selected feature to a computer over the RS-232 serial port. Touch the Extra tab again to display more data choices.
Page 33: Extra Tab Functions
Measurement Functions Extra tab functions Space menu insert The space insert is included in the Extra tab to separate control functions into groups on the tab. Divider line menu insert The divider line insert is included in the Extra tab to separate control functions into groups on the tab without using a space insert.
Page 34: Feature List
QC-300 Series User’s Guide Feature list The feature list provides access to all features that have been measured, constructed or created. Features are selected by touching them in the feature list, and are then viewed or toleranced in other screens. When the feature list contains too many entries to be displayed on a single screen, the arrow keys at the bottom of the list are used to scroll up or down through all features.
Page 35: System Functions
Feature List and System Functions System functions System functions System functions support a wide variety of measurement and setup activities. System functions include: • Undo • Probe holder • Reference frame • Projection • Unit of measure (mm/Inch) • Setup Undo The undo function is very similar to the Windows undo function and erases the last measurement...
Page 36: Projection
QC-300 Series User’s Guide Projection The projection button shows the active 2D or 3D projection plane or coordinate system. Touching the projection button displays a drop down menu of available 2D projection planes or 3D coordinate systems that can be selected. Auto instructs the system to choose the projection plane or coordinate system that best matches the current measurement activities.
Page 37: Command Buttons And Wide Keys
Command Buttons and Wide Keys Command buttons and wide keys The command buttons and wide keys are primarily used to support measurement and setup activities. The command wide keys are duplicates of the Enter and Finish functions which are the most frequently used command buttons, and can be located and pressed easily by the operator without looking at the front panel.
Page 38: Number Keys
QC-300 Series User’s Guide Number keys The number keys are used to enter data into feature constructions and creations, tolerances, programs, and setup data fields. Numbers are entered into data fields in the conventional manner, and can be erased when necessary by backspacing over them using the Cancel button.
Page 39: Lcd On/Off And Deleting Feature Data
Number Keys and LCD On/Off LCD ON/OFF and deleting feature data The LCD screen can be turned off without cycling power when the QC-330 will be idle for an extended period and it is desirable to retain the original ma- chine zero encoder references.
Page 40: Printing Reports And Sending Data
QC-300 Series User’s Guide Printing reports and sending data Feature data shown on the DRO screen or contained in the feature list can be printed in reports using the USB port or sent to a computer over the RS232 se- rial port.
Page 41: Quick Start Demonstration
Chapter 4: Quick Start Demonstration This chapter demonstrates the operation of the QC-330 system. The demonstration is provided as a means of quickly helping experienced operators to use the system. This demonstration will be most helpful if you perform the measurements and other activities as you follow along. The demonstration will use the Metronics 3D Demo part to establish a measurement reference frame, measure a part feature, apply a tolerance, print a tolerance report and save all these activities as a program that can be recalled and run again later.
Page 42: Start Recording A Program
QC-300 Series User’s Guide Start recording a program To record the following activities as a program: Touch the Program tab to dis- play the program screen and then touch the Record icon. The text entry screen will be displayed. Enter a program title and press the Finish key.
Page 43 Quick Start Demonstration The part reference plane is leveled... the X-axis edge is skewed... the Y-axis edge is measured ... and a datum is constructed...
Page 44: Measure A Feature
QC-300 Series User’s Guide Measure a feature In this example, the largest hole in the 3D demo part will be measured. Feature measurements are de- scribed in Chapter 6: Measuring. Measurement data are displayed Apply tolerances to a feature measurement In this example, a true position tolerance will be applied to the circle measurement.
Page 45: Print A Report
Quick Start Demonstration Print a report To print a report of the current position (Display), the feature list (Report) or tolerances (Tol Report): Verify that the QC-330 is attached to a USB printer as described in Chapter 9: Communication. Verify that the report content and printer formatting are specified correctly in the Print setup screen described in Chapter 9: Communication and Chapter 10: Setup.
Page 46 QC-300 Series User’s Guide...
Page 47: Probe Qualification
Chapter 5: Probes Probe holders supported by the QC-330 include: • Single • MH8 indexable • MH20i indexable • Star • MIH indexable • Friction Single Star MH20i Friction Probes can be touch probes or hard probes. The choices of probe holder and probe type are made in the probe setup screen described in Chapter 10: Setup.
Page 48 QC-300 Series User’s Guide Friction probes must be qualified each time the probe position is changed. Probe qualification can be performed at any time. A measurement sequence can be interrupted to qualify a new probe tip or position without invalidating the measurement. To qualify a probe: Touch the probe icon to display the Se- lector and Property tabs.
Page 49: Probing Technique
Probing Technique and Auto Change/Teach Probing technique Probing technique refers to the method of moving CMM axes and entering point data with a touch probe. Good probing technique includes the following: • Approach the surface at a 90° angle • Approach the surface without direction changes from a distance of at least 5 mm •...
Page 50 QC-300 Series User’s Guide...
Page 51 Chapter 6: Measuring Measurements can be performed using single-fixed, star, indexable or friction hard probes or touch probes. Activities can be limited to probing features, or can include the construction or creation of new features in addition to probing. However measurements are conducted, the fundamental measurement process and the tools required to perform measurements remain unchanged.
Page 52: Measurement Activities
QC-300 Series User’s Guide Measurement activities QC-330 measurement sessions can include two or more of the following activities: • Establishing a measurement reference • Constructing features • Probing and measuring features • Creating features The measurement process The basic measurement process shown here is identical for all feature types. The details of individual measurement steps are described in the remaining pages of this section.
Page 53: Establishing A Reference Frame
Establishing a Reference Frame Establishing a reference frame A reliable measurement reference must be established before part features can be probed and measured. This reference frame is created by the user to ensure a level part surface, precise part alignment and ac- curate datum zero.
Page 54: Part Skew Alignment
QC-300 Series User’s Guide Part skew alignment When the part is misaligned (twisted) in the X-Y plane, errors can be generated during the measurement process. These errors can be eliminated by performing a skew alignment on the part. The skew alignment includes a precise measurement of the part misalignment. Once the misalignment is known to the system, subsequent feature measurements are automatically compensated to eliminate misalignment errors.
Page 55: Establishing A Datum Zero Point
Establishing a Reference Frame Establishing a datum zero point The datum zero point is used as the origin of the reference frame. The datum zero point can be positioned in any location that satisfies the measurement requirements of the user and can be created by probing a point, but is probably better created by constructing a point from parent features.
Page 56 QC-300 Series User’s Guide Establish the zero datum point by touching the Zero buttons for the X and Y axes. The datum point will be shown in blue in the feature list and the X-Y values will be zero.
Page 57: Saving The Reference Frame
Establishing a Reference Frame Saving the reference frame Measurements are referred to a temporary reference frame until a new reference frame is saved. Temporary reference frames are indicated by a T in the reference frame icon in the upper-right corner of the screen, and by a T in the UCS (user coordinate system) field of the DRO.
Page 58: Saving Reference Frames Automatically
QC-300 Series User’s Guide Saving reference frames automatically The QC-330 can be configured to save reference frames automatically in the Measure setup screen, as described in Chapter 10: Setup. When configured to auto-save reference frames, the current reference frame is saved each time a new datum operation is initiated.
Page 59: Measuring Features
Measuring Features Measuring features Part features are measured after creating a reference frame by selecting a projection plane (if required) and then probing points that define the feature’s shape and location. Selecting a projection plane Projection planes can be selected by the user or selected automatically by the system and include: •...
Page 60: Probing Features
QC-300 Series User’s Guide Probing features Feature points can be probed using Measure Magic or by choosing a specific feature type such as the line or circle. Measure Magic or measure functions are selected by touching icons in the measure toolbar. Repeat- edly touching the measure tab toggles the measure toolbar between 2D and 3D functions.
Page 61: Probing Without Measure Magic
Measuring Features To probe a feature using Measure Magic, touch the Measure Magic measure icon (if not configured to auto-start), probe points on the desired feature and then press the Finish key. Probing specific feature types without Measure Magic When Measure Magic is not used, a measure icon must be touched before a feature type is probed. How- ever, a series of features of the same type can be probed by touching the desired measure icon and then touching the multiple measurement icon.
Page 62: Probing Process
QC-300 Series User’s Guide Probing process The feature probing process is essentially the same for all feature types. Touch the desired measure icon Probe the feature, then press Finish Results are displayed in the DRO to complete measurements and View screens Supported feature types The following feature measurements are supported by the QC-330: •...
Page 63: Backward/Forward Annotation
Measuring Features Backward/forward annotation Forward annotation is used to specify a required number of probed points for each feature type. Backward annotation allows the user to probe any number of points beyond the minimum requirement for any feature type except slots and rectangles. When using forward annotation, the number of remaining required points is shown at the top left of the screen.
Page 64: Probing Specific Feature Types
QC-300 Series User’s Guide Probing specific feature types While the probing process is essentially the same for all feature types, the minimum number of points required and the geometric placement of these points are different. The unique requirements for probing each feature type are described in the remainder of this section.
Page 65: Probing Lines
Measuring Features Probing lines A minimum of two points are required to measure a line. There is no practical limit to the number of points that can be probed, and in general accuracy is increased by probing more points. When only two points are probed, Measure Magic will correctly rec- ognize a line and assign the correct feature.
Page 66: Probing Circles
QC-300 Series User’s Guide Probing circles A minimum of three probed points are required to measure a circle. There is no practical limit to the number of points that can be probed, and in general accuracy is increased by probing more points. When 185 degrees or more of the circle is probed, Measure Magic will correctly recognize the circle and assign the correct feature.
Page 67: Probing Arcs
Measuring Features Probing arcs A minimum of three probed points is required to measure an arc. There is no practical limit to the number of points that can be probed, and in general accuracy is increased by probing more points. When the arc is less than 185 degrees, Measure Magic will correctly recognize the arc and assign the correct feature.
Page 68 QC-300 Series User’s Guide Probing slots and rectangles Five probed points are required to measure a slot or rectangle. The five points must be probed in a clockwise or counterclockwise sequence. As shown here, the correct pattern of points probed is: •...
Page 69: Probing Angles
Measuring Features Probing angles A minimum of four probed points are required to measure an angle. The points must be probed as two lines that form an angle. The number of points on the first leg of the angle must equal the number on the sec- ond leg.
Page 70: Probing Distances
QC-300 Series User’s Guide Probing distances Two probed points are required to measure a distance. Measure Magic can not be used to measure a distance. Measurement results are shown in the Feature list, View screen, and the DRO screen. The View screen shows the feature and the points used to define it, the X and Y axis displacements the distance vector between features,...
Page 71: Probing Planes
Measuring Features Probing planes A minimum of three probed points are required to measure a plane. There is no practical limit to the number of points that can be probed, and in general accuracy is increased by probing more points. A best fit algorithm is used to define the plane when more than three points are probed.
Page 72: Probing Cylinders
QC-300 Series User’s Guide Probing cylinders A minimum of six probed points are required to measure a cylinder. The points must be probed beginning with two sets of three points; one set of three at the top and another at the bottom of the cylinder. After the initial six points, there is no practical limit to the additional number of points that can be probed, and in general accuracy is increased by probing more points.
Page 73: Probing Cones
Measuring Features Probing cones A minimum of six probed points are required to measure a cone. The points must be probed beginning with two sets of three points; one set of three at the top and another at the bottom of the cone. After the initial six points, there is no practical limit to the additional number of points that can be probed, and in general accuracy is increased by probing more points.
Page 74: Probing Spheres
QC-300 Series User’s Guide Probing spheres A minimum of four probed points are required to measure a sphere. The points can be probed in any order. After the initial four points, there is no practical limit to the additional number of points that can be probed, and in general accuracy is increased by probing more points.
Page 75: Constructing Features
Constructing Features Constructing features Features can be constructed from one or more existing features. Existing features used to construct new features are called parent features, and can be features that were measured, constructed or created. Exist- ing features are shown in black, and constructed features are shown in blue in the View screen. Feature constructions are divided into seven categories: •...
Page 76: Extracted Features
QC-300 Series User’s Guide Extracted features Features such as points and lines can be extracted from parent features. In this example, an axis line is extracted from a cone. Select the line feature type... select the parent cone feature... then press the Finish key Intersection features Features such as points, lines and circles can be constructed from the intersections of positional, linear and plain features.
Page 77: Relation Features
Constructing Features Relation features Features such as angles and distances can be constructed by relating one linear feature to another or one positional feature to another. In this example, an angle is constructed between two lines. Select the line feature type... select the two plane features...
Page 78: Perpendicular/Parallel/Tangent Features
QC-300 Series User’s Guide Perpendicular/parallel/tangent features Line features can be constructed that are perpendicular, parallel or tangent to other linear or positional features. In these examples, a line is constructed through a point that is perpendicular to another line and a line is constructed that is tangent to two circles.\ Perpendicular line example Select the line feature type...
Page 79: Gage Line And Circle Features
Constructing Features Gage line and circle features Gage lines and circles can be constructed between to linear features. In this example, a gage line is constructed between two lines. When gage lines and gage circles are constructed, an extra step is required. The user must enter a gage line length or gage circle diameter.
Page 80: Creating Features
QC-300 Series User’s Guide Creating features Features can be created for any feature type by entering position, size and other parameters into feature data fields. The process for creating feature is identical for all feature types: Feature data fields are self-ex- planatory.
Page 81 Chapter 7: Tolerancing Tolerances can easily be applied to position, form, orientation, runout and size measurements using the tools found in the tolerance screens. CAUTION Discrete point measuring machines estimate the size, position, orientation, and form of geometric features based on points probed. When parts are designed with critical tol- erances, be sure that you have probed sufficient points to calculate a reliable estimate.
Page 82 QC-300 Series User’s Guide This chapter includes the following tolerance information: Applying tolerances to features ...............69 Select a feature from the feature list ............69 Select the desired fit algorithm ..............69 Display the TOL screen ................69 Select a tolerance ..................70 Position tolerances ................71 Form tolerances .................71 Orientation tolerances ................72 Runout tolerances ................72...
Page 83: Applying Tolerances To Features
Applying Tolerances to Features Applying tolerances to features Tolerances are applied to feature measurements using tolerance screens. The method of applying toler- ances to features is diagrammed below and is nearly identical for all tolerance types. In the following example, a true position tolerance is applied to a circle feature. Select a feature from the feature list Touch the desired feature in the feature list to select it.
Page 84: Select A Tolerance
QC-300 Series User’s Guide Select a tolerance Tolerance categories and the feature types that fit into each tolerance category are outlined below: Position Bidirectional True position MMC LMC Concentricity Point Point Circle...
Page 85: Position Tolerances
Position and Form Tolerances Position tolerances To select a position tolerance: Touch the position icon. Touch the Tolerance title to display the menu of position tolerance alternatives. Touch the desired position tolerance menu item. Bidirectional True position MMC LMC Concentricity Point Point Circle...
Page 86: Orientation Tolerances
QC-300 Series User’s Guide Orientation tolerances To select an orientation tolerance, touch an orientation icon. Orienta- tion icons include: Perpendicularity Parallelism Angle and Co-planarity Perpendicularity Parallelism Angle Co-planarity Line Line Angle Plane Cylinder Cylinder Cone...
Page 87: Enter Nominal, Limit Or Tolerance Values
Entering Values and Omitting Categories Enter nominal, limit or tolerance values To enter nominal, limit or tolerance values touch the desired data field and enter the value. In this example, the Nominal and Tol Dia (Tolerance diameter around the nominal position) values are entered by touching data fields and entering a new values.
Page 88: Tolerance Types
QC-300 Series User’s Guide Tolerance types As mentioned earlier, the method of applying tolerances to features is nearly identical for all tolerances. This section describes tolerances for each feature type. The following tolerance descriptions are includ- Position: Bidirectional, true position , MMC, LMC, concentricity Form: Straightness, roundness, cylindricity, flatness Orientation: Perpendicularity, parallelism , angle , co-planarity...
Page 89: Circles, Arcs And Spheres
Tolerance Types Enter the nominal values into the appropriate axis data fields. Enter the allowed limits into the Limit data fields as +/- ranges or as absolute limits. Touch the Limit data fields to toggle between +/- ranges or absolute limits. Circles, arcs and spheres The tolerance screens for circles, arcs and spheres are identical, and are used to specify the acceptable deviation from nominal positions in X, Y and Z axes, and from the nominal diameter or radius.
Page 90: Position/True Position
QC-300 Series User’s Guide Position/True position True position tolerances can be applied to points, lines, circles, arcs, spheres and cylinders. Points and lines The tolerance screens for points and lines are identical, and are used to specify the acceptable deviation from the nominal feature position. The true position tolerance compares the measured location of the cen- ter point to the nominal center point.
Page 91: Position/Mmc And Lmc (Material Conditions)
Tolerance Types Position/MMC and LMC (Material conditions) MMC and LMC tolerances can be applied to bosses or to bores, compare measured center locations to the nominal centers and compare measured diameters to nominal diameters. MMC and LMC tolerances can be applied to circles, arcs and cylinders. MMC Circles, arcs and cylinders The MMC tolerance screens for circles, arcs and cylin- ders are identical, and are used to specify the maximum...
Page 92: Lmc Circles, Arcs And Cylinders
QC-300 Series User’s Guide LMC Circles, arcs and cylinders The LMC tolerance screens for circles, arcs and cylinders are identical, and are used to specify the minimum material that can exist within a bore or on the surface of a boss. Minimum material within Minimum material on LMC tolerances can generate position bonuses as a re-...
Page 93: Position/Concentricity Circles And Arcs
Tolerance Types Position/Concentricity circles and arcs Concentricity tolerances can be applied to circles and arcs. The toler- ance entry screens are identical, and are used to specify the accept- able position deviation from a circle or arc concentric to a reference feature.
Page 94: Form/Cylindricity Cylinders
QC-300 Series User’s Guide Form/Cylindricity cylinders Cylindricity tolerances can be applied to cylinders. The tolerance screen is used to specify the acceptable deviation from a perfect cyl- inder. Enter the acceptable form deviation into the Tol Zone data field. Form/Flatness planes Flatness tolerances can be applied to planes.
Page 95: Orientation/Angle Angles, Cones
Tolerance Types Orientation/Angle angles, cones Angle tolerances can be applied to angles and cones. The tolerance screens are identical, and are used to specify the acceptable deviation from a nominal angle. Enter the allowed angle limits into the Limit data fields as +/- ranges or as absolute limits.
Page 96: Size/Width Distances
QC-300 Series User’s Guide Size/Width distances Width tolerances can be applied to distances and are used to specify the acceptable deviation from a nominal distance. The distance can be specified as a vector length (L) or as separate X, Y and Z lengths.
Page 97: Chapter 8 Programming
Chapter 8: Programming QC-330 programs are sequences of measurement steps performed on a part by the operator and stored by the system for playback later on other identical parts. Using the programming capabilities of the QC-330 greatly increases productivity by compressing the many manual steps required to measure, tolerance and report part dimensions into a few guided steps which are little more than operator responses to system prompts.
Page 98: Start Program Recording
QC-300 Series User’s Guide Start program recording Touch the Program tab to display the programming tools. When no previous programs have been recorded, only the record icon will be shown. When other programs already exist, all the program tool icons will be shown.
Page 99: Enter A Program Title (Or User Message)
Creating a Program Enter a program title (or user message) The method used to enter a program title is also used to enter any text message that will be played back during program execution as a user prompt. To enter a program title: Touch the character and control keys on the text entry screen to enter a unique name for your new...
Page 100: Create A Reference Frame For Measurements
QC-300 Series User’s Guide Create a reference frame for measurements Perform a level, skew and datum as described in Chapter 6: Measuring. In this example, the resting sur- face for the part is leveled, the bottom edge of the part is skewed, and a datum point is constructed from the left edge of the part and the skew line.
Page 101: Apply A Tolerance
Creating a Program Then measure the largest hole in the 3D demo part. Details of per- forming circle measurements are described in Chapter 6: Measur- ing. Measurement data are displayed Apply a tolerance Tolerance operations are described in Chapter 7: Tolerancing. In this example, a position tolerance is ap- plied to the hole feature measured in the last step.
Page 102: Stop The Program Recording
QC-300 Series User’s Guide Stop the program recording Touch the Program tab to display the programming icons, and then touch the Stop program icon to stop recording the program. The program title will be shown. and then new program name Touch the Program tab...
Page 103: Editing Programs
Editing Programs Editing Programs Programs can be edited to: • Revise units of measure • Revise tolerances • Revise user prompt messages • Insert or append program steps Editing existing steps The process for editing existing steps is diagrammed below and is identical for all types of revisions. A message will be displayed at the beginning of an edit session warn- ing the user that the current feature list will be cleared and asking for confirmation before continuing.
Page 104: Editing Tolerances
QC-300 Series User’s Guide Touch the units or loop count fields and perform the desired edits, then press the Finish key to save the changes and return to the program list. Editing tolerances Tolerances are contained in the feature measurement data associated with each feature in the feature list. Tolerances are initially assigned in tolerance screens when features are measured, as described in Chapter 7: Tolerancing.
Page 105: Editing User Prompt Messages
Editing Programs Editing user prompt messages To revise message text: Touch the Program tab, the program title and the Edit icon. Program steps will be displayed. Touch the Program tab... select a program and touch the Edit icon, settings will be displayed Touch the desired message icon and then touch the message text to display the text entry screen.
Page 106: Inserting Or Appending New Program Steps
QC-300 Series User’s Guide Inserting or appending new program steps To insert or append new steps into an existing program: Touch the Program tab, the program title and the Edit icon. Program steps will be displayed. Touch the Program tab... select a program and touch the Edit icon, settings will be displayed To insert steps, touch the program step before the insertion...
Page 107: Running Programs
Running Programs Running programs The operator will position the part and collect measurement data points in response to the program text and green runtime arrow displayed on the screen. When the program has successfully completed executing, feature data will be shown in the feature list and the screen will leave the program execution mode and display the current position.
Page 108: Saving And Retrieving Programs
QC-300 Series User’s Guide Saving and retrieving programs Programs can be saved by themselves, or included in settings files and saved as part of the complete col- lection of all QC-330 system settings. In either case, the files can be retrieved later and used again. Refer to Chapter 10: Setup for details regarding saving system settings files.
Page 109 Saving and Retrieving Programs Select the desired program and touch the Copy icon. The selected program will be copied from the USB drive (A:) to the local drive (C:). Select a program... and touch the Copy icon Touch the drive letter icon again to toggle to the local drive (C:).
Page 110: Deleting Programs
QC-300 Series User’s Guide Deleting programs Programs are deleted by selecting the desired program and pressing the Cancel key. You will be asked to confirm your intention to delete the program. Programs can be deleted on the local (C:) and USB (A:) drives.
Page 111: Chapter 9 Communications
Chapter 9: Communication The QC-330 communicates with computers over the RS-232 serial port and with printers over the USB port. Connecting to a computer Verify that the QC-330 and computer power are off. Connect a computer COM port to the QC-330 RS-232 serial port using a standard straight-through serial cable (Metronics part number 11B12176).
Page 112: Sending Data To A Computer
QC-300 Series User’s Guide Sending data to a computer Measurement data can be sent to a computer over the RS-232 serial port in the following formats: • None No data will be sent to the computer • Select User will be prompted to select the data that will be sent •...
Page 113: Sending Data To A Printer
Sending Data to a Computer and Printer Sending data to a printer The QC-330 supports certain USB printers. The printer must be approved for use by Metronics. The cur- rent printer is shown in the Print setup screen discussed in Chapter 10: Setup.
Page 114: Printing A Report
QC-300 Series User’s Guide Printing a report Feature measurement data or records of QC-330 system settings can be printed at the USB port. Printing feature measurement data Feature measurement data can be printed in the following formats: • None No data will be printed •...
Page 115: Printing Qc-330 System Settings
Printing Report and QC-330 Settings Printing QC-330 system settings To print a report of the QC-330 setup parameters: Touch the question mark Icon and display the setup menu. Press the Print key.
Page 116: Rs-232 Connector Pin Designations
QC-300 Series User’s Guide RS-232 connector pin designations Pin No. Description Direction Data in Input Data out Output Signal ground Reference Power on Output (always high) ASCII Code table...
Page 117 Chapter 10: Setup The operating parameters of the QC-330 must be configured prior to using the system for the first time, and any time part measurement, reporting or communication requirements change. Day to day use of the QC-330 does not require reconfiguration of the system settings. The Setup Menu ....................104 Accessing and using the Setup Menu ..............104 Essential setup requirements ................108...
Page 118: The Setup Menu
QC-300 Series User’s Guide The Setup Menu All setup operating parameters of the QC-330 are configured using screens accessed from the setup menu. Touching setup menu items on the left side of the setup screen display the corresponding setup parameter data fields and choice fields on the right side of the screen.
Page 119: Entering The Supervisor Password
The Setup Menu Entering the supervisor password The supervisor password must be entered into the Supervisor setup screen to access most setup fields. To enter the supervisor password: Access the setup menu as described on the pre- vious page. Touch the Supervi- sor menu item, enter the supervisor password us- ing the number keys on...
Page 120: Selecting Items From The Setup Menu
QC-300 Series User’s Guide Selecting items from the Setup Menu Setup menu items are selected by touching the item on the left side of the screen. Menu items will be- come highlighted to indicate that the selection is complete and the corresponding setup parameter choice and data fields will be shown on the right side of the screen.
Page 121: Storing A Parameter And Advancing To The Next Step
The Setup Menu Storing a parameter and advancing to the next step Press the Enter key to store the highlighted value and advance to the next setup field. Leaving the setup menu Press the Finish key to conclude the setup session.
Page 122: Minimum Setup
QC-300 Series User’s Guide Minimum setup In most cases, the QC-330 will be provided by a Metronics distributor or an OEM and will be configured and ready to use. Setup by the end-user will be unnecessary. However, if some Page 109 setup is required, a minimum sequence of steps should be per- formed in the order shown by this diagram.
Page 123: Setup Screen Descriptions
Minimum Setup Requirements and Language Screen Setup screen descriptions The setup screen descriptions are presented in the order of their appearance in the setup menu. However, the first time the QC-330 is configured, the order of setup screen use should follow the minimum setup diagram, and then continue in the order that best satisfies the application or the user’s preferences.
Page 124: Supervisor Screen
QC-300 Series User’s Guide Supervisor screen The Supervisor screen contains fields for entering the supervisor password, choosing to keep privileges until the power is cycled and locking the setup menu so that setup parameters cannot be viewed. Button controls are also provided for saving system settings to, or loading setting from the USB port.
Page 125: Saving And Loading Settings
Supervisor Screen Saving and loading settings System settings can be saved to storage devices, or loaded from storage devices attached to the USB port by connecting the USB storage device and touching the Save Settings or Load Settings button.
Page 126: Encoders Screen
QC-300 Series User’s Guide Encoders screen The Encoders screen contains data and choice fields for specifying encoder resolution, units of measure, encoder type, reference marks and other critical en- coder parameters for each measurement axis. Selecting an axis to configure Selections are made by repeatedly touching the Axis choice field to cycle through all the available mea- surement axes.
Page 127: Calibrating Analog Encoders
Encoder Screen Calibrating analog encoders The process of calibrating analog encoders is identical for current and voltage output devices. To calibrate an analog encoder: Select the desired axis and touch the Cal button. The calibration screen will be displayed and you will be instructed to move the axis. Touch OK and begin moving the axis in slow, gradual back and forth or up and down motions.
Page 128 QC-300 Series User’s Guide Check the Phase Display box to display the combined phases of the encoder output as an ellipsoidal pattern when the encoder is moved slowly between the limits of motion. Move the encoder and evaluate the resulting pattern. The combined-phase pattern will form a circle when the encoder output phase amplitudes are equal.
Page 129: Selecting Reference Marks
Encoders Screen Selecting reference marks Selections are made by repeatedly touching the Reference marks choice field to cycle through all the avail- able encoder reference mark types. In this example, the reference mark choices (None, Manual, Single and Absolute) are cycled by repeatedly touching the Axis choice field.
Page 130: Setting A New Machine Zero Reference
QC-300 Series User’s Guide Setting a new machine zero reference A machine zero is established each time the QC-330 is powered. However, it might be necessary or con- venient to change the location of the machine zero position to a new “home” position for measurements. To set a new machine zero position: Select the Machine Zero Offset data field, move the stage to the desired new machine zero position and touch the Set button.
Page 131: Squareness Screen
Encoders Screen and Squareness Screen Squareness screen The Squareness screen contains data and choice fields for calibrating the squareness of the measuring system. The calibration of stage squareness requires the use of a certified square artifact. To calibrate squareness: Place the square calibration artifact on the stage with one edge along the X-axis.
Page 132: Slec Screen
QC-300 Series User’s Guide SLEC screen The SLEC screen contains fields for enabling and configuring linear error correction (LEC) or seg- mented linear error correction (SLEC) for each en- coder axis. LEC or SLEC, which is right for my application? Any channel input device can include slight nonlin- earities over its measurement range.
Page 133 SLEC Screen Make sure the Enabled choice field is toggled to Off, and erase any existing data in all the data fields using the methods described earlier in this chapter. Sta- tion 0 should be displayed with zeros in the Standard, Observed and MZ Offset fields when this step is complete.
Page 134: Slec (Segmented Linear Error Correction)
QC-300 Series User’s Guide SLEC (Segmented linear error correction) SLEC compensates for encoder non-linearities by applying correction values to individual nonlinear seg- ments. These SLEC correction values are created by the QC-330 system using data provided by the user in the SLEC Setup screen. The SLEC setup data provided by the user consists of Standard (certified) and Observed (measured) values of a standard, or standards that cover the entire range of axis motion.
Page 135 SLEC Screen Make sure the Enabled choice field is toggled to Off, and erase any existing data in all the data fields using the methods described earlier in this chapter. Sta- tion 0 should be displayed with zeros in the Standard, Observed and MZ Offset fields when this step is complete.
Page 136 QC-300 Series User’s Guide QC-300 Series User’s Guide Enter the MZ Offset value noted earlier in step 2. Zero the DRO for the axis being calibrated at the part zero position of the standard and enter zeros into the Standard and Observed data fields for Station zero.
Page 137: Probe Screen
SLEC Screen and Probe Screen Probe screen The Probe screen contains fields for specifying and configuring the touch probe input. Probe holder Touch the Probe holder choice field repeatedly to cycle through the available probe types. Probe type include: • Single •...
Page 138: Probe To Probe Delay
QC-300 Series User’s Guide Probe to probe delay Probe to probe delay is the minimum quiet time between valid probe hits. Probe to probe delay eliminates the possibility of unintended multiple probe inputs due to probe vibration against a surface or mechanical switch noise.
Page 139: Find Qual Sphere At Startup
Probe Screen Find qual sphere at startup Once probe qualification is performed, the precise location of the qualification sphere is stored by the system and used to perform probe qualifications and probe changes using the auto change/teach function. However, if the system power is cycled off and back on, the location of the qualification sphere can be lost if: •...
Page 140 QC-300 Series User’s Guide Touch the properties tab, and then touch Reset to clear any offset or size values. Touch the Teach button to begin a probe qualification ses- sion. Perform the probe qualification by collecting 5 points on the qualification sphere; 4 around the center and 1 at the top. Press the Finish key to complete the qualification.
Page 141: Measure Screen
Probe Screen and Measure Screen Measure screen The Measure screen contains fields for specifying the method of data point collection, specifying the minimum number of points required to measure dif- ferent geometries, locking the reference frame, se- lecting distance presentations and configuring point filtration.
Page 142: Probe Hit Starts Measure Magic
QC-300 Series User’s Guide Probe hit starts measure magic Measure magic automatically selects a feature type, such as line or circle, based on the geometric orienta- tion of probed data points. Measure magic can be started manually by touching the measure magic icon prior to a mea- surement, or started automatically when the first new probe contact of a measurement occurs, thereby saving the user the time required to press a panel button.
Page 143: Enabling Point Filtration
Measure Screen Enabling point filtration Touch the Point Filtration choice field and toggle the choice to Yes to enable point filtration. Specifying a filtration error limit The quantization factor is the maximum acceptable error. For most measurements, a quantization factor of 3 microns or less can be applied.
Page 144: Display Screen
QC-300 Series User’s Guide Display screen The Display screen contains fields for configuring display resolution and other LCD display param- eters. Display resolution The display resolution fields are used to specify the resolution of measurements shown on the DRO and other screens.
Page 145: Default Units Of Linear Measure
Display Screen Default units of linear measure The Startup Units field is used to specify the default display of linear measurements when power is applied to the system. These display settings can be changed temporarily but will revert to the startup defaults when the power is cycled.
Page 146: Display Mode Switching
QC-300 Series User’s Guide Display mode switching The QC-330 provides two display modes for measurements, Single View and Dual View. In the Single View mode, the screen used for a measurement will be displayed again when the measurement is complete. In the Dual View mode, the last screen used for a measurement will be used again for the current mea- surement.
Page 147: Configuring The Extra Tab
Display Screen Configuring the Extra tab The Extra tab can be configured to contain controls for transmitting measurement data, performing da- tum operations and a variety of other functions. Up to 99 Extra tabs can be configured to be available on each system.
Page 148: Extra Tab Functions
QC-300 Series User’s Guide Extra tab functions Space menu insert The space insert is included in the Extra tab to separate control functions into groups on the tab. Extra tab divided by space into data and CNC groups Divider line menu insert The divider line insert is included in the Extra tab to separate control functions into groups on the tab without using a space insert.
Page 149: Header Screen
Display Screen and Header Screen Header screen The Header screen contains fields for formatting text headers for printed and exported reports. Creating report headers Two columns of three text headers can be created for the top left and right sides of reports, as shown in this example. To create a header: Touch the desired header field.
Page 150: Print Screen
QC-300 Series User’s Guide Print screen The Print screen contains fields for formatting printed reports and RS-232 data streams of feature measurement data. Specifying a data type The Print button initiates the transfer of data to the USB port for printing, or to the RS-232 serial port for communication with a computer.
Page 151: Specifying Column Separators
Print Screen Specifying column separators Columns of feature measurement data in printed reports and in transmitted data can be contiguous or can be separated by dividing lines, commas or Tabs. Touch the Column Separator choice field to cycle through the choices. RS-232 control characters Control characters can be added to the beginning and end of line and form data streams to accommodate the requirements...
Page 152: Ports Screen
QC-300 Series User’s Guide Ports screen The Ports screen contains fields for configuring the RS-232 serial communication port. The RS-232 communication port is used to send data to comput- ers. RS-232 port settings can be changed to match those of the receiving system. Baud rate Touch the Baud Rate choice field repeatedly to cycle to the desired serial data rate.
Page 153: Clock Screen
Ports Screen and Clock Screen Clock screen The Clock screen contains fields for setting the date and time included in data transmissions and printed on reports. To change a date or time value, touch the desired choice or data field and enter the desired value. Touch and cycle through choices Touch and enter numbers...
Page 154: Sound Screen
QC-300 Series User’s Guide Sound screen A sound can be generated by the system to call at- tention to point entries. The sound is generated each time the Enter button is pressed to enter a point as part of a measurement. Touch the Volume data field and enter a number to adjust the loudness of all sounds from 1 (very soft) to 10 (loud).
Page 155: Miscellaneous Screen
Sound Screen and Miscellaneous Screen Miscellaneous screen The Miscellaneous screen contains fields for cali- brating and configuring the LCD touchscreen. Return to DRO threshold The display automatically switches to display cur- rent position on the DRO from the View, Tolerance or DRO screens when the stage movement reaches or exceeds the DRO threshold value.
Page 156: Calibrating The Touchscreen
QC-300 Series User’s Guide Calibrating the touchscreen The touch-pressure of the touchscreen should be calibrated as part of the initial setup and when a new operator begins using the system. To calibrate the touchscreen: Confirm that the number of calibration rows and columns provide adequate touch-points to satisfy typical use requirements.
Page 157: Touch Zone Size
Miscellaneous Screen Touch zone size The size of the touch zone can be changed to accommodate different users. When the touch zone size value is zero, the touch zone extends only to the limits of the choice or data field. As the touch zone value is increased, the touch zone is increased beyond the perimeter of the field on all sides.
Page 158: Hardware Screen
QC-300 Series User’s Guide Hardware screen The Hardware screen contains fields that describe the software and hardware configuration of your system. This information will be essential to Metronics tech- nical support personnel if your system is upgraded or repaired.
Page 159: Problem Solving
Chapter 11: Problem Solving The development of the QC-330 was based on an installed base of more than 50,000 Metronics Quadra- Chek products. Years of continuous product improvement have resulted in an extremely reliable QC-330 product with few, if any problems. Problems experienced with the QC-330 are likely to be the result of printer or cable incompatibilities, instrument configuration or setup errors, encoder incompatibilities or malfunctions or setup and calibration issues.
Page 160: Symptoms, Possible Causes And Solutions
QC-300 Series User’s Guide Symptoms, possible causes and solutions Some common symptoms of problems are listed in the following pages with possible causes and solu- tions. No image is visible on the LCD screen Possible cause Possible solutions Power is not applied to the QC-330 Activate the main power source Connect the power cord or turn the power ON Replace the fuse...
Page 161: Reports Are Not Printed Or Are Incomplete
Symptoms, Probable Causes & Solutions Values displayed on the LCD screen are incorrect (continued) Possible cause Possible solutions Wrong in/mm unit of measure Specify the correct units of measure in the Encoders setup screen Wrong encoder reference mark is specified Correct the reference mark type in the Encoders setup screen Error correction is required to compensate...
Page 162: Reports Are Printed Incorrectly
QC-300 Series User’s Guide Reports are printed incorrectly Possible cause Possible solutions Printed report setup is incorrect Correct the report setup in the Print setup screen Wrong control characters are specified Correct the control character configurations in the Print setup screen Data cannot be transmitted to a computer Possible cause Possible solutions...
Page 163: Getting Help From Your Distributor
Getting Help Getting help from your distributor Performing the simple troubleshooting listed on the previous pages solves most problems experienced with the QC-330. If a problem persists after performing this troubleshooting, follow the steps listed below and contact your distributor for assistance. Be prepared to discuss your troubleshooting steps.
Page 164 QC-300 Series User’s Guide...
Page 165: Reference Material
Chapter 12: Reference Material This chapter contains technical information regarding: • QC-330 product specifications • Footswitch wiring • RS-232 connector wiring • Tolerances Product specifications Electrical Input Voltage Range: 85 VAC to 264 VAC. 100 W maximum (Auto switching) Fuse: 1.6 Amp 250 VAC Slow Blow 5 x 20 mm Input Frequency: 47 Hz to 63 Hz...
Page 166: Footswitch/Handswitch Wiring
QC-300 Series User’s Guide Footswitch/handswitch wiring The optional foot switch/handswitch is connected to the RJ-45 con- nector on the left side of the QC-330. The wiring of the switch is sometimes duplicated by other external switching devices to facilitate re- Footswitch and mote operation in conjunction with other devices keypad connector...
Page 167: Rs-232 Connector Wiring
Connector wiring RS-232 connector wiring The RS-232 wiring is shown by the table below. Pin No. Description Direction Data in Input Data out Output Signal ground Reference Power on Output (always high) RS-232 connector...
Page 168: Tolerances
QC-300 Series User’s Guide Tolerances The following information is supplemental to the tolerance discussions provided earlier in Chapter 7: Tolerancing. Concentricity tolerance The mathematical definition of concentricity is explained in detail in the ASME Y14.5M-1994 standard and involves “the midpoints of opposing elements” in the determination of actual concentricity. This is not practical in a discrete point measuring system, so the QC-330 uses the center of the feature (determined by the best fit) to estimate the concentricity.
Page 169 Chapter 13: Options Available options for the QC-330 are listed and shown here with Metronics part numbers: • Foot switch for remote operation • RS-232 cable without crossed cable wiring for communication with computers • Arm-mounting bracket and bracket adapter for mounting the QC-330 on vertical surfaces (must be ordered together) •...
Page 170 QC-300 Series User’s Guide...
Page 171 Index Base (w x h x d) 151 Base weight 151 Baud rate 97, 138 Best-fit algorithm 52, 53, 57, 67 Bidirectional tolerance 74 Bits, data 97 Symbols Bits, stop 97 Bolt holes 3 2-Wire to 3-wire adapters 6 Bonus 77 3-Wire adapters 6 Bore 77, 78 3-Wire grounded outlet 6...
Page 172 Index QC-300 Series User’s Guide Connector, RJ-45 152 Distances 48, 56 Constructing features 61 Distributor, Metronics 149 Contrast 146 Drive, copy to 17 Contrast and brightness 143 Drive, select a 17 Control characters 148 DRO 12 Correction, error 118 DRO threshold value 141 Correction, linear error 118 Dual view mode 132...
Page 173 Index QC-300 Series User’s Guide Input frequency 151 Input voltage range 151 Feature list 11, 20 Insert, divider line menu 19, 134 Feature measurement 86, 127 Insert, space menu 19, 134 Features 30 Installation 151 Feet, enclosure 3 Interface, user 11 Fields 11 Intersection features 62 Fields, data and choice 112...
Page 174 Index QC-300 Series User’s Guide Measurement axis choices 112 Part leveling 1, 39 Measurement functions 11 Part misalignment 40 Measurement process 38 Part skew alignment 40 Measurement reference 39 Pass/fail results 73 Measurement reference frame 128 Password 105, 110 Measurement types 16 Perpendicular/parallel/tangent features 64 Measure part features 27...
Page 175 Index QC-300 Series User’s Guide Probe positions 34 Probe qualification 33, 124 QC-330, mounting the 155 Probe screen 123 QC-330 system settings 101 Probe stack length 125 QC-Wedge 98, 155 Probe to probe delay 124 Qualification diameter 124 Probing angles 55 Qualification sphere 33 Probing arcs 52, 53 Qualify at startup 124...
Page 176 Index QC-300 Series User’s Guide RS-232 connector wiring 153 Setup screen descriptions 109 RS-232 control characters 137 Setup screens and functions 22, 104 RS-232 data streams 136 Shipment 10 RS-232 port 6, 9, 97, 98, 138, 148 Single probe 33 RS-232 connector pin designations 102 Single view mode 132 Run-time arrow 93...
Page 177 Index QC-300 Series User’s Guide Tilt front panel 3 Time 139 View 12 Time formats 131 View screen 14 Tip size, probe 34 Tolerance 27, 69 Tolerance, apply a 87 Tolerance, LMC 78 Warranty information 10 Tolerance bonus 77 Weight 151 Tolerance operations 87 Wide keys 11...
Page 178 Index QC-300 Series User’s Guide...
Page 179 734 901 · 01 · A · 02 · 9/2013...
