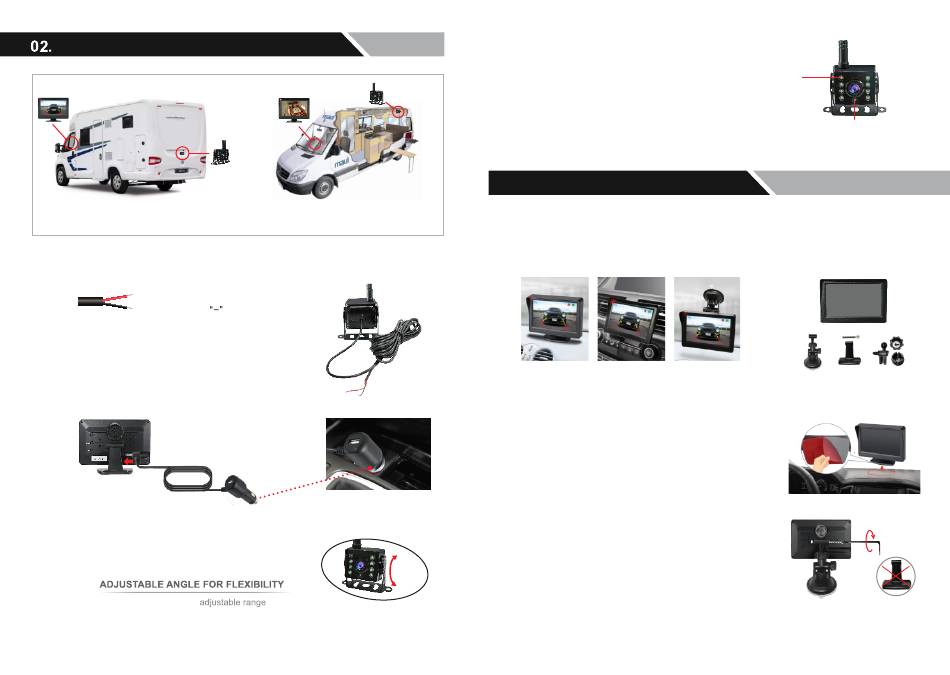

CAMERA INSTALLATION
Used for reversing assistance
1. Use the supplied screws to fix the camera to the vehicle.
2. Connect the camera power cable to the vehicle power system (lights etc).
Power Positive
Power Negative
3. Connect the power cable to the monitor & insert the
cigarette lighter power adapter into the vehicle's
adapter socket. Switch the monitor on and then
adjust the camera angle to the ideal viewing
position, then fix it by tightening the bracket screws.
Notice:
Before rotating the camera, loosen the fixing screw on the
side of the camera, hold the camera with one hand, rotate
it up or down, and tighten the screw after reaching the
best angle.
For in-vehicle monitoring
"+"
Plug & Play
Cigarette Lighter Socket
90°
3
IR 'Lights' (Night Vision)
The light sensor underneath the camera lens
detects light changes and will automatically turn
on the IR 'lights' at night, or in low light conditions,
so that the image is clearer (B&W image).
MONITOR INSTALLATION
03.
1. The monitor can be fixed to the dashboard, windscreen or
air-vent.
Dashboard Mount
2. How to install the mounts:
1) The dashboard mount is already attached
to the monitor and can be stuck to the dash
board. Choose and clean a suitable location
on the dashboard, remove the paper from the
monitor stand sticky pad and firmly press the
stand mount onto the dashboard.
2) If using the windscreen mount, please
replace the dashboard mount by utilising
the supplied screwdriver.
90°
IR
'Lights'
Air Vent Mount
WIndscreen Mount
4
Light Sensor
