Summary of Contents for Trailer Vision Digi-Lite Solar A1070

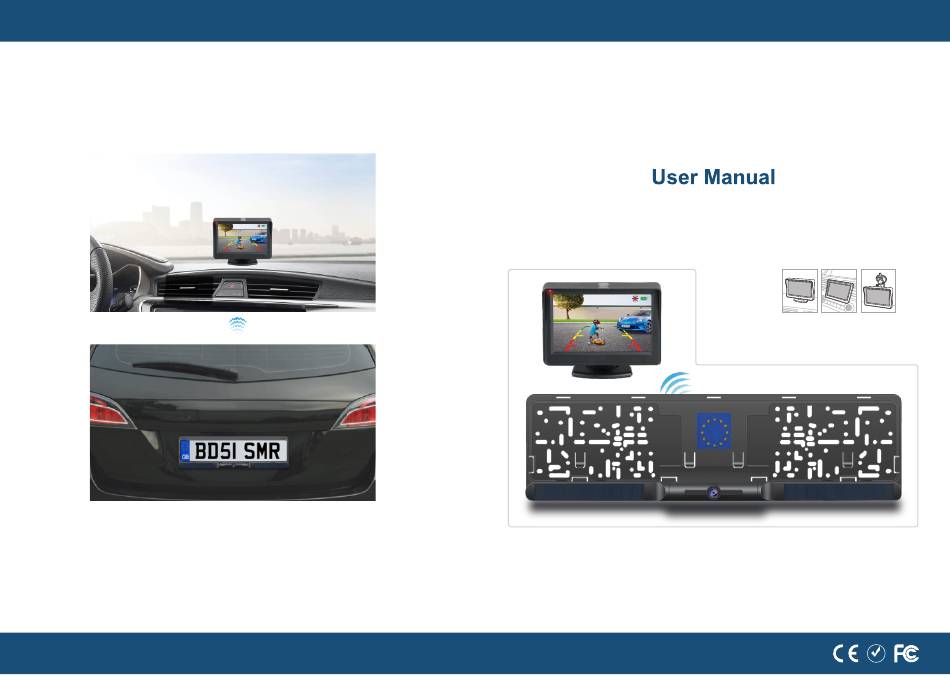

- Page 1 Solar Powered Wireless Reversing Camera Digi-Lite™ Solar Digi-Lite™ Solar Solar Powered Digital Wireless Camera System Stand Vent Windshield www.trailervision.co.uk www.trailervision.co.uk RoHS...
- Page 2 COMPONENTS TABLE OF CONTENTS 1.Number Plate Holder with Camera and Solar Panels Thanks for buying Digi-Lite™ Solar. Please read this User Manual carefully before using this product. The Digi-Lite™ Solar digital wireless reversing camera system can display the rear view image when reversing and/or when driving forwards.
- Page 3 Number Plate Holder Installation Remove the cover strip from the number plate holder. Remove the product packing and ensure that all First remove the middle part of the cover strip, then remove the two sides of the cover strip components are included. Charge the Camera (with number plate holder) 1.
- Page 4 Choose a suitable place on the windscreen, and mount the suction cup mount to the windscreen. With the suction lever in the released position, press the suction cup 1. The Monitor mounts can be attached to a air-vent, against the windscreeen. Press the suction dashboard, or windscreen.
-
Page 5: Camera Angle Adjustment
3. When the vehicle ignition is off, power is removed from the monitor, Camera Angle Adjustment the monitor will switch off automatically, and the camera will stop working. 1. Please vibrate the camera, power the monitor, touch the Touch-Switch on the 1. -
Page 6: Image Parameter
2. Image Parameter While the monitor is showing the rear image, short press the middle button [MENU/OK] to enter the main menu interface. From the 4 options. Select Image Parameter, long press the [MENU/OK] button again, 3 Images(Brightness/ Contrast/ Color) setting interface are shown bellow: Brightness Contrast Color... - Page 7 4. Parking Guideline Position Adjustment Select the “Parking Guide Position Adjustment” icon, then long press the middle button [MENU / OK] to enter the setting interface, short press the [ADD] or [DEC] button to choose the most suitable one from 5 levels, then short press [MENU / OK] twice continuously to exit the setting.
- Page 8 If the video image does not last the setting time: Recharge the camera battery. If there’s no image after touching the Touch- Switch in a ‘quiet environment’ (no vibration at all), such as when testing inside. ‘Vibrate’ the camera, touch the powered Monitor Touch-Switch quickly (within 3 minutes of ‘vibrating’...
- Page 9 3. Replace the 1A fuse. If there is a defect or malfunction, we will repalce it, or repair it free of charge: Product packing is designed to provide years of service. It should be recycled or safely disposed of at a local recycling center.
- Page 10 Please contact: Support@trailervision.co.uk The Supplier 01733 246473 Regions Regions Please Contact Us to discuss any faults, or problems with Digi-Lite™ Solar. www.trailervision.co.uk...
