Hoshizaki KM-630MAE Parts List

Hoshizaki KM-630MAE Parts List

Modular crescent cuber
Hide thumbs Also See for KM-630MAE:

Advertisement

Quick Links

Download this manual See also: Service Manual

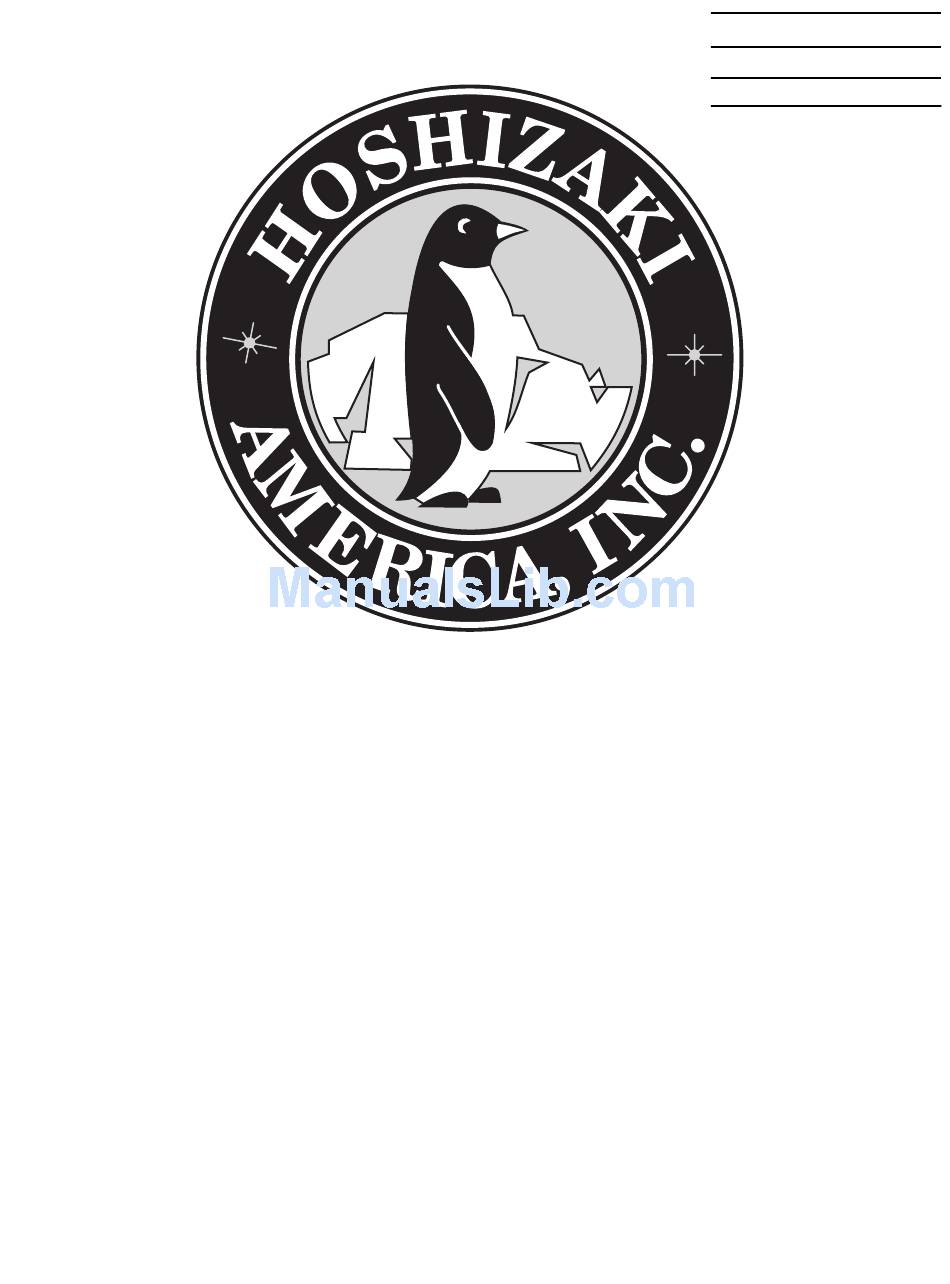

MODULAR CRESCENT CUBER
HOSHIZAKI
MODEL
KM-630MAE
KM-630MWE
KM-630MRE
(FINAL) PARTS LIST
NO.
ISSUED:
APRIL 12, 1993
REVISED:
MAY 22, 2000
71080

Advertisement

loading

Related Manuals for Hoshizaki KM-630MAE

Summary of Contents for Hoshizaki KM-630MAE

  • Page 1 MODULAR CRESCENT CUBER KM-630MAE KM-630MWE KM-630MRE (FINAL) PARTS LIST HOSHIZAKI MODEL 71080 ISSUED: APRIL 12, 1993 REVISED: MAY 22, 2000...
  • Page 2 KM-630MAE Jan., 1993 March, 1993 June, 1993 Aug., 1993 Dec., 1993 Jan., 1995 April, 1995 Dec., 1995 Sept., 1996 Dec., 1996 May, 1997 Dec., 1997 June, 1998 July, 1998 Oct., 1998 Nov., 1998 Dec., 1998 KM-630MWE Jan., 1993 March, 1993 June, 1993 Aug., 1993...

  • Page 3: Material Abbreviations

    ALUMINUM Aluminum COPPER Copper PLASTIC Acrylonitrile -butadiene - styrene Polyacetal EV A Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride RUBBER Vinyl Nitrile EPDM EP rubber Nitrile butadiene rubber Natural rubber Neoprene...
  • Page 4 Phillips Truss Machine Screw Phillips Pan Head Machine Screw Phillips Flat Head Machine Screw Phillips Pan Head Machine Screw with Split Lock Washer Phillips Pan Head Machine Screw with Split Lock Washer and Flat Washer Phillips Truss Head Tapping Screw (Correspond to Type A) Phillips Truss Head Tapping Screw (Correspond to Type B) Phillips Truss Head Tapping Screw (Correspond to Type C) Phillips Truss Head Tapping Screw (Special)

  • Page 5: Ice Cuber Assembly

    KM-630MAE A. ICE CUBER ASSEMBLY C-0, C-1, C-2, C-3...
  • Page 6 KM-630MAE A. ICE CUBER ASSEMBLY D-0, E-0, E-1, F-0, F-1, G-0, G-1, H-0, H-1, H-2, H-3, H-4, J-0...
  • Page 7 KM-630MAE MODEL INDEX DESCRIPTION REFRIGERATION CIRCUIT WATER CIRCUIT CONTROL BOX ASSEMBLY LABEL LOCATION EVAP. CASE BASE FRONT FRAME FRAME SQUARE WASHER SCREW - GROUNDING JUNCTION BOX COVER BUSHING BULB HOLDER A. ICE CUBER ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER...
  • Page 8 KM-630MAE MODEL INDEX DESCRIPTION REFRIGERATION CIRCUIT WATER CIRCUIT CONTROL BOX ASSEMBLY LABEL LOCATION EVAP. CASE BASE FRAME SQUARE WASHER SCREW - GROUNDING JUNCTION BOX COVER BUSHING BULB HOLDER A. ICE CUBER ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER H-4 J-0...
  • Page 9 KM-630MAE MODEL INDEX DESCRIPTION SPACER THUMBSCREW BASE COVER TOP INSULATION FRONT INSULATION SIDE PANEL (R) CONTROL BOX COVER FRONT PANEL FRONT PANEL (A) LOUVER (B) AIR FILTER (B) TAPPING SCREW ( BLACK) BUSHING TOP PANEL GASKET GASKET (A) INSULATION BARRIER...
  • Page 10 KM-630MWE A. ICE CUBER ASSEMBLY C-0, C-1, C-2, C-3...
  • Page 11 KM-630MWE A. ICE CUBER ASSEMBLY D-0, E-0, E-1, F-0, F-1, G-0, G-1, H-0, H-1, H-2, H-3, J-0...
  • Page 12 KM-630MWE MODEL INDEX DESCRIPTION REFRIGERATION CIRCUIT WATER CIRCUIT CONTROL BOX ASSEMBLY LABEL LOCATION EVAP. CASE BASE FRONT FRAME FRAME SQUARE WASHER SCREW - GROUNDING JUNCTION BOX COVER BUSHING BULB HOLDER SPACER THUMBSCREW A. ICE CUBER ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER C-0 C-1...
  • Page 13 KM-630MWE MODEL INDEX DESCRIPTION BASE COVER TOP INSULATION FRONT INSULATION SIDE PANEL (R) CONTROL BOX COVER FRONT PANEL FRONT PANEL (A) LOUVER (B) TAPPING SCREW ( BLACK) BUSHING TOP PANEL GASKET GASKET (A) INSULATION SIDE PANEL (R) BASE FRONT COVER BARRIER - INSULATION A.
  • Page 14 KM-630MRE A. ICE CUBER ASSEMBLY C-0, C-1, C-2, C-3...
  • Page 15 KM-630MRE A. ICE CUBER ASSEMBLY D-0, E-0, E-1, F-0, F-1, G-0, G-1, H-0, H-1, H-2, H-3, H-4, J-0...
  • Page 16 KM-630MRE MODEL INDEX DESCRIPTION REFRIGERATION CIRCUIT WATER CIRCUIT CONTROL BOX ASSEMBLY LABEL LOCATION EVAP. CASE BASE FRONT FRAME FRAME SQUARE WASHER SCREW - GROUNDING JUNCTION BOX COVER BUSHING BULB HOLDER A. ICE CUBER ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER C-0 C-1 C-2 C-3 D-0 106006A01...
  • Page 17 KM-630MRE MODEL INDEX DESCRIPTION REFRIGERATION CIRCUIT WATER CIRCUIT CONTROL BOX ASSEMBLY LABEL LOCATION EVAP. CASE BASE FRAME SQUARE WASHER SCREW - GROUNDING JUNCTION BOX COVER BUSHING BULB HOLDER A. ICE CUBER ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER H-4 J-0 106004A04 1A0058A06 212389A07...
  • Page 18 KM-630MAE MODEL INDEX DESCRIPTION SPACER THUMBSCREW BASE COVER TOP INSULATION FRONT INSULATION SIDE PANEL (R) CONTROL BOX COVER FRONT PANEL FRONT PANEL (A) LOUVER (B) TAPPING SCREW ( BLACK) BUSHING TOP PANEL GASKET GASKET (A) INSULATION SIDE PANEL (R) BASE...
  • Page 19 KM-630MAE B. REFRIGERATION CIRCUIT...
  • Page 20 KM-630MAE B. REFRIGERATION CIRCUIT C-1, C-2, C-3...
  • Page 21 KM-630MAE B. REFRIGERATION CIRCUIT D-0, E-0, E-1, F-0...
  • Page 22 KM-630MAE B. REFRIGERATION CIRCUIT F-1, G-0...
  • Page 23 KM-630MAE B. REFRIGERATION CIRCUIT G-1, H-0, H-1, H-2, H-3, H-4...
  • Page 24 KM-630MAE B. REFRIGERATION CIRCUIT...

  • Page 25: Refrigeration Circuit

    KM-630MAE MODEL INDEX DESCRIPTION CONDENSER SHROUD BARRIER REAR PANEL FRAME COMPRESSOR COPPER TUBE (B) - LOW SIDE FAN MOTOR BRACKET FAN MOTOR CAPACITOR FAN BLADE DRIER EXPANSION VALVE EVAPORATOR INSULATION TUBE PRESSURE SWITCH PRESSURE SWITCH BRACKET ACCESS VALVE B. REFRIGERATION CIRCUIT...
  • Page 26 KM-630MAE MODEL INDEX DESCRIPTION COPPER TUBE (A) - HIGH SIDE COPPER TUBE (B) - HIGH SIDE INSULATION TUBE COPPER TUBE (E) - HIGH SIDE COPPER TUBE - LOW SIDE EXPANSION VALVE COVER (A) EXPANSION VALVE COVER (A) THERMISTOR HOLDER - THERMISTOR...
  • Page 27 KM-630MAE MODEL INDEX DESCRIPTION COPPER TUBE - ACCESS VALVE COPPER TUBE (B) - HOT GAS STRAINER CABLE TIE VALVE BODY COIL - VALVE BOLT HOLDER / EXP. VALVE - 3/8 CLAMP SELF-LOCKING NUT DRIER BRACKET COPPER TUBE (F) - HIGH SIDE...
  • Page 28 KM-630MWE B. REFRIGERATION CIRCUIT...
  • Page 29 KM-630MWE B. REFRIGERATION CIRCUIT C-1, C-2, C-3...
  • Page 30 KM-630MWE B. REFRIGERATION CIRCUIT D-0, E-0, E-1, F-0...
  • Page 31 KM-630MWE B. REFRIGERATION CIRCUIT F-1, G-0...
  • Page 32 KM-630MWE B. REFRIGERATION CIRCUIT G-1, H-0, H-1, H-2, H-3...
  • Page 33 KM-630MWE B. REFRIGERATION CIRCUIT...
  • Page 34 KM-630MWE MODEL INDEX DESCRIPTION FITTING (P) ASSEMBLY REAR PANEL FRAME COMPRESSOR COPPER TUBE (B) - LOW SIDE INSULATION TUBE CONDENSER - WATER- COOLED DRIER EXP. VALVE EVAPORATOR INSULATION TUBE PRESSURE SWITCH PRESSURE SWITCH BRACKET ACCESS VALVE WATER REGULATOR BRACKET WATER - REGULATOR B.
  • Page 35 KM-630MWE MODEL INDEX DESCRIPTION COPPER TUBE (A) - HIGH SIDE COPPER TUBE (C) - HIGH SIDE COPPER TUBE (A) - HOT GAS COPPER TUBE (B) - HIGH SIDE COPPER TUBE (E) - HIGH SIDE COPPER TUBE (E2) - HIGH SIDE COPPER TUBE - LOW SIDE COPPER TUBE (A) - WATER CIRCUIT...
  • Page 36 KM-630MWE MODEL INDEX DESCRIPTION INSULATION INSULATION TUBE GROMMET SPACER BOLT COPPER TUBE - ACCESS VALVE INSULATION TUBE STRAINER CABLE TIE WASHER VALVE BODY COIL - VALVE BOLT HOLDER / EXP. VALVE - 3/8 CLAMP DRIER BRACKET EVACUATION TUBE INSULATION TUBE B.
  • Page 37 KM-630MRE B. REFRIGERATION CIRCUIT...
  • Page 38 KM-630MRE B. REFRIGERATION CIRCUIT C-1, C-2, C-3...
  • Page 39 KM-630MRE B. REFRIGERATION CIRCUIT D-0, E-0, E-1, F-0...
  • Page 40 KM-630MRE B. REFRIGERATION CIRCUIT F-1, G-0...
  • Page 41 KM-630MRE B. REFRIGERATION CIRCUIT G-1, H-0, H-1, H-2, H-3, H-4, J-0...
  • Page 42 KM-630MRE MODEL INDEX DESCRIPTION REAR PANEL FRAME COMPRESSOR COUPLING COUPLING TUBE HOLDER (L) TUBE HOLDER (S) RECEIVER TANK DRIER EXPANSION VALVE EVAPORATOR INSULATION - CAPILLARY PRESSURE SWITCH PRESSURE SWITCH BRACKET ACCESS VALVE COPPER TUBE - HIGH SIDE COPPER TUBE (D) - HIGH SIDE COPPER TUBE (C) - HIGH SIDE HEAT EXCHANGER COPPER TUBE - LOW SIDE...
  • Page 43 KM-630MRE MODEL INDEX DESCRIPTION THERMISTOR HOLDER - THERMISTOR INSULATION - THERMISTOR INSULATION - SHEET COPPER TUBE - ACCESS VALVE COPPER TUBE (B) - HOT GAS STRAINER COPPER TUBE (C) - HOT GAS BOLT CABLE TIE SPACER GROMMET RUBBER TUBE (A) INSULATION CLAMP COPPER TUBE (E) - HIGH SIDE...
  • Page 44 KM-630MRE MODEL INDEX DESCRIPTION EVACUATION TUBE B. REFRIGERATION CIRCUIT TITLE MATERIAL PART OR MODEL NUMBER NUMBER C-0 C-1 COPPER 4A1224-01 COPPER 436000-13 REQUIRED NUMBER C-3 D-0 G-1 H-0...

  • Page 45: Water Circuit

    KM-630MAE, MWE, MRE C. WATER CIRCUIT C-0, C-1...
  • Page 46 KM-630MAE, MWE, MRE C. WATER CIRCUIT...
  • Page 47 KM-630MAE, MWE, MRE C. WATER CIRCUIT C-3, D-0, E-0, E-1, F-0, F-1, G-0, G-1, H-0...
  • Page 48 KM-630MAE, MWE, MRE C. WATER CIRCUIT H-1, H-2, H-3, H-4, J-0...
  • Page 49 KM-630MAE, MRE MODEL INDEX DESCRIPTION PUMP MOTOR ASSEMBLY VINYL HOSE WATER SUPPLY PIPE RUBBER GASKET WATER VALVE BRACKET WATER VALVE DISTRIBUTOR HOSE HOSE CLAMP HOSE CLAMP SPRAY TUBE SPRAY GUIDE (A) CUBE GUIDE SUCTION HOSE PUMP MOTOR BRACKET HOSE CLAMP...
  • Page 50 KM-630MAE, MRE MODEL INDEX DESCRIPTION SPRING VALVE SHEET DRAIN HOSE OVERFLOW CAP OVERFLOW PIPE "O"RING CONNECTOR - FLOAT SWITCH FLOAT SWITCH BUSHING CONDUIT BUSHING CLAMP CLAMP HOSE HOLDER FITTING - INLET FITTING HOLDER - INLET CORNER INSULATION (A) CORNER INSULATION (B) DISTRIBUTOR C.
  • Page 51 KM-630MAE, MRE MODEL INDEX DESCRIPTION FLANGE HOSE (B) RUBBER RING MALE ADAPTOR BALL VALVE "O" RING HANDLE VALVE HOLDER MICRO SWITCH TAPPING SCREW JOINT PIPE HANDLE BRACKET HOSE CLAMP FLOAT SWITCH STOP CABLE TIE VINYL HOSE VINYL HOSE VINYL HOSE SILICONE HOSE C.
  • Page 52 KM-630MAE, MRE MODEL INDEX DESCRIPTION WATER SUPPLY TUBE CONNECTING PIPE PLUG WIRE SADDLE SILICONE HOSE C. WATER CIRCUIT TITLE MATERIAL PART OR MODEL NUMBER NUMBER C-2 C-3 D-0 2A0079-01 2A0088-01 EPDM/SY.R 4A0176-01 VWS4218-C 4A0338-01 VWS4238-C 4A0338-02 L=140 7730I3896 REQUIRED NUMBER...
  • Page 53 KM-630MWE MODEL INDEX DESCRIPTION PUMP MOTOR ASSEMBLY VINYL HOSE WATER SUPPLY PIPE RUBBER GASKET WATER VALVE BRACKET WATER VALVE DISTRIBUTOR HOSE HOSE CLAMP HOSE CLAMP SPRAY TUBE SPRAY GUIDE (A) CUBE GUIDE SUCTION HOSE PUMP MOTOR BRACKET HOSE CLAMP DISTRIBUTOR ELBOW "O"...
  • Page 54 MODEL INDEX DESCRIPTION VALVE HOUSING - DRAIN SPRING VALVE SHEET DRAIN HOSE OVERFLOW CAP OVERFLOW PIPE "O"RING CONNECTOR - FLOAT SWITCH FLOAT SWITCH BUSHING CONDUIT BUSHING CLAMP CLAMP HOSE HOLDER FITTING - INLET FITTING HOLDER - INLET CORNER INSULATION (A) CORNER INSULATION (B) KM-630MWE C.
  • Page 55 MODEL INDEX DESCRIPTION DISTRIBUTOR FLANGE HOSE (B) RUBBER RING MALE ADAPTOR BALL VALVE "O" RING HANDLE VALVE HOLDER MICRO SWITCH TAPPING SCREW JOINT PIPE HANDLE BRACKET HOSE CLAMP FLOAT SWITCH STOP CABLE TIE VINYL HOSE VINYL HOSE KM-630MWE C. WATER CIRCUIT TITLE MATERIAL PART...

  • Page 56: Control Box Assembly

    KM-630MAE, MWE, MRE D. CONTROL BOX ASSEMBLY C-0, C-1, C-2, C-3...
  • Page 57 KM-630MAE, MWE, MRE D. CONTROL BOX ASSEMBLY D-0, E-0, E-1, F-0, F-1, G-0, G-1, H-0, H-1...
  • Page 58 KM-630MAE, MWE, MRE D. CONTROL BOX ASSEMBLY...
  • Page 59 KM-630MAE, MWE, MRE D. CONTROL BOX ASSEMBLY...
  • Page 60 KM-630MAE, MWE, MRE D. CONTROL BOX ASSEMBLY H-4, J-0...
  • Page 61 KM-630MAE, MRE MODEL INDEX DESCRIPTION CONTROL BOX CAPACITOR CAPACITOR - STARTING STRAP STARTER MAGNETIC CONTACTOR BRACKET CAPACITOR TRANSFORMER CONTROLLER BOARD BOARD SUPPORT SWITCH BRACKET CONTROL LABEL THERMOSTAT TOGGLE SWITCH D. CONTROL BOX ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER...
  • Page 62 KM-630MAE, MRE MODEL INDEX DESCRIPTION CONTROL BOX CAPACITOR CAPACITOR - STARTING STRAP STARTER MAGNETIC CONTACTOR BRACKET CAPACITOR TRANSFORMER CONTROLLER BOARD BOARD SUPPORT SWITCH BRACKET CONTROL LABEL THERMOSTAT TOGGLE SWITCH D. CONTROL BOX ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER...
  • Page 63 KM-630MAE, MRE MODEL INDEX DESCRIPTION BUSHING BUSHING D. CONTROL BOX ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER SB-1093-15 420470-03 428394-02 OCB-500 REQUIRED NUMBER...
  • Page 64 KM-630MWE MODEL INDEX DESCRIPTION CONTROL BOX CAPACITOR CAPACITOR - STARTING STRAP STARTER MAGNETIC CONTACTOR BRACKET CAPACITOR TRANSFORMER CONTROLLER BOARD BOARD SUPPORT SWITCH BRACKET CONTROL LABEL THERMOSTAT TOGGLE SWITCH D. CONTROL BOX ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER C-0 C-1 C-2 C-3 D-0 E-0 212382G04 439943-02 RS37B0025UN...
  • Page 65 KM-630MWE MODEL INDEX DESCRIPTION CONTROL BOX CAPACITOR CAPACITOR - STARTING STRAP STARTER MAGNETIC CONTACTOR BRACKET CAPACITOR TRANSFORMER CONTROLLER BOARD BOARD SUPPORT SWITCH BRACKET CONTROL LABEL THERMOSTAT TOGGLE SWITCH D. CONTROL BOX ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER H-3 J-0 212382G04 439943-02 RS37B0025UN...
  • Page 66 KM-630MWE MODEL INDEX DESCRIPTION BUSHING BUSHING D. CONTROL BOX ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER SB-1093-15 420470-03 428394-02 OCB-500 REQUIRED NUMBER H-3 J-0...
  • Page 67 KM-630MAE E. LABEL LOCATION C-0, C-1, C-2, C-3, D-0, E-0, E-1, F-0, F-1, G-0, G-1...
  • Page 68 KM-630MAE E. LABEL LOCATION H-0, H-1, H-3...
  • Page 69 KM-630MAE E. LABEL LOCATION H-2, H-4, J-0...
  • Page 70 MODEL INDEX DESCRIPTION EMBLEM (L) - HOSHIZAKI EMBLEM MODEL NUMBER LABEL LABEL – PENGUIN (R) LABEL – PENGUIN – HA (R) LABEL - AIR FILTER MAINTENANCE LABEL WARNING LABEL CAUTION LABEL (H) WIRING LABEL LABEL – R22 NAMEPLATE INSTRUCTION SHEET TAG –...
  • Page 71 KM-630MWE E. LABEL LOCATION C-0, C-1, C-2, C-3, D-0, E-0, E-1, F-0, F-1, G-0, G-1...
  • Page 72 KM-630MWE E. LABEL LOCATION H-0, H-1, H-3...
  • Page 73 KM-630MWE E. LABEL LOCATION H-2, J-0...
  • Page 74 MODEL INDEX DESCRIPTION EMBLEM (L) - HOSHIZAKI EMBLEM MODEL NUMBER LABEL LABEL – PENGUIN (R) LABEL – PENGUIN – HA (R) MAINTENANCE LABEL WARNING LABEL CAUTION LABEL (H) WIRING LABEL LABEL – R22 NAMEPLATE INSTRUCTION SHEET TAG – WARNING: ELECTRICAL CONNECTION MANUAL LABEL OPERATION LABEL –...
  • Page 75 KM-630MRE E. LABEL LOCATION C-0, C-1, C-2, C-3, D-0, E-0, E-1, F-0, F-1, G-0, G-1...
  • Page 76 KM-630MRE E. LABEL LOCATION H-0, H-1, H-3...
  • Page 77 KM-630MRE E. LABEL LOCATION H-2, H-4, J-0...
  • Page 78 MODEL INDEX DESCRIPTION EMBLEM (L) - HOSHIZAKI EMBLEM MODEL NUMBER LABEL LABEL – PENGUIN (R) LABEL – PENGUIN – HA (R) MAINTENANCE LABEL WARNING LABEL – DANGER PVC FILM CAUTION LABEL (H) WIRING LABEL CAUTION LABEL CAUTION REMOTE LABEL NAMEPLATE INSTRUCTION SHEET TAG –...
  • Page 79 KM-630MWE F. FITTING (P) ASSEMBLY C-0, C-1...
  • Page 80 KM-630MWE MODEL INDEX DESCRIPTION FITTING (K) PACKING (A) NUT (A) F. FITTING (P) ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER 310978-01 SY. R 414715-01 BRASS 415713-01 REQUIRED NUMBER F-0 F-1 H-2 H-3 H-4...

  • Page 81: Pump Motor Assembly

    KM-630MAE, MWE, MRE F. PUMP MOTOR ASSEMBLY C-0, C-1, C-2, C-3, D-0, E-0, E-1, F-0, F-1, G-0, G-1, H-0, H-1, H-2, H-3,...
  • Page 82 KM-630MAE, MWE, MRE F. PUMP MOTOR ASSEMBLY...
  • Page 83 KM-630MAE, MWE, MRE MODEL INDEX DESCRIPTION PUMP MOTOR RETAINER MECHANICAL SEAL (B) “O” RING PLATE – PUMP PUMP GASKET IMPELLER PUMP HOUSING PLUG HOUSING G. PUMP MOTOR ASSEMBLY TITLE MATERIAL PART OR MODEL NUMBER NUMBER D-0 E-0 AP-TA4(H) 2U0095-01 120V...
  • Page 84 KM-630MAE, MWE, MRE H. ACCESSORIES C-0, C-1, C-2...
  • Page 85 KM-630MAE, MWE, MRE H. ACCESSORIES C-3, D-0, E-0, E-1, F-0, F-1, G-0 G-1, H-0, H-1, H-2, H-3, H-4, J-0...
  • Page 86 KM-630MAE, MWE, MRE MODEL INDEX DESCRIPTION INSTRUCTION MANUAL LABEL – FASTENER BRACE UNIVERSAL BRACE CHECK VALVE ELBOW NIPPLE REDUCER BUSHING TITLE MATERIAL PART OR MODEL NUMBER NUMBER C-2 C-3 D-0 PAPER 91U1GM10A PAPER 91U1GM10B PAPER 427122-01 4A0138-01 4A0363-01 4A0168-01 439661-01...
