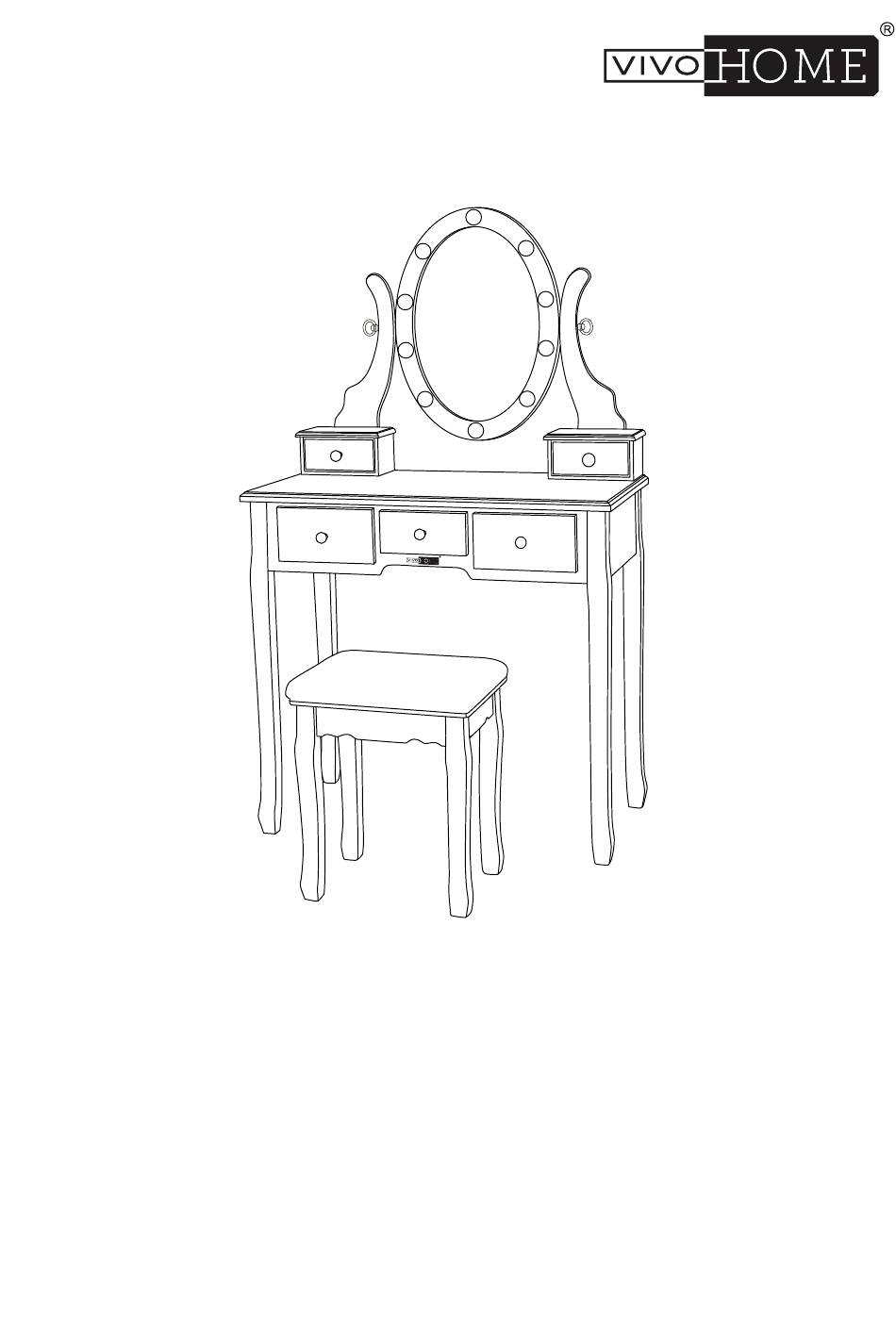

- Page 1 VANITY SET WITH 10 LED BULBS Assembly Instructions...
- Page 2 Warning Children are not allowed to assemble the product. During assembly, keep all small • parts out of the reach of children, as it may be fatal to swallow or inhale them. Children are forbidden to climb or play on the product. Climbing or playing on the •...
-
Page 3: Parts List And Diagram
Parts List and Diagram Item no. Reference Image Qty. Item no. Reference Image Qty. M6*48 mm... - Page 4 *All drawers are pre-installed in the table. Only the handles need to be installed during this assembly. *Be sure to check whether all of the parts and accessories are in the package before assembling the vanity set. If there are any missing parts, please contact our VIVOHOME customer service.
- Page 5 Assembly Steps STEP 1 x 4 pcs. x 1 pc. x 8 pcs. x 8 pcs. Turn Part 7 upside down. Use Parts A and Parts C to connect Parts 5 with Part 7, as shown in the gure. Tighten the screws.
- Page 6 Assembly Steps STEP 2 Flip the stool 180° so that it is right-side up. 180°...
- Page 7 Assembly Steps STEP 3 x 1 pc. Install the drawer handles (3 pcs.) on the drawers. Remember to put each drawer back in its correct position. Remove the handle inside Install the handle outside of the drawer of the drawer...
- Page 8 Assembly Steps STEP 4 x 4 pcs. x 8 pcs. x 8 pcs. Turn Part 1 upside down. Use Parts A and Parts C to connect Parts 2 with Part 1, as shown in the gure. Tighten the screws.
- Page 9 Assembly Steps STEP 5 x 2 pcs. x 4 pcs. x 4 pcs. Flip the table 180° so that it is right-side up. Use Parts B and Parts C to connect Parts 3 with Part 1, as shown in the gure.
- Page 10 Assembly Steps STEP 6 x 1 pc. Install the drawer handle on Part 4. Repeat this step again to make two identical drawers. Remove the handle inside Install the handle outside of the drawer of the drawer...
- Page 11 Assembly Steps STEP 7 x 2 pcs. x 2 pcs. Use Parts B and Parts C to connect Parts 4 with Parts 3, as shown in the gure. -10-...
- Page 12 Assembly Steps STEP 8 x 1 pc. x 2 pcs. Use Parts E to connect Parts 3 with Part 6, as shown in the gure. -11-...
- Page 13 Assembly Steps STEP 9 x 1 pc. x 1 pc. Connect Part 8 (the switch) with Part 9 (the power cord) and Part 6, as shown in the gure. -12-...
- Page 14 Assembly Steps STEP 10 The assembly is complete. Check that all the screws are tightened. If any screws are loose, please tighten them as soon as possible. 【LED Mirror Light】 Touch the button to turn the mirror light on or o . Long press the button to adjust the brightness.
- Page 15 To continuously improve its products, VIVOHOME reserves the right to modify this information without prior noti cation. For any questions regarding assembly, please watch the video on the product page or contact our customer service. Our customer service will gladly assist you with any additional questions, comments, or concerns.
