VIVOHOME VH1049 Assembly Instructions Manual

Lighted vanity set with golden legs
Hide thumbs

Advertisement

Quick Links

Download this manual
LIGHTED VANITY SET
WITH GOLDEN LEGS
Assembly Instructions
V-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VH1049 and is the answer not in the manual?

Questions and answers

Related Manuals for VIVOHOME VH1049

Summary of Contents for VIVOHOME VH1049

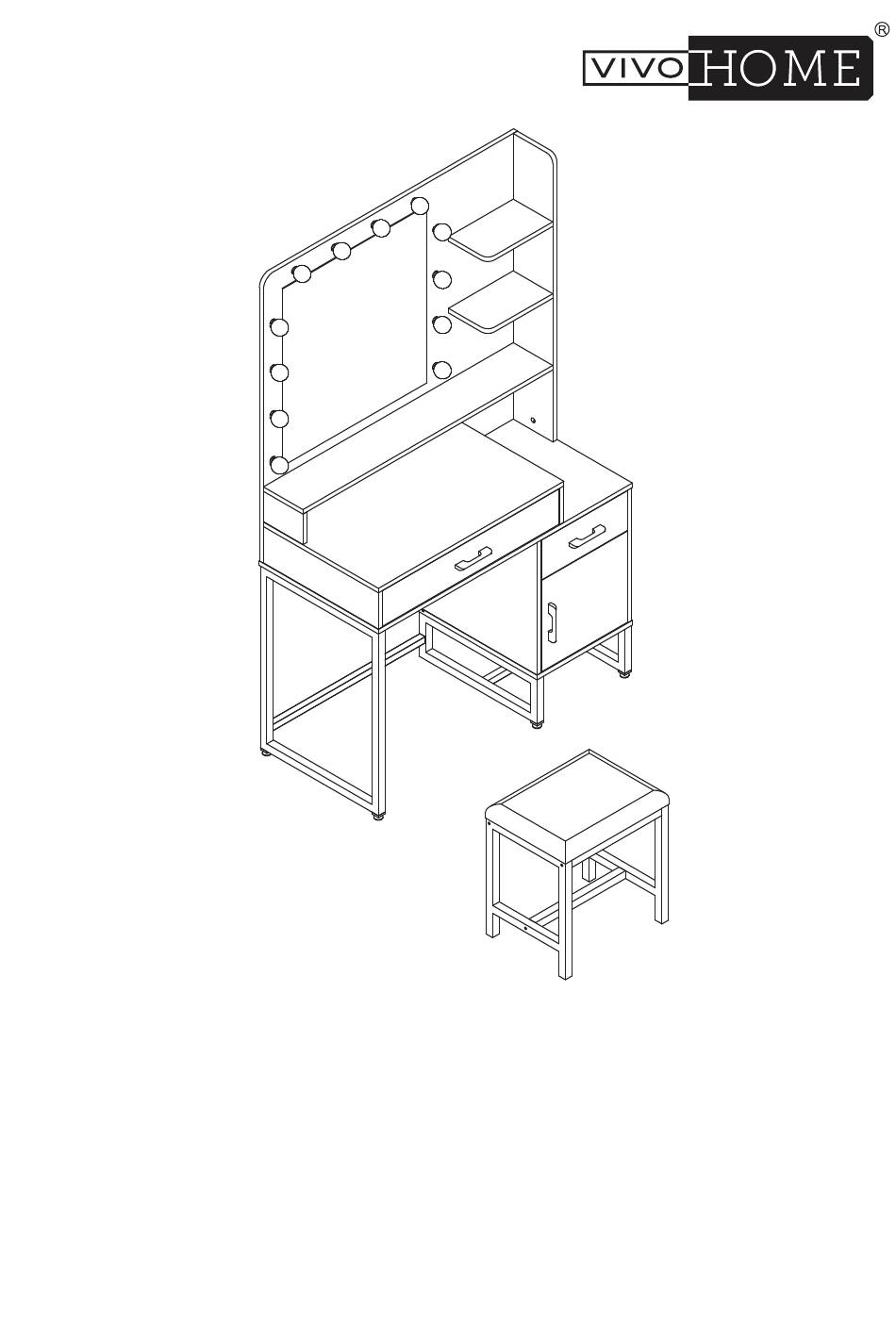

  • Page 1 LIGHTED VANITY SET WITH GOLDEN LEGS Assembly Instructions...
  • Page 2 Attention For safety and stability, we suggest you have to secure the anti-tip accessories to the wall to prevent tipping, injury, and property damage. Warning Children are not allowed to assemble the product. During assembly, keep all small • parts out of the reach of children, as it may be fatal to swallow or inhale them. Children are forbidden to climb or play on the product.

  • Page 3: Parts List And Diagram

    Parts List and Diagram Item no. Reference Image Qty. Item no. Reference Image Qty. 8x40 . 350mm M3.5x14 mm. M3.5x35 mm. M3.5x12 mm. M3x12 mm. M4x16 mm.
  • Page 4 Parts List and Diagram Item no. Reference Image Qty. Item no. Reference Image Qty. M6x35 mm. M6x40 mm.
  • Page 5 Parts List and Diagram Item no. Reference Image Qty. Item no. Reference Image Qty. M4x50 mm. 8x40 mm. *Package includes some extra screws Use The Cam Lock and Quick t Quick t: Tighten the quick t until it is ush against the panel. Do not under- or over-tighten it.
  • Page 6 Cabinet Door Installation If the closing position of the cabinet door deviates after installing the cabinet door hinge, please adjust it in the following ways: 1: If the position needs to be vertically adjusted, loosen the screws shown in the picture.
  • Page 7 Parts List and Diagram...
  • Page 8 Assembly Steps STEP 1 x 1 pc. x 2 pcs. x 4 pcs. x 4 pcs. Use Accessories A and B to connect Board 1 with Boards 3 according to the posi- tion shown in the gure. STEP 2 x 1 pc. x 1 pc.
  • Page 9 Assembly Steps STEP 3 x 1 pc. x 2 pcs. x 3 pcs. x 3 pcs. Use Accessories A and B to x Boards 7 onto Board 6. Then use Accessories A and B to x Board 6 onto Board 4.
  • Page 10 Assembly Steps STEP 4 x 1 pc. x 12 pcs. x 5 pcs. x 3 pcs. Use Accessories A, B, and E to x the assembled part of Step 3 onto Board 8.
  • Page 11 Assembly Steps x 1 pc. x 1 pc. x 1 pc. x 1 pc. STEP 5 x 4 pcs. x 4 pcs. Use Accessories A and B to x Board 9 and Board 10 onto Board 2. Insert Board 11 into the position shown in the gure.
  • Page 12 Assembly Steps STEP 6 x 1 pc. x 4 pcs. x 4 pcs. x 2 pcs. x 1 pc. Use Accessories A and B to x Board 12 onto Board 9 and Board 10. Use Screws D to x Accessory M onto Board 9 according to the position shown in the gure.
  • Page 13 Assembly Steps x 1 pc. x 1 pc. x 1 pc. x 1 pc. x 1 pc. STEP 7 x 4 pcs. x 6 pcs. x 9 pcs. Fix Accessories N onto Part 25, Part 31, and Part 32. Use Screws K to x Part 25 onto Board 2. Use Screws K to x Part 31 and Part 32 onto Board 12.
  • Page 14 Assembly Steps STEP 8 x 8 pcs. x 6 pcs. Use Accessories A and B to connect the assembled part of Step 4 with the assem- bled part of Step 7. -13-...
  • Page 15 Assembly Steps STEP 9 x 1 pc. x 4 pcs. x 1 pc. x 2 pcs. x 2 pcs. Use Accessories R to x Screws F onto Board 13. Use Accessories I to x Screws J onto Board 13. -14-...
  • Page 16 Assembly Steps STEP 10 x 2 pcs. x 16 pcs. Use Screws D to x Accessories C1 onto the positions shown in the gure. Then use Screws D to connect the assembled part of Step 9 with Board 10. -15-...

  • Page 17: Assembly Steps

    Assembly Steps x 1 pc. x 1 pc. x 1 pc. x 1 pc. x 1 pc. STEP 11 x 4 pcs. x 4 pcs. x 2 pcs. x 4 pcs. x 1 pc. x 1 pc. Use Screws E to connect Board 20 with Board 21 and Board 22 according to the position shown in the gure.
  • Page 18 Assembly Steps x 1 pc. x 1 pc. x 1 pc. x 1 pc. x 1 pc. STEP 12 x 1 pc. x 4 pcs. x 4 pcs. x 1 pc. x 2 pcs. x 6 pcs. x 1 pc. Use Screws E to connect Board 14 with Board 15 and Board 16 according to the position shown in the gure.
  • Page 19 Assembly Steps x 2 pcs. x 2 pcs. x 1 pc. x 1 pc. STEP 13 x 6 pcs. x 4 pcs. x 4 pcs. Use Parts 28 and Parts 29 to connect the two pieces of Parts 27. Use Screws L to x them according to the position shown in the gure.
  • Page 20 Assembly Steps STEP 14 x 6 pcs. x 1 pc. x 6 pcs. Use Screws G to x Accessories P onto Board 11. Fix Light String H onto Board 8 as shown in the gure. Fix the bulb first. Pull it out Connect the bulb &...
  • Page 21 Assembly Steps STEP 15 x 20 pcs. Use Accessories S to cover the exposed holes. -20-...
  • Page 22 Assembly Steps STEP 16 x 4 pcs. x 2 pcs. x 2 pcs. x 2 pcs. Use Screws D to x Accessories T onto the two ends of the backside of the product. Fix Screws U and Accessories V onto the wall at a suitable height. Connect Accessories T with Screws U to increase stability.
  • Page 23 Assembly Steps STEP 17 Congratulations! The product assembly is complete. 【LED Mirror Light】Press the ON/OFF button to operate the light. -22-...
  • Page 24 To continuously improve its products, VIVOHOME reserves the right to modify this information without prior noti cation. For any questions regarding assembly, please watch the video on the product page or contact our customer service. Our customer service will gladly assist you with any additional questions, comments, or concerns.
