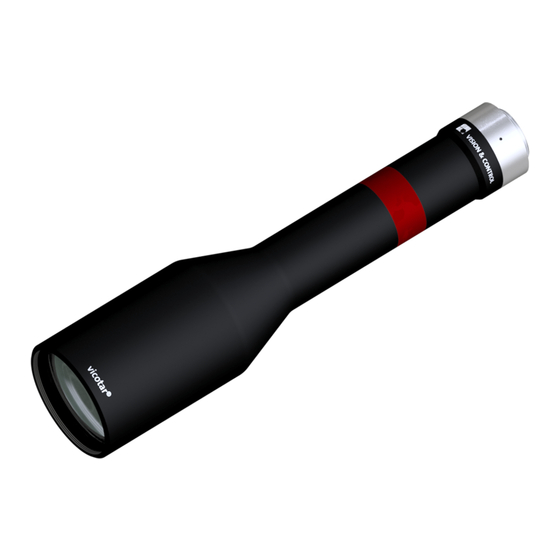

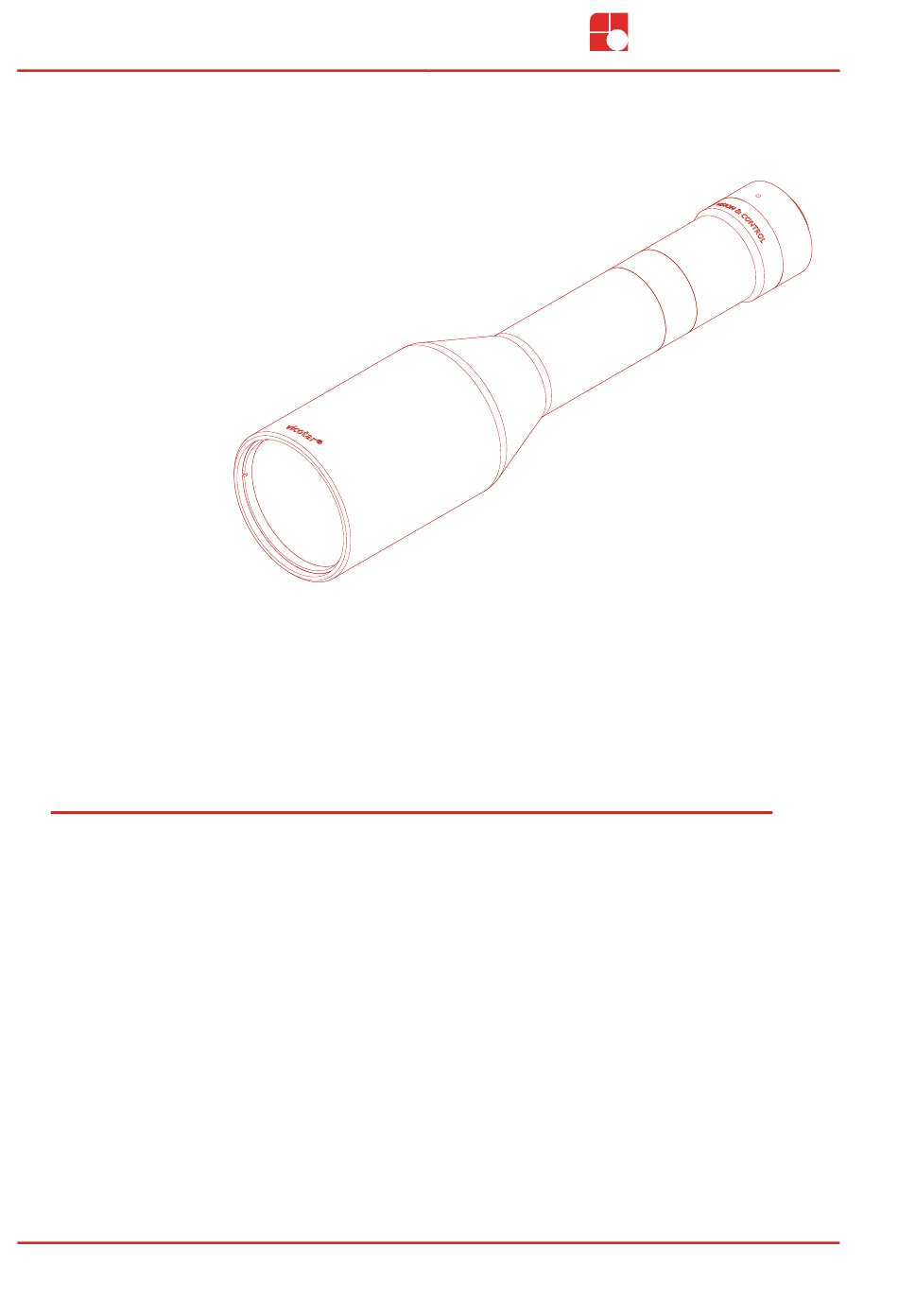

- Page 1 VISION & CONTROL Instructions for Use Instructions for Use TOB42/11.0-165-F16-WN TOB42/11.0-165-F16-WN Telecentric measurement lens Telecentric measurement lens 999.995.973.10-en-3.0 © Vision & Control GmbH 2022...
- Page 2 Impress Publisher / Manufacturer Vision & Control GmbH Mittelbergstraße 16 98527 Suhl, Germany Telephone: +49 (0) 3681 7974-0 www.vision-control.com Name of the document 999.995.973.10-en-3.0 Date of first issue 2019-09-12 Date modified 2022-09-06 Copyright © Vision & Control GmbH 2022 Copyright It is forbidden to pass this document on to third parties, reproduce and communicate its contents in as far as this has not been expressly authorized.
- Page 3 Validity These instructions for use are valid for the following device: Device Order no. TOB42/11.0-165-F16-WN 2-05-604 Product Identification Designation Description Bi-telecentric measurement lens Maximum object field diameter in mm 11.0 Maximum image sensor diagonal in mm Working distance in mm...
-
Page 4: Table Of Contents
TOB42/11.0-165-F16-WN Table of Contents TABLE OF CONTENTS 1 Information about the Instructions of Use..........6 1.1 Intended Use....................6 1.2 Improper Use....................7 1.3 Qualified Personnel..................7 1.4 Warranty and Liability...................8 2 Safety......................9 2.1 Presentation of Safety Instructions.............. 9 2.2 Safe Handling of the Device..............10 3 Scope of Delivery and Accessories............ - Page 5 TOB42/11.0-165-F16-WN Table of Contents 6.2.3 Mounting at the camera..............34 6.3 Configuration....................35 6.3.1 Setting the working distance.............. 35 7 Operation...................... 36 8 Maintenance and Service................37 8.1 Maintenance....................37 8.2 Service......................39 9 Disposal......................40 Table of Figures 1: Device view....................16 2: Type plate....................
-
Page 6: Information About The Instructions Of Use
TOB42/11.0-165-F16-WN Information about the Instructions of Use 1 INFORMATION ABOUT THE INSTRUCTIONS OF This document contains technical information, important instructions for correct installation, commissioning and use, as well as product information which were up-to-date at the time of going to press. -
Page 7: Improper Use
TOB42/11.0-165-F16-WN Information about the Instructions of Use 1.2 Improper Use All unintended use and all device-related activities not described in these instructions of use is to be deemed as unauthorised misuse outside the legal limits of indemnity of the manufacturer. -
Page 8: Warranty And Liability
TOB42/11.0-165-F16-WN Information about the Instructions of Use 1.4 Warranty and Liability The contents of this document have been checked carefully and correspond to current legislation and best practise at the time of going to press. However, the manufacturer shall not be liable for any damage arising from the use of this edition of the manual, and rejects any warranty derived therefrom. -
Page 9: Safety
TOB42/11.0-165-F16-WN Safety 2 SAFETY 2.1 Presentation of Safety Instructions Each safety instruction is introduced by a key word and colour highlighted. The key word indicates the degree of danger. The danger and its cause are described, and then the measures to prevent conceivable consequences of the danger. -
Page 10: Safe Handling Of The Device
TOB42/11.0-165-F16-WN Safety 2.2 Safe Handling of the Device Read the following applicable safety instructions carefully and completely. Follow the instructions for your own safety, the safety of other people, and to avoid damage to the device and the connected technical equipment. Hazards going beyond the general safety instructions are referred to separately at the relevant points in this manual. -
Page 11: Scope Of Delivery And Accessories
TOB42/11.0-165-F16-WN Scope of Delivery and Accessories 3 SCOPE OF DELIVERY AND ACCESSORIES 3.1 Scope of Delivery Designation Quantity Device TOB42/11.0-165-F16-WN Covering cap 3.2 Accessories The following accessories are available for the lens. Lens holder Designation Description Order no. Lens Holder d32... - Page 12 TOB42/11.0-165-F16-WN Scope of Delivery and Accessories Adapter ringe Designation Description Order no. Adapter ring for R-CLR-69x41 and RK2036, for attachment 1-29-676 d41 - M52x0.75 to lenses with filter thread M52x0.75 Adapter ring for R-CLR-100x73 and RK3652, for 1-29-772 d73 - M52x0.75 attachment to lenses with filter thread M52x0.75...
- Page 13 TOB42/11.0-165-F16-WN Scope of Delivery and Accessories CS to C-mount adapter / Extension rings Designation Description Order no. CS to C-mount for connecting C-mount lenses with CS-mount 2-90-414 adapter 5.0 mm cameras, length: 5 mm Extension ring 26 x 31 x 0.5 reduces the minimum object 2-90-415 0.5 mm...
- Page 14 TOB42/11.0-165-F16-WN Scope of Delivery and Accessories Filter for filter thread object-side Designation Description Order no. UV blocking filter Long-pass filter from 350 nm, usable as 2-91-124 M52x0.75 protective glass IR-Filter Long-pass filter from 830 nm (daylight 2-91-134 M52x0.75 absorbing filter) Colour filter red Long-pass filter with edge length λ...
- Page 15 TOB42/11.0-165-F16-WN Scope of Delivery and Accessories Filter for filter thread camera-side Designation Description Order no. UV blocking filter Long-pass filter from 350 nm, usable as 2-91-121 M20.5x0.5 protective glass IR-Filter Long-pass filter from 830 nm (daylight 2-91-131 M20.5x0.5 absorbing filter) Colour filter red Long-pass filter with edge length λ...
-
Page 16: Device Description
TOB42/11.0-165-F16-WN Device Description 4 DEVICE DESCRIPTION 4.1 Device Views Image 1: Device view Filter thread M52 x 0.75 Filter thread M20.5 x 0.5 Type plate Contact edge camera C-mount camera connection 4.2 Notices on the device Type plate Type: TOB42/11.0-165-FX-WN SN.: XXXXXXXX... -
Page 17: Technical Data
TOB42/11.0-165-F16-WN Technical Data 5 TECHNICAL DATA 5.1 General Parameters Parameter Value Housing material Aluminium, black anodised Optical material Glass Housing dimensions Length: 233.4 mm (without connection thread) Diameter: 56 mm Clamping diameter: 32 mm and 56 mm Camera distance 398.4 mm (working distance and lens length) Filter thread object-side M52 x 0.75 / depth: 8.0 mm... -
Page 18: Optical Parameters
TOB42/11.0-165-F16-WN Technical Data Object fields at different sensor formats Sensor Object field Type Size Diagonal Size 2/3" 8.8 mm x 6.6 mm 11.0 mm 33.5 mm x 25.1 mm 1/1.8" 7.2 mm x 5.4 mm 9.0 mm 27.0 mm x 20.6 mm 1/2"... -
Page 19: Resolution
TOB42/11.0-165-F16-WN Technical Data 5.2.1 Resolution Image field diagonal: 11.0 mm (2/3") Aperture Spectral range MTF at MTF at MTF at 50 LP/mm 70 LP/mm 100 LP/mm Blue: 470 nm 45.45 % 29.67 % 10.92 % Green: 525 nm 41.99 % 25.17 %... -
Page 20: Depth Of Field
TOB42/11.0-165-F16-WN Technical Data 5.2.2 Depth of field Image field diagonal: 11.0 mm (2/3") - MTF = 20 % at 20 LP/mm Aperture Spectral range Total Range further Range nearer from the lens to the lens F 16 Blue: 470 nm 22.8 mm... -
Page 21: Absolute Distortion
TOB42/11.0-165-F16-WN Technical Data 5.2.3 Absolute Distortion Image field diagonal Wavelength Distortion 11.0 mm (2/3") Blue: 470 nm < 0.1843 % Green: 525 nm < 0.1214 % Red: 635 nm < 0.0551 % Infrared: 860 nm < 0.0078 % 9.0 mm (1/1.8") Blue: 470 nm <... -
Page 22: Optical Characteristics (Design Data)
TOB42/11.0-165-F16-WN Technical Data 5.3 Optical characteristics (design data) 2/3" Image 3: Illustrative sketch of optical characteristics Image plane Image field Image centre (axis points) Line grid tangential (T) Image sensor Line grid sagittal (S) ADVICE The following design data was determined with the optics design software Zemax. -
Page 23: Mtf Depending On The Spatial Frequency
TOB42/11.0-165-F16-WN Technical Data 5.3.1 MTF depending on the Spatial Frequency Wavelength: 470 nm, Aperture: F16 Image Field Height [mm]: Diffraction Limit T 0.0 T 3.0 T 4.0 T 4.5 T 5.5 T Diffraction Limit S 0.0 S 3.0 S 4.0 S 4.5 S... -
Page 24: 6: Mtf - Spatial Frequency Dependent (635 Nm, F16, Wd 162.4 Mm)
TOB42/11.0-165-F16-WN Technical Data Wavelength: 635 nm, Aperture: F16 Image Field Height [mm]: Diffraction Limit T 0.0 T 3.0 T 4.0 T 4.5 T 5.5 T Diffraction Limit S 0.0 S 3.0 S 4.0 S 4.5 S 5.5 S 12.8 19.2 25.6... -
Page 25: 8: Mtf - Spatial Frequency Dependent (White, F16, Wd 162.8 Mm)
TOB42/11.0-165-F16-WN Technical Data Wavelength: 470 nm - 635 nm, Aperture: F16 Image Field Height [mm]: Diffraction Limit T 0.0 T 3.0 T 4.0 T 4.5 T 5.5 T Diffraction Limit S 0.0 S 3.0 S 4.0 S 4.5 S 5.5 S 14.8... -
Page 26: Mtf Depending On The Image Field
TOB42/11.0-165-F16-WN Technical Data 5.3.2 MTF depending on the Image Field Wavelength: 470 nm, Aperture: F16 20 T 40 T 50 T 60 T 70 T 80 T Spatial Frequency [LP/mm]: 20 S 40 S 50 S 60 S 70 S 80 S 0.55... -
Page 27: 11: Mtf - Image Field Dependent (635 Nm, F16, Wd 162.4 Mm)
TOB42/11.0-165-F16-WN Technical Data Wavelength: 635 nm, Aperture: F16 20 T 40 T 50 T 60 T 70 T 80 T Spatial Frequency [LP/mm]: 20 S 40 S 50 S 60 S 70 S 80 S 0.55 1.65 2.75 3.85 4.95 Image Field Height [mm] Image 11: MTF - image field dependent (635 nm, F16, WD 162.4 mm) -
Page 28: 13: Mtf - Image Field Dependent (White, F16, Wd 162.8 Mm)
TOB42/11.0-165-F16-WN Technical Data Wavelength: 470 nm - 635 nm, Aperture: F16 20 T 40 T 50 T 60 T 70 T 80 T Spatial Frequency [LP/mm]: 20 S 40 S 50 S 60 S 70 S 80 S 0.55 1.65 2.75... -
Page 29: Lateral Chromatic Aberration
TOB42/11.0-165-F16-WN Technical Data 5.3.3 Lateral chromatic aberration Wavelength: 470 nm 525 nm 635 nm 860 nm Diffraction Limit Deviation [μm] Image 14: Lateral chromatic aberration - wavelength dependent 5.3.4 Longitudinal Chromatic Aberration Deviation [µm] Image 15: Longitudinal chromatic aberration - wavelength dependent ©... -
Page 30: Distortion
TOB42/11.0-165-F16-WN Technical Data 5.3.5 Distortion Wavelength: 470 nm 525 nm 635 nm 860 nm -0.2 -0.1 Distortion [%] Image 16: Distortion - wavelength dependent 5.3.6 Vignetting 0.55 1.65 2.75 3.85 4.95 Image Field Height [mm] Image 17: Vignetting 999.995.973.10-en-3.0 © Vision & Control GmbH 2022... -
Page 31: Conditions For Operation, Storage And Transport
TOB42/11.0-165-F16-WN Technical Data 5.4 Conditions for Operation, Storage and Transport NOTICE Damage to the device as a result of improper storage or improper transport • Shipping and storage only in its original or adequately padded packaging. • The cover caps (scope of delivery) must be mount for protection during storage and transport. -
Page 32: Technical Drawings
TOB42/11.0-165-F16-WN Technical Data 5.5 Technical Drawings Ø 56 clamping area Ø56 g7 clamping area Ø32 g7 clamping area Ø32 g7 contact edge camera C-mount Ø 35 999.995.973.10-en-3.0 © Vision & Control GmbH 2022... -
Page 33: Commissioning
TOB42/11.0-165-F16-WN Commissioning 6 COMMISSIONING 6.1 Unpacking The lens is locked in a rotary pack sleeve. 1. Unscrew the cap of the rotating pack sleeve. 2. Remove the lens. 3. Remove the cover caps only after complete installation and shortly before use at the place of use. -
Page 34: Mounting At The Clamping Area
TOB42/11.0-165-F16-WN Commissioning 6.2.1 Mounting at the clamping area The assembly of the lens takes place at the clamping area (1). The appropriate mounting adapters are available as accessories. see "Lens holder", page 11 1. Loosen the socket head cap screws of the objective holder. -
Page 35: Configuration
TOB42/11.0-165-F16-WN Commissioning 6.3 Configuration 6.3.1 Setting the working distance The lens has a fixed working distance. The distance is specified from the front edge of the lens to the test object. Mount the lens at this working distance above the test object. -
Page 36: Operation
TOB42/11.0-165-F16-WN Operation 7 OPERATION ADVICE The front lens can be protected from foreign bodies by using the UV filter (protective glass). see "Filter for filter thread object-side" Keep the lens away from foreign objects (dusts, mist, water splashes or similar) during operation. These substances can damage the optical surfaces. -
Page 37: Maintenance And Service
TOB42/11.0-165-F16-WN Maintenance and Service 8 MAINTENANCE AND SERVICE 8.1 Maintenance The device is maintenance-free. Depending on the operating environment, it may have to be cleaned. Perform cleaning only if the imaging characteristics are noticeably disrupted. Only clean surfaces accessible from the outside. Do not open the lens. - Page 38 TOB42/11.0-165-F16-WN Maintenance and Service Cleaning the optical surfaces NOTICE Follow the specified cleaning sequence. Never use dry cloths for cleaning. This allows dust and other contaminants to be rubbed into the lens surface, thereby damaging it. 1. Remove non-adherent dusts with a blower brush or cleaned compressed air.
-
Page 39: Service
TOB42/11.0-165-F16-WN Maintenance and Service 8.2 Service Technical Support Please contact our technical support if you have any technical questions concerning our products. We will be glad to be of service: Monday to Thursday 8:00 to 17:00, and Friday 8:00 to 15:00. -
Page 40: Disposal
TOB42/11.0-165-F16-WN Disposal 9 DISPOSAL The device and its accessories and packaging must be sent to environmentally compatible recycling. Disposal, including that of individual components, must also always be in a way that does not harm the environment, that is it must be done in accordance with the currently valid legal regulations. - Page 41 TOB42/11.0-165-F16-WN © Vision & Control GmbH 2022 999.995.973.10-en-3.0...
- Page 42 TOB42/11.0-165-F16-WN 999.995.973.10-en-3.0 © Vision & Control GmbH 2022...
- Page 43 TOB42/11.0-165-F16-WN © Vision & Control GmbH 2022 999.995.973.10-en-3.0...
- Page 44 Vision & Control GmbH Mittelbergstraße 16 98527 Suhl, Germany Telephone +49 (0) 3681 7974-0 Vision & Control GmbH...
