UNIVERSAL
FRITTER
Please ready the instruction clearly before use the machine.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MP-FC305 and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR MP-FC305

Summary of Contents for VEVOR MP-FC305

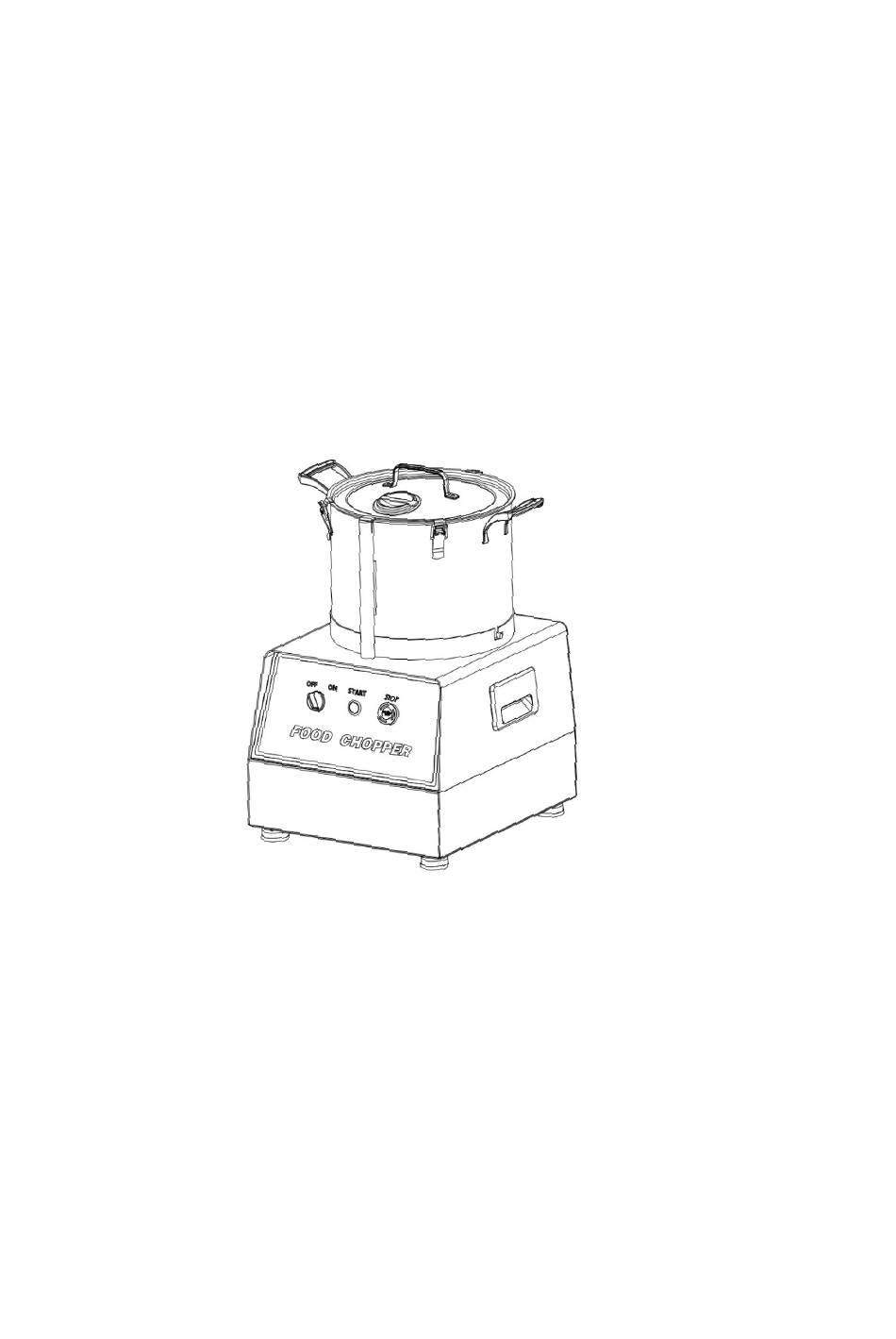

  • Page 1 UNIVERSAL FRITTER Please ready the instruction clearly before use the machine.

  • Page 2: Part List

    Part list Please read this industruction clearly before use. Part list 1. Bowl cover 9. Motor 2. Blade 10. Motor mount 3. Velcro lock 11. Bottom plate 4. Stainless steel drum 12. Foot 5. Switch 13. Handle 6. Start button 14.
  • Page 3 Operating Tutorial 1. The machine must be placed on a horizontal table or ground. The machine must be placed on a horizontal table or ground. 2. Check if there is part missing.(You can refer to the part list) Check if the blade is placed correctly. If the Check if the power cord is blade is loose,the machine won’t start.
  • Page 4 4. Put the cover and make sure the clips are locked. The magnetic switch must be pressed down. PS: If it is not locked well,the machine won’t start. PS: The magnetic switch must be pressed down. Otherwise the machine won’t start. Turn the stainless steel drum to the right position.
  • Page 5 5. Connect to power supply. Make sure the bottons are in the correct position before turning on. (Switch is “off” side, the “stop button” is bounced. ) Turn the switch from OFF to ON. Turn the emergency stop button to make it pop up.(PS: Usually when you get the machine,the emergency stop button is already pressed down.)

  • Page 6: Cleaning And Maintenance

    Technical parameters: Motor Model Capacity Voltage Power G.W. Packing size (mm) speed 110V-60Hz/ 1400R/ MP-FC305 550W 25kgs 360*400*530mm 220-240V,50-60HZ 110V-60Hz/ 1400R/ MP-FC307 750W 28kgs 380*420*540mm 220-240V,50-60HZ 110V-60Hz/...
  • Page 7 Instruction: 1. Put machine on table or floor stable.Connect the power supply base on safety standard. For the wire without plug,must be connect to fixed position which at least 3mm distance from all-pole disconnection. And electric current of disconnection device need to be over or equal to 15A.

This manual is also suitable for:

Mp-fc307Mp-fc310Mp-fc315
