- Page 1 G E R M A N Y COM/UNIT INSTRUCTIONS FOR USE LAST UPDATED 03.2019...
-
Page 3: Table Of Contents
CONTENS Information concerning the Instructions and the Manufacturer Keep the instructions at hand Design characteristics of these instructions Copyright Address of the Manufacturer Safety Intended use Basic Safety Instructions Avoid fire, explosions or electric shocks Avoid a cardiac pacemaker or other implant failure Design characteristics of tips Description Overview of the +COM/UNIT’s scope of delivery... -
Page 4: Information Concerning The Instructions And The Manufacturer
G E R M A N Y Information concerning the Instructions and the Manufacturer Information concerning the Instructions and the Manufacturer These instructions will help you to use the +COM/UNIT safely. Keep the instructions at hand ➤ These instructions are part of the +COM/UNIT. ➤... -
Page 5: Copyright
G E R M A N Y Information concerning the Instructions and the Manufacturer Copyright These instructions include information that is protected by copyright. These instructions are not to be copied, printed out, filmed, processed, duplicated or distributed in any form whatsoever, whether in part or in its entirety without prior written approval of SKS metaplast Scheffer-Klute GmbH. -
Page 6: Safety
G E R M A N Y Safety Safety Intended use The +COM/UNIT is designed for private use. The +COM/UNIT is intended for charging your smartphone with or without a Qi charging function and can be mounted on the COMPIT. COMPIT is a smartphone holder. -
Page 7: Basic Safety Instructions
G E R M A N Y Safety Basic Safety Instructions Avoid fire, explosions or electric shocks Severe or mortal injuries resulting from an explosion, fire or electric shock are possible should the product not be used correctly. ➤ Check whether the voltage stated on the power adapter is the same as the local mains voltage before you connect the adapter to the power supply. -
Page 8: Description

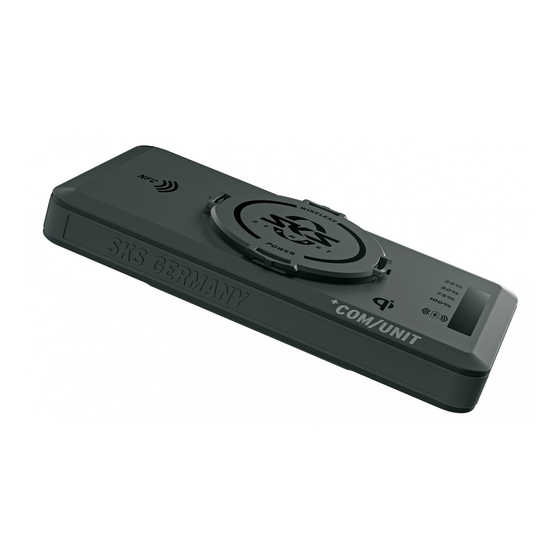

G E R M A N Y Description Overview of the +COM/UNIT’s scope of delivery Designation +COM/UNIT USB cable... -
Page 9: Com/Unit Overview
G E R M A N Y Description +COM/UNIT overview Designation Qi docking station (cableless charging) for mounting the smartphone with cover Button for switching on and off Docking station for mounting on the COMPIT Housing input (two contact pins in the housing) USB-Input USB-Output LED status indicator... -
Page 10: Led Status Indicator
G E R M A N Y Description LED status indicator + COM/UNIT STATUS INDICATES Battery indicator 4 orange LEDs flash in +COM/UNIT is being succession charged 1 LED illuminated 0 %–25 % battery capacity 2 LEDs illuminated 25 %-50 % battery capacity 3 LEDs illuminated 50 %-75 % battery... -
Page 11: Task And Function
G E R M A N Y Description Task and Function The +COM/UNIT is used to charge and connect the smartphone while cycling. It can be affixed to the COMPIT. Smartphones that have a wireless charging function are charged by affixing the smartphone to the Qi docking station. -
Page 12: Technical Data
G E R M A N Y Description Technical Data +COM/UNIT Dimensions 130 x 70 x 21,5 mm Weight ~188 g USB-Input DC 5 V/2 A USB-Output DC 5 V/2 A Housing input* DC 5–15 V/2 A Wireless transmission power Wireless efficiency >70% Operating frequency... -
Page 13: Unpacking And Checking The Scope Of Delivery
G E R M A N Y Unpacking and Checking the Scope of Delivery Unpacking and Checking the Scope of Delivery ➤ Remove the product from the packaging. ➤ Keep the original packaging in case you need to return the product to Customer Service. ➤... -
Page 14: Mounting The +Com/Unit On And Removing It From The Compit
G E R M A N Y Mounting the +COM/UNIT on and removing it from the COMPIT Mounting the +COM/UNIT on and removing it from the COMPIT Proceed as follows to mount your +COM/UNIT on the COMPIT: ➤ Place your +COM/UNIT on the COMPIT (as shown in 1 or 2) and turn it (about 45°) either to the right or left above the docking station until you hear it click into place. - Page 15 G E R M A N Y Mounting the +COM/UNIT on and removing it from the COMPIT Depending on how you turn it, the +COM/UNIT is mounted vertically (3) or horizontally (4). The safety lever (5) is locked. Proceed as follows to remove your +COM/UNIT from the COMPIT: ➤...
-
Page 16: Adjusting The Tilt
G E R M A N Y Adjusting the tilt Adjusting the tilt You can move the +COM/UNIT into the desired position by adjusting the tilt on the COMPIT. Proceed as follows to adjust the tilt: ➤ Press the +COM/UNIT (1) on the COMPIT downwards or upwards until you have reached the desired position. -
Page 17: Charging The Smartphone Via The +Com/Unit
G E R M A N Y Charging the Smartphone via the +COM/UNIT Charging the Smartphone via the +COM/UNIT Charging your smartphone without a cable ➤ If you have a smartphone with a Qi charging function, you can charge it without a cable while you’re on the move using the +COM/UNIT. - Page 18 G E R M A N Y Charging the Smartphone via the +COM/UNIT Depending on how you turn it, your smartphone is mounted vertically (3) or horizontally (4). The bottom LED flashes blue. The smartphone is charging. ➤ To manually stop the charging process and switch off the +COM/UNIT without removing the smartphone from the +COM/UNIT, press the button for approx.
-
Page 19: Charging The Smartphone With A Cable
G E R M A N Y Charging the Smartphone via the +COM/UNIT Charging the smartphone with a cable Charging the smartphone with a cable Should you have a smartphone that does not have a Qi charging function, you can charge it via the +COM/ UNIT using an optional USB cable when you are on the road. -
Page 20: Using The Nfc
G E R M A N Y Using the NFC Using the NFC The +COM/UNIT is equipped with an NFC chip (NEAR FIELD COMMUNICATION). The NFC chip that is integ- rated in the +COM/UNIT can be put to various uses. The most diverse contents can be stored on the NFC chip it then being possible to read these out using an NFC-capable smartphone. -
Page 21: Charging The +Com/Unit And Your Smartphone Using Your E-Bike's On-Board Computer
G E R M A N Y Charging the +COM/UNIT and your smartphone using your e-bike’s on-board computer Charging the +COM/UNIT and your smartphone using your e-bike’s on-board computer If you have an e-bike that uses a USB power supply (5 V/min. 0.5 A) on the on-board computer, you can charge the +COM/UNIT and your smartphone using the e-bike’s on-board computer while cycling. - Page 22 G E R M A N Y Charging the +COM/UNIT and your smartphone using your e-bike’s on-board computer The smartphone cannot be continuously navigated with the e-bike if the +COM/UNIT is out of charge. The energy provided by the e-bike is too low to be able to navigate with the smartphone. The +COM/UNIT’s battery should be at least 50% charged to support the smartphone sufficiently during navigation.
-
Page 23: Troubleshooting
G E R M A N Y Troubleshooting Troubleshooting Sympton Cause Remedy ➤ Remove your smartphone from The blue LED on the +COM/UNIT Error when charging the is flashing fast. smartphone the +COM/UNIT and alter its po- sition. When doing so ensure that your smartphone is positioned in the centre on the SKS logo. -
Page 24: Charging The +Com/Unit
G E R M A N Y Charging the +COM/UNIT Charging the +COM/UNIT You can charge the +COM/UNIT as follows: ➤ Insert the plug of the USB cable that is included in the scope of delivery in the USB input port (1) and connect it with a suitable charger. -
Page 25: Maintaining The +Com/Unit
G E R M A N Y Maintaining the +COM/UNIT Maintaining the +COM/UNIT Proceed as follows to maintain the +COM/UNIT: ➤ If necessary, clean the +COM/UNIT’s exterior with a damp cloth. -
Page 26: Accessories
G E R M A N Y Accessories Accessories Designation Order number iPhone 6/7 /8 cover 11538 iPhone 6+/7+/8+ cover 11539 iPhone X cover 11540 Samsung S7 cover 11576 Samsung S8 cover 11577 Samsung S9 cover 11578 Huawei P20 Pro+ cover 11579 Designation Order number... -
Page 27: Disposing Of The +Com/Unit
G E R M A N Y Disposing of the +COM/UNIT Disposing of the +COM/UNIT In Germany ➤ Dispose of the +COM/UNIT packaging according to type. Use local paper, cardboard and lightweight packaging collection facilities for this. ➤ Dispose of the +COM/UNIT and accessories separately from household waste. You can obtain information about collection points that accept used products free of charge from your local and municipal authorities. -
Page 28: Warranty Declaration
(proof with the purchase receipt). Wearing parts are excluded – this especially being the +COM/UNIT battery unit. This is covered by a 6 months SKS GERMANY warranty. An incorrect handling or wrong use excludes a liability for defects. -
Page 29: Returns To Customer Service
G E R M A N Y Returns to Customer Service Returns to Customer Service Proceed as follows as soon as you have noticed damage on the +COM/UNIT: ➤ Send the +COM/UNIT, in its original packaging and with a precise description of the damage, to the follo- wing address for repair: SKS metaplast Scheffer-Klute GmbH Zur Huberstushalle 4... - Page 30 G E R M A N Y Wireless Charging Power Bank Wireless Charging Power Bank +COM/UNIT FCC statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 32 G E R M A N Y...
