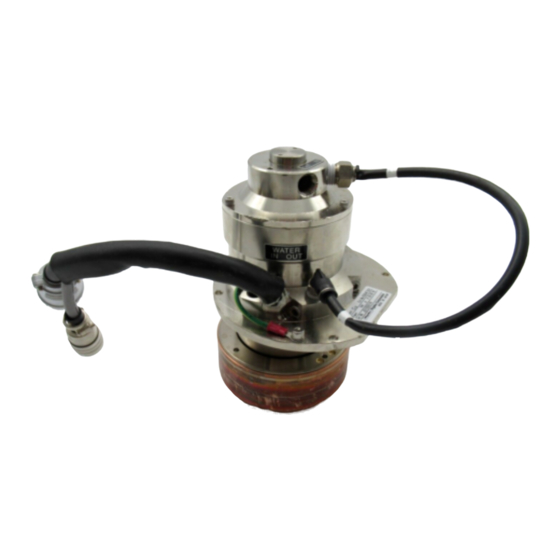

Cat. No. 4364F501
DIRECT DRIVE TYPE
ROTOR TARGET
(FXRT)
INSTRUCTION MANUAL
Manual No. ME14003C01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4364F501 and is the answer not in the manual?

Questions and answers

Related Manuals for Rigaku 4364F501

Summary of Contents for Rigaku 4364F501

  • Page 1 Cat. No. 4364F501 DIRECT DRIVE TYPE ROTOR TARGET (FXRT) INSTRUCTION MANUAL Manual No. ME14003C01...
  • Page 2 This manual described in it may not be disclosed to a third party or copied, in whole or in part, without the written consent of Rigaku Corporation. In no event will Rigaku Corporation be responsible for the results of the use of this manual. As a rule, one set of the instruction manual has to be purchased for each product.

  • Page 3: Table Of Contents

    ME14003C - i Contents 1. GENERAL .............................1 2. SPECIFICATIONS ..........................2 3. LIST OF SUPPLIED ITEMS.......................3 3.1 Standard Items ............................... 3 4. INSTALLING THE ROTOR TARGET IN AN X-RAY TUBE ............4 4.1 Unpacking................................4 4.2 Mounting the Rotor Target in an X-ray Tube ......................4 5.

  • Page 5: General

    - 1 - ME14003C 1. GENERAL This instruction manual describes the installation and maintenance procedures for the Rotor Target, which is to be mounted in the high-intensity X-ray generators. For the X-ray generators in which the Rotor Target can be mounted and the other related equipment, refer to their respective manuals. It is also well to remember that the Rotor Target needs to be repaired or serviced in our factory to secure the performance it possesses at shipment.

  • Page 6: Specifications

    (9000 rpm) (3) Weight : About 5 kg (4) Drive system : Direct drive by built-in motor (5) Kind of target Target material Catalog number 4364F501 4364B501 4364G501 Table 1 (6) Maximum permissible load Maximum permissible Maximum load (kW) Focus size...

  • Page 7: List Of Supplied Items

    - 3 - ME14003C 3. LIST OF SUPPLIED ITEMS 3.1 Standard Items (1) Body of the Rotor Target × 1 The body is supplied with the water leakage prevention plug installed over the cooling hose fitting. (2) Spare parts The following spare parts are contained with the body in a storage box: ①...

  • Page 8: Installing The Rotor Target In An X-Ray Tube

    - 4 - ME14003C 4. INSTALLING THE ROTOR TARGET IN AN X-RAY TUBE 4.1 Unpacking (1) Check the packing for breakage and other abnormality. (2) After unpacking, check all supplied items with a LIST OF SUPPLIED ITEMS (section 3). (3) Check for no flaw on the surface of the Rotor Target. Stripes on the surface of the Rotor Target are the traces of electronic beams and do not constitute any problem.

  • Page 9: Maintenance

    - 5 - ME14003C 5. MAINTENANCE 5.1 Cleaning the Surface of a Target (1) Remove any burnt material buildup on the central part using fine sandpaper. Except Cu, be sure to polish the surface of a target along the circumference. Polishing the target surface toward the axis may cause dust scraped off from Cu, which is the cup's main material, and improperly enter an area other than the central section of Cu, thereby causing an adverse effect on measurements.

  • Page 10: Example Of A Maintenance Record

    - 6 - ME14003C 5.5 Example of a Maintenance Record To prevent accidents and assure smooth servicing in the event of an accident, you should record the contents of servicing and repairing tasks performed. A typical maintenance record example is presented below (the hour meter indicates a reading on the hour meter of the X-ray generator): Date Hour meter/Target...

  • Page 11: Typical Problems And Remedies

    - 7 - ME14003C 5.7 Typical Problems and Remedies Problem Probable cause Remedy Water leakage occurs. There is foreign dust on the Replace the water seal unit. surface of the seal, or the water seal unit has reached the end of its useful life.

  • Page 12: About Repair And Service For The Rotor Target

    - 8 - ME14003C 5.8 About Repair and Service for the Rotor Target The Rotor Target needs to be repaired or serviced in our factory to secure the performance it possesses at shipment. Thus, if the Rotor Target is in need of repair or service, contact our service department. See the following figure and list of the Rotor Target parts below just for reference.
  • Page 13 - 9 - ME14003C Direct-Drive Rotor Target (FXRT) Parts List (First Edition) Cat.No.4364*501 Parts Number Name Qty. Requirements Remarks φ21.5 C048-314 C048-3-17 O-ring P16 (nitrile) HB3 × 10 washer C048-3-01 Washer-attached screw attached φ81.5 C048-303 Water-cooling connector base φ2.9 × L4.7 C048-3-5 Spring φ30...
  • Page 15 Differential Scanning Calorimeters Specifications Subject to Change without Notice Rigaku Corporation Tokyo Branch 4-14-4, Sendagaya, Shibuya-ku, Tokyo 151-0051, Japan www.rigaku.com Phone: +81-3-3479-0618 Fax: +81-3-3479-6112 e-mail: rinttyo@rigaku.co.jp Rigaku Corporation Rigaku Americas Corporation Rigaku Europe SE Head Office 9009 New Trails Drive,...
