Hoshizaki KM-280MAH-E Parts List

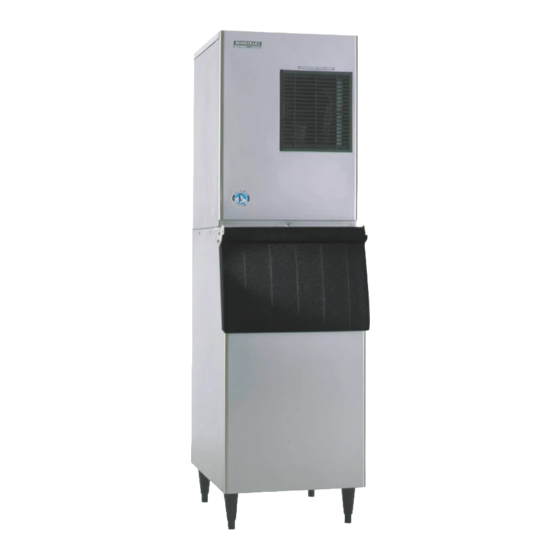

Modular crescent cuber
Hide thumbs
Also See for KM-280MAH-E:
- Instruction manual (32 pages) ,
- Service manual (63 pages) ,
- Service manual (358 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hoshizaki KM-280MAH-E
Summary of Contents for Hoshizaki KM-280MAH-E
- Page 1 MODULAR CRESCENT CUBER KM-280MAH-E KM-280MAH-E KM-280MAH-E KM-280MAH-E KM-280MAH-E PARTS LIST PARTS LIST PARTS LIST PARTS LIST PARTS LIST HOSHIZAKI 89/336 89/336 89/336 89/336 89/336 NUMBER: 73/23 73/23 73/23 73/23 73/23 ISSUED: APRIL 15, 2003 71220...
- Page 2 This is accomplished in this icemaker through the use of stainless steel toothed washers, Hoshizaki Part # 7R22-0400. JUNE 2001 JUNE 2002 SEPT., 2002...
- Page 3 ALUMINUM ALUMINUM ALUMINUM ALUMINUM ALUMINUM Aluminum COPPER COPPER COPPER COPPER COPPER Copper PLASTIC PLASTIC PLASTIC PLASTIC PLASTIC Acrylonitritrile -butadiene - styrene Polyacetal Ethylene vinyl acetate Polyamide = Nylon Polycarbonate Polyethylene Polyester PETP Polyethylene terephthalate = Tetlon Polypropylene Polystyrene PTFE Polytetrafluoroethylene = Teflon Polyurethane Polyvinyl chloride R U B B E R...
- Page 4 KM-280MAH-E A. ICE CUBER ASSEMBLY L-0, M-0...
- Page 5 KM-280MAH-E A. ICE CUBER ASSEMBLY M-2, N-0, N-1...
- Page 6 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION REFRIGERATION CIRCUIT WATER CIRCUIT CONTROL BOX ASSEMBLY T2 SCREW LABEL LOCATION EVAP. CASE BASE FT SCREW FRAME TRUSS HEAD SCREW TRUSS HEAD SCREW SQUARE WASHER SCREW - GROUNDING TOP FRAME T2 SCREW SIDE FRAME T2 SCREW...
- Page 7 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION CONTROL BOX COVER T2 SCREW FRONT PANEL TRUSS HEAD SCREW LOUVER (A) PUSH RETAINER TOP PANEL GASKET (A) GASKET INSULATION AIR FILTER (A) DEFLECTOR SHIELD POWER SUPPLY CORD BUSHING TRANSFORMER PAN HEAD SCREW W/ WASHER...
- Page 8 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION GASKET BRACKET (M) THUMBSCREW BIN SWITCH CABLE TIE MOUNT A. ICE CUBER ASSEMBLY MATERIAL PART OR MODEL NUMBER NUMBER L=554 4A0808L02 3A1434-01 415949G04 415949G09 4A2430-01 437618-01 REQUIRED NUMBER...
- Page 9 KM-280MAH-E B. REFRIGERATION CIRCUIT (1/2) L-0, M-0, M-2, N-0, N-1...
- Page 10 KM-280MAH-E B. REFRIGERATION CIRCUIT (2/2) L-0, M-0, M-2, N-0, N-1...
- Page 11 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION CONDENSER T2 SCREW SHROUD T2 SCREW BARRIER T2 SCREW REAR PANEL T2 SCREW COMPRESSOR BOLT SPACER GROMMET MOTOR PROTECTOR FAN MOTOR BRACKET HEX BOLT ASSEMBLY (LF) FAN MOTOR SELF-LOCKING NUT FAN BLADE DRIER DRIER BRACKET...
- Page 12 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION PRESSURE SWITCH PRESSURE SWITCH BRACKET T2 SCREW COPPER TUBE ACCESS VALVE ACCESS VALVE COPPER TUBE (A) - HIGH SIDE COPPER TUBE (B) - HIGH SIDE COPPER TUBE (C) - HIGH SIDE COPPER TUBE (D) - HIGH SIDE...
- Page 13 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION END CAP B. REFRIGERATION CIRCUIT MATERIAL PART REQUIRED NUMBER OR MODEL NUMBER NUMBER RUBBER 4A1413F01...
- Page 14 KM-280MAH-E C. WATER CIRCUIT L-0, M-0, M-2, N-0, N-1...
- Page 15 MODEL KM-280MAH-E INDEX DESCRIPTION PUMP MOTOR ASSEMBLY TRUSS HEAD SCREW FLAT WASHER SPLIT LOCK WASHER HEX NUT WATER SUPPLY PIPE T2 SCREW RUBBER GASKET WATER VALVE BRACKET T2 SCREW WATER VALVE HOSE CLAMP SPRAY TUBE SPRAY GUIDE (A) CUBE GUIDE...
- Page 16 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION DRAIN HOSE OVERFLOW CAP OVERFLOW PIPE “O” RING CONNECTOR-FLOAT SWITCH EPDM FLOAT SWITCH T2 SCREW FLOAT SWITCH STOP SILICONE HOSE SILICONE HOSE WIRE SADDLE BUSHING HOSE CLAMP RUBBER HOSE(C) INSULATION (E) WATER SUPPLY TUBE PLUG...
- Page 17 KM-280MAH-E D. CONTROL BOX ASSEMBLY L-0, M-0...
- Page 18 KM-280MAH-E D. CONTROL BOX ASSEMBLY M-2, N-0, N-1...
- Page 19 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION CONTROL ASSEMBLY T2 SCREW CONTROL BOX CAPACITOR - RUN CAPACITOR – STARTING STRAP T2 SCREW STARTER T2 SCREW MAGNETIC CONTACTOR BRACKET T2 SCREW TRANSFORMER T2 SCREW CAPACITOR T2 SCREW CONTROLLER BOARD BOARD SUPPORT BUSHING BUSHING...
- Page 20 KM-280MAH-E E. LABEL LOCATION L-0, M-0...
- Page 21 KM-280MAH-E E. LABEL LOCATION M-2, N-0, N-1...
- Page 22 MODEL KM-280MAH-E TITLE INDEX DESCRIPTION EMBLEM MODEL NUMBER LABEL LABEL – PENGUIN – HA (R) MAINTENANCE LABEL WIRING LABEL NAMEPLATE INSTRUCTION SHEET MANUAL LABEL LABEL-CE WATER SUPPLY LABEL LABEL – R404A CAUTION LABEL (F) CAUTION LABEL (H) LABEL – AIR FILTER INSTRUCTION LABEL LABEL –...
- Page 23 KM-280MAH-E F. PUMP MOTOR ASSEMBLY L-0, M-0, M-2, N-0, N-1...
- Page 24 MODEL KM-280MAH-E INDEX DESCRIPTION PUMP MOTOR RETAINER MECHANICAL SEAL (B) “O” RING PLATE – PUMP PUMP GASKET IMPELLER PUMP HOUSING PAN HEAD SCREW TOOTH WASHER PLUG HOUSING TITLE F. PUMP MOTOR ASSEMBLY MATERIAL PART OR MODEL NUMBER NUMBER L-0 M-0 M-2 N-0...
- Page 25 KM-280MAH-E CONTROL ASSEMBLY L-0, M-0...
- Page 26 KM-280MAH-E CONTROL ASSEMBLY M-2, N-0, N-1...
- Page 27 MODEL KM-280MAH-E, MWF-E TITLE INDEX DESCRIPTION CONTROL BOX (C) TOGGLE SWITCH THERMOSTAT TRUSS HEAD SCREW FUSE HOLDER FUSE TOGGLE SWITCH CONTROL LABEL G. CONTROL ASSEMBLY MATERIAL PART OR MODEL NUMBER NUMBER L-0 M-0 M-2 N-0 4A2517-01 4A2816-01 443119-01 YTB-105B 4A2879-01...
- Page 28 KM-280MAH H. ACCESSORIES L-0, M-0, M-2, N-0, N-1...
- Page 29 MODEL KM-280MAH-E INDEX DESCRIPTION INSTRUCTION MANUAL INSTALLATION MANUAL UNIVERSAL BRACE HEX HEAD BOLT PACKAGING (available only on models currently in production) PALLET TRAY CORNER POST CARTON CORNER POST SIDE PROTECTOR SIDE PROTECTOR WOOD BLOCK – A WOOD BLOCK – B TITLE H.
