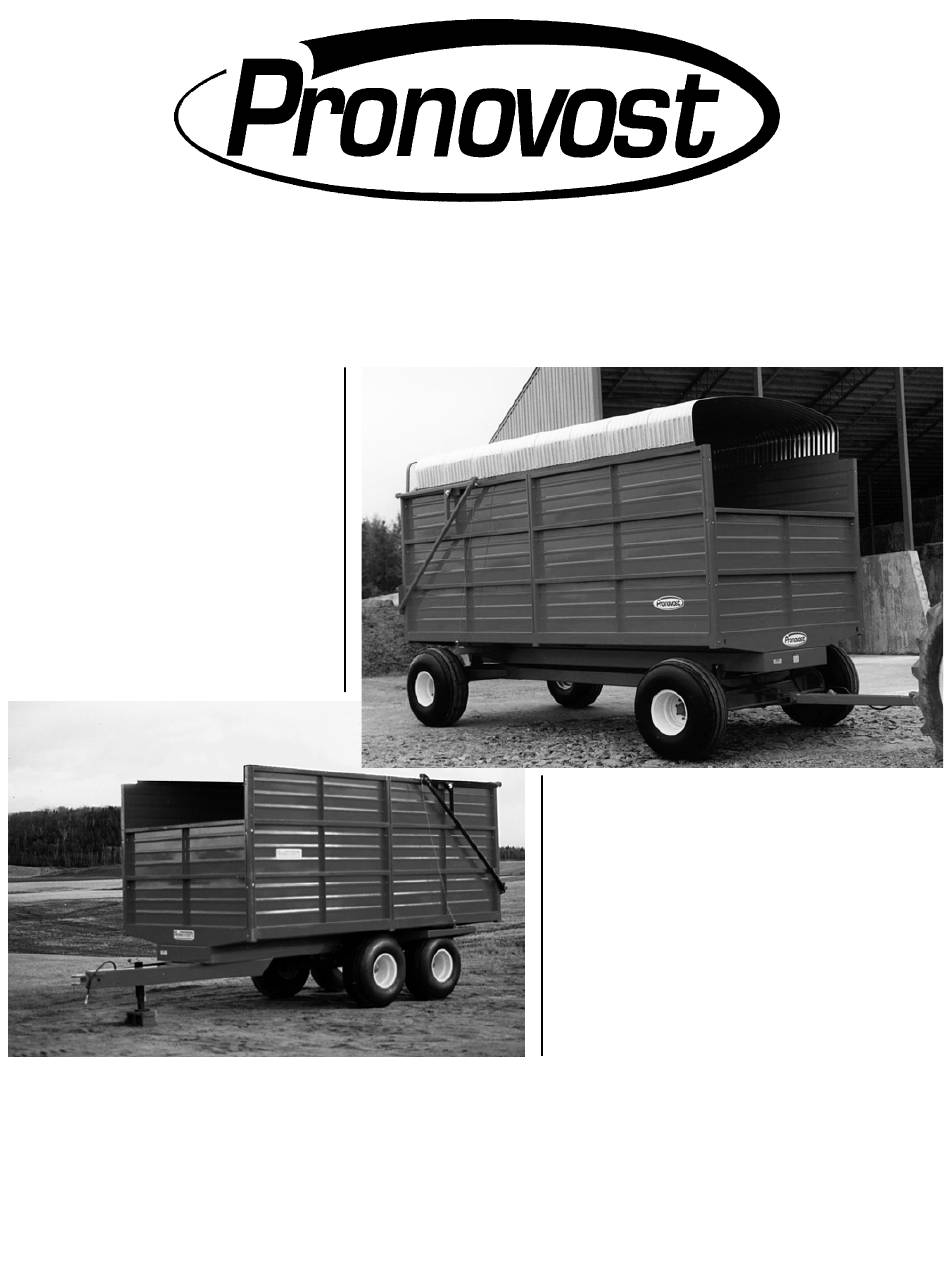

P-1624 & P-1824

P-1648 & P-1848

P-1672 & P-1872

No. C1652

OPERATOR'S / PARTS

Dumping forage and grain box

- For running gear mounting

- Tandem trailer mounted

M A N U A L

P-51624 & P-51824

P-51648 & P-51848

P-51672 & P-51872

05/01

Table of Contents

Need help?

Do you have a question about the P-1624 and is the answer not in the manual?

Questions and answers

Summary of Contents for pronovost P-1624

Page 1 M A N U A L M A N U A L M A N U A L M A N U A L M A N U A L P-1624 & P-1824 P-1624 & P-1824 P-1624 & P-1824 P-1624 & P-1824 P-1624 & P-1824 P-1648 &...
Page 3: Table Of Contents
Maintenance ......................10 Storage ........................11 Specifications......................12 Parts List ........................12 Dumping Box P-1624 & P-1824 ..............14 Dumping Box P-51624 & P-51824 ..............16 Dumping Box P-1648 & P-1848 ..............19 Dumping Box P-51648 & P-51848 ..............21 Dumping Box P-1672 &...
Page 5: Introduction
INTRODUCTION CONGRATULATIONS! Thank you for choosing PRONOVOST. We are NOW take a moment to enter the model, serial confident this equipment will meet your requirements number and the date of purchase of your Dumping in terms of quality, performance and reliability.
Page 6: Safety
SAFETY GENERAL SAFETY WHEN YOU SEE THIS SYMBOL 5) Hydraulic fluids under pressure can damage your skin. Do not use your hands to locate a leak. SAFETY IN OPERATION 1) WARNING! Do not overload your trailer, do not exceed the load capacity indicated in the specifications on page 12 and 13.
Page 7: Safety With Maintenance
SAFETY (cont'd) SAFETY WITH MAINTENANCE SAFETY IN TRANSPORT 1) Perform maintenance according to 1) On public roads, use proper safety lights and recommendations contained in this manual. check local regulations. 2) Before performing any work under the raised 2) Be alert while driving on the road. Never carry platform, always install the safety support passengers.
Page 8: Decals
DECALS SAFETY DECALS MAINTENANCE DECALS The safety decals are affixed wherever special safety The maintenance decals indicate the points requiring precautions are indicated. Locate them on the lubrication. Refer to maintenance section for more equipment and read them carefully. If a decal is details.
Page 9: Start-Up
START-UP BASIC START-UP PROCEDURES 11) Verify if the back door is working properly and 1) It is recommended to install the Dumping box adjust with spacers if need be. P-1672 or P-1872 on a 15 tons - 4 wheels wagon with front equalizer bolster.
Page 10: Maintenance
MAINTENANCE Before performing any work under the raised 5) Lubricate panel release mechanism every 20 hours platform, always install the safety support of operation. provided. 6) Check tire pressure every 50 hours of operation, 1) Wipe off all grease fittings with a clean cloth adjust according to manufacturer's before adding grease in order to avoid injecting recommendation indicated on the tires.
Page 11: Storage
STORAGE 1) Store in a cool, dry place. 4) Clean your trailer. 2) Install wooden blocks under the axles to keep the 5) Thoroughly inspect all parts of the trailer. Replace tires off the ground and cover them if left exposed or repair worn or defective parts.
Page 12: Specifications
SPECIFICATIONS DUMPING BOX FOR RUNNING GEAR MOUNTING MODEL P-1624 P-1824 P-1648 P-1848 P-1672 P-1872 Capacity without roof (cu. ft.) Capacity with roof (cu. ft.) Overall length of box 1 6 ' 1 8 ' 1 6 ' 1 8 '...
Page 13 SPECIFICATIONS TANDEM TRAILER MOUNTED DUMPING BOX MODEL P-51624 P-51824 P-51648 P-51848 P-51672 P-51872 Capacity without roof (cu. ft.) Capacity with roof (cu. ft.) Overall length of box 1 6 ' 1 8 ' 1 6 ' 1 8 ' 1 6 ' 1 8 ' Front width All models: 92 1/2"...
Page 14: Dumping Box P-1624 & P-1824
DUMPING BOX P-1624 & P-1824 170-02831 - 14 -...
Page 15 P-1624 & P-1824 DUMPING BOX REF. PART # DESCRIPTION 120-03091 Frame ....................120-03101 Frame ....................110-17331 Front panel .................... 160-08181 Safety prop .................... Std. Cotter pin 1/4" x 2" lg ................Std. Flat washer 3/4" ..................120-03071 Platform ....................120-03081 Platform ....................
Page 16: Dumping Box P-51624 & P-51824
P-51624 & P-51824 DUMPING BOX ON TANDEM 170-02771 - 16 -...
Page 17 P-51624 & P-51824 DUMPING BOX ON TANDEM REF. PART # DESCRIPTION 120-03171 Frame ....................120-03191 Frame ....................120-00141 Hitch assy....................Std. Bolt 3/4" NC x 3" lg + nylon locknut .............. Std. Cotter pin 1/4" x 3 1/2" lg ................Std.
Page 18 P-51624 & P-51824 DUMPING BOX ON TANDEM REF. PART # DESCRIPTION 110-08891 Washer ....................110-08911 Lock assembly pivot ................. 150-01811 Clevis pin 3/4" x 3 1/4" lg ................Std. Bolt 3/4" NC x 5 1/2" lg + nylon locknut ............Std.
Page 19: Dumping Box P-1648 & P-1848
P-1648 & P-1848 DUMPING BOX 170-02751 - 19 -...
Page 20 P-1648 & P-1848 DUMPING BOX REF. PART # DESCRIPTION 120-03091 Frame ....................120-03101 Frame ....................110-17331 Front panel .................... 160-08181 Safety prop .................... Std. Cotter pin 1/4" x 2" lg ................Std. Flat washer 3/4" ..................120-03071 Platform ....................120-03081 Platform ....................
Page 21: Dumping Box P-51648 & P-51848
P-51648 & P-51848 DUMPING BOX ON TANDEM 170-02761 - 21 -...
Page 22 P-51648 & P-51848 DUMPING BOX ON TANDEM REF. PART # DESCRIPTION 120-03171 Frame ....................120-03191 Frame ....................110-17331 Front panel .................... 160-08181 Safety prop .................... Std. Cotter pin 1/4" x 2" lg ................Std. Flat washer 3/4" ..................120-03181 Platform ....................120-03201 Platform ....................
Page 23 P-51648 & P-51848 DUMPING BOX ON TANDEM R E F . PART # D E S C R I P T I O N Q T Y R-161148 Rim 16.1 x 14-8 boults ................110-00444 Right tandem assembly ................36132 Hub H-8001 assembly ................
Page 24: Dumping Box P-1672 & P-1872
P-1672 & P-1872 DUMPING BOX 170-02711 - 24 -...
Page 25 P-1672 & P-1872 DUMPING BOX REF. PART # DESCRIPTION 120-03091 Frame ....................120-03101 Frame ....................110-17331 Front panel .................... 110-17341 Side panel ..................... 110-14901 Side panel ..................... 110-17351 Side panel (top rear) ................. 110-14911 Side panel (top rear) ................. 110-17361 Side panel (top front) ................
Page 26 P-1672 & P-1872 DUMPING BOX REF. PART # DESCRIPTION Std. Bolt 1/2" NC x 1 1/2" lg + nylon locknut ............Std. Bolt 5/16" NC x 1 1/2" lg + nylon locknut ............Std. Spring B-616 ..................51436 Clevis pin 1/2" x 1 37/64" lg ................ 51435 Yoke 1/2"-20NF ..................
Page 27: Dumping Box P-51672 & P-51872
P-51672 & P-51872 DUMPING BOX ON TANDEM 170-02741 - 27 -...
Page 28 P-51672 & P-51872 DUMPING BOX ON TANDEM REF. PART # DESCRIPTION 120-03171 Frame ....................120-03191 Frame ....................110-17331 Front panel .................... 110-17341 Side panel ..................... 110-14901 Side panel ..................... 110-17351 Side panel (top rear) ................. 110-14911 Side panel (top rear) ................. 110-17361 Side panel (top front) ................
Page 29 P-51672 & P-51872 DUMPING BOX ON TANDEM REF. PART # DESCRIPTION Std. Bolt 1/2" NC x 1 1/2" lg + nylon locknut ............Std. Bolt 5/16" NC x 1 1/2" lg + nylon locknut ............Std. Spring B-616 ..................51436 Clevis pin 1/2"...
Page 30: Canvas Roof & Galvanized Steel Roof
DUMPING BOX ROOF REF. PART # DESCRIPTION 190-03821 Canvas roof ................. 190-03791 Canvas roof ................. 190-04401 Nylon rope 50' lg ................190-04411 Nylon rope 54' lg ................160-07091 Roof support for canvas ..............190-03771 Iron angle for canvas roof ..............190-03781 Iron angle for canvas roof ..............
Page 31: Telescopic Cylinder 110-00471
TELESCOPIC CYLINDER 110-00471 REF. PART # DESCRIPTION 51586 Connector ....................51595 Piston ......................110-00472 Threaded cylinder base ................... 51597 Repair kit for cylinder ..................51589 Seal kit for connector ..................*NI= Not illustrated - 31 -...
Page 32: Hub H8001
HUB H8001 (36132) REF. PART # DESCRIPTION Std. Cotter pin 3/16" x 2 1/2" ................. 36114 Dust cap 3.135" ø ..................36116 Castle nut 1" - 14 ..................Std. Flat washer 1" ....................36118 Roller bearing Timken: cone no. LM 501349 ............36120 Roller bearing Timken: cup no.
Page 33: Torque Chart
TORQUE CHART TORQUE SPECIFICATION TABLE Thread UNC and UNF Grade 2 Grade 5 Grade 8* Bolt size Torque Torque Torque Pound feet Newton meters Pound feet Newton meters Pound feet Newton meters Inches min. max. min. max. min. max. min. max.
Page 34: Garantie
WARRANTY PRONOVOST warrants this product to the initial All PRONOVOST spare parts purchased are covered purchaser for the period of one year from the date of by a three (3) month warranty. purchase against defects in materials and workmanship. This warranty becomes void and nul if the equipment...
Page 36 Ce manuel est aussi disponible en français. Veuillez téléphoner. INNOVATION - EXCELLENCE LES MACHINERIES PRONOVOST INC. 260, route 159, Saint-Tite, Quebec, Canada, G0X 3H0 Tel.: (418) 365-7551, Fax: (418) 365-7954 www.pronovost.qc.ca...
