pronovost P-6810 Operator And Parts Manual

Auto-load round bale handler models
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S / PARTS
MANUAL
Auto-Load Round Bale Handler
Models
P-6810
P-6812
P-6816
P-6810M
P-6812M
P-6816M
No. C420
05/2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-6810 and is the answer not in the manual?

Questions and answers

Related Manuals for pronovost P-6810

Summary of Contents for pronovost P-6810

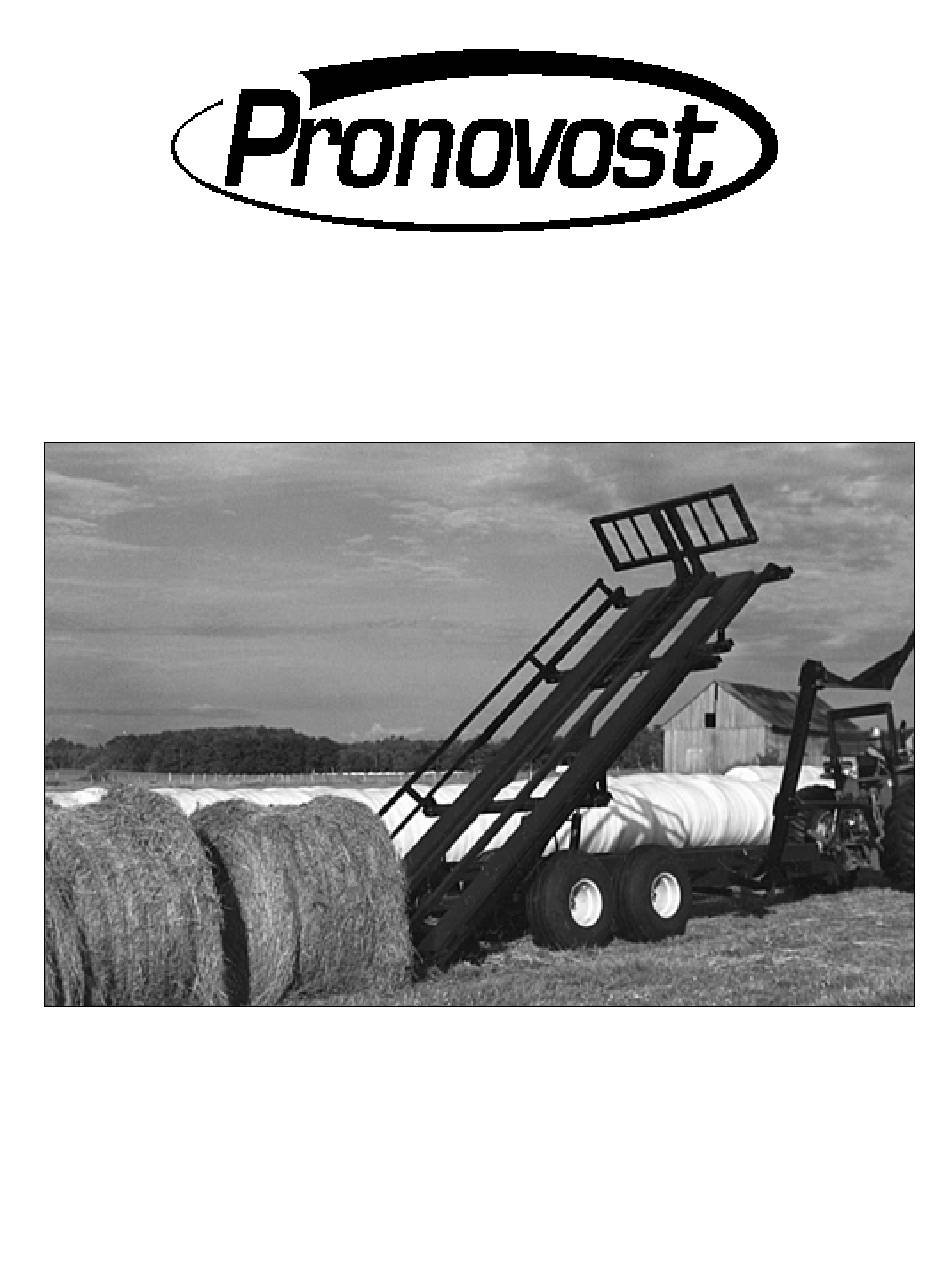

  • Page 1 OPERATOR'S / PARTS MANUAL Auto-Load Round Bale Handler Models P-6810 P-6812 P-6816 P-6810M P-6812M P-6816M No. C420 05/2008...
  • Page 2 Copyright © Les Machineries Pronovost Inc., 2008 All rights reserved. Printed in Canada.

  • Page 3: Table Of Contents

    Hydraulic system: P-6812M and third bale row option .......... 36 Hydraulic system P-6816 ..................38 Hydraulic system: P-6816M and third bale row option .......... 40 Hydraulic system for third bale row on P-6810, P-6812 and P-6816 ..... 42 Cylinder 30AT20 ....................44 Cylinder 30BC28 ....................45 Cylindre 35BS35 ....................

  • Page 5: Introduction

    INTRODUCTION CONGRATULATIONS! Thank you for choosing PRONOVOST. We are NOW take a moment to enter the model, serial confident this equipment will meet your requirements number and the date of purchase of your Auto-Load in terms of quality, performance and reliability.

  • Page 6: Safety

    SAFETY GENERAL SAFETY SAFETY IN OPERATION WHEN YOU SEE THIS SYMBOL 1) Be sure there are no obstructions around the equipment and that no one stands near the ma- chine when in operation or unloading. 2) Be careful when adjusting equipment with engine running.

  • Page 7: Decals

    DECALS SAFETY DECALS The safety decals are affixed wherever special safety precautions are indicated. Locate them on the ma- chine and read them carefully. If a decal is damaged, lost or illegible, install a new one. Each decal is identified with a letter and part number. The following photos indicate where each one must be installed.

  • Page 8: Maintenance Decals

    DECALS (cont'd) MAINTENANCE DECALS Figure 6 The maintenance decals indicate the points requiring Decal C Part no.: A103 lubrification. Refer to the maintenance section for more details. Part no.: A105 Figure 7 Part no.: A106 Figure 8 - 8 -...

  • Page 9: Start-Up

    3) Adjust tire pressure according to manufacturer's recommendation. 4) Install all hydraulic hoses and fittings compatible with your equipment. Models P-6810, P-6812 & P-6816 only. 5) If your tractor is equiped with a closed center hydraulic Figure 9 system, the conversion kit P-6890CF must be installed.

  • Page 10: Adjustments

    Figure 12 BALE RAM Models P-6810, P-6812 & P-6816 only. 1) The length of stroke is factory set for the longest bale dimension (5 1/2'); the limit switch in position A. Although the stroke can...

  • Page 11: Operation

    START-UP (cont'd) OPERATION Models P-6810, P-6812 & P-6816 only. 1) First familiarize yourself with the controls and their fonctions. (Figure 16) 2) Remember that the Round Bale Handler is designed and built to turn the bales and load them non stop, consequently, the direction of travel will usualy be the same as the baler's.
  • Page 12 START-UP (cont'd) 8) When the first pair of bales loaded reach the bale supports at the extreme rear end of the platform, an indicator will pop out on the front corner of the platform opposite from the loading arm. (Figure 9) To unload the bales, simply back up to the area where you wish to deposit the bales, open up the loading arm slightly to clear the platform.

  • Page 13: Maintenance

    MAINTENANCE The Auto-Load Round Bale Handler is designed to 5) Check nuts and bolts once a year. If necessary, use save you energy, time and money, take care of it, torque chart page 52. protect your investment. 6) Check all bolts on wheels after the first 5 hours of 1) Wipe off all grease fittings with a clean cloth operation and then every 50 hours.

  • Page 14: Storage

    STORAGE 4) Clean your Auto-Load Round Bale Handler. 1) Store the Auto-Load Round Bale Handler in a cool, dry place. 5) Thoroughly inspect all parts of the Round Bale Handler. Replace or repair worn or defective parts. 2) Keep tires off the ground and cover them if left exposed to the sun.

  • Page 15: Specifications

    SPECIFICATIONS MODELS P-6810M P-6810 P-6812M P-6812 P-6816M P-6816 Total capacity 12 tons (GVWR) Standards tires 16.5L16.1 with - - - wheels W14C16.1 (280 x 404 mm) Total capacity 16 tons (GVWR) - - - Optionals tires 21.5L16.1 with Standards tires 21.5L16.1 with wheels W16C16.1 (403 x 404 mm) wheels W16C16.1 (403 x 404 mm)

  • Page 16: Parts List

    AUTO-LOAD ROUND BALE HANDLER P-6810 & P-6810M 170-04431R1 - 16 -...
  • Page 17 Rear rail (right side) ..................110-34011 Rear fork ..................... 300-46520 Bolt 3/4-NC x 5" + flat washer + nylon locknut ........120-06191 Platform for P-6810 ................120-06231 Left rail ....................130-00701 Load indicator lever ..................51435 Yoke 1/2" NF + nut ................
  • Page 18 AUTO-LOAD ROUND BALE HANDLER P-6810 & P-6810M REF. PART # DESCRIPTION 30FT84 Cylinder ....................300-36250 Bolt 3/8" NC x 1" lg + nylon locknut ............Opt. 300-40325 Bolt 1/2" NC x 13/4" lg + nylon locknut ..........130-57741 Retaining washer ..................

  • Page 19: Auto-Load Round Bale Handler P-6812 And P-6812M

    AUTO-LOAD ROUND BALE HANDLER P-6812 & P-6812M 170-04491R1 - 19 -...
  • Page 20 AUTO-LOAD ROUND BALE HANDLER P-6812 & P-6812M (cont'd) REF. PART # DESCRIPTION 110-27061 Inner arm ..................... 120-00122 Outer arm .................... 110-00382 Loading arm support ................110-27102 Back plate ................... 307-46490 Bolt 3/4" NF x 4 1/2" lg GR 12 + nylon locknut ........110-00411 Clevis pin 1 1/4"...
  • Page 21 AUTO-LOAD ROUND BALE HANDLER P-6812 & P-6812M (cont'd) REF. PART # DESCRIPTION 336-40000 Nut 1/2" NC ..................30FT84 Cylinder ....................300-36250 Bolt 3/8" NC x 1" lg + nylon locknut ............4 opt. 300-40325 Bolt 1/2" NC x 13/4" lg + nylon locknut ..........130-57741 Retaining washer ..................

  • Page 22: Auto-Load Round Bale Handler P-6816 And P-6816M

    AUTO-LOAD ROUND BALE HANDLER P-6816 & P-6816M 170-04561R1 - 22 -...
  • Page 23 AUTO-LOAD ROUND BALE HANDLER P-6816 & P-6816M (cont'd) REF. PART # DESCRIPTION 110-27061 Inner arm ..................... 120-00122 Outer arm .................... 110-00382 Loading arm support ................110-27102 Back plate ................... 307-46490 Bolt 3/4" NF x 4 1/2" lg GR 12 + nylon locknut ........110-00411 Clevis pin 1 1/4"...
  • Page 24 AUTO-LOAD ROUND BALE HANDLER P-6816 & P-6816M (cont'd) REF. PART # DESCRIPTION 30FT84 Cylinder ....................300-36250 Bolt 3/8" NC x 1" lg + nylon locknut ............4 opt. 300-40325 Bolt 1/2" NC x 1 3/4" lg + nylon locknut ..........15 15 130-57741 Retaining washer ..................

  • Page 25: Option 3E Rangée De Balles Pour Tous Les Modèles

    OPTION 3 110-36501 - 25 -...
  • Page 26 OPTION 3 REF. PART # DESCRIPTION 120-06591 Pusher option third row of bales ..............110-03831 Loading arm for third row of bales ............... 150-12151 Forks for third row of bales (2) ..............110-03851 Third bale guard rail ................... 110-04761 Third row lever ..................130-00591 Pusher wheel ....................

  • Page 27: Electric System P-6810, P-6812 And P-6816

    ELECTRIC SYSTEM P-6810 P-6812 & P-6816 170-02253 - 27 -...
  • Page 28 18019 Selenoid valve ................... 18019 Selenoid valve ................... opt. 190-10121 Harness 16GA yellow (415" lg for P-6810) ........... opt. 190-10131 Harness 16GA yellow (492" lg for P-6812) ........... opt. 190-10141 Harness 16GA yellow (684" lg for P-6816) ........... opt. 36113 Control lever 2 ways ..................

  • Page 29: Electrique Schema "Ladder" Diagram

    ELECTRIC SCHEMA "LADDER" DIAGRAM 110-29961 - 29 -...

  • Page 30: Hydraulic System P-6810

    HYDRAULIC SYSTEM P-6810 170-04593 - 30 -...
  • Page 31 HYDRAULIC SYSTEM P-6810 REF. PART # DESCRIPTION S71-4 Quick coupler 1/2" male ................9515x8x8 Fitting 3/4" ORB male x 1/2" NPSM female 90° swivel ........9315x8x8 Fitting 3/4" ORB male x 1/2" NPSM female straight swivel ......18019 Solenoïd valve ...................

  • Page 32: Hydraulic System: P-6810M And Third Bale Row Option

    HYDRAULIC SYSTEM P-6810M & THIRD ROW OPTION 170-04603 - 32 -...
  • Page 33 HYDRAULIC SYSTEM P-6810M & THIRD ROW OPTION REF. PART # DESCRIPTION S71-4 Quick coupler 1/2" male ................ 190-10231 Hose 3/8" x 50" lg +2 fittings 6U106 ............ 190-04531 Hose 1/2" x 232" lg +2 fittings 8U108 ..........190-10201 Hose 1/2" x 196" lg +2 fittings 8U108 ..........9405x8x8 Fitting 1/2"...

  • Page 34: Hydraulic System P-6812

    HYDRAULIC SYSTEM P-6812 170-04613 - 34 -...
  • Page 35 HYDRAULIC SYSTEM P-6812 REF. PART # DESCRIPTION S71-4 Quick coupler 1/2" male ................9515x8x8 Fitting 3/4" ORB male x 1/2" NPSM female swivel 90° ........9315x8x8 Fitting 3/4" ORB male x 1/2" NPSM female swivel droit ........18019 Solenoïd valve ................... 160-22491 Ligne hydraulique 3/8"...

  • Page 36: Hydraulic System: P-6812M And Third Bale Row Option

    HYDRAULIC SYSTEM P-6812M & THIRD ROW OPTION 170-04623 - 36 -...
  • Page 37 HYDRAULIC SYSTEM P-6812M & THIRD ROW OPTION (cont'd) REF. PART # DESCRIPTION S71-4 Quick coupler 1/2" male ................ 190-10241 Hose 3/8" x 99" lg +1 fitting 6U106 + 1 fitting 6U108 ......190-04531 Hose 1/2" x 232" lg +2 fittings 8U108 ..........190-10201 Hose 1/2"...

  • Page 38: Hydraulic System P-6816

    HYDRAULIC SYSTEM P-6816 170-04633 - 38 -...
  • Page 39 HYDRAULIC SYSTEM P-6816 REF. PART # DESCRIPTION S71-4 Fitting rapide 1/2" male ................9515x8x8 Fitting 3/4" ORB male x 1/2" NPSM female swivel 90° ......... 9315x8x8 Fitting 3/4" ORB male x 1/2" NPSM female swivel straight ......18019 Solenoïd valve ................... 160-22551 Hydraulic line 3/8"...

  • Page 40: Hydraulic System: P-6816M And Third Bale Row Option

    HYDRAULIC SYSTEM P-6816M & THIRD ROW OPTION 170-04643 - 40 -...
  • Page 41 HYDRAULIC SYSTEM P-6816M & THIRD ROW OPTION (cont'd) REF. PART # DESCRIPTION S71-4 Quick coupler 1/2" male ................ 190-10251 Hose 3/8" x 162" lg +1 fitting 6U106+1 fitting 6U108 ......190-04531 Hose 1/2" x 232" lg +2 fittings 8U108 ..........190-10201 Hose 1/2"...

  • Page 42: Hydraulic System For Third Bale Row On P-6810, P-6812 And P-6816

    HYDRAULIC SYSTEM FOR 3 ROW OPTION P-6810, P-6812 & P-6816 170-04721R1 - 42 -...
  • Page 43 HYDRAULIC SYSTEM FOR 3 ROW OPTION P-6810, P-6812 & P-6816 REF. PART # DESCRIPTION 18019 Solenoïd valve ................190-10031 Hose 1/2" x 49" lg + 1 fitting 8U106 + 1 fitting 8U-108 ....3 15855x8x8x8 "T" 1/2" ..................160-23281 Hydraulic line 3/8" x 79" lg ............

  • Page 44: Cylinder 30At20

    CYLINDER 30AT20 110-00711 REF. PART # DESCRIPTION Std. Grease fitting 1/4" - 28 straight ..............D-6161 Bushing 1" i.d. x 1 1/4" o.d. x 2 1/2" ............OR-018 O-ring 1/16" x 3/4" x 7/8" ................PSP-334 O-ring 3/16" x 2 5/8" x 3" ................OR-222 O-ring 1/8"...

  • Page 45: Cylinder 30Bc28

    CYLINDER 30BC28 170-01911 REF. PART # DESCRIPTION BU-334 Back-up 3/16" x 2 5/8" x 3" ................2 OR-334 O-ring 3/16" x 2 5/8" x 3" ................1 OR-018 O-ring 1/16" x 3/4" x 7/8" ................1 PSP-334 O-ring 3/16" x 2 5/8" x 3" ................1 OR-218 O-ring 1/8"...

  • Page 46: Cylindre 35Bs35

    CYLINDER 35BS35 110-36601 REF. PART # DESCRIPTION 110-34881 Cylinder body 3 1/2" dia................110-34891 Piston rod 1 1/2" x 43 7/32" ..............338-48000 Nut 7/8"-14NF ..................D-6113 Piston 3 1/2" dia..................D-6114 Head 3 1/2" dia..................AR-2269FO Wiper 1/8"...

  • Page 47: Cylindre 40Ag60

    CYLINDER 40AG60 110-36611 REF. PART # DESCRIPTION 110-35321 Cylinder body 4" dia................. 110-35331 Piston rod 2" x 69 9/16" ................150-09661 Head 4" dia....................150-09651 Piston 4" dia..................... 339-54000 Nut 1 1/4" -12 NF ..................BU-226 Back-up 1/8" x 2" x 2 1/4" ................. CR-19733 Wiper 5/16"...

  • Page 48: Cylinder 30Ft84

    CYLINDER 30FT84 110-00691 94 5/16" REF. PART # DESCRIPTION BU-334 Back-up ring 3/16" x 2 5/8" x 3" ..............OR-334 O-ring 3/16" x 2 5/8" x 3" ................OR-018 O-ring 1/16" x 3/4" x 7/8" ................PSP-334 O-ring 3/16" x 2 5/8" x 3" ................3C-375 U-cup 1 3/4"...

  • Page 49: Cylinder 30Tr12

    CYLINDER 30TR12 15050 14 ¼" 22¼" REF. PART # DESCRIPTION See RK30TR O-ring ....................... See RK30TR Back-up ring ....................See RK30TR O-ring ....................... See RK30TR O-ring ....................... See RK30TR O-ring ....................... See RK30TR Back-up ring ....................See RK30TR Wiper ....................... 492402 Yoke (for 3"...

  • Page 50: Cushion Valve

    DIRECTIONAL CONTROL VALVE (Models «M» only) 170-00951 REF. PART # DESCRIPTION 649-00022 Snap ring ....................649-00023 O-ring ....................... 649-00024 Body ......................649-00025 Ball for pressure valve ................649-00026 Spring for pressure valve ................649-00027 O-ring ....................... 649-00028 Cap for pressure valve ................649-00029 Spring ......................

  • Page 51: Hubs H8001 H10000

    HUBS H8001 H10000 (36132) (36133) REF. PART # DESCRIPTION Std. Cotter pin 3/16" x 2 1/2" ..............Std. Cotter pin 1/4" x 2 1/2" ................ 36114 Dust cap 3.135" ø ................36115 Dust cap 3.360" ø ................36116 Castle nut 1" - 14 ................. 36117 Castle nut 1 1/4"...

  • Page 52: Torque Chart

    TORQUE CHART TORQUE SPECIFICATION TABLE Thread UNC and UNF Grade 2 Grade 5 Grade 8* Bolt size Torque Torque Torque Pound feet Newton meters Pound feet Newton meters Pound feet Newton meters Inches min. max. min. max. min. max. min. max.

  • Page 53: Warranty

    WARRANTY PRONOVOST warrants this product to the initial All PRONOVOST spare parts purchased are covered purchaser for the period of one year from the date of by a three (3) month warranty. purchase against defects in materials and workmanship. This warranty becomes void and nul if the equipment...
  • Page 56 Ce manuel est aussi disponible en français. Veuillez téléphoner. INNOVATION - EXCELLENCE LES MACHINERIES PRONOVOST INC. 260, route 159, Saint-Tite, Quebec, Canada, G0X 3H0 Tel.: (418) 365-7551, Fax: (418) 365-7954 www.pronovost.qc.ca...
