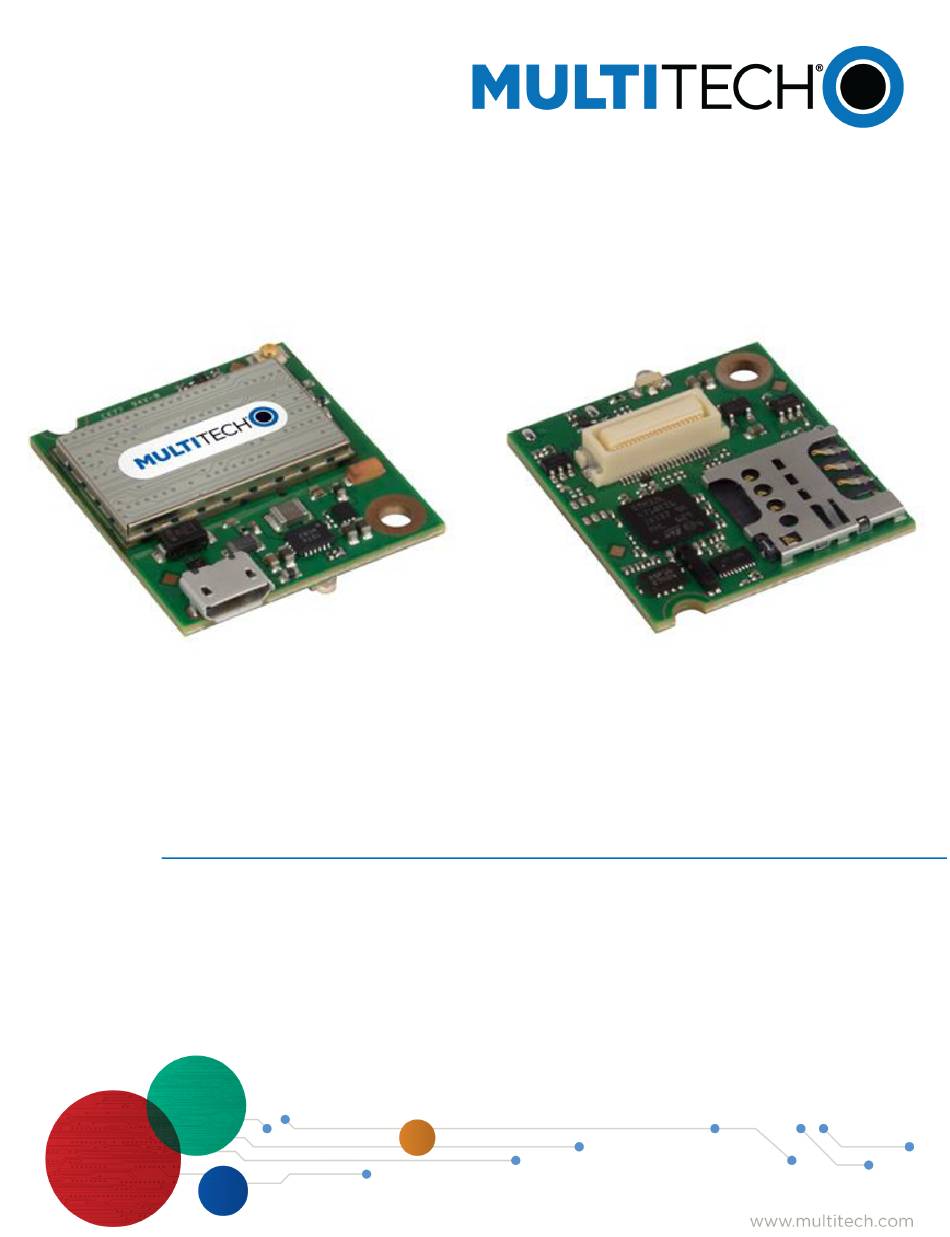

- Page 1 ™ Dragonfly Nano MTQN-MNG3-B01 Device Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 Overview ..................................5 Documentation ................................5 Product Build Options ..............................5 Chapter 2 – Mechanical Drawings..........................6 MTQN-MNG3-B01................................. 6 Chapter 3 – Hardware and Specifications......................... 7 Specifications ................................7 Mounting Hardware..............................8 Recommended Parts.............................. - Page 4 CONTENTS USB Cable Recommendations ............................ 19 Device Reset................................19 MTQN-MNG3-B01..............................19 Low Power Modes............................... 20 Powering Down the Cellular Radio ..........................20 Configuring u-blox Cellular Radio..........................21 USB Driver Installation .............................. 22 Chapter 7 – Labels..............................23 Approvals and Certifications ............................23 Example Labels................................
-
Page 5: Chapter 1 - Product Overview
Commands Manual (Check your device. radio and manual) Note: Additional documentation is available on the mbed site at https://os.mbed.com/platforms/MTS- Dragonfly-Nano/ and at www.multitech.net. See Chapter 6, Getting Started for details. Product Build Options The available Dragonfly Nano modules are: Model Description Region... -
Page 6: Chapter 2 - Mechanical Drawings
MECHANICAL DRAWINGS Chapter 2 – Mechanical Drawings MTQN-MNG3-B01 ™ Dragonfly Nano MTQN-MNG3-B01 Device Guide... -
Page 7: Chapter 3 - Hardware And Specifications
HARDWARE AND SPECIFICATIONS Chapter 3 – Hardware and Specifications Specifications Category Description Performance 3GPP Release 13 LTE Cat M1, 3GPP Release 13 LTE Cat NB1, Coverage Enhancement Mode A, Release 12 LTE Power Save Mode, PSM, Rel 13 e- DRX, Cat M1 Half Duplex (Up to 375 kbps downlink and uplink), Cat NB1 Half Duplex (Up to 27.2K kbps downlink and 62.5K kbps uplink), Cat NB1 Non-IP Data Delivery, and 2G GPRS/EGPRS Frequency Band (MHz) -
Page 8: Mounting Hardware
HARDWARE AND SPECIFICATIONS Device has been tested up to +85° C. UL Recognized @ 85° C. Radio performance may be affected by temperature extremes. This is normal. The following table defines the remaining specifications for the MTQN-MNG3. Category Description Certifications and Compliance EMC Compliance CE Mark, RED (EU) Radio Compliance... -
Page 9: Mtqn-Mng3-B01 Pin Definitions
GPIO pins (PA_*, PB_*, PC_*, PG_*) can also be used as Digital-In and Digital-Out interfaces. Hardware and Software Pinout Information Refer to both the hardware and software pinout information on the Multitech Developer Resources site at: http://www.multitech.net/developer/wp-content/uploads/2019/02/MTQN_Pin_Info_02-19.xlsx... -
Page 10: Electrical Characteristics
HARDWARE AND SPECIFICATIONS Electrical Characteristics Operating Conditions Parameter Minimum Volts Maximum Volts Supply Range - Vcc 5.25 Absolute Maximum Ratings Symbol Description Conditions Min. Max. Unit SIM interface Input DC voltage at SIM digital -0.3 interfaces pins P_ANT Antenna power Input RF power at ANT pin Rho_ANT Antenna ruggedness... -
Page 11: Nominal Ratings
HARDWARE AND SPECIFICATIONS Nominal Ratings Symbol Ratings Max Voltage (mA) ΣIV Total current into sum of all VDD power lines (source) ΣIV Total current out of sum of all VSS ground lines (sink) Maximum current into each VDD power pin (source) DD(PIN) Maximum current out of each VSS ground pin (sink) SS(PIN) -
Page 12: Power Draw
HARDWARE AND SPECIFICATIONS Power Draw Voltage Radio Live (AVG) TX Pulse (AVG) Total Inrush Protocol Power/Sleep Connection Measured Amplitude Current for Charge Mode (uA) Idle-No Current at Peak Current(mA) MilliCoulombs Data(μA) (mC) Power(mA) 5 Volts with GSM850 1,130 0.245 Unit In Dev Card 5 Volts USB GSM850... -
Page 13: Chapter 4 - Antennas
ANTENNAS Chapter 4 – Antennas Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category Description Frequency Range 0.698 - 0.96 GHz 1.710 - 2.170 GHz... -
Page 14: Chapter 5 - Safety Information
SAFETY INFORMATION Chapter 5 – Safety Information Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. Although input protection circuitry has been incorporated into the devices to minimize the effect of static build-up, use proper precautions to avoid exposure to electronic discharge during handling and mounting the device. -
Page 15: General Safety
SAFETY INFORMATION General Safety The device is designed for and intended to be used in fixed and mobile applications. Fixed means the device is physically secured at one location and cannot be easily moved to another location. Mobile means the device is used in other than fixed locations. -
Page 16: Device Maintenance
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 17: Chapter 6 - Getting Started
MTQN software is open source. Useful Links Description Link MTQN Mbed page: https://os.mbed.com/platforms/MTS-Dragonfly-Nano/ Explore Mbed: https://os.mbed.com/explore/ MTUDK2-ST-CELL developer https://www.multitech.com/models/94557065LF guides (see Manuals for different versions) Documentation on Mbed: https://os.mbed.com/docs/latest Serial Flash Datasheet (pdf): http://www.micron.com (refer to P/N M25P16) Additional Information: https://www.multitech.com/brands/multiconnect-dragonfly-nano... -
Page 18: St Microcontroller Stm32L471Qg
GETTING STARTED Keep the device on the opposite side of the body from the pacemaker to add extra distance between the pacemaker and the device. Avoid placing a turned-on device next to the pacemaker (for example, don’t carry the device in a shirt or jacket pocket directly over the pacemaker). -
Page 19: Usb Driver Installation
For the Windows USB driver, refer to the SARA-R4 USB Driver Installation Guide on the product page of the MultiTech website. The driver is located under the Downloads section of the product page. For the Linux USB driver, if your Linux OS does not automatically detect your device, you may need to execute a script. -
Page 20: Low Power Modes
GETTING STARTED Note: N_RESET of the 40 pin connector is directly connected to NRST of the STM32L471QG processor. The processor controls the PWR_ON(RADIO_ONOFF/PE_4) and RESET_N(RADIO_RESET/PF_3) pins to the radio. Low Power Modes NOTE for MNG3: eDRX and PSM modes are not supported in 2G (all modes are supported using Cat M1). To achieve lowest power consumption, we recommend powering down the radio then configuring RADIO_PWR, VMEM_EN and BUF_EN as analog inputs with no pull resistor. -
Page 21: Configuring U-Blox Cellular Radio
GETTING STARTED To properly power down the cellular radio, use one of the following methods: Issue command AT+CPWROFF then either wait 40s or until 1.8v from the cellular radio goes low. Processor pin PC5 (Mbed pin name MON_1V8) has 1.8v from the radio connected to it. Hold pin processor PE_4 (Mbed pin name RADIO_ONOFF or MDMPWRON) low for at least 1.5s. -
Page 22: Usb Driver Installation
For the Windows USB driver, refer to the SARA-R4 USB Driver Installation Guide on the product page of the Multitech website. The driver is located under the Downloads section of the product page. For the Linux USB driver, if your Linux OS does not automatically detect your device, you may need to execute a script. -
Page 23: Chapter 7 - Labels
This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: PTCRB Requirements: The antenna system cannot be altered. -
Page 24: Chapter 8 - Regulatory Information
Council Directive 2014/53/EU on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be requested at https://www.multitech.com/red... -
Page 25: Chapter 9 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 26: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 27: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 28: Information On Hs/Ts Substances According To Chinese Standards
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 29: Chapter 10 - Using Connection Manager
Click Connection Manager. Open or unzip the Connection Manager file and run the installer (.msi file). In the MultiTech Connection Manager Setup Wizard, read the end-user license agreement and check I accept the terms in the License Agreement. Click Next to have the installer automatically disable the native WWAN AutoConfig service in Windows. -
Page 30: Setting Up A Serial Device In Windows Device Manager
To specify a folder for Connection Manager, use the default folder or click Change to browse to the folder you want to use. Click Install. A separate wizard opens for installing Telit drivers. Some MultiTech devices use embedded modules from Telit Wireless Solutions to provide cellular connectivity; these devices require Telit drivers. Select Complete setup type. - Page 31 USING CONNECTION MANAGER In the Add Hardware Wizard: Click Next. Select Install the hardware that I manually select from a list, then click Next. Select Modems, then click Next. Check Don't detect my modem; I will select it from a list, then click Next. Select Standard Modem Types, then select Standard 33600 bps Modem on the right.
-
Page 32: Connecting A Device
USING CONNECTION MANAGER Connecting a Device Before You Begin Make sure that your device is connected to the computer where Connection Manager is installed. Set up the device in Device Manager. Refer to Setting Up a Serial Device in Windows Device Manager. -
Page 33: Uninstalling Connection Manager
The steps above describe how to uninstall Connection Manager using Control Panel. You can also uninstall the application by using the installer file (.msi). Double-click the file, in the MultiTech Connection Manager Setup Wizard, click Next, and then select Remove on the next two pages. -
Page 34: Connection Manager User Interface
USING CONNECTION MANAGER Connection Manager User Interface Connection Manager consists of the following tabs: Main Settings Connection Details Terminal Charts Main tab The Main tab displays the following: Status of device connection: Searching, Connecting, Connected, Disconnecting, or Disconnected The action button, which changes according to the current device connection status: Detect, Connect, or Disconnect Signal strength bars and percentage indicator (only when connection to the carrier's network is established) Note:... -
Page 35: Settings Tab
USING CONNECTION MANAGER Connection statistics: download and upload speeds, amount of traffic sent and received (only when connection to the carrier's network is established) The keep-alive check status and when the last ping response was received if Enable keep-alive check is checked on the Connection tab. -
Page 36: Troubleshooting
USING CONNECTION MANAGER Troubleshooting Serial COM port is not available in the Serial Modem Settings Close Connection Manager and reopen it. Device is not detected ("No Device") After following the steps to activate your device, the Main tab still indicates "No Device." Try the following steps: Click the Settings tab and make sure that the appropriate modem type is selected: USB or Serial. -
Page 37: Index
INDEX Index absolute maximum rating ..........10 install SIM card..............18 activation...............29 antenna .................13 labels ................23 build options ..............5 mounting hardware ............8 Chinese hazardous substances Chinese version............27 English version ............28 operating conditions .............10 Connection Manager Charts tab..............34 connecting device to carrier's network ....32 Connection tab............34 Details tab ..............34 connector definitions..........8...
