ASSEMBLY CONT.
PART A: ASSEMBLING YOUR NEW SPRAYER

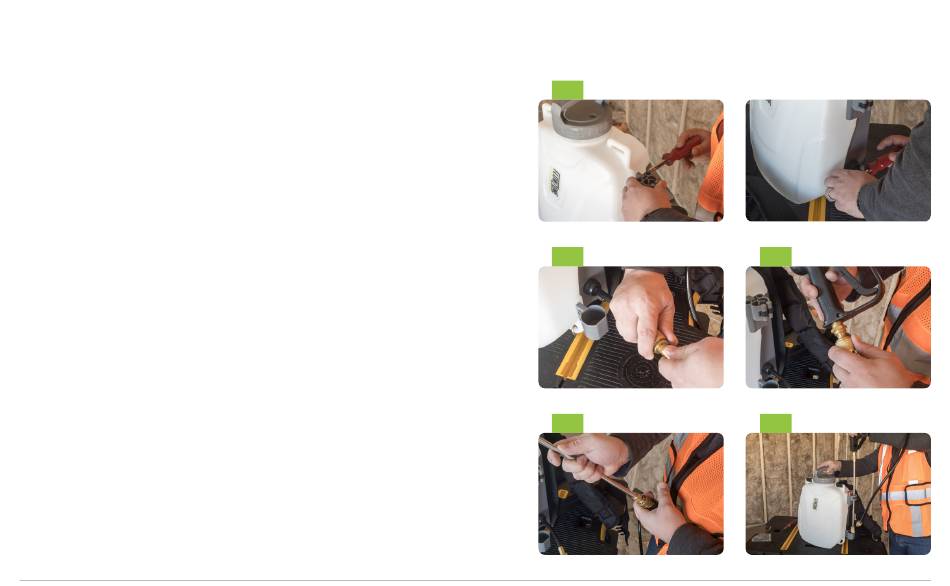

5. Place the top wand holster
at the protruding holster
mount on the sprayer
tank. While holding the
holster in place, insert
a nut on one side of
the hexagonal slot and
screw the bolt through
the other side using a
Philips-head screwdriver
until the bolt fastens
into the nut. Repeat for
the bottom holster/slot.
6. Connect the male end
of the hose (8) with the
female end of the jumper
hose attached to the
sprayer tank. Pull back the
collar on the female GHT
fitting, insert the hose,
and release the fitting.
FZVACD-2.5
CONCRETE+ STORM 2.5
OPERATION GUIDE
7. Attach the spray gun (8) to
the female end of the hose
using the same method.
8. If spraying with
stainless-steel spray
wand (6), pull back on
the collar of the quick-
connect fitting on the
spray gun and insert
the male wand quick-
connect. Push the collar
back into its original
position. Nozzles can be
placed on the spray wand
using the same process
9. Snap the spray wand
into the wand holster
and place any unused
nozzles into the storage
slots until ready to spray.
