Crystal Video PRO Z User Manual

Zero latency channel scan wireless video transmission system

Advertisement

Quick Links

EU Environmental Protection
Waste electrical products should
not be disposed of with household
waste.Please recycle where facilities
exist.Check with you local authority
or retailer for recycling advice.
^
3
PAP
C 匡
PROZ
Zero Latency Channel Scan
Wireless Video Transmission System
CRYS T A L VIDEO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO Z and is the answer not in the manual?

Questions and answers

Summary of Contents for Crystal Video PRO Z

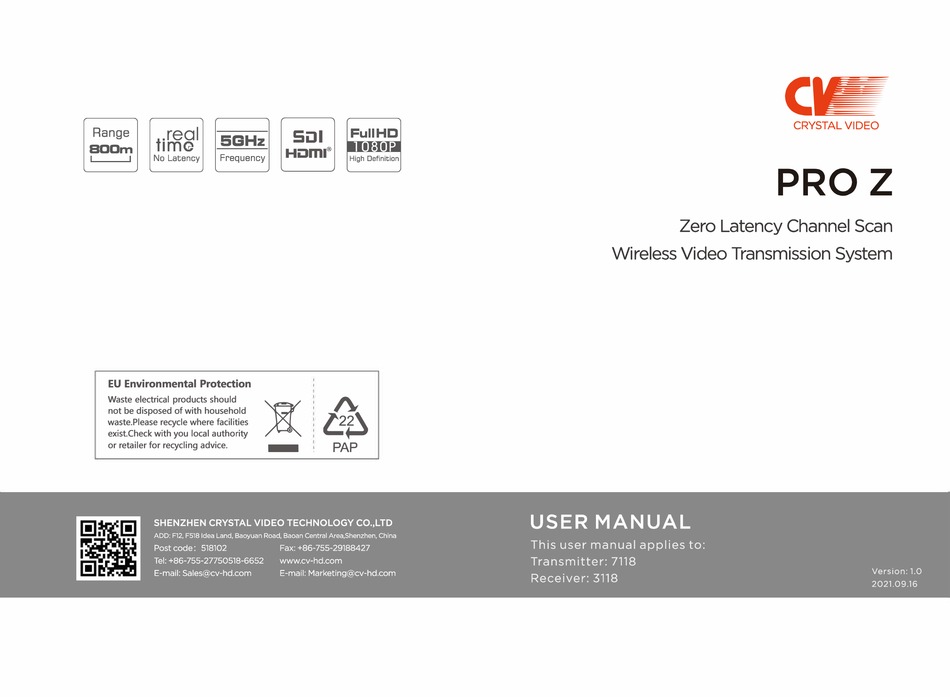

  • Page 1 C 匡 二 CRYS T A L VIDEO PROZ Zero Latency Channel Scan Wireless Video Transmission System 翌 EU Environmental Protection Waste electrical products should 一 not be disposed of with household waste.Please recycle where facilities exist.Check with you local authority or retailer for recycling advice.
  • Page 2 Important Information • Please disconnect the power cord from the power outlet when you are not using the Please read this user manual before you use this product, it contains all the notes and impor­ receiver and transmitter, this will reduce the risk of electric shock or fire. tant things regarding operating this product.
  • Page 3: Table Of Contents

    Str u ct u re & Interface -------- - -------- -- -------- - -------- ----- · impact filming performance and could even cause big accidents. PRO Z provides you with more convenient and safe solutions for filming scenarios. This long­...
  • Page 4: Packing List

    _ - Packing List - Specification Please check the packing list carefully after unpacking. If any of them is Specification missing , please contact your seller. Frequency 5.1-5.9 (GHz) Bandwidth 40MHz ----- 1080P 23.98/24/25/30/50/60 1080p sf 23.98/24/25 Video Formats * 1080i 50/59.94/60 720P 50/59.94/60 576P 576i 480P 4801 Audio Formats T ime Code...
  • Page 5: Structure & Interface

    ..Structure & Interface _ Transmitter Interface Description Transmitter: 7118 Funct;on Antenna Sockets Displays Channel info, video format , battery capacit y, OLEDScreen fan status, and other information. OLEO Scre en C棒 MENU Button U P Button Channel switchin g ( + ) UP Button DOWN Button ME NU Button...
  • Page 6: Receiver: 3118

    Structure & Interface _ Antenna Sockets Receiver: 3118 Receiver Interface Description Funcfon Displays Channel info, video format , battery capacit y, OLEDScreen fan status, and other information. Antenna Sockets ,一 ,一 OLED Screen C呵 UP Button Channel switching ( +) PUSH UP Button DOWN Button...
  • Page 7 ..Mounting 2. Powered by the V-mount battery or DC power input. See below: For transmitter 7118 1. Install the antennas and make sure they are tightened. The angle between Battery Installation the transmitter's two antennas should be perpendicular to achieve the best wireless transmission performance.
  • Page 8 For receiver 3118 3. The transmitter can be installed on camera with 1. Install the antennas and make sure they are tightened. The angle between the V-Mount or via 1/4 the receiver's two antennas should be adjusted to a 45 angle to achieve the °...
  • Page 9 3. The receiver can be attached to 2. Powered by the V-mount battery or DC power input. See below: the tripod with the 1/4 or 3/8 screw thread, or it can be attached to the monitor with Battery Installation the magic arm. V-mount battery Receiver 4.
  • Page 10: P O W Er S U Pply And Start -U

    - Power Supply and Start-Up b. Powered by D-Tap to 2-pin LEMO cable via other power sources. 1. The transmitter can be powered with the following methods: a. Install the V-Mount battery on the back of the transmitter. Both the camera and the transmitter can be powered by the V-mount battery.
  • Page 11 2. The receiver can be powered with the following methods: b. Powered by D-tap to LEMO power cable via other power sources. a. Powered by V-mount battery. 3. After power is in use, the transmitter and the receiver takes approximate 10s to start up.
  • Page 12: Oled Display Descripti O

    - OLED Display Description 7118 OLED Status 3118 OLEO Status Fan Status Fan Status Battery Signal Strength $ 丫:••• 6.5V Video Signal OVIDEO Signal Strength Battery 6.5V Operating Channel Video Signal NO VIDEO Operating Channel _ _ Status Status Battery Displays battery voltage Battery Displays battery voltage...
  • Page 13: C Hannel Switchi N G Operati O

    - Channel Switching Operation Receiver's Menu Button: 1. Press the Up or Down Button Long-press for 3 seconds to enter the menu interface. The configurable settings are: channel scan, color space output, language settings, 2. Then press the Menu button to confirm. firmware version number.
  • Page 14: Prec Au T 1 O Ns

    - Precautions Installation Height and Distance c. When this kit and other wireless devices are operating simultaneously, in order to stop this kit from interference, please adjust distance at least 2 meters. a. The transmission range is up to 800m in wide-open, unobstructed, and optimal antenna installation cond代ion.
  • Page 15: Tr O Ub Lesh Oo Ti N

    _ _ - Troubleshooting Solution HDMI/SDI Connection and Antenna Installation Recommendations a. First connect the HDMI/SDI cable, and then switch on the power source. Examine whether the product's antenna is installed. Examine whether the power adapter or battery input meets Transmitter and the product's spec巾cation requirements b.
  • Page 16 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
