Hoshizaki F-1001MAF Parts List

Hoshizaki F-1001MAF Parts List

Modular flaker
Hide thumbs Also See for F-1001MAF:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
NO.
71181
ISSUED:
NOV. 7, 2000
REVISED:
SEPT. 11, 2002
MODEL
(FINAL) PARTS LIST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-1001MAF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hoshizaki F-1001MAF

Summary of Contents for Hoshizaki F-1001MAF

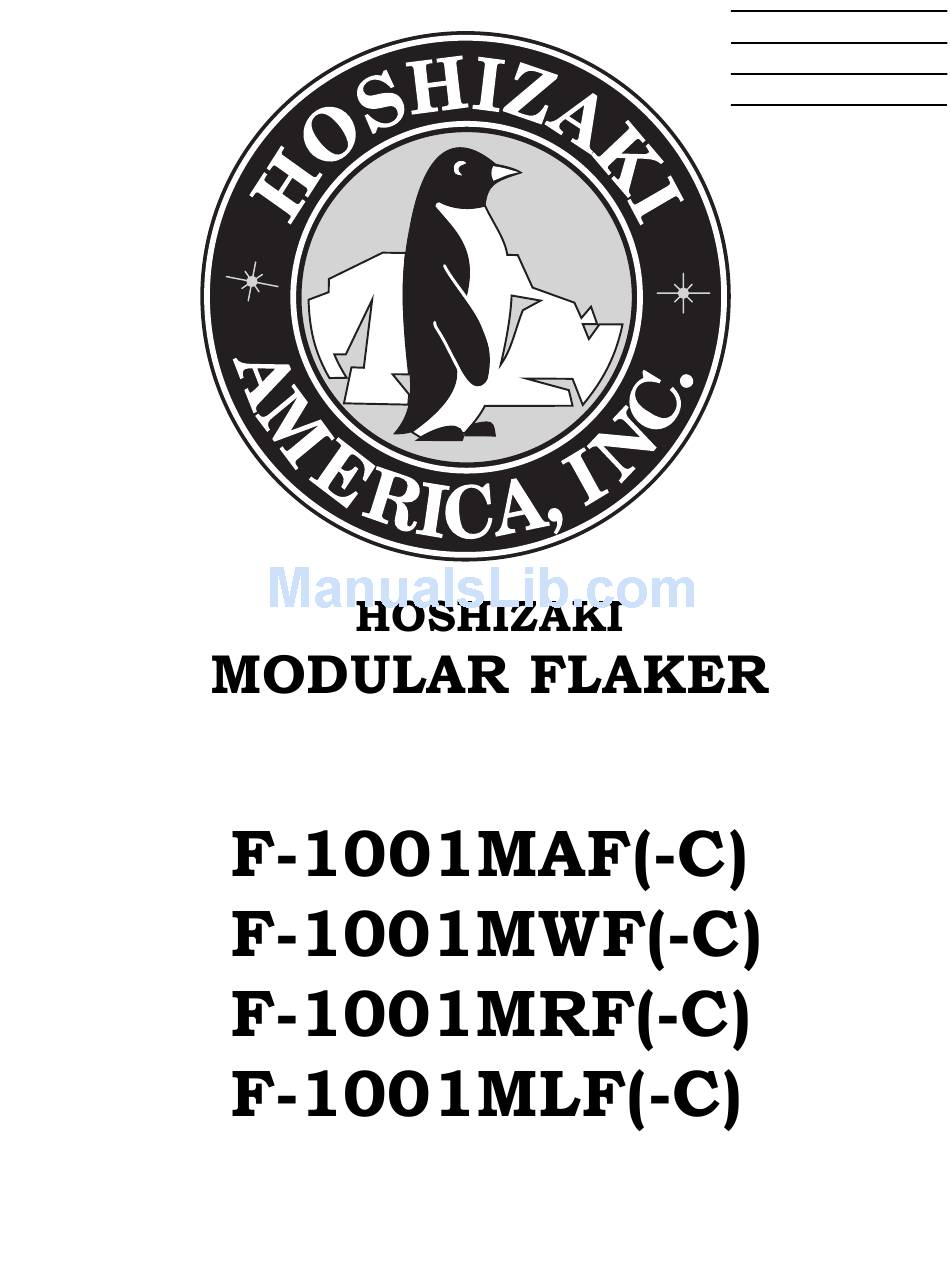

  • Page 1 71181 ISSUED: NOV. 7, 2000 REVISED: SEPT. 11, 2002 MODEL (FINAL) PARTS LIST...
