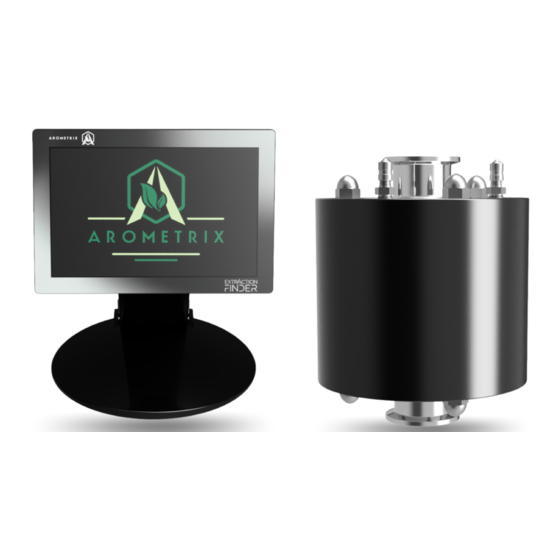

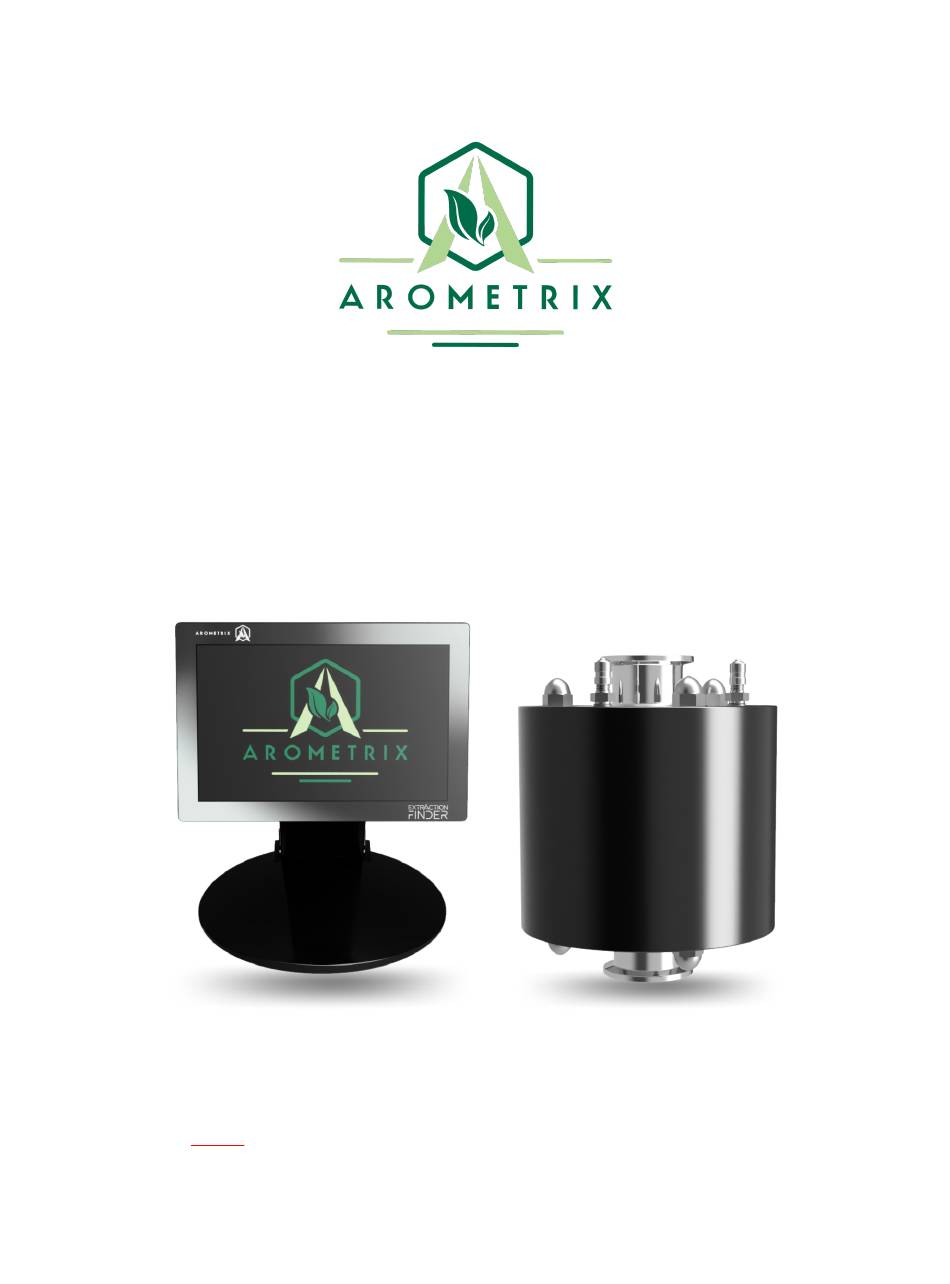

- Page 1 Arometrix EXTRACTION FINDER USER MANUAL YOU MUST READ THIS MANUAL BEFORE USE | WARNINGS ON PAGE 3...
-
Page 2: Table Of Contents
Section 5: Installation & Operation Section 6: Understanding the Interface Section 7: Application Note - Ethanol Extraction - Solvent Saturation Section 8: Maintenance Section 9: Issues Section 10: Software Update Instructions Section 11: Terms and Conditions Arometrix, Inc. sales@arometrix.com arometrix.com/resources... -
Page 3: Section 1: Warnings
MISUSE MAY CAUSE SEVERE INJURY OR DEATH. 9. Never install valves or shut off devices on either side of the EXTRACTION FINDER as this CAUSE SEVERE INJURY OR DEATH. Figure 1 : Sample Propane Warning Label (Right to Know Label) Figure 2 : Sample Propane NFPA 704 Hazard Rating Placard Arometrix, Inc. - Page 4 Figure 3 : Sample Pentane Warning Label (Right to Know Label) Figure 4 : Sample Pentane NFPA 704 Hazard Rating Placard Figure 5 : Sample Methanol Warning Label (Right to Know Label) Figure 6 : Sample Methanol NFPA 704 Hazard Rating Placard Arometrix, Inc. sales@arometrix.com arometrix.com/resources...
- Page 5 Figure 7 : Sample Isopropyl Alcohol Warning Label Figure 8 : Sample Isopropyl Alcohol NFPA 704 Hazard Rating Placard Figure 9 : Sample Hexane Warning Label (Right to Know Label) Figure 10 : Sample Hexane NFPA 704 Hazard Rating Placard Arometrix, Inc. sales@arometrix.com arometrix.com/resources...
- Page 6 Figure 11 : Sample Heptane Warning Label (Right to Know Label) Figure 12 : Sample Heptane NFPA 704 Hazard Rating Placard Figure 13 : Sample Ethanol Warning Label (Right to Know Label) Figure 14 : Sample Ethanol NFPA 704 Hazard Rating Placard Arometrix, Inc. sales@arometrix.com arometrix.com/resources...
-
Page 7: Section 2: Overview
Cannabinoids. It is Arometrix’s goal to amass enough spectral data from the EXTRACTION FINDER to eventually be able to determine quantitative purity in the future. The EXTRACTION FINDER cannot replace good laboratory practice and experience. The EXTRACTION FINDER’s data, in combination with good lab practice, will help technicians further perfect their craft. -
Page 8: Section 4: Unpacking & Inspecting
Section 6.15. Installation of the Extraction Finder Sensor involves the following steps (also depicted in our Quick Start Guide): 1. First, mount the Extraction Finder Sensor to the frame of the equipment. An example is shown. Arometrix, Inc. sales@arometrix.com... - Page 9 4. Finally, ensure the system and installation conform to all applicable laws and ordinances. Installation of the Extraction Finder Monitor involves the following steps: 1. Install the Extraction Finder monitor outside of the C1D1-designated area. Use the supplied 10’ power cord to power your monitor.
- Page 10 4. Record on (optional) at the start of the run: Toggle the Record button to On. Ensure the Record indicator is green. 5. Once the Extraction Finder system is safely in operation, prepare extraction as you typically would. Arometrix, Inc.
- Page 11 Identify XF signal spiking you should see a high signal which indicates a high concentration of cannabinoids in your solvent then a drop in the signal indicating low concentration after initial fluid flow. c. Identify XF signal equilibrate during full flow Arometrix, Inc. sales@arometrix.com arometrix.com/resources...
- Page 12 7. Record off (optional) after the run is finished: Toggle the Record button to Off to save XF data. Ensure the Record indicator is red. Remove SD Card to transfer files. Pro-tip: Once done, upload your logged data file(s) into our DAB (Data Analysis Breakdown) App. Arometrix, Inc. sales@arometrix.com arometrix.com/resources...
-
Page 13: Section 6: Understanding The Interface
The location of where the line shoots up (or fluoresces) indicates the molecule(s) passing through; different molecules have different wavelength regions ● Y-axis = Intensity (counts): The height of this line, in general, indicates how much of that substance is present at that moment relative to earlier. Arometrix, Inc. sales@arometrix.com arometrix.com/resources... - Page 14 Displays and tracks the interpreted values from your measurement. This plot reduces the raw data and shows you the “highlights” of the run. This view is especially useful for seeing how molecular levels changed over time. Arometrix recommends that Extraction Finder users prioritize this view. Understanding the Graph (X-Y Axis) ●...
- Page 15 These correspond with the Region 1, Region 2, and Region 3 that are shown on the plots. When you press one of these, you will see a Wavelength range. These will come preset with manufacturer’s defaults; however, you can edit the From and To how you see fit. See below. Arometrix, Inc. sales@arometrix.com arometrix.com/resources...
- Page 16 Set Scans to Average This sets how many optical readings the sensor takes before plotting and displaying a result. More readings that are averaged imply less noise, but less information. Arometrix recommends that you select 5. Clock Settings This should be set during initial acquisition. Set the Date Settings and the Time Settings. Then, Submit.
-
Page 17: Section 7: Application Note - Ethanol Extraction - Solvent Saturation
Section 7: Application Note - Ethanol Extraction - Solvent Saturation Below is a real graph of a full extraction run using the Extraction Finder in Wavelength View. The Extraction Finder tracked Chlorophyll (blue) and Cannabinoid (orange) signals. Note: The Chlorophyll/ Cannabinoid ratio (grey) signal is for the purposes of this manual only. -
Page 18: Section 8: Maintenance
If there is any question or any concern at all about the unit’s function, kindly send it back to Arometrix for inspection and analysis. If any modifications are needed or if any part of the equipment appears to need service, please contact Arometrix and our engineers will evaluate the unit. -
Page 19: Section 10: Software Update Instructions
These are field-updatable. If you own an EXTRACTION FINDER, you can download our latest Firmware update to your software in the field: Version 1.2.4 - (if you do not already have it). This update will make EXTRACTION FINDER systems more cohesive and user-friendly. -
Page 20: Section 11: Terms And Conditions
EXCLUSIVE OBLIGATION: The Arometrix product you are purchasing has been designed for a specific use within a set of suitable operating conditions, as set forth in its User Manual, or as indicated otherwise by Arometrix. Any use of the Arometrix Product for any purpose or under any conditions, other than those specified, shall render any limited warranty void, and shall expressly invalidate any liability of Arometrix for damages as a result of such misuse.
