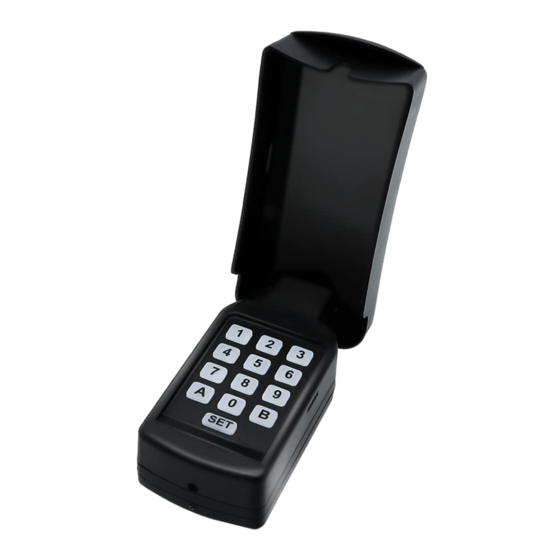

User Manual of the Universal Keypad
Model: TC188
NOTE: Please read this manual thoroughly before installation and programming.
C030628

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC188 and is the answer not in the manual?

Questions and answers

Summary of Contents for Topens TC188

  • Page 1 User Manual of the Universal Keypad Model: TC188 NOTE: Please read this manual thoroughly before installation and programming. C030628...
  • Page 2 NOTE: The keypad is universal for both wireless and wired application. You can try the wired application if the interference affect the remote control range or the wireless code is not matching your gate opener. You must use external wired power source to power up the keypad if you choose the wired application. Specifications Power input: 9VDC carbon battery for wireless application or 9-24VAC/DC for wired application Frequency: 433.92MHz...
  • Page 3 Step 2: Install the baseplate to the wall or the post with the screws included in the kit. Step 3: Install the baseplate back to the back cover of the keypad. Universal Control Board Connection for Wired Application You can connect the 1# and 2# terminals of the keypad to the terminals for push button of the gate opener. No matter the polarity.
  • Page 4 Programming the Keypad NOTE: There are two kinds of codes while programming: Master code and Entry code. The master code is used to program the keypad.The entry code is used to activate the keypad to control the gate opener. You can program the temporary codes and the permanent entry codes according to your needs.
  • Page 5 Your comments and suggestions are important to us as they help us provide the best possible service. Should you have any need to contact us, the info below will help you get in touch: TOPENS Website www.topens.com Contact Us: E-mail: support@topens.com Kindly include your Product Model, Purchasing Date &...
