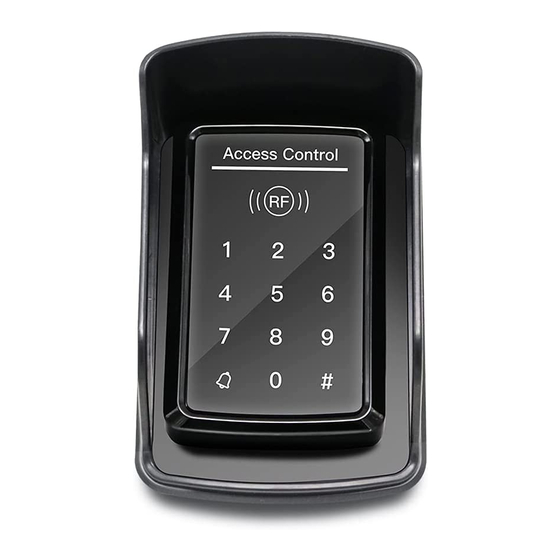

Waterproof wired keypad
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

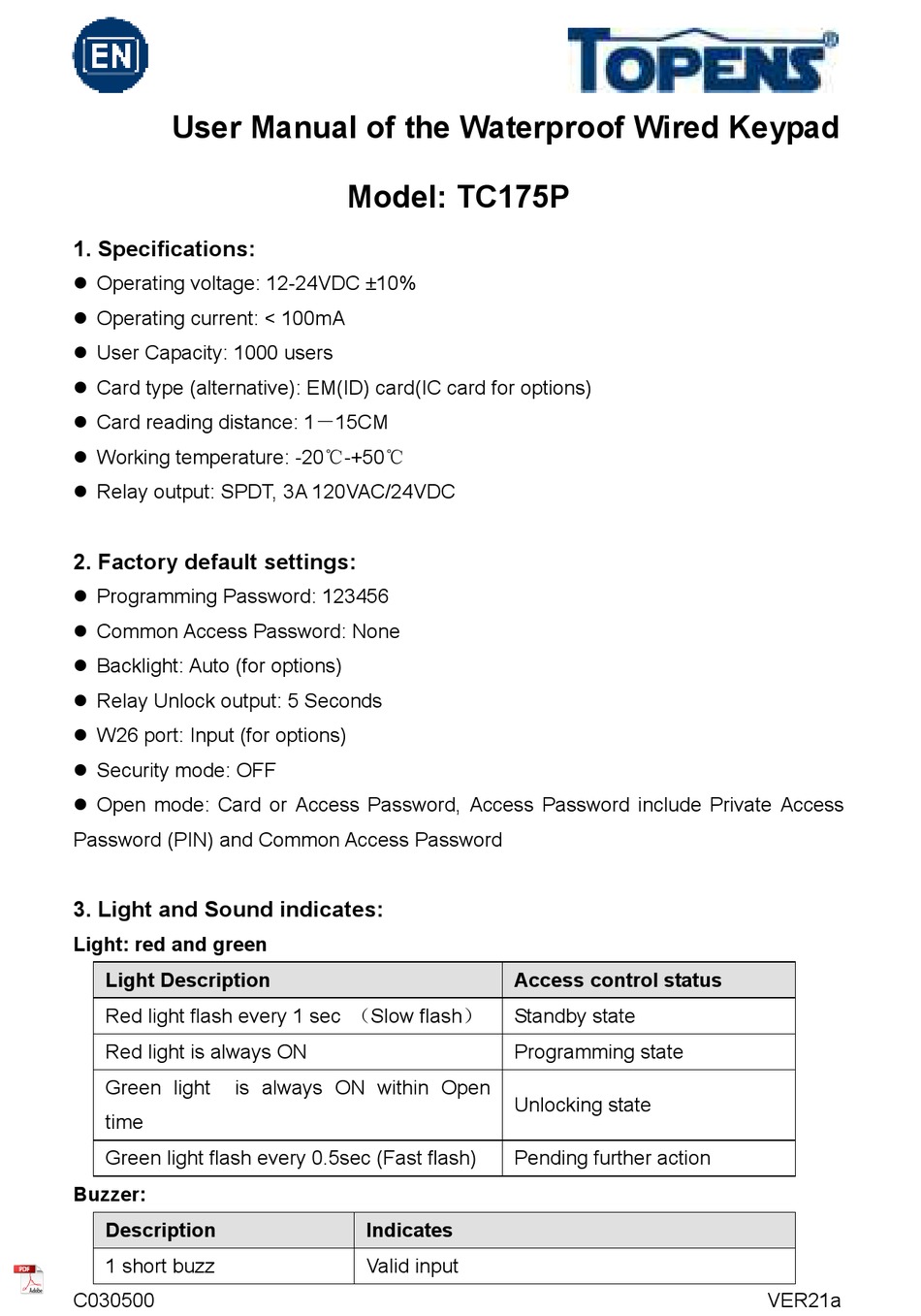

User Manual of the Waterproof Wired Keypad

1. Specifications:

 Operating voltage: 12-24VDC ±10%
 Operating current: < 100mA
 User Capacity: 1000 users
 Card type (alternative): EM(ID) card(IC card for options)
 Card reading distance: 1－15CM
 Working temperature: -20℃-+50℃
 Relay output: SPDT, 3A 120VAC/24VDC

2. Factory default settings:

 Programming Password: 123456
 Common Access Password: None
 Backlight: Auto (for options)
 Relay Unlock output: 5 Seconds
 W26 port: Input (for options)
 Security mode: OFF
 Open mode: Card or Access Password, Access Password include Private Access
Password (PIN) and Common Access Password
3. Light and Sound indicates:
Light: red and green
Light Description
Red light flash every 1 sec （Slow flash）
Red light is always ON
Green light
is always ON within Open
time
Green light flash every 0.5sec (Fast flash)
Buzzer:
Description
1 short buzz
C030500
Model: TC175P
Access control status
Standby state
Programming state
Unlocking state
Pending further action
Indicates
Valid input
VER21a
