Mobility
Bases
Lightning Pushchair
Owner's Manual - Maintenance Guide
Lightning Pushchair

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lightning and is the answer not in the manual?

Questions and answers

Related Manuals for Stealth Products Lightning

Summary of Contents for Stealth Products Lightning

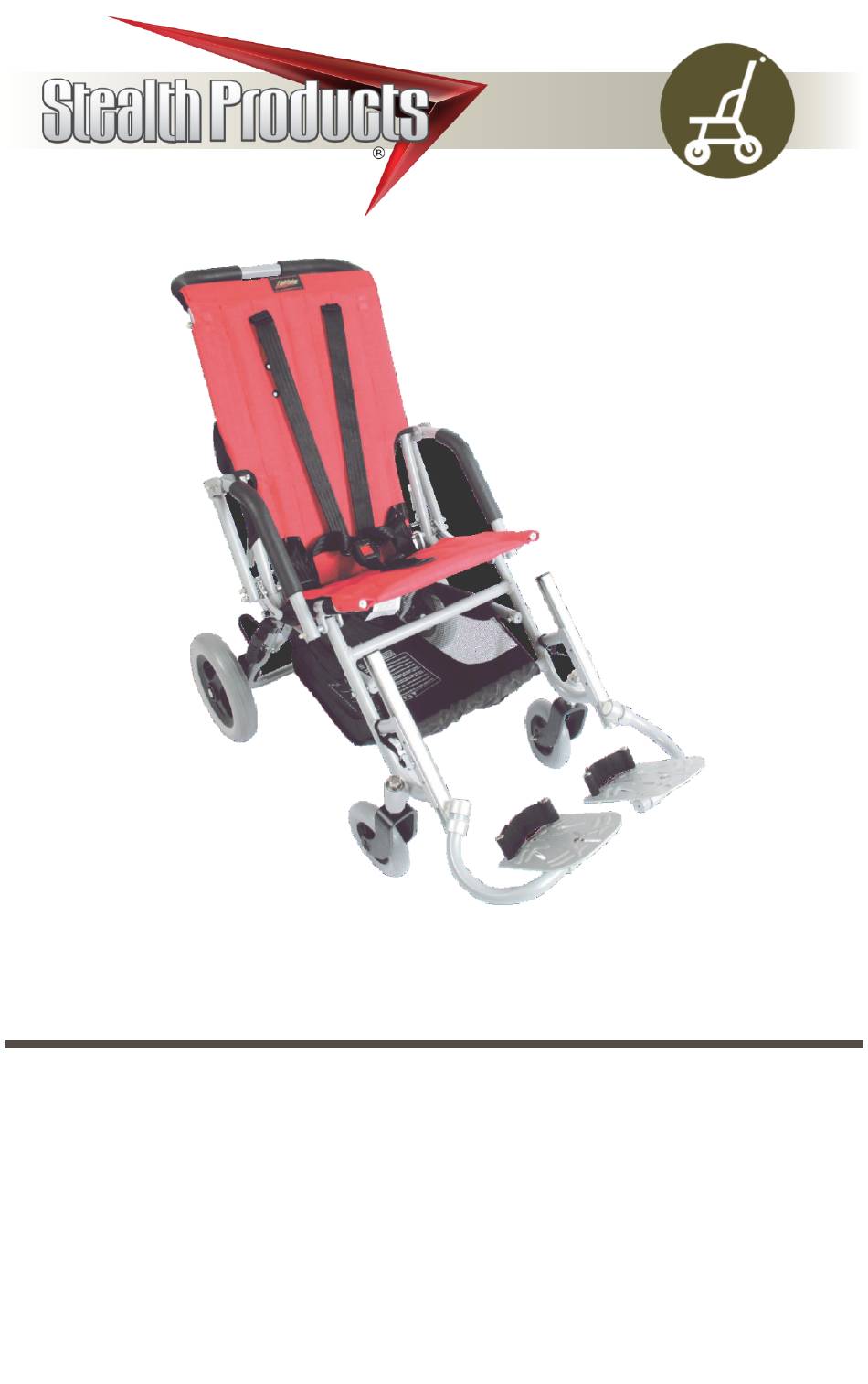

  • Page 1 Mobility Bases Lightning Pushchair Owner’s Manual - Maintenance Guide Lightning Pushchair...

  • Page 2: Table Of Contents

    Transportation....................29-31 Preparing the Lightning for Transport ......................29 Tools and Components Needed........................29 Assembly Instructions ............................30 Attaching the Lightning to a Vehicle ......................31 First-Time Use....................... 32 Dealer Assistance ..............................32 User Testing ................................32 Conditions of Use..............................32 Cleaning &...

  • Page 3: Customer Satisfaction

    For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary.

  • Page 4: Important Information

    Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty.

  • Page 5: Warning Labels

    Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. Testing Initial setup and driving should be done in an open area free of obstacles until the user is fully capable of driving safely.

  • Page 6: Safety Precautions

    Falling or sliding out of the chair presents risks for serious injury. Exercise caution. • Always use a seat belt. Incorrect installation of the Lightning push chair WARNING or its accessories may cause damage to the hardware and/or injury to the user.

  • Page 7: Design And Function

    Design and Function Intended Use The Lightning push chair is intended for use as a pediatric mobility base. Designed to be highly durable, portable, and convenient, the Lightning push chair is lightweight and easily folded, transported, and stored. The Lightning push chair is crafted from 7000 series aluminum, commonly used in the aircraft industry due to it's excellent strength-to-weight ratio.

  • Page 8: Features Of All Lightning Models

    Design and Function Features of all Lightning Models Both the Lightning Standard and the Lightning Special Edition models are available in three sizes (11”, 14” and 16”) 11” Lightning Standard: • Lightweight. Frame weighs only 25 lbs. • Folds easily for transport.

  • Page 9: Special Edition Features

    Design and Function Special Edition Features The Lightning Special Edition model features all of the options of the Lightning Standard model, plus additional add-ons, including: Padded Heel-Loop/ Canopy Covers for Ankle Cuffs Harness Adjustable Headrest Single & Extension Double Flap &...

  • Page 10: Installation Instructions

    Tools Use the proper tools to install and adjust the Lightning push chair to the desired position for the user. Ensure all torque specifications are followed. The use of improper tools may cause damage to the device.

  • Page 11: Required Tools

    Adjustable End or 10mm Wrench #1 Phillips Screwdriver 3/16” Hex Key Note: Tools are not provided. Folding and Carrying the Lightning Step One: Grasp the push chair handle(s). Use your foot to depress the folding lock mechanism, and continue to...
  • Page 12 Installation Instructions Step Two: Lay the folded chair on its left side, so that the carrying handle is face-up. Step Three: Unlatch the hook-and-loop strap from the back of the chair. Loop the strap under then back over the chair’s armrest, then fasten the hook-and- loop strap to the back of the chair.

  • Page 13: Adjusting The Seat Back Angle

    Installation Instructions Step Four: Having secured the hook-and-loop strap around the armrest, lift the push chair by its plastic carrying handle. Adjusting the Seat Back Angle In order to adjust the back angle, the chair’s back upholstery must first be removed. Step One: Unlatch both hook-and- loop straps on the seat back.
  • Page 14 Installation Instructions Step Two: Remove the accessory tubes from both sides of the back. Step Three: Remove the back upholstery from the chair.
  • Page 15 Installation Instructions Adjustment Step Four: Using an adjustable crescent or 10mm wrench, remove both adjustment nuts from either side of the chair. The seat back can be set to the following angles: 95° 90° 85°...
  • Page 16 Installation Instructions Step Five: Move each side of the seat back to the desired angle, then replace and tighten the adjustment nuts.

  • Page 17: Installing Foot Plates

    Installation Instructions Installing Foot Plates Step One: On each side of the push chair, locate the locking pin, pictured to the right. Locking Step Two: Insert each foot plate rod into the grooved receiver tracks on each side of the chair.

  • Page 18: Foot Plate Depth Adjustment

    Installation Instructions Step Three: Adjust each foot plate to the desired height. When in the desired location, secure each foot plate by inserting the locking pin into the corresponding hole on the receiver track. Foot Plate Depth Adjustment Step One: Swing each foot plate out, away from the chair.
  • Page 19 Installation Instructions Step Two: On each foot plate, use an adjustable crescent or 10mm wrench to loosen the two depth adjustment nuts, pictured to the right. Loosen to adjust depth Step Three: Having loosened the depth adjustment nuts, slide each foot plate along its tracks to its desired position.

  • Page 20: Using And Adjusting The Safety Harness

    Installation Instructions Step Four: When each foot plate is in its desired position, secure it in place by tightening the depth adjustment nuts. Tighten to secure Using and Adjusting the Safety Harness Step One: Adjust the groin strap to the length desired, then firmly cinch down the strap to secure it.
  • Page 21 Installation Instructions Step Two: Remove both hand screws from the seat back. Hand Screws Step Three: On the front of the chair, remove the top strap pins and re-insert them in the desired locations. When the strap pins have been inserted in their desired locations, replace and firmly tighten both hand nuts.

  • Page 22: Engaging And Disengaging The Wheel Lock

    Installation Instructions Engaging and Disengaging the Wheel Lock Step One: To engage the wheel lock, press down on the brake lever with your foot. This will lock both rear wheels. Brake Lever Step Two: To disengage the wheel lock, place your foot under the brake lever and, using your foot, pull the lever upwards.

  • Page 23: Installing The Headrest Extension

    Installation Instructions Installing the Headrest Extension Insert both headrest extension rods into the accessory tubes on the seat backs. Installing the Canopy Extension Insert both canopy extension rods into the accessory tubes on the seat back. If the headrest extension is already in place, insert the canopy extension rods into the tubes on...

  • Page 24: Installing The Padded Headrest

    Installation Instructions Installing the Padded Headrest Step One: Slide the padded headrest over the headrest extension, as pictured to the right. Step Two: On both the left and the right side, thread the lower cord of each pair of cords through the top eyelet of the headrest extension. Then, firmly tie the cords of each pair to one another.
  • Page 25 Installation Instructions Step Three: Having tied the padded headrest to the headrest extension, tighten and fasten both hook-and-loop straps.

  • Page 26: Installing The Ankle Cuffs

    Installation Instructions Installing the Ankle Cuffs Step One: On each foot plate, use an adjustable crescent or 10mm wrench to loosen and remove the depth adjustment nuts. Then, remove each foot plate from its foot plate arm. Loosen and remove depth adjustment nuts to remove foot plate Step Two: Overlap each ankle cuff’s straps until each strap’s holes are aligned.
  • Page 27 Installation Instructions Step Three: On each foot plate’s underside, fasten the provided nuts to each ankle cuff screw. Use a #1 Phillip’s head screwdriver to tighten and secure each screw. Step Four: Having secured the ankle cuffs to both foot plates, replace each foot plate on its foot plate arm and tighten its depth adjustment nuts.

  • Page 28: Installing The Padded Harness Cover

    Installation Instructions Installing the Padded Harness Cover Wrap each padded harness cover around the top straps of the safety harness, then fasten the covers’ hook-and-loop patches. Installing the Trunk Support Accessory Step One: Place the trunk support accessory on the front of the seat back and fasten it around the back using the two rear hook-and-loop straps.
  • Page 29 Installation Instructions Step Two: On each side of the chair, wrap the strap connected to the innermost flap around the lower portion of the armrest tube, then fasten it to the flap’s hook-and-loop patch. Innermost Flap...
  • Page 30 Installation Instructions Step Three: On each side of the chair, feed the strap connected to the outermost flap of the trunk support accessory through the available strap buckle, pulling the strap tight before fastening it to the outermost flap’s hook-and-loop patch. Outermost Flap Strap...
  • Page 31 Installation Instructions Step Four: Take the remaining, unattached strap and feed it through the strap buckle on the opposite side of the chair, then cinch it back toward itself and fasten it to its hook-and-loop strap.

  • Page 32: Attaching The Work 'N Play Tray

    Installation Instructions Attaching the Work ‘n Play Tray Step One: Place the tray on top of the chair’s armrest handles Step Two: Insert the locking pin into the armrest, as pictured here. Do this on both sides of the chair. Locking Be sure to remove both locking pins to detach the tray.

  • Page 33: Replacing Wheels

    Installation Instructions Replacing Wheels In order to replace both front or back wheels, perform the following steps: Removal: Step One: Using two adjustable crescent or 10mm wrenches, loosen and remove the nut and washer from the bolt securing the wheel to the wheel fork.
  • Page 34 WC19 Transportation General Guidelines The Lightning Push Chair has met the requirements and provisions of RESNA WC-4:2012, Section 19 and ISO16840-4. • Attach the tie-down straps only to the designated, labeled transit security points. • Tighten the straps sufficiently to remove all slack. Never attach tie-downs to adjustable, moving, or removable parts of the wheelchair.

  • Page 35: Transportation

    Transportation • The belt restraint buckle of three-point belt restraints should be placed in contact with the occupant’s body and away from wheelchair components. • The junction of the shoulder belt and pelvic belt of three-point belt restraints should be located near the hip opposite the shoulder over which the diagonal belt crosses and not near the mid-line of the occupant.
  • Page 36 4.6, 5.2, and 5.3 of RESNA WC-4:2012, Sec�on 19. For children that weigh less than 23kg (51lb), the Lightning Pushchair is provided with a five- point harness restraint that is designed for use as a crash-worthy motor vehicle restraint.

  • Page 37: Preparing The Lightning For Transport

    1500mm for a tall adult male. All measurements are in millimeters Preparing the Lightning for Transport • Ensure the user is correctly strapped in the seat with the five-point safety harness. Check that the safety harness has been properly adjusted.

  • Page 38: Tools And Components Needed

    Transportation Tools and Components Needed Tools Required: - 3/16” Hex Key Components: - Four (4) tie-down assemblies which include: • One (1) handle-threaded clamp • One (1) through clamp • Four (4) 1/4-20 x 3/4” screws Assembly Instructions Step One: Separate the four (4) through-clamps from the handle-threaded clamp by removing the four (4) screws.

  • Page 39: Attaching The Lightning To A Vehicle

    Attaching the Lightning to a Vehicle Step One: Position the assembly in the vehicle over the floor track. The front of the Lightning should face the front of the vehicle (i.e. in the direction of travel). Step Two: Apply the chair’s brakes.

  • Page 40: First-Time Use

    User Testing It is important that the customer be fully aware of the installation of the Lightning push chair, including how to use it and how it can be adjusted to fit the client comfortably.

  • Page 41: Cleaning & Maintenance

    Cleaning and Maintenance Frame: • Wipe daily with a damp cloth and dry thoroughly. Never put away wet. • For stains, wipe with a damp cloth and warm, soapy (mild soap) water. • When cleaning the frame, fold and open the chair and check that all movements through the folding range are free and undamaged.

  • Page 42: Notes

    Notes...
  • Page 43 Notes...
  • Page 44 © 2022, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P91D420R3 Lightning Push Chair.afpub Jun 27, 2022...
