Backyard Discovery 2206038 Assembly Instructions Manual

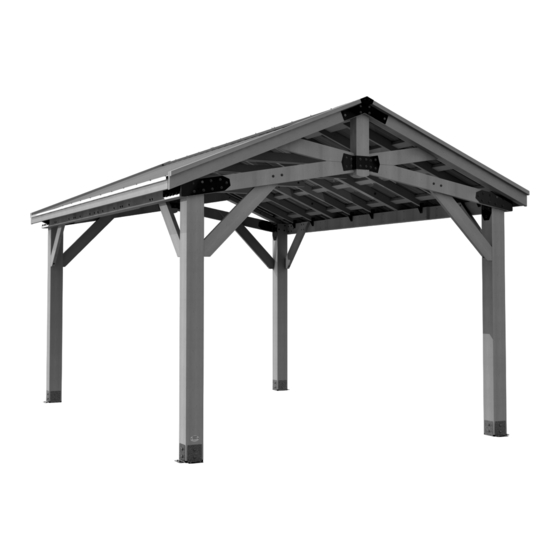

16x12 norwood gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990

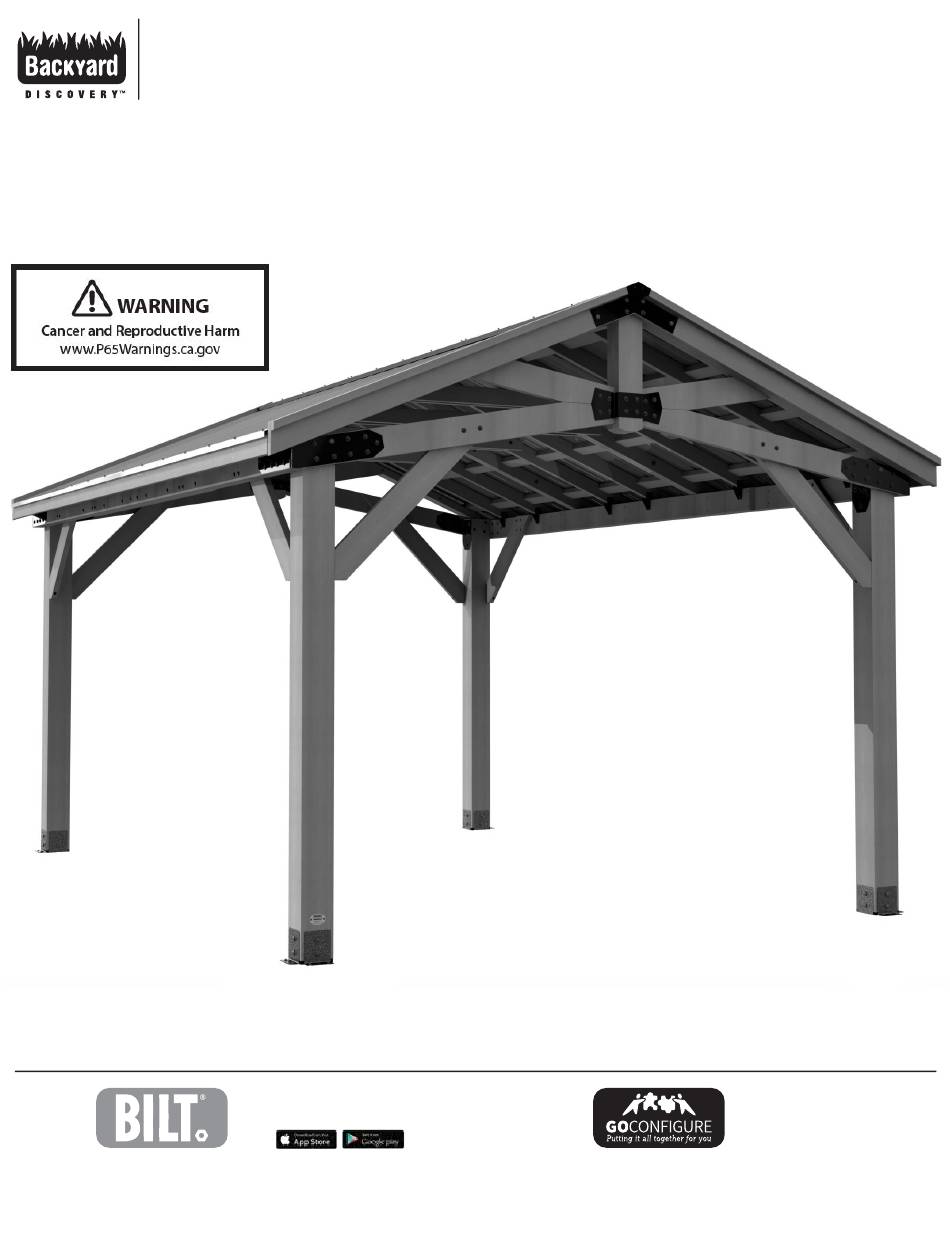

16x12 NORWOOD GAZEBO
MODEL # : 2206038
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
EASY STEP-BY-STEP
3D INTERACTIVE INSTRUCTIONS
DOWNLOAD THE FREE APP
INSTALLATION
SERVICES
AVAILABLE!
See inside for details
INS-2206038-A-16x12 NORWOOD GAZEBO-ENG 7-12-22
*
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2206038 and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery 2206038

Summary of Contents for Backyard Discovery 2206038

  • Page 1 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 16x12 NORWOOD GAZEBO MODEL # : 2206038 Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite...
  • Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
  • Page 3 OWNER'S MANUAL - ANCHORING LAYOUT 10'-3 1/8" 3128mm 9'-9 3/16" 2976mm...
  • Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) TOP RAIL - W4L16851 GABLE BOARD - W4L16850 1 3/8"x5 1/4"x27 5/8" (36x134x703) (x4) 1 3/8"x5 1/4"x24 1/4" (36x134x615) (x4) TOP RAIL - W4L16852 (x4) 1 3/8"x5 1/4"x66 5/8" (36x134x1692) GABLE BOARD - W4L16854 CORBEL - W4L16853 CORBEL - W4L16855...
  • Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) AD01 RAFTER - W4L16866 1"x4"x74 3/4" (24x102x1900) (x2) AD02 RAFTER - W4L16867 1"x4"x66 3/8" (24x102x1686) (x2) AD03 RAFTER - W4L16868 1"x4"x41 5/8" (24x102x1057) (x2) FASCIA - W4L16869 1"x3 3/8"x57 3/8" (24x86x1458) (x2) FASCIA - W4L16870 1"x3 3/8"x58 5/8"...
  • Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) POST - W2A03501 6"x6"x89 1/2" (152x152x2274) (x2) POST - W2A03502 6"x6"x89 1/2" (152x152x2274) (x2) GABLE PANEL - W2A03499 2 13/16"x5 1/4"x80 3/16" (72x134x2037) (x2) GABLE PANEL - W2A03500 2 13/16"x5 1/4"x80 3/16" (72x134x2037) (x2) CA01 CORBEL - W2A03504...
  • Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components BOLT WH BLK H100205 BOLT WH BLK H100195 H100378 BOLT WH BLK 5/16x1 3/4 (x38) 5/16x2-1/4 (x18) (x60) 5/16x2-3/4 H100471 LAG SCREW WH H100416 BOLT WH BLK H100459 BOLT WH BLK (x46) (x22) 5/16x3 (x11) 5/16x1 1/4...
  • Page 8 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100201 SCREW PFH BLK H100483 H100391 SCREW PFH BLK SCREW PFH BLK (64) 8x2-1/2 (x4) (x216) 8x2 1/4 H100200 SCREW PFH BLK H100392 SCREW PWH BLK H100382 SCREW PFH BLK (x24) 8x1 1/2 (x28) 8x3/4 (x9)
  • Page 9 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M01130 A4M01147 GABLE BRACKET PEAK SEAM BRACKET (x2) (x2) A4M01129 GABLE BRACKET (x4) A6P00308 A4M00978 A4M00977 6x6 POST FOOT POST PLATE POST ANCHORING PLATE (x4) (x8) (x8) A4M01301 A4M01232 RIGHT OUTSIDE BRACKET LEFT ANGLE BRACKET (x2) (x2)
  • Page 10 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale)
  • Page 11 PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 12 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 9/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets 1/2" & 7/16" Deep Sockets Phillips Screw Driver Cordless Drill or Electric Drill Rubber Mallet - Claw Hammer...
  • Page 13 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)

  • Page 14: Step 4 - Post Assembly

    STEP 4 - POST ASSEMBLY POST - W2A03501 6"x6"x89 1/2" (152x152x2274) (x1) A6P00308 6x6 POST FOOT (x2) POST - W2A03502 6"x6"x89 1/2" (152x152x2274) (x1)
  • Page 15 STEP 5 - GABLE ASSEMBLY GABLE BOARD - W4L16850 1 3/8"x5 1/4"x24 1/4" (36x134x615) (x1) GABLE BOARD - W4L16854 1 3/8"x1 1/2"x5 1/4" (36x38x134) (x1)
  • Page 16 STEP 6 - GABLE ASSEMBLY GABLE BOARD - W4L16850 1 3/8"x5 1/4"x24 1/4" (36x134x615) (x1) A4M01129 GABLE TRUSS - W2A03503 GABLE TRUSS - W2A03503 GABLE BRACKET (x2) 1 7/16"x33 5/8"x64 9/16" (36x854x1640) 1 7/16"x33 5/8"x64 9/16" (36x854x1640) (x2)
  • Page 17 STEP 7 - GABLE ASSEMBLY...
  • Page 18 STEP 8A - GABLE ASSEMBLY POST - W2A03501 6"x6"x89 1/2" (152x152x2274) (x1) LEFT ANGLE A4M01232 (x1) BRACKET TOP RAIL - W4L16851 (x1) 1 3/8"x5 1/4"x27 5/8" (36x134x703) TOP RAIL - W4L16856 LEFT OUTSIDE A4M01302 1 3/8"x5 1/4"x61" (36x134x1549) (x1) (x1) BRACKET...
  • Page 19 STEP 8B - GABLE ASSEMBLY POST - W2A03502 6"x6"x89 1/2" (152x152x2274) (x1) A4M01233 RIGHT ANGLE BRACKET (x1) TOP RAIL - W4L16851 (x1) 1 3/8"x5 1/4"x27 5/8" (36x134x703) TOP RAIL - W4L16856 RIGHT OUTSIDE 1 3/8"x5 1/4"x61" (36x134x1549) (x1) A4M01301 BRACKET (x1)
  • Page 20 STEP 9 - GABLE ASSEMBLY CA01 CORBEL - W2A03504 (x1) 1 7/16"x5 3/8"x46 1/16" (36x136x1160) CORBEL - W4L16855 1 3/8"x5 1/4"x45 5/8" (36x134x1160) (x3)
  • Page 21 STEP 10 - GAZEBO ASSEMBLY TOP RAIL - W4L16852 1 3/8"x5 1/4"x66 5/8" (36x134x1692) (x2) CORBEL - W4L16853 1 3/8"x5 1/4"x35 7/8" (36x134x910) (x2)
  • Page 23 STEP 11 - GAZEBO ASSEMBLY NOTCHED SUPPORT BOARD - W4L16915 1"x3 3/8"x89 1/2" (24x86x2274) (x2) 6" QUICK RELEASE A6P00460 BAR CLAMP (x2)
  • Page 24 STEP 12 - GAZEBO ASSEMBLY TOP RAIL - W4L16857 1 3/8"x5 1/4"x66 5/8" (36x134x1692) (x2)
  • Page 25 STEP 13 - GAZEBO ASSEMBLY...
  • Page 26 STEP 14 - GAZEBO ASSEMBLY TRUSS - W4L16859 1 7/16"x1 15/16"x74 15/16" (36x50x1902) (x4)
  • Page 27 STEP 15 - GAZEBO ASSEMBLY GABLE PANEL - W2A03500 GABLE PANEL - W2A03499 2 13/16"x5 1/4"x80 3/16" (72x134x2037) 2 13/16"x5 1/4"x80 3/16" (72x134x2037) (x2) (x2)
  • Page 28 STEP 16 - GAZEBO ASSEMBLY A4M01130 GABLE BRACKET (x2) TRUSS A4M01148 (x2) BRACKET A4M01147 PEAK SEAM BRACKET (x2)

  • Page 29: Step 17 - Rafter Assembly

    STEP 17 - RAFTER ASSEMBLY AD01 RAFTER - W4L16866 1"x4"x74 3/4" (24x102x1900) (x2) AD03 RAFTER - W4L16868 1"x4"x41 5/8" (24x102x1057) (x2) AD02 RAFTER - W4L16867 1"x4"x66 3/8" (24x102x1686) (x2)
  • Page 30 STEP 18 - RAFTER ASSEMBLY RAFTER ASSEMBLY FROM PREVIOUS STEP...
  • Page 31 STEP 19 - ROOF PANEL ASSEMBLY FASCIA - W4L16870 FASCIA - W4L16869 1"x3 3/8"x58 5/8" (24x86x1490) (x1) 1"x3 3/8"x57 3/8" (24x86x1458) (x1) FASCIA - W4L16872 (x1) 1"x3 3/8"x57 3/8" (24x86x1458) FASCIA - W4L16871 RAFTER - W4L16862 1"x3 3/8"x58 3/8" (24x86x1482) (x1) (x4) 1 3/8"x3 3/8"x76 3/8"...
  • Page 32 STEP 20A - ROOF PANEL ASSEMBLY SHEATHING BOARD - W4L16860 1 3/8"x5 1/4"x75 1/8" (36x134x1907) (x4) SHEATHING BOARD - W4L16861 (x4) 1 3/8"x3 3/8"x57 3/8" (36x86x1458) SHEATHING BOARD - W4L16864 1 3/8"x3 3/8"x58 5/8" (36x86x1490) (x4)
  • Page 33 STEP 20B - ROOF PANEL ASSEMBLY...
  • Page 34 STEP 21 - ROOF PANEL ASSEMBLY...
  • Page 35 STEP 22 - ROOF PANEL ASSEMBLY A4M01371 29 GA STEEL SHEETING (x1) A4M01124 A4M01715 29 GA STEEL SHEETING 29 GA STEEL SHEETING (x1) (x1)
  • Page 36 STEP 23 - ROOF PANEL ASSEMBLY A4M01124 A4M01715 29 GA STEEL SHEETING 29 GA STEEL SHEETING (x1) (x1)
  • Page 37 STEP 24 - ROOF PANEL ASSEMBLY A4M01124 29 GA STEEL SHEETING (x2)
  • Page 38 STEP 25 - ROOF PANEL ASSEMBLY...
  • Page 39 STEP 26 - ROOF PANEL ASSEMBLY FASCIA - W4L16870 FASCIA - W4L16869 1"x3 3/8"x58 5/8" (24x86x1490) (x1) 1"x3 3/8"x57 3/8" (24x86x1458) (x1) FASCIA - W4L16873 1"x3 3/8"x75 1/8" (24x86x1907) FASCIA - W4L16871 (x1) RAFTER - W4L16862 1"x3 3/8"x58 3/8" (24x86x1482) (x1) (x4) 1 3/8"x3 3/8"x76 3/8"...
  • Page 40 STEP 27A - ROOF PANEL ASSEMBLY SHEATHING BOARD - W4L16860 1 3/8"x5 1/4"x75 1/8" (36x134x1907) (x4) SHEATHING BOARD - W4L16861 (x4) 1 3/8"x3 3/8"x57 3/8" (36x86x1458) SHEATHING BOARD - W4L16864 1 3/8"x3 3/8"x58 5/8" (36x86x1490) (x4)
  • Page 41 STEP 27B - ROOF PANEL ASSEMBLY...
  • Page 42 STEP 28 - ROOF PANEL ASSEMBLY...
  • Page 43 STEP 29 - ROOF PANEL ASSEMBLY A4M01370 29 GA STEEL SHEETING (x1) A4M01124 A4M01718 29 GA STEEL SHEETING 29 GA STEEL SHEETING (x1) (x1)
  • Page 44 STEP 30 - ROOF PANEL ASSEMBLY A4M01124 A4M01718 29 GA STEEL SHEETING 29 GA STEEL SHEETING (x1) (x1)
  • Page 45 STEP 31 - ROOF PANEL ASSEMBLY A4M01124 29 GA STEEL SHEETING (x2)
  • Page 46 STEP 32 - ROOF PANEL ASSEMBLY...

  • Page 47: Step 33 - Roof Assembly

    STEP 33 - ROOF ASSEMBLY...
  • Page 48 STEP 34 - ROOF ASSEMBLY...
  • Page 49 STEP 35 - ROOF ASSEMBLY ACCESSORY TRUSS - W4L16863 1 3/8"x3 3/8"x73 13/16" (36x86x1875) (x2)
  • Page 50 STEP 36 - ROOF ASSEMBLY...
  • Page 51 STEP 37 - ROOF ASSEMBLY...
  • Page 52 STEP 38 - ROOF ASSEMBLY ACCESSORY TRUSS - W4L16863 1 3/8"x3 3/8"x73 13/16" (36x86x1875) (x4)
  • Page 53 STEP 39 - ROOF ASSEMBLY...
  • Page 54 STEP 40 - ROOF ASSEMBLY...
  • Page 55 STEP 41 - ROOF ASSEMBLY ACCESSORY TRUSS - W4L16863 (x2) 1 3/8"x3 3/8"x73 13/16" (36x86x1875)
  • Page 56 STEP 42 - GAZEBO ASSEMBLY COVER BOARD - W4L16917 1"x5 1/4"x89 1/2" (24x134x2274) (x2)
  • Page 57 STEP 43 - ROOF ASSEMBLY A4M01752 RAFTER CLIP (x14)
  • Page 58 STEP 44 - ROOF ASSEMBLY A4M01431 16 FOOT ROOF EDGE TRIM A4M00983 ROOF EDGE TRIM SPLICE (x4)
  • Page 59 STEP 45 - ROOF ASSEMBLY A4M01127 RIDGE CAP SPLICE (x2) A4M01430 16 FOOT RIDGE CAP 29 GA (x3)
  • Page 60 STEP 46 - ROOF ASSEMBLY RIDGE CAP STIFFENER - W4L16876 1"x2 3/8"x53 7/8" (24x60x1367) (x4) A6P00398 RIDGE CAP PROTECTOR (x2) RIDGE CAP STIFFENER - W4L16877 1"x2 3/8"x83 1/2" (24x60x2121) (x2)
  • Page 61 STEP 47 - ROOF ASSEMBLY RIDGE CAP ASSEMBLY FROM PREVIOUS STEP...
  • Page 62 STEP 48 - GAZEBO ASSEMBLY A4M00977 POST ANCHORING A4M00978 POST PLATE (x8) PLATE (x8)
  • Page 63 STEP 49 - GAZEBO ASSEMBLY BYD ID TAG A100241 (SMALL) (x1) WITHOUT AGES...
  • Page 64 STEP 50 - GAZEBO ASSEMBLY...

  • Page 65: Electrical Enclosure

    ELECTRICAL ENCLOSURE 9205413 ELECTRICAL ENCLOSURE (x1) FOR ELECTRICAL ENCLOSURE INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE ELECTRICAL ENCLOSURE KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
