Page 2
INSTALLATION SERVICES AVAILABLE! Need a helping hand? Let our team of professionals handle the installation for you! *Installation services are only available to U.S. customers. With Go Con gure, we bring you 18 years of experience right to your doorstep. We service a wide array of indoor and outdoor recreation products that most consumers don’t have the time or ability to deliver &...
Page 3
Owner’s Manual Please Read This Before Starting Assembly MISSING A PART? CALL US BEFORE GOING BACK TO THE STORE The store where you made your purchase does not stock parts for this item. If you have assembly questions or you are missing or have damaged parts, please call 1-800-856-4445 you can also visit www.backyarddiscovery.com...
Page 4
Botanical, Adventure Playsets, and Leisure Time Products. Backyard Discovery warrants that this product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase. This one (1) year warranty covers all parts including wood, hardware, and accessories. All wood carries a ve (5) year pro-rated warranty against rot and decay. Refer to the schedule below for charges associated with replacement of parts under this Limited Warranty.
Page 5
Owner’s Manual Safety Warnings and Maintenance Instructions WARNING IT IS IMPORTANT TO CHECK AND TIGHTEN ALL HARDWARE AT THE BEGINNING AND DURING THE SEASON AS THEY MAY LOOSEN DUE TO WOOD EXPANSION AND CONTRACTION. • DO NOT climb or walk on the roof for any reason •...
Page 6
About Our Wood Backyard Discovery uses 100% Cedar (C. Lanceolata) wood. Although we take great care in selecting the best quality lumber available, wood is still a product of nature and susceptible to weathering which can change the appearance of your set.
Page 7
Owner’s Manual Assembly Tips Protrusion Hazard Incorrect Correct If you see exposed threads and your bolt protrudes beyond the T-Nut you may have over tightened the bolt. To eliminate this, remove the bolt and add washers to eliminate the problem. 1/8”...
Page 8
Owner’s Manual Assembly Tips ASSEMBLY TIP: Keep an eye out for these boxes which will contain helpful pictures and information making the assembly process as quick and painless as possible. Sorting Wood When removing the wood from the boxes we recommend arranging them by part number before you begin assembly.
Page 9
Owner's Manual Tools Required for Installation...
Page 10
Owner's Manual Basic Setup Dimensions & Assembly Notes It is critically important that you start with square and level footings, concrete pad or deck to attach your structure • Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. Using incorrect hardware may result in improper assembly Remember to double check for underground utilities and overhead electrical lines •...
Page 16
Owner's Manual 9205345 - Parts Identification Hardware Components H100197 LAG SCREW WH BLK 5/16x2 1/2 H100764 SCREW SETTER H100206 LAG SCREW WH 5/16x3 H100825 LAG SCREW (38) 5/16x4 BLK A100042 TORX BIT H100147 TORX BIT T-40 T-30 A100041 TORX WRENCH T-40 H100114 TORX WRENCH...
Page 17
Owner's Manual 9205345 - Parts Identification Accessory Components (Not to Scale) A100029 FOOT 142 SQUARE POST A100241 BYD ID TAG (SMALL) WITHOUT AGES A4M00555 90° L-BRACKET - BLK A100314 "A" REVISION TAG A4M01108 L BRACKET 24x30x112 - BLK A4M01093 BRACKET A4M01111 METAL BEAM...
Page 18
Owner's Manual 9205109 & 9205116 - Parts Identification Accessory Components (Not to Scale) 9205109 CAST SLATE A6P00392 A6P00393 SEAT CUSHION BACK CUSHION 9205116 SPECTRUM INDIGO A6P00394 A6P00395 SEAT CUSHION BACK CUSHION...
Page 19
Owner's Manual 9205017 - Parts Identification Accessory Components (Not to Scale) A4M01063 POST A4M01069 POST A4M01070 POST A4M01105 ARM POST - RIGHT A4M01060 A4M01066 FRAME END - LEFT FRAME END - RIGHT A4M01106 ARM POST - LEFT A4M00555 90° L-BRACKET - BLK A6P00377 SNAP-IN SQUARE PLUG A4M01064...
Page 23
STEP 3 CLEAT - W4L13044 H100391 SCREW PFH BLK 1 3/8"x2 3/8"x53" (36x60x1345) (24) NOTE DIRECTION LOCATE AND ALIGN OF THE NOTCH. WITH PILOT HOLES FOR PROPER ASSEMBLY. (x24) (x4) SCREW - 2"...
Page 27
STEP 7 H100206 LAG SCREW WH 5/16x3 FRONT BEAM SUBASSEMBLY (FROM STEP 6). H100198 WASHER LOCK EXT BLK 8x19 ALIGN HOLES IN BEAM WITH HOLE LOCATED IN NOTCH. BEAM SUBASSEMBLY EDGE HOLES TOWARD (FROM STEP 6). THE TOP OF THE BEAM. (x4) LAG - 3"...
STEP 1 0 H100197 LAG SCREW WH BLK 5/16x2 1/2 H100202 SCREW PWH BLK REAR BEAM SUBASSEMBLY 8x5/8 (FROM STEP 8). H100198 WASHER LOCK EXT BLK 8x19 EDGE HOLES TOWARD THE TOP OF THE BEAM. BEAM SUBASSEMBLY (FROM STEP 8). (x4) (x4) LAG SCREW - 2 1/2"...
Page 31
STEP 1 1 7 in [179 mm] FRONT TOP JOIST - W4L13056 TOP JOIST - W4L13061 1 3/8"x3 3/8"x81 1/2" (36x86x2070) 1 3/8"x3 3/8"x30" (36x86x761) H100825 LAG SCREW (36) 5/16x4 BLK TOP JOIST - W4L13060 TOP JOIST - W4L13057 1 3/8"x3 3/8"x40 3/8" (36x86x1025) 1 3/8"x3 3/8"x71 1/2"...
Page 32
STEP 1 2 A100029 FOOT 142 SQUARE POST NOTE: 1. DECIDE WHERE TO PLACE THE PERGOLA. NOTE THIS MOUNTING PROCEDURE IS MEANT TO BE USED ON CONCRETE ONLY. 2. PLACE THE PERGOLA EXACTLY WHERE IT WILL BE ANCHORED WHEN COMPLETED AND SLIDE A FOOT UNDER EACH POST.
Page 33
STEP 1 3 H100120 SCREW CONCRETE ANCHOR (12) 1/4x2 NOTE: USE CHALK TO TRACE AROUND THE EDGES OF EACH FOOT. NOTE: 1. MOVE THE PERGOLA ASIDE. PLACE EACH FOOT INSIDE OF THE LINES DRAWN IN THE PREVIOUS STEP. USING A 3/16" CONCRETE DRILL BIT, PILOT DRILL ATTACHMENT HOLES INTO THE CONCRETE PAD.
Page 34
STEP 1 4 H100200 SCREW PFH BLK A100314 (12) H100392 8x1 1/2 SCREW PWH BLK "A" REVISION TAG A100241 8x3/4 BYD ID TAG (SMALL) WITHOUT AGES NOTE: MOVE THE PERGOLA BACK IN TO PLACE, SETTING EACH POST INSIDE A FOOT AND MOUNT.
Page 35
STEP 1 5 A6P00377 SNAP-IN SQUARE PLUG A4M01105 ARM POST - RIGHT A4M01066 A4M01060 A4M01106 FRAME END - LEFT FRAME END - RIGHT ARM POST - LEFT H100171 BOLT WH BLK 1/4x1 (x1) SNAP-IN SQUARE PLUG (x1) ARM POST - LEFT (x1) (x1) FRAMED END - LEFT...
Page 36
STEP 1 6 METAL ARM - LEFT METAL ARM - RIGHT SUBASSEMBLY SUBASSEMBLY H100471 LAG SCREW WH BLK (10) 5/16x1 1/2 (x10) LAG SCREW - 1 1/2" (RIGHT & LEFT ARMS) METAL ARM - LEFT SUBASSEMBLY (x1) METAL ARM - RIGHT SUBASSEMBLY (x1)
Page 37
STEP 1 7 A4M01063 POST A4M01069 POST A4M01070 A4M01065 A4M01095 POST RAIL RAIL A6P00377 H100171 BOLT WH BLK SNAP-IN SQUARE PLUG (12) 1/4x1 (x3) SNAP-IN SQUARE PLUG (x1) (x12) POST BOLT - 1" (x1) POST (x1) RAIL (x1) RAIL NOTE HOLE LOCATION.
Page 38
STEP 1 8 METAL ARM TABLE BASE SUBASSEMBLY H100391 SCREW PFH BLK (x6) SCREW - 2" NOTE HOLE LOCATION.
STEP 21 H100171 BOLT WH BLK H100460 LAG SCREW WH BLK SEAT SUPPORT (12) (10) 1/4x1 1/4x1 SUBASSEMBLY NOTE: 1. LINE UP THE PILOT HOLES IN THE WOOD RAILS WITH THE HOLES IN THE SEAT SUPPORT RAILS FOR PROPER ASSEMBLY. 2.
Need help?

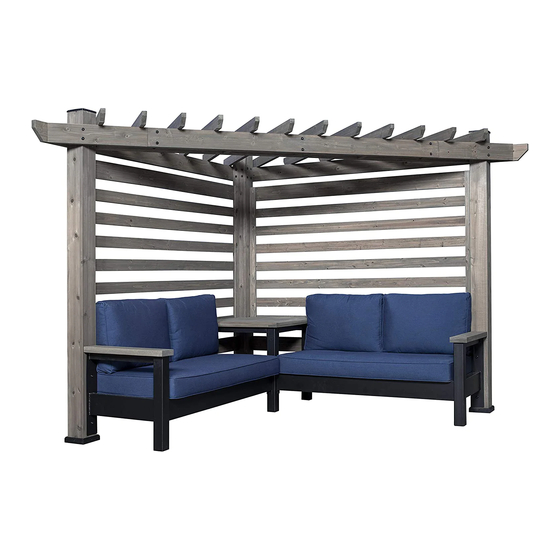

Do you have a question about the LAGUNA CABANA LOUNGER 2006539 and is the answer not in the manual?
