Summary of Contents for Accorroni HR 3.0

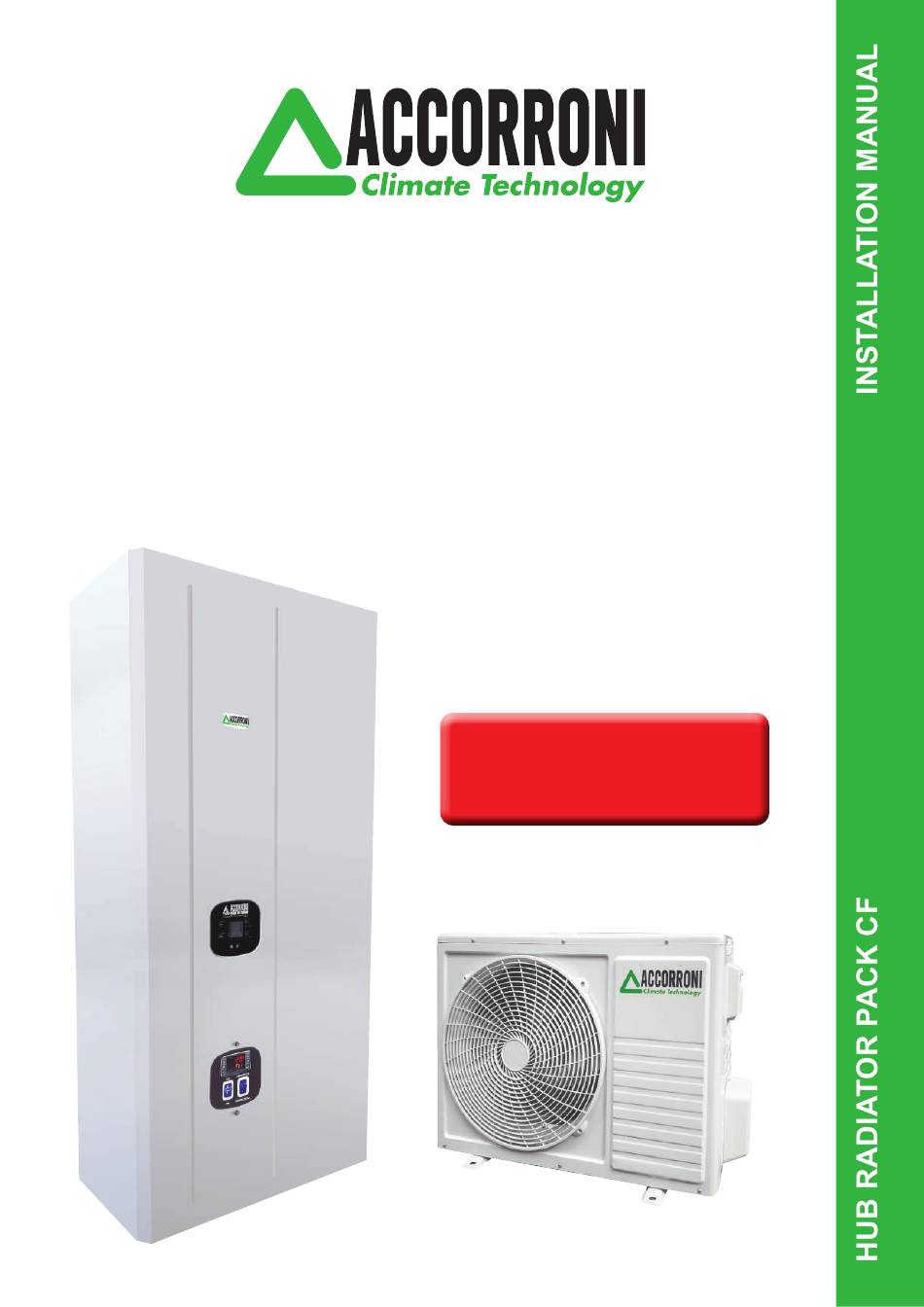

- Page 1 REV_05/06/2022 High efficiency patented integrated hybrid system in direct exchange heat pump coolant / water with back-up boiler to produce domestic hot water, heating o air conditioning for small and medium users HUB RADIATOR PACK CF FIRST START-UP MANDATORY FOR WARRANTY ACTIVATION...
-
Page 2: Table Of Contents
A2B Accorroni E.G. S.r.l. towards third parties. The A2B Accorroni E.G. S.r.l. is responsible for the compliance of its product with the laws, directives and construction standards in force at time of marketing. - Page 3 TECHNICAL SPECIFICATIONS INDOOR UNIT / OUTDOOR UNIT HUB RADIATOR PACK CF 3.0 - 7.8....... 19 Performance characteristics of outdoor units Booster HUB RADIATOR PACK CF 3.0 - 7.8 ..........19 Technical data table for domestic hot water withdrawal HUB RADIATOR PACK CF ............19 HUB RADIATOR PACK CF boiler technical data table ......................
-
Page 4: Main Features
ON - OFF compressor model Booster HR 7.8 (HUB RADIATOR maintenance interventions. PACK CF 7.8) or HR 3.0 (HUB RADIATOR PACK CF 3.0). Inside the packaging there is also an envelope containing 2) Indoor unit consisting of a modulating condensing boiler from this manual and the warranty certificate, which must be 2.9 to 24.9 kW which works as a support to the heat pump and... -
Page 5: Connections / I.u
Table 1 - HUB RADIATOR PACK CF cable specifications Models Connection cable Connection cable Cable Cable Switch QE power supply QE power supply C-1-2 thermal magneto indoor unit indoor unit Section Section Section Section Section 2.5 mm 2.5 mm 1,50 mm 0,75 mm 16 A curv. -
Page 6: Installazione Entro I 5 Metri
4 1,5 m 0,5 m Table 4 - Admissible distances U.I. - E.U. Models HR 3.0 HR 7.8 A Maximum length allowed without adding refrigerant B Minimum allowed length of refrigerant gas C Maximum length of refrigerant gas piping... -
Page 7: Outdoor Unit Installation
ATTENTION! Inquire about any limits in noise emissions provided for the area of the municipal territory in which it is installed the In fig. 5 shows an example of an inadmissible application, with a appliance. In case of doubts it is advisable to consult previously distance of 10 meters but with a difference in height of>... -
Page 8: Distances Of Respect
- For mounting on a sloping roof it is recommended to use the appropriate shelf shown below (see Chap. 4.9 ACCESSORIES HUB RADIATOR PACK CF) ANCHORING BRACKET FOR INCLINED ROOF FOR EXTERNAL BOOSTERS MOD. HR 3.0 - 7.8 - 9.0 RUBBER ANTI-VIBRATION SYSTEMS INCLUDED... -
Page 9: Evacuation
ANTI-VIBRATION FLOOR BASE IN VULCANIZED RUBBER unit without leaks. (HEIGHT FROM THE GROUND MM 95) WITH LEVEL AND SCREWS FOR BOOSTER HR 3.0 - 7.8 - 9.0 3.8 RECOVERY PROCEDURE - Connect a low pressure gauge with a hose to the gas valve service socket. -
Page 10: Ndoor Unit Installation
4. INDOOR UNIT INSTALLATION Fig. 10 Always install the accumulation inside the building to be heated away from atmospheric agents and inside a temperature- controlled room. Make sure that the wall on which the indoor unit will be installed is able to support the entire operating weight of the system. Below are the main components that make up the indoor unit. -
Page 11: Assembly Procedure
4.3 ASSEMBLY PROCEDUREA) G) Proceed with connecting the flow and return of the heating Place the wall fixing bracket on the wall where you want to install system using the 3/4” fittings the indoor unit. Using a level, make sure that the bracket is perfectly horizontal and that the support surface is regular. -
Page 12: Smoke Intake / Exhaust System
In the event of a malfunction of the air intake / flue gas exhaust system, the devices put the boiler in safety and the code E14 flashes on the LCD display. L - N Tampering with and / or exclusion of these safety devices is Power supply strictly prohibited. -
Page 13: Configuration Of The B23 Type Flue Gas Intake / Exhaust Ducts
POSITIONING OF THE TERMINALS FOR “FORCED DRAFT” APPLIANCES (extracted from the UNI 7129 standard) Distances Appliances with heat output Terminal location minimum over 16 kW e in mm up to 35 kW Under window Under ventilation opening Under the eaves Under balcony (1) From an adjacent window From an adjacent ventilation opening... -
Page 14: Chimney Sweep Function
Type C33 The display shows the symbol “ ” if the burner is on. The boiler carries The minimum permissible length of vertical coaxial pipes is 1 meter. out the ignition sequence and then goes on to operate at minimum The maximum permissible length of vertical coaxial pipes 100/60 mm power (“Lo”).Press and hold the button for 3 seconds “... - Page 15 Parametro Valori impostabili Valori di default Note 0 = istantanea 1 = con termostato bollitore P01 Selezione tipo di caldaia 0 ÷ 8 2 = con sonda di temperatura bollitore 3 = solo riscaldamento 0 = gas naturale P02 Selezione tipo di gas 0 - 1 1 = GPL 0 = flussostato...
-
Page 16: Adaptation To The Use Of Other Gases And Burner Adjustment
4.7 ADAPTATION TO THE USE OF OTHER GASES AND ADJUSTMENT OF THE BURNER The boilers are produced for the type of gas specifically autonomously performs a cycle at minimum power “P0”, requested when ordering, which is shown on the packaging ignition “P1”... -
Page 17: Testing The Boiler
AUTO ADJUSTMENT VALUES OF CO IN FUMES The message “P0” appears on the display and the board is ready Fuel value min/max (%) Acceptable range (%) to adjust the O value at minimum power. With this condition: 20 kW Methane 9,3 / 9,8 “... -
Page 18: Combustion Analysis
of the plant; 4.7.7. COMBUSTION ANALYSIS check the charge of the expansion tank; The control of the boiler combustion parameters for the evaluation of efficiency and polluting emissions must be carried control of the correct evacuation of condensate by the side out in accordance with the laws and standards in force. -
Page 19: Technical Specifications Indoor Unit / Outdoor Unit Hub Radiator Pack Cf 3.0 - 7.8
5.TECHNICAL SPECIFICATIONS INDOOR UNIT / OUTDOOR UNIT HUB RADIATOR PACK CF 3.0 - 7.8 5.1 PERFORMANCE CHARACTERISTICS OF OUTDOOR UNITS BOOSTER HUB RADIATOR PACK CF 3.0 BOOSTER HR 3.0 - THERMAL POWER DELIVERED Thermal power output kW Heating water delivery temperature °C Ta (°C) -
Page 20: Hub Radiator Pack Cf Boiler Technical Data Table
5.3 HUB RADIATOR PACK CF boiler technical data table DESCRIPTION U.M. Appliance category II2H3P Minimum heat output boiler in natural gas heating G20 Maximum heat output of the boiler in natural gas heating G20 20,0 24,0 32,0 Minimum boiler heat output in LPG gas heating Maximum heat output of the boiler in LPG gas heating 20,0 24,0... -
Page 21: Boiler Operating Data Table Hub Radiator Pack Cf
11,2 / 10,5 8,9 / 8,0 8,9 / 8,6 12,1 / 10,5 l/min 5.5 Outdoor unit technical data table Booster HUB RADIATOR PACK CF DESCRIPTION U.M. HR 3.0 HR 7.8 Thermal power (1) 3,11 8,12 Absorbed power (1) 0,74 1,96 C.O.P. -
Page 22: Dimensions Of Outdoor And Indoor Unit Hub Radiator Pack Cf Wall-Mounted
5.6 Dimensions of outdoor unit and indoor unit HUB RADIATOR PACK CF wall-hung Model Weight U.E. Booster HR 3.0 U.E. Booster HR 7.8 U.I. HR PACK CF 20 1450 1410 U.I. HR PACK CF 24 1450 1410 U.I. HR PACK CF 32... -
Page 23: Accessories Hub Radiator Pack Cf
FLEXIBLE ANTI-VIBRATION JOINT KIT WITH FOLDER OF FITTING AND STRAIGHT UNION FLEXIBLE ANTI-VIBRATION JOINT KIT WITH FOLDER ANCHORING BRACKET FOR INCLINED ROOF OF CONNECTION AND 90° CURVED UNION FOR EXTERNAL BOOSTERS MOD. HR 3.0 - 7.8 RUBBER ANTI-VIBRATION SYSTEMS INCLUDED... - Page 24 45 ° COAXIAL BEND Ø 60/100 M / F FLEXIBLE ANTI-VIBRATION JOINT KIT WITH FOLDER OF FITTING AND STRAIGHT UNION SLIPPER SPLITTER KIT FROM Ø 60/100 TO Ø 80/80 COAXIAL VERTICAL START Ø 60/100 WITH FUMES SUCTION SLIPPER SPLITTER KIT FROM Ø 60/100 TO Ø 80/80 EXTENSION Ø...
-
Page 25: Circulator Hub Radiator Pack Cf
6. HUB RADIATOR PACK CF CIRCULATOR 7.2 HYBRID OPERATION, HEAT PUMP WITH BOILER INTEGRATED WINTER PERIOD The IC key (boiler switch) must be set to ON, the I E / I key (summer / winter switch) must be set to WINTER while the CD digital controller must be set “to heating mode ON”... -
Page 26: Digital Control Unit
8 DIGITAL CONTROL UNIT Flashing on if the entrance digital flow switch is active (both with pump ON and with pump OFF) ___________________________________________________ On if the fans are on ___________________________________________________ On if the relative compressor is switched on; is flashing if the compressor is in ignition timing ___________________________________________________ 8.1 DISPLAY... -
Page 27: Access To Parameters
Press and release in programming: As regards the use of the remote terminal (indications on the allows you to scroll through folders display and meaning of the keys) refer to the previous paragraphs. parameters (ST, CF, etc); allows it In the air / air units, if the remote terminal equipped with an NTC scrolling the list of parameters. -
Page 28: Main Alarms
8.6 MAIN ALARMS Cod. Meaning It causes Action Reset Probe alarm Probe faulty our Activate output open Automatic resistive value collector / relè alarm if the value is within out of range Activate buzzer the expected range Flashing icon generic alarm Code on display Probe alarm Probe faulty our... - Page 29 8.7 TABLE OF TROUBLESHOOTING CAUSES Alarm Broken down Meaning It causes Remedy Code Probe alarm Probe 1) Probe interrupted 1) Technical water probe replacement technical water 2) Probe shorted 2) Control unit replacement 3) Control unit faulty Probe alarm Probe 1) Probe interrupted 1) External probe replacement external...
-
Page 30: Parameter Tables
31. Tabella Parametri 9. PARAMETER TABLES SELEZIONE SOTTO-MENU 9.1 SUBMENU SELECTION LABEL MEANING View all parameters It displays only the thermoregulation parameters ST10 Funzione unità chiller senza accumulo 0= disabilitata It displays only the configuration parameters 1= abilitata ST11 Set point minima temperatura acqua in uscita unità senza -50.0 °C accumulo in funzionamento chiller... - Page 31 12 = Allarme termica pompa acqua evaporatore / termica CF22 Valore di pressione a 4mA / 0,5V 50.0 ventilatore di mandata 13= Allarme termica pompa acqua condensatore CF23 Valore di pressione a 20mA / 5V 50.0 14= Flussostato condensatore 15= Disabilitato CF09 Configurazione ID2 CF24...
- Page 32 CF44 Default visualizzazione display superiore terminale remoto CO06 Ritardo ON compressore dalla partenza pompa / ventilatore 0 = PB1 di mandata 1 = PB2 CO07 Ritardo OFF pompa / ventilatore di mandata dallo 2 = Niente spegnimento compressore 3 = PB4 CO08 Rotazione compressori 4 = Setpoint reale unità...
- Page 33 FA09 Massima velocità ventole in estate Ar18 Regolazione pompa acqua evaporatore / resistenze antigelo FA10 in OFF-stand-by Set temperatura / pressione minima velocità ventole in -50.0 °C 0= Disattivata estate °F 50.0 1= Attivata 2= Regolazione pompa acqua / resistenze antigelo su sonda PB4 configurata come sonda ambiente FA11 Set temperatura / pressione massima velocità...
-
Page 34: Digital Control Unit Wiring Diagram
dF18 Valvola 4 vie di inversione ciclo AL15 Differenziale bassa temperatura / pressione 25.0 °C 0= ON in cooling °F 1= ON in heating 50.0 dF19 Set temperatura / pressione forzatura ciclo di sbrinamento -50.0 °C °F AL16 Numero massimo interventi ora allarme bassa pressione 50.0 ingresso analogico AL17... -
Page 35: Warnings
10. WARNINGS 11. START-UP 10.1 QUALIFICATION OF THE INSTALLER 11.1 Initial start-up checks Before proceeding with the commissioning of the device, make ATTENTION! It is required by current legislation that the sure that: installation is carried out by an authorized company able to the safety conditions and all the provisions set out in ensure, in addition to the correct construction of the system, also this manual has been complied with;... -
Page 36: System Drying And Vacuum
12.2 DRYING AND VACUUM OF THE SYSTEM 13. EXTERNAL PROBE KIT Drying and high vacuum are necessary to evacuate the air, humidity, and all gases that may be in solution with the The external probe kit allows to detect the external temperature compressor oil. -
Page 37: Hybrid System Climate Management
14. HYBRID SYSTEM CLIMATE MANAGEMENT (WINTER PHASE) 14.1 EXAMPLE OF OPERATION WITH EXTERNAL CLIMATE PROBE HYBRID SYSTEM HUB RADIATOR PACK CF Accumulation temperature (°C) Climate example: AR21 5 °C ST03 SD03 = -12 °C AR25 5 °C SD05 2 °C ST03 = 65 °C SD03... -
Page 38: Climate Management Procedure
14.3 CLIMATIC MANAGEMENT PROCEDURE PARAMETERS SET POINT FUNCTION VALUE CF05 SET-POINT - Configuration PB2 4 °C External temperature ST08 SET-POINT max in PdC 65,0 °C max ST03 SET-POINT winter (compressor off at outdoor temp. 50 °C) 65,0 °C max CLIMATIC SET POINT FUNCTION SD03 Dynamic SET-POINT max increase in heat pump maximum variation -10,0 °C... -
Page 39: Electrical Connection Diagrams
15. ELECTRICAL CONNECTION DIAGRAMS 15.1 WIRING DIAGRAM HUB RADIATOR PACK CF 3.0 (interruttore caldaia) I e/i (summer / winter switch) ESTATE INVERNO Heat pump only operation By positioning the IC key, the system will work with the Heat Pump only and the boiler resistance will never work Operation with support boiler To use the integration boiler it is necessary to position "IC"... -
Page 40: Hub Radiator Pack C Wiring Diagram 7.8
15.2 WIRING DIAGRAM HUB RADIATOR PACK CF 7.8 (interruttore caldaia) I e/i (summer / winter switch) ESTATE INVERNO Heat pump only operation By positioning the IC key, the system will work with the Heat Pump only and the boiler resistance will never work Operation with support boiler To use the integration boiler it is necessary to position "IC"... -
Page 41: Hydraulic Diagrams
20 Y filter 21 General water mains inlet 16.2 Application example HUB RADIATOR PACK CF 3.0 / 20 1 Booster HR 3.0 hot / cold 2 Technical storage unit 75 liters 3 Domestic hot water delivery 4 Domestic cold water delivery... -
Page 42: Maintenance
Technical Assistance Center. To find out the name a brush with soft spatulas, avoiding damaging the fins of the of the nearest Center, call A2B Accorroni E.G. directly. S.r.l. or exchanger. If possible, use a light jet of compressed air to pass consult the site carefully through the spaces of the fins. -
Page 43: First Start-Up Request
Distance between indoor and outdoor unit (max 15m) attached A Difference in height between indoor and outdoor unit (max 5 m) attached A The pipes of the refrigeration lines (1/4 “- 3/8”) for HR 3.0 or (1/4 “- 5/8”) for HR 7.8 Folder tightness control... - Page 44 Assistance Center Local technique. Signature of the installer Date _____________________________________________ _________________________________ A2B Accorroni E.G. s.r.l. - Via d’Ancona, 37 - 60027 Osimo (An) Tel. 071.723991 - www.accorroni.it - a2b@accorroni.it...
-
Page 45: Attachments A - B
UNIT OUTDOOR UNIT Table 1 - Permissible distances INDOOR UNIT - OUTDOOR UNIT Models HR 3.0 HR 7.8 HR 9.0 INVERTER A Maximum length allowed without adding refrigerant B Minimum allowed length of refrigerant gas C Maximum length of refrigerant gas piping... -
Page 46: First Start-Up Board
A2B ACCORRONI E.G. s.r.l. FIRST START-UP BOARD PATENTED SYSTEM HUB RADIATOR PACK CF (attachment 1) MR. \ COMPANY______________________________________________________________________________________________ TECHNICAL ASSISTANCE CENTER DATA CITY_____________________________STREET_____________________________________________________________________ PHONE_________________________ E-MAIL _______________________________________________________________________ SYSTEM DATA CITY_____________________________STREET_____________________________________________________________________ INSTALLATION DATE___________________TEST DATE_________________________________ TYPE: □ □ HUB RADIATOR PACK CF 3.0 HUB RADIATOR PACK CF 7.8... - Page 47 50 °C before taking measurements COMPRESSOR ABSORBED CURRENT (A) ...._______ INSTALLER TECHNICAL ASSISTANCE CUSTOMER SIGNATURE SIGNATURE SIGNATURE _____________________________ _____________________________ _____________________________ A2B Accorroni E.G. s.r.l. Via d’Ancona, 37 - 60027 Osimo (An) - Tel. 071.723991 - www.accorroni.it - a2b@accorroni.it...
- Page 48 1 of the Accorroni warranty conditions with the prior consent of the interested party to be expressed at the bottom of the "First start-up report". 3) The data subject may exercise the rights referred to in Article 13 of Law 675/96 by contacting Accorroni directly, via d'Ancona...
-
Page 49: Module 87
Postvendita Logistica Ricambi Codice prodotto reclamato *SCRIVERE MATRICOLA Descrizione prodotto reclamato Data di ricezione reclamo PRODOTTO O NUMERO FATTURA *PER PROBLEMI DI POSTVENDITA ALLEGARE 3 FOTO OBBLIGATORIE RELATIVE AL PROBLEMA centralino@accorroni.it OPPURE VIDEO ED INVIARE A: Motivo del reclamo/problema Descrizione... - Page 50 D. Lgs 81/08. In tutti gli altri casi sarà cura e responsabilità o cose, e che nessuno, tranne che A2B ACCORRONI E.G., è autorizzato a dell’ A cquirente/Consumatore disporre le attrezzature necessarie e sostenere i modificare i termini sopra né...
- Page 51 Hub Radiator Pack C - Pack CF Apparecchi: Con riferimento agli apparecchi in oggetto nelle versioni di serie per la pompa di calore con serbatoio ad accumulo integrato, la A2B Accorroni E.G. srl DICHIARA che il prodotto è conforme alle disposizioni Direttiva Europea 2004/108/CE Compatibilità...
- Page 53 A2B Accorroni E.G. s.r.l. Via d’Ancona, 37 - 60027 Osimo (An) - Tel. 071.723991 web site: www.accorroni.it - e-mail: a2b@accorroni.it...
