Summary of Contents for Accorroni HPE R32 40

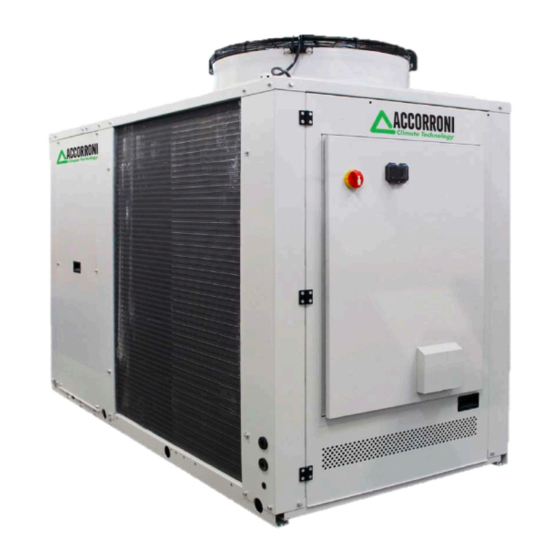

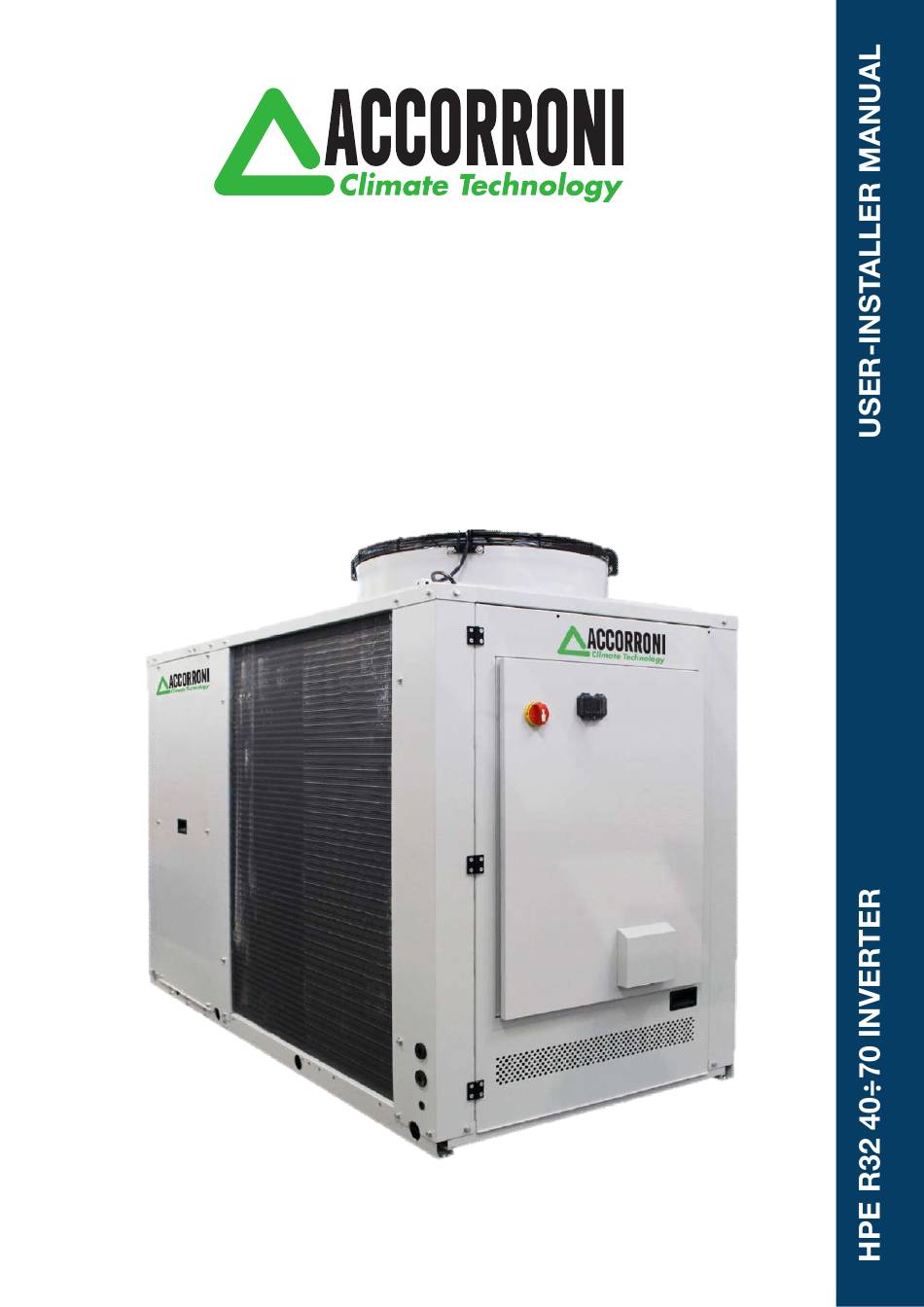

- Page 1 Chiller and Inverter Air/Water heat pumps with axial fan HPE R32 40÷70 INVERTER...
-
Page 3: Table Of Contents
Contents 1. PURPOSE AND CONTENTS OF THE MANUAL ..............5 1.1 HOW TO KEEP THE MANUAL ..................5 1.2 GRAPHIC SYMBOLS USED IN THE MANUAL ............5 2. NORMATIVE REFERENCES ....................5 3. PERMITTED USE ....................... 5 4. GENERAL SAFETY GUIDELINES ..................6 4.1 WORKERS' HEALTH AND SAFETY ................ - Page 4 8. SHUTDOWNS FOR LONG PERIODS ................26 9. MAINTENANCE AND PERIODIC CHECKS ..............27 9.1 GENERALITY ......................28 9.1.1 Cleaning the filled coil treated with the anti-corrosion method ......28 9.2 CLEANING OF EXTERNAL SURFACES ..............29 9.3 EXTRAORDINARY MAINTENANCE ................29 10.DECOMMISSIONING....................29 11.RESIDUAL RISK ......................
-
Page 5: Purpose And Contents Of The Manual
The manual of the units contains all the indications for the optimal use of the machine under safe conditions for the operator. 1. PURPOSE AND CONTENTS OF THE MANUAL This manual provides basic information as to the selection, installation, operation and maintenance of the unit. It is intended for the operators of the appliance and it enables them to use the equipment efficiently, even if they do not have any previous specific knowledge. -
Page 6: General Safety Guidelines
improper and therefore not allowed. The fluid to be used is exclusively water or a mixture of water and glycol in case of low water tem- peratures. It is absolutely NOT allowed to connect the heated water supply from the UNIT directly to the taps of the domestic hot wa- ter circuit. -
Page 7: Personal Protective Equipment
Do not tamper with or replace parts of the unit without the specific consent of the manufacturer. These interventions re- lease the manufacturer from any civil or legal responsibility. Using components, consumables or spare parts that do not correspond to those recommended by the manufacturer and/or listed in this manual may be dangerous for the operators and/or damage the unit. -
Page 8: Safety Signs
Mask and goggles: Respiratory protection (mask) and eye protection (goggles) should be used during cleaning operations. 4.3 SAFETY SIGNS The unit features the following safety signs, wich must be complied with: Generic hazard. Dangerous electric voltage. Moving parts. Surfaces wich can cause injuries. Boiling surfaces wich can cause burns. -
Page 9: Refrigerant Safety Data Sheet
4.4 REFRIGERANT SAFETY DATA SHEET Name: HAZARDS IDENTIFICATION Main hazards: Asphyxia� on. Specifi c hazards: Quick evapora� on could cause it to freeze. FIRST AID MEASURES General informa� on: Do not administer to people who are unconscious. Immediately remove to fresh air. Inhala�... -
Page 10: Specific R32 Gas Warnings
4.5 SPECIFIC R32 GAS WARNINGS The R32 refrigerant gas: • is odourless; • is flammable, but only if there are naked flame; • it may cause an explosion, but only if a given concentration in air is reached. It is a good practice to follow these guidelines: •... -
Page 11: Transport And Storage Limit Temperature
CAUTION: The unit must be installed so as to allow free movement for repair and maintenance operations. The warranty does not cover costs for platforms or other lifting equipment needed for any interventions. CAUTION: The unit must be installed so as to allow free movement for repair and maintenance operations. The warranty does not cover costs for platforms or other lifting equipment needed for any interventions. -
Page 12: Positioning And Minimum Technical Clearances
Lifting through forklift truck Lifting with lifting tubes and ropes 5.4 POSITIONING AND MINIMUM TECHNICAL CLEARANCES All models of the range are designed and constructed for outdoor installations. It is advisable to create an adequately sized support base for the unit. The units transmit a small amount of vibrations to the ground: it is none- theless advisable to apply vibration dampers between the base frame and support surface. - Page 13 Model HPE R32 40 1200 1000 1000 1500 HPE R32 1200 1000 1500 1500 50 / 60 / 70 L min In the event of side-by-side units, the minimum Lmin distance be- tween them is 2200 m. Covering with canopies or placing near plants or walls should be avoid- In the event of winds stronger then 13,9-17,1 m/s the use of wind barriers is recommended.
-
Page 14: Dimensions
5.5 DIMENSIONS 5.5.1 Standard version 212,5 DS / OUT (1" G) DS / IN (1" G) 1754 1110 1850 Dimensions A - Lenght 1850 B - Depht 1110 C - Height 1920 C - Heigh SL/C version 1980 IN / OUT inch 1"... -
Page 15: Centre Of Gravity And Dampers Location
5.6 CENTRE OF GRAVITY AND DAMPERS LOCATION Models Version A [mm] B [mm] Xb [mm] Yb [mm] Standard 1110 1754 HPE R32 40 With tank kit 1110 2365 1022 Standard 1110 1754 HPE R32 50 With tank kit 1110 2365... -
Page 16: Accessing The Inner Parts
Models Version A [mm] B [mm] C [mm] D [mm] Standard 1410 HPE R32 40 / 50 / 60 / 70 Hydronic kit with tank 2180 5.7 ACCESSING THE INNER PARTS 5.7.1 Access to the inside of the unit on the electrical panel side crushing. -
Page 17: Access To The Inside Of The Unit On The Hydronic Kit Side
5.7.2 Access to the inside of the unit on the hydronic kit side In the event of maintenance and/or inspection of the hydronic part and part of the refrigeration circuit, it is necessary to access the inside of the unit from the rear side, near the hydraulic connections. Unscrew the rear panel fixing screws and remove it from the base. In the case of a single-battery unit, one of the two sides can also be inspected by removing the side panels;... -
Page 18: Features Of The Circuit Water
The heating system and the safety valves must comply with the requirements of standard EN 12828. The unit is pre-tensioned on the side cover plate in order to provide a suitable passage for the discharge of the safety valve (the installation of which is the responsibility of the user). - Page 19 STANDARD HYDRONIC CIRCUIT WITH OPTIONAL ACCESSORIES EV/CO HKA1 W-OUT W-IN HKA2 HYDRONIC CIRCUIT SINGLE PUMP VERSION (WITH OPTIONAL TANK) W-OUT EV/CO HKA1 W-OUT W-IN HKA3 HKA2...
-
Page 20: Drainage System
HYDRONIC CIRCUIT DOUBLE PUMP VERSION (WITH OPTIONAL TANK) W-OUT EV/CO HKA1 W-OUT W-IN HKA2 HKA3 HKA2 ATTENTION: It is recommended to connect the safety valve vent in an appropriate conveyor / discharge. Otherwise the discharged water could stagnate around the unit and become a source of danger due to slipping / falling. 5.8.3 Drainage system The units all of them adopt drainage holes on the basement for the condensate draining which can leach from the pipes of hydraulic and refrig- erant circuits, and to discharge the generated water during defrosting cycles. -
Page 21: Service Sleeves
It is advisable to use an external tap to fill the system, which is the responsibility of the installer. There is always a service tap in the unit to be used if it is necessary to top up/ discharge the amount of water in the system or adjust the percentage of glycol. If the unit must be completely drained,first close the manual inlet and outlet shutters (not supplied) and then disconnect the pipes on the water inlet and outlet so that the liquid in the unit can drain (to make this operation easier, it is advisable to install two external drain cocks between the unit and the manual shutters on the water inlet and outlet). -
Page 22: Access To Electric Panel
an independent cable duct. must be separate from the remote control cables. Maximum distance 50 metres. high humidity. Leave the area near the cooling system clear. 5.9.1 Access to electric panel The electrical panel is accessible even when the machine is closed and is located on the compressor side. In order to open the panel door, it is 5.9.2 Power supply Use a dedicated power line, do not power the appliance through a line to which other users are connected. -
Page 23: User Terminal Block
5.9.3 User terminal block The connection terminal block is located under the machine cover. For access, see the instructions. The terminal block must be connected re- specting the notes below. The connections shown below are standard. Other connections are given in the MCO manual of the on-machine control (see "USER AND IN- STALLER CONFIGURATION TABLES"), according to the configurations adopted. -
Page 24: Control Logics
Control terminal block Power terminal block Standard Standard Expansion (GI) Expansion (GI) 10.1 11.1 12.1 13.1 14.1 15.1 16.1 10.1 10.2 11.2 12.2 13.2 14.2 15.2 16.2 GI D 10.2 10.2 11.2 12.2 13.2 14.2 15.2 16.2 GI D 10.2 10.1 11.1 12.1... -
Page 25: Functional Diagrams
5.10 FUNCTIONAL DIAGRAMS Below are the conceptual diagrams of the chiller and heat pump version and the legend for all diagrams. LEGEND COMPRESSOR SUCTION LINE CONDENSER MOISTURE LIQUID INIDACTOR EVAPORATOR PEH TC HIGH-PRESSURE TRANSDUCER ELECTRONIC EXPANSION VALVE PED TR LOW-PRESSURE TRANSDUCER CHARGING ATTACHMENT HIGH-PRESSURE SWITCH FILTER DRIER... -
Page 26: Start Up
6. START UP Before start-up: 1. Check that the diagrams and manuals of the installed machine are available. 2. Check that the wiring and plumbing diagrams of the plant the machine is connected to are available. 3. Check that the shut-off valves of the water circuits are open. 4. Check that the water circuit was filled under pressure and the air vented. -
Page 27: Maintenance And Periodic Checks
If the temperature drops below zero there is serious danger of frost: provide a mixture of water and glycol in the system, otherwise drain the water system and the circuits of the heat pump. CAUTION: even the transient operation, with water temperatures below +5°C is not guaranteed on the basis of the limits es- tablished. -
Page 28: Generality
OPERATION M / R month months months months Filling the water circuit. Presence of bubbles in the water circuit. Check the proper working of the safety and control devices. Check that there are no oil leaks from the compressor. Check if there is a possible water leakage from the water circuit. Check that the flow switch works properly. -
Page 29: Cleaning Of External Surfaces
CAUTION: Do not clean the coil using high-pressure cleaners so as not to apply excessive pressure which could cause irrepa- rable damage. Damage caused by cleaning with unsuitable chemical substances or excessively high water pressure will not be recognised under warranty. 9.2 CLEANING OF EXTERNAL SURFACES 9.3 EXTRAORDINARY MAINTENANCE All extraordinary maintenance jobs must be carried out by an authorised assistance centre. -
Page 30: Residual Risk
An incorrect decommissioning of the appliance may create serious environmental damage and endanger people’s safety. Therefore, it is recommended that the unit be disposed only by authorised persons with technical training who have attend- ed training courses acknowledged by the competent authorities. It is required to follow the same precautions described in the previous paragraphs. - Page 31 User / Activity Operator User Danger Indication / Istruction Residual risk The correct maintenance Mechanical: cut / abrasion procedures are indicated in the caused by the presence of edges Failure to comply with the proce- user-installer manual under chap- on the external casing of the ma- dures and / or failure to use PPE ter 9.
- Page 32 User / Activity Operator User Danger Indication / Istruction Residual risk Caused by radiation: electro- magnetic radiation that the unit No one generates during operation The use of personal protective equipment is recommended in Generated by materials / sub- the user-installer manual under Failure to comply with the stances: infections caused by paragraph 4.2.
- Page 33 User / Activity Operator User Danger Indication / Istruction Residual risk In the user-installer manual un- der chapter 9 it is recommended to carry out maintenance only in weather conditions suitable for the operations envisaged. It is Generated by unit use environ- also indicated that the installation Failure to comply with the in- ment: lightning that can poten-...
-
Page 34: Technical Data
TECHNICAL DATA 12.1 TECHNICAL SHEET HEAT PUMP (1) Cooling: outdoor air temperature 35°C; in/out water temperature 12/7°C. (2) Cooling: outdoor air temperature 35°C; in/out water temperature. 23/18°C. (5) Cooling: in/out water temperature 7/12°C. ing on the hydronic kit chosen (please check this value in the data sheet). (**) for PS/PSI pump kit tended to refer to instantaneous power according to UNI EN 14511. - Page 35 HPE R32 TECHNICAL CHARACTERISTICS Unit Cooling capacity (1) 29,7 36,2 48,0 52,7 Power input (1) 9,62 11,8 15,6 17,8 E.E.R. (1) 3,09 3,07 3,08 2,96 Cooling capacity (2) 37,2 55,1 65,1 65,6 Cooling Power input (2) 9,05 13,3 15,7 16,9 E.E.R.
- Page 36 HPE R32 - PS (Single AC pump) HPE R32 - PSI (Single AC inverter modulated pump) TECHNICAL CHARACERISTICS Unit HPE R32 - PD (Double AC pump) Cooling capacity (1) 29,6 36,3 48,0 53,2 Power input (1) 9,54 11,7 15,5 17,7 E.E.R.
- Page 37 HPE R32 - PSEC (EC single pump) TECHNICAL CHARACTERISTICS Unit Cooling capacity (1) 29,4 35,7 47,4 53,1 Power input (1) 10,20 12,2 15,8 18,1 E.E.R. (1) 2,88 2,93 3,00 2,93 Cooling capacity (2) 37,3 54,2 64,8 66,5 Cooling Power input (2) 9,47 13,5 15,8...
-
Page 38: Unit And Auxiliary Electrical Data
12.2 UNIT AND AUXILIARY ELECTRICAL DATA Unit power supply V/~/Hz 400/3PH+PE/50 On board controller circuit V/~/Hz 12/1/50 Remote controller circuit V/~/Hz 12/1/50 Fan power supply V/~/Hz 400/3PH+PE/50 applied on the right side panel of the unit. OPERATING LIMITS 13.1 EVAPORATOR WATER FLOW RATE technical sheet. - Page 39 Maximum +58 °C The following are the graphical operating limits for air-conditioning and domestic hot water production. HEAT PUMPE MODE HPE R32 40 / HPE R32 70 -20 -18 -16 -14 -12 -10 -8 -6 -4 -2 0 8 10 12 14 16 18 20 22 [°C]...
-
Page 40: User Interface - Controller
USER INTERFACE - CONTROLLER The unit includes a display placed underneath a hinged polycarbonate transparent door with a protection rating of IP67. The interface has a part with variable text and a series of icons identifying operation of the unit as shown in the table below. Cooling mode led: led ON if unit is in COOL or COOL+SAN mode. -
Page 41: Menu
The DOWN key is used to move to a lower menu or to decrease the value of a parameter. In standard operation, the display shows the water outlet temperature in tenths of Celsius degrees or the alarm code if at least one is active. If several alarms are triggered, the first one is displayed while the second one will be displayed as soon as the first one is reset. - Page 44 A2B Accorroni E.G. s.r.l. Via d’Ancona, 37 - 60027 Osimo (An) - Tel. 071.723991 web site: www.accorroni.it - e-mail: a2b@accorroni.it...
