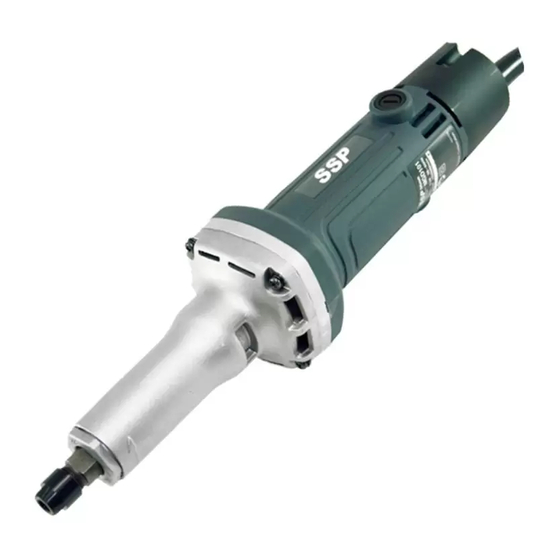

- Page 1 INSTRUCTION MANUAL Die Grinder MGD102 013095 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MGD102 Max. collet capacity 6 mm or 6.35 mm (1/4") Max. wheel point diameter 20 mm Rated speed (n) / No load speed (n 33,000 min Overall length 350 mm Net weight 1.4 kg Safety class •... - Page 3 Keep cord away from heat, oil, sharp edges or Power tool use and care moving parts. Damaged or entangled cords 18. Do not force the power tool. Use the correct increase the risk of electric shock. power tool for your application. The correct When operating a power tool outdoors, use an power tool will do the job better and safer at the rate for which it was designed.
- Page 4 GEB034-8 Keep bystanders a safe distance away from work area. Anyone entering the work area DIE GRINDER SAFETY must wear personal protective equipment. WARNINGS Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate Safety Warnings Common for Grinding Operation: area of operation.
- Page 5 a) Maintain a firm grip on the power tool and 23. Check that workpiece properly position your body and arm to allow you to supported. resist kickback forces. Always use auxiliary 24. If working place is extremely hot and humid, handle, if provided, for maximum control over or badly polluted by conductive dust, use a short-circuit breaker (30 mA) to assure...
-
Page 6: Functional Description
FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched off and • unplugged before adjusting or checking function on the tool. 8mm Max. Switch action 013098 1. Switch lever CAUTION: Use the correct size collet cone for the wheel point •... - Page 7 Replacement of carbon brushes 1. Limit mark 001145 Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time.
- Page 8 Makita Corporation www.makita.com 885150A0...
