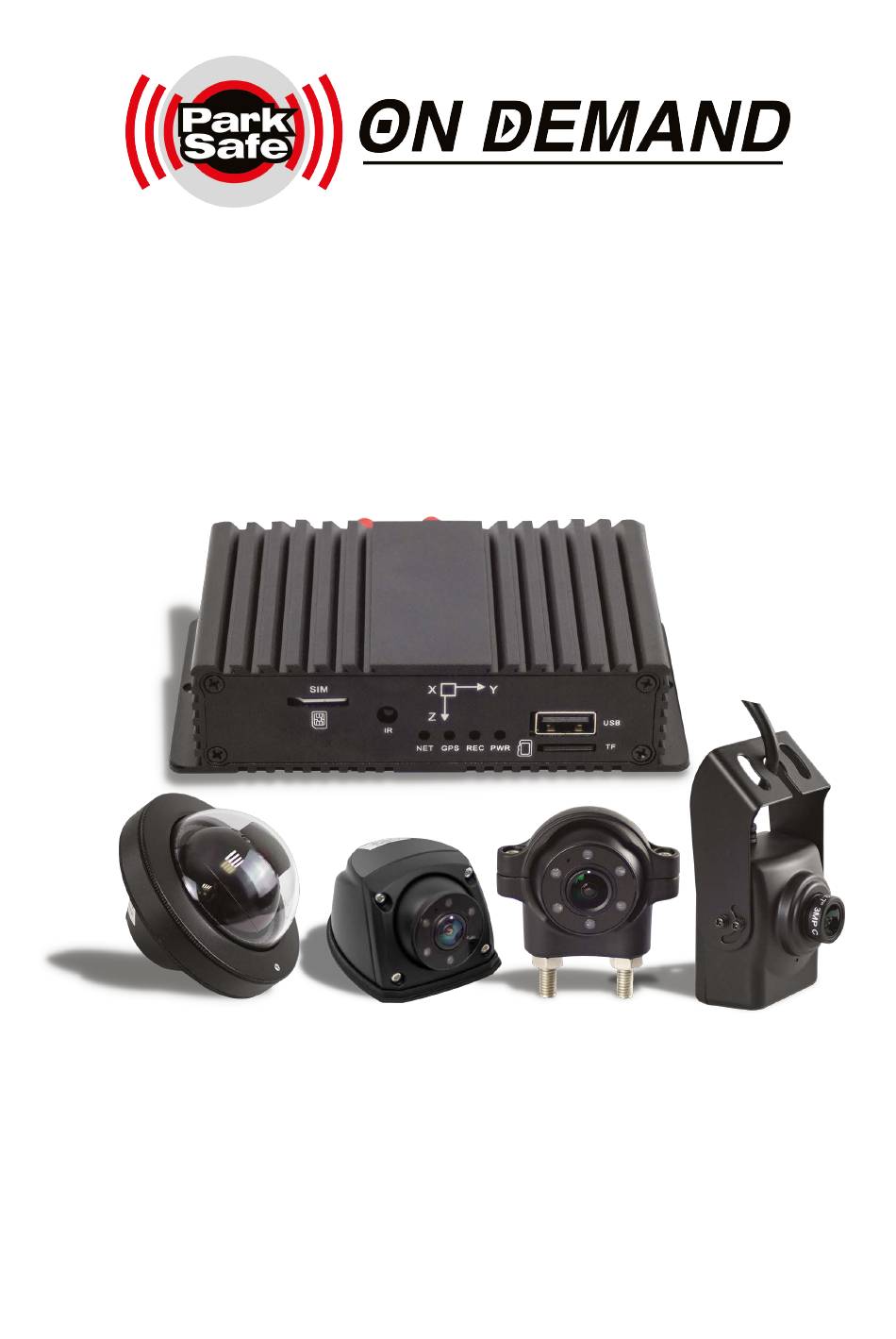

- Page 1 PSODDVR4C-LIVE Incident Camera 4G DVR - Installation Guide...
-
Page 2: Table Of Contents
1.1. Purpose of writing The PSODDVR4C-LIVE User Manual is written to enable users to understand the features and functions of this PSODDVR4C-LIVE, to correctly install and use the product. 1.2. Installation Notice Please see the following points with regards to installation: All installation and maintenance must be performed by professional technicians. -
Page 3: Introduction
• The 12V external voltage from PSODDVR4C-LIVE is only used for the camera power supply. It is not allowed to connect any non-recommended equipment. -
Page 4: Appearance Characteristics
PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP Video Compression H.265, 30 FPS Video Display 1~4 CH Audio Input 4 CH Audio Output 1 CH Audio Audio Code G726 Recording Simultaneous with video recording Image Format 720p/1080p optional 720p: 2048Kbps ~ 4096Kbps Video Code Rate... -
Page 5: Overall Appearance
PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP 2.3.1. Overall appearance 2.3.2. Overall size (mm) 2.3.3. Front Panel Label Definition Storage, 64GB embedded storage. Additional storage can be added up to a maximum of 128GB via the external TF card slot. 3G/4G Used for programming It represents the power light in red. -
Page 6: Rear Panel
PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP Recording indicator. Green = Normal recording operation. Red = recording storage is not available. GPS indicator: green. Solid Green = GPS fix has been obtained. If no fix is available the LED will flash. 3G/4G status light, green. When the module is not connected to the server, the light will flash. -
Page 7: Contents
PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP 2.4. Contents 4.1 Packing List S.N. Item Image Device Power cable Video input cable GPS antenna 4G antenna Page 7 of 15... -
Page 8: Power Connections
PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP 2.5. Power Connections 6 way ‘black’ Power Molex connector : = +ve [9>30v] Yellow = Ignition [9>30v] Black = -ve Page 8 of 15... -
Page 9: Antenna Connections
PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP 2.6. Antenna Connections Both the GPS and GSM share exactly the same connectors, but are labelled to assist with connection to the rear of the DVR. Placement The GSM antenna should ideally be stuck to the windscreen as high up as possible and on the passenger side. -
Page 10: Camera Connections
PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP 2.7. Camera Connections The PSODDVR4C-LIVE allows connection of up to 4 cameras. It does support 720, 960 and 1080 formats, however 720 is set as the default. If alternative formats are required, then please contact Parksafe Technical Support. - Page 11 PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP Listed below are the possible camera configurations and the recommended port into which the camera should be connected. Page 11 of 15...
- Page 12 PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP Number of Camera Port Camera Port Camera Port Camera Port cameras Type Connection Type Connection Type Connection Type Connection Front CH 1 Front CH 1 Internal CH 2 Front CH 1 Rear CH 2 THREE *...
-
Page 13: Monitor Connection
PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP 2.8. Monitor Connection If a Monitor is to be installed, there are two options HDMI or AV. If HDMI is used then a separate 12v power supply must be used to power the Monitor. If AV monitor is used then power is supplied via the CVBS port on the PSODDVR4C-LIVE. -
Page 14: Default View On The Monitor
2.10. Default View on the Monitor If a monitor has been installed the PSODDVR4C-LIVE has the ability to show a default camera view, which is displayed on the monitor during normal operation when no trigger has been activated. The default view is for 4 Channels to be viewed. - Page 15 PSODDVR4C-LIVE Installation Guide PARKSAFE GROUP The required wiring is shown below: Input 2 Used for Reverse trigger +VE Input used for Panic Button -VE Input Input 1 used for NOT USED Input 3 Panic trigger NOT USED Page 15 of 15...
