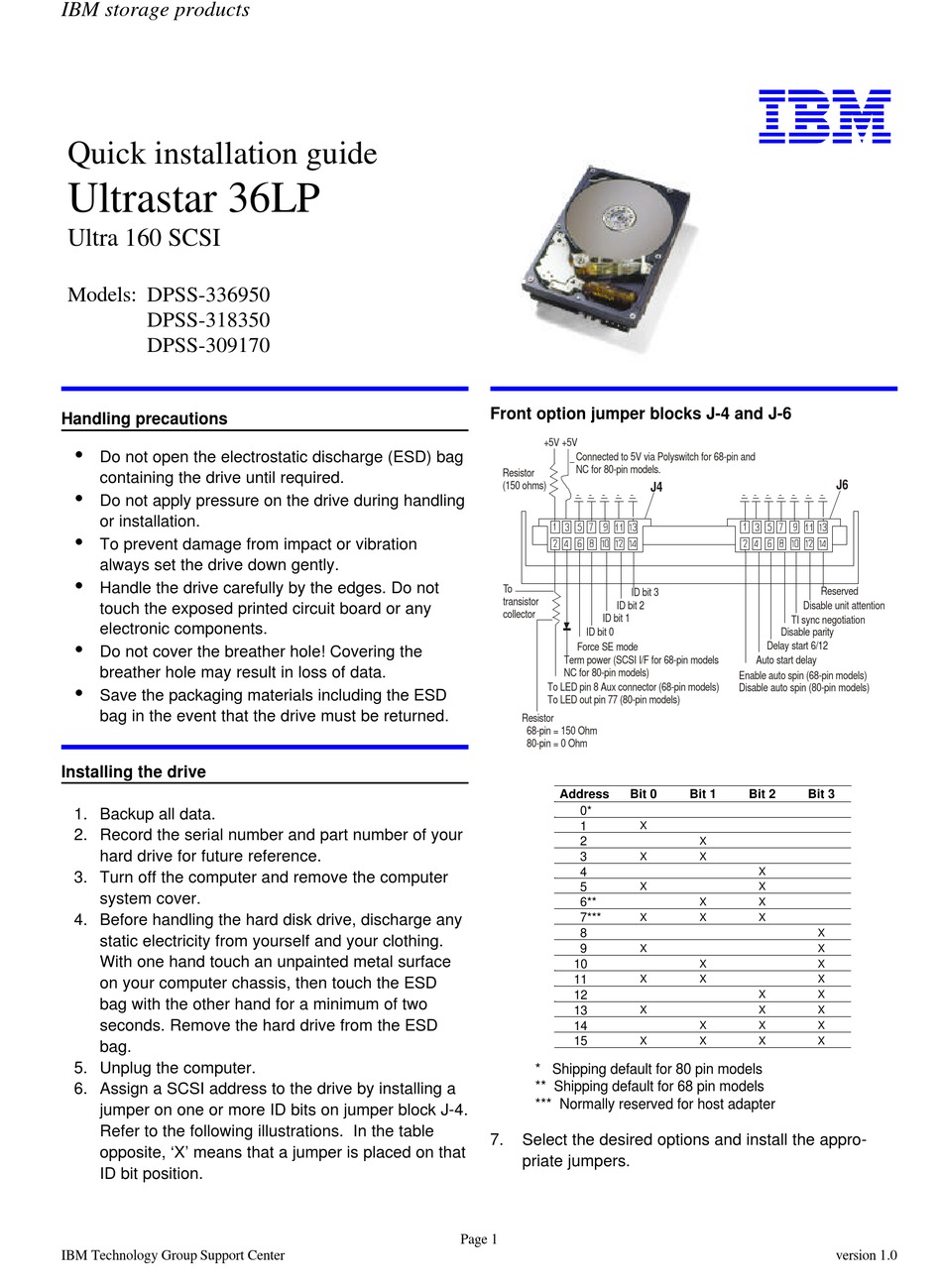

IBM Ultrastar 36LP Quick Installation Manual

IBM storage products

Quick installation guide

Ultrastar 36LP
Ultra 160 SCSI
Models: DPSS-336950
DPSS-318350
DPSS-309170
Handling precautions
Ÿ
Do not open the electrostatic discharge (ESD) bag
containing the drive until required.
Ÿ
Do not apply pressure on the drive during handling
or installation.
Ÿ
To prevent damage from impact or vibration
always set the drive down gently.
Ÿ
Handle the drive carefully by the edges. Do not
touch the exposed printed circuit board or any
electronic components.
Ÿ
Do not cover the breather hole! Covering the
breather hole may result in loss of data.
Ÿ
Save the packaging materials including the ESD
bag in the event that the drive must be returned.
Installing the drive
1. Backup all data.
2. Record the serial number and part number of your
hard drive for future reference.
3. Turn off the computer and remove the computer
system cover.
4. Before handling the hard disk drive, discharge any
static electricity from yourself and your clothing.
With one hand touch an unpainted metal surface
on your computer chassis, then touch the ESD
bag with the other hand for a minimum of two
seconds. Remove the hard drive from the ESD
bag.
5. Unplug the computer.
6. Assign a SCSI address to the drive by installing a
jumper on one or more ID bits on jumper block J-4.
Refer to the following illustrations. In the table
opposite, 'X' means that a jumper is placed on that
ID bit position.
IBM Technology Group Support Center
Front option jumper blocks J-4 and J-6
+5V +5V
Connected to 5V via Polyswitch for 68-pin and
NC for 80-pin models.
Resistor
(150 ohms)
To
ID bit 3
transistor
ID bit 2
collector
ID bit 1
ID bit 0
Force SE mode
Term power (SCSI I/F for 68-pin models
NC for 80-pin models)
To LED pin 8 Aux connector (68-pin models)
To LED out pin 77 (80-pin models)
Resistor
68-pin = 150 Ohm
80-pin = 0 Ohm
Address Bit 0
0*
1
X
2
3 X
4
5
X
6**
7*** X
8
9
X
10
11 X
12
13
X
14
15 X
* Shipping default for 80 pin models
** Shipping default for 68 pin models
*** Normally reserved for host adapter
7. Select the desired options and install the appro-
priate jumpers.
Page 1
J4
Reserved
Disable unit attention
TI sync negotiation
Disable parity
Delay start 6/12
Auto start delay
Enable auto spin (68-pin models)
Disable auto spin (80-pin models)
Bit 1 Bit 2 Bit 3
X
X
X
X
X X
X X
X
X
X X
X X
X X
X X
X X X
X X X
J6
version 1.0
