Summary of Contents for Dsoon NV3182

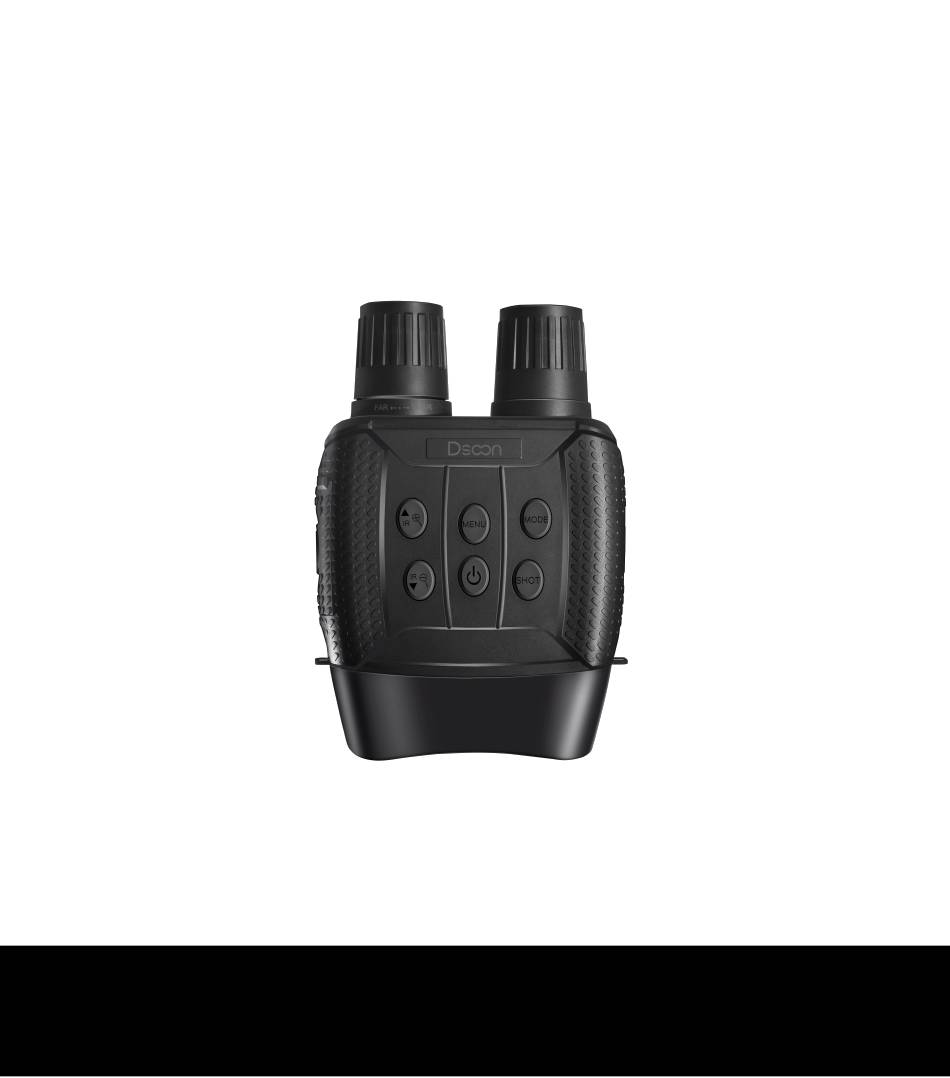

- Page 1 Dsoon Night Vision Binoculars Customer Service Email: support@dsoon-tech.com Official Website: https://dsoon.afterservice.vip...
- Page 2 User Manual Model: NV3182 Customer Service Email: support@dsoon-tech.com Official Website: https://dsoon.afterservice.vip...
-
Page 3: Table Of Contents
Contact Us Via: support@dsoon-tech.com Contents Product Overview ............ 1 .............. 1 1) Key Guide ............3 2) Specifications Warning..............5 Installation ..............6 ............6 1) Install Battery .......... 6 2) Inserting Memory Card IR-LED Night Vision Function ........8 ... - Page 4 Contact Us Via: support@dsoon-tech.com ..........21 1) Using a Card Reader ....21 2) Connecting Device to PC through USB Maintenance ............23 WARRANTY ............. 24 FAQ................. 25 Official Website: https://dsoon.afterservice.vip...
-
Page 5: Product Overview
Contact Us Via: support@dsoon-tech.com Product Overview Key Guide Official Website: https://dsoon.afterservice.vip... - Page 6 Contact Us Via: support@dsoon-tech.com 2. USB port/Micro SD 1. Focus Wheel card slot Cover 3. IR Up/Zoom in/Up 4. IR Down/Zoom Button out/Down Button 5. Power Button 6. Strap Hole 7. IR LEDs 8. Menu Button 9. Mode Button 10. Shot Button 11.
-
Page 7: Specifications
Contact Us Via: support@dsoon-tech.com Specifications Still Image Size: 1M(1280x960)/VGA(640x480) 960P Video Size: (1280x960@30FPS)/VGA(640 x480@30FPS) Aperture: F 1.2 f=25mm Lens Angle: FOV=10°, diameter is 24mm Inner screen 2.31”(960*240) Display Screen: TFT, Outer screen 98*48mm, 3x optical amplification Digital Zoom: Storage Media:... - Page 8 Contact Us Via: support@dsoon-tech.com Viewing Distance in 3M~infinity weak light: IR LED: 3W, 850nm USB Port: Micro USB 2.0 Power Source: 9V, 6xAA Operating Temperature: -20℃ to +60℃ Storage Temperature: -30℃ to +70℃ Dimension: approx.196*146*59mm Weight: approx.576g Official Website: https://dsoon.afterservice.vip...
-
Page 9: Warning
Contact Us Via: support@dsoon-tech.com Warning Keep the product away from WATER and FIRE. Install the battery correctly according to polarities. Prevent children from swallowing small accessories It is recommended to use brand new ALKALINE BATTERIES. Do NOT use rechargeable batteries nor non-AA batteries, or it will cause a boot failure. -
Page 10: Installation
Contact Us Via: support@dsoon-tech.com Installation Install Battery Please install batteries into the device before using. Open the battery cover（11） on the back of the device. Insert 6 x 1.5V AA brand Alkaline batteries into the battery compartment. Make sure the polarity is correct. - Page 11 Contact Us Via: support@dsoon-tech.com the direction is right. Never insert the card forcibly. Format the Micro SD card, this can improve the compatibility of the Micro SD card. To remove the card from the memory card slot, press the edge of the memory card gently, the card will pop out.
-
Page 12: Ir-Led Night Vision Function
Contact Us Via: support@dsoon-tech.com IR-LED Night Vision Function In photo/video mode, if you have to view the dark environment, please short press IR UP button to activate the IR LED, the image will change to black and white. The IR LED has seven levels, short press IR UP button to up the level, short press IR DOWN button to down the level. - Page 13 Contact Us Via: support@dsoon-tech.com ⚠ Note: If the battery voltage is not enough, the IR LED level will down automatically. Battery Power IR Levels Available 100% ＜25% Official Website: https://dsoon.afterservice.vip...
-
Page 14: Function & Operation
Contact Us Via: support@dsoon-tech.com Function & Operation Turn On and Turn OFF Long press the POWER button(5) for 3 seconds to turn on the device. Long press the POWER button(5) to turn off the device. Changing The Modes The night version has 3 different modes: photo mode, video mode, and playback mode. - Page 15 Contact Us Via: support@dsoon-tech.com Turn on the device, the default is the Video mode. Please press the Mode button(9) to switch to photo mode. View your subject via the LCD screen. Adjust the focus by turning the focus wheel Zooming: Keep pressing the or button(3 / 4) to zoom in or zoom out the image.
- Page 16 Contact Us Via: support@dsoon-tech.com Press the Shot button(10) to take a photo. Official Website: https://dsoon.afterservice.vip...
- Page 17 Contact Us Via: support@dsoon-tech.com Recording Video Turn on the device, the default is the Video mode. If not, press the Mode button(9) to switch to the Video mode. Zooming: Keep pressing the or button to zoom in or zoom out the image. The value of the magnification level appears on the LCD screen.
- Page 18 Contact Us Via: support@dsoon-tech.com brightness can be adjusted according to your needs, darker and need adjusting more brightness -Press the Shot button(10) to start to record. The record duration will be shown on the LCD screen. Finish recording. -Press the Shot button(10) again to stop recording.
- Page 19 Contact Us Via: support@dsoon-tech.com Settings in Photo and Video Mode Press Menu button in photo or video mode, can change the settings. Menu Function Set the photo resolution. Photo Options:[1M 1280x960]/[VGA 640x480] Resolution Set the video resolution. Video Size Options:[960 1280x960]/[640 640x480].
- Page 20 Contact Us Via: support@dsoon-tech.com Set the light source frequency to match frequency of electricity supply in local region Power to prevent interference. Frequency Options:[50Hz]/[60Hz]. Set the date and time of device. Date&Time Add the date stamp on the photo or video files.
- Page 21 Contact Us Via: support@dsoon-tech.com Format your TF card. Format TF card will delete all files including the protected files. Please copy the important files before Format confirm. Options:[Yes]/[No]. Restore the setup to factory default Reset All settings.Options:[Yes]/[No]. User can see the firmware version FW Version information.
- Page 22 Contact Us Via: support@dsoon-tech.com Playback Turn on the device, press the Mode button(9) to switch to playback mode. Press Up/Down button(3/4)to view photos and video files. Playback the video. -Press the Shot button(10)to start playing the video files. -Press the Shot button(10)again to have a pause.
- Page 23 Contact Us Via: support@dsoon-tech.com Delete & Lock Menu Function Operation Lock or unlock the current Press Menu button(8) one file or all files in playback mode. Lock memory card. Press Up/Down button(3/4) to Options: [Lock/Unlock scan and press Shot button(10) One]/ [Lock All]/ [Unlock to choose lock.
- Page 24 Contact Us Via: support@dsoon-tech.com missing, or improperly-installed batteries. Replace or install batteries correctly. Please make sure to use only Alkaline batteries. Poor Image If you wear glasses, please keep them on while using the device. If at day, make sure the IR is off (if IR is on, screen is...
-
Page 25: Download Files To Pc
Contact Us Via: support@dsoon-tech.com Download files to PC There are two ways to download files from the device to a computer: By inserting the memory card into a card reader. By connecting the device to a computer using the supplied USB cable. - Page 26 Contact Us Via: support@dsoon-tech.com choice on the computer's hard disk. Connecting the Device to a PC through the USB Cable Turn on the night vision. Connect it to a computer through the supplied USB cable. When connecting to the computer, will appear “MSDC”...
-
Page 27: Maintenance
Contact Us Via: support@dsoon-tech.com Maintenance Before cleaning the device, disconnect it from the power supply (remove batteries)! Only use dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid. -
Page 28: Warranty
Contact Us Via: support@dsoon-tech.com WARRANTY 12-MONTH WARRANTY This product comes with a Please don't hesitate to contact us with any questions and problems. You can contact us via: dsoon.afterservice.vip Official Website: support@dsoon-tech.com Email: QR Code: Official Website: https://dsoon.afterservice.vip... -
Page 29: Faq
Contact Us Via: support@dsoon-tech.com FAQ How many batteries required? 6AA alkaline batteries And how long does it last? 4H with IR on/11H with IR off Is infrared light visible? IR light is invisible Resolution picture 1280x960 for pictures video? - Page 30 Contact Us Via: support@dsoon-tech.com What's the zoom factor? 3x Optical/4x Digital Zoom What's the size of the screen? 2.31” TFT Screen Max night viewing distance? 300M Warranty? 12 Months warranty Rechargeable batteries? Official Website: https://dsoon.afterservice.vip...
