Model No.:
CONSUMER SAFETY INFORMATION
 Read this manual before installing and operating this appliance
 Failure to follow these instructions may result in electric shock, fire property,
or personal injury
 Do not store or use gasoline or other flammable liquids in vicinity of this
appliance.
Thank you for buying our fireplace!
If you have any questions before or after purchase, please feel free to contact us:
service@gmhomeus.com.

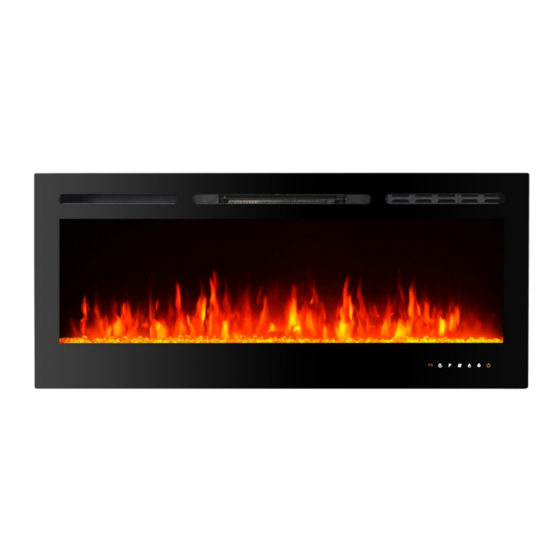

Electric Fireplace
20060WH & 20060BK
IF-1370G & IF-1380G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20060WH and is the answer not in the manual?

Questions and answers

Related Manuals for GMHome 20060WH

Summary of Contents for GMHome 20060WH

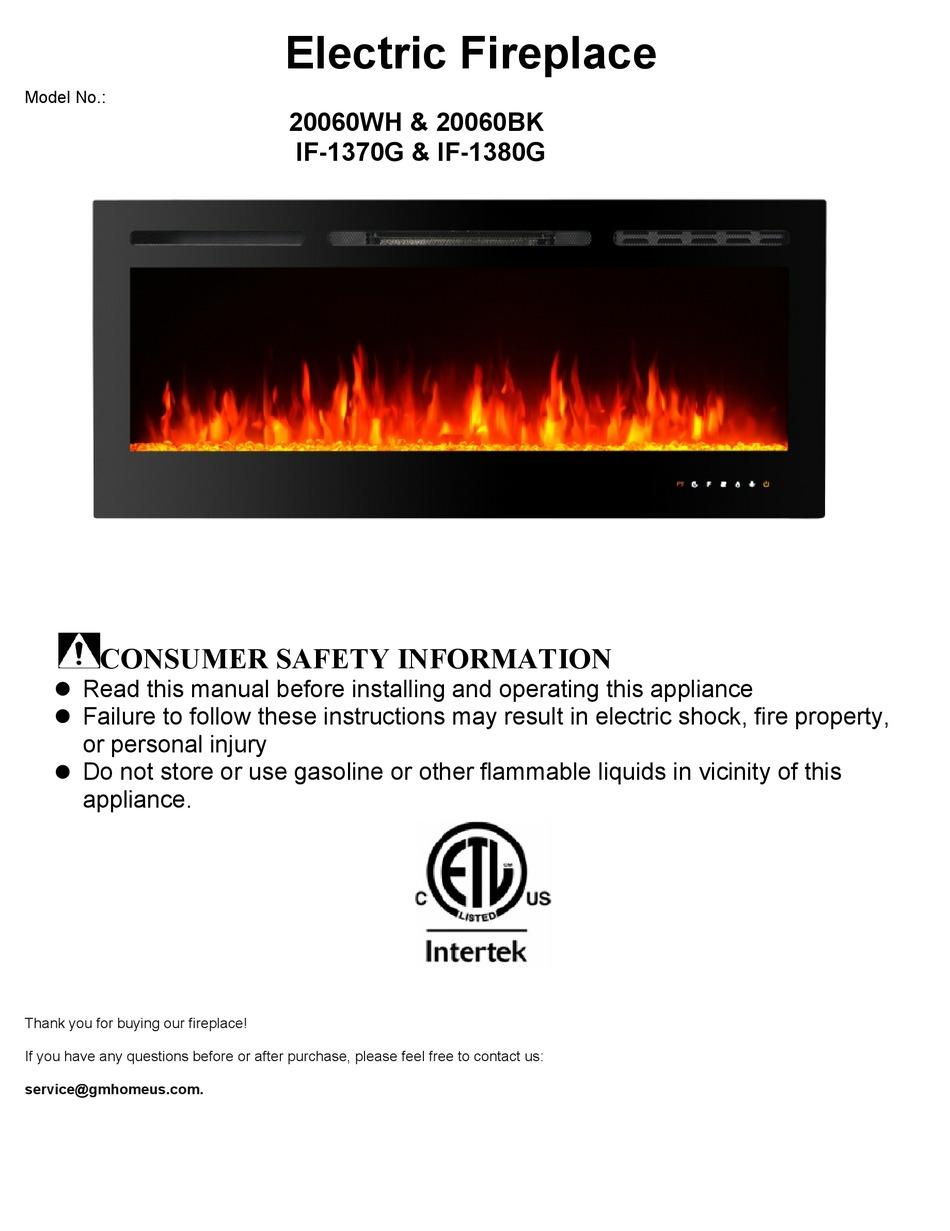

  • Page 1 Electric Fireplace Model No.: 20060WH & 20060BK IF-1370G & IF-1380G CONSUMER SAFETY INFORMATION  Read this manual before installing and operating this appliance  Failure to follow these instructions may result in electric shock, fire property, or personal injury  Do not store or use gasoline or other flammable liquids in vicinity of this appliance.

  • Page 2: Important Safety Information

    We will reply to you within 24 hours. And our professional technical & customer service team will help to resolve your problems and assure the best buying experience! Thanks! IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this heater! ...
  • Page 3 heater could fall into a bathtub or pool, become damp or come in contact with water.  AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust, lint, or other Blockage.Unplug the unit and clean with a vacuum ONLY. DO NOT rinse or get wet. ...

  • Page 4: Parts & Hardware

    Remove all parts and hardware from the carton and place them on a clean, soft, dry surface. Parts and assembly steps are grounded for wall-hanging or recessing use. Check the parts list to make sure nothing is missing. Dispose of packaging materials properly. Please recycle whenever possible.

  • Page 5: Installation And Assembly

    Installation and Assembly Your appliance is a wall-mounted, recessed and /or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE： Follow all National and local electrical codes. MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front.
  • Page 6 RECESSED TO WALL INSTALLATION...
  • Page 7 STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chat Framing Hole Size Model Number IF-1370 67.23”(170.7cm) 17”(43.2cm) IF-1380 77.23”(196.2cm) 17”(43.2cm) STEP B. Fix the three wall anchors in each side of the fireplace box according to the dimensions Showed on the drawing.
  • Page 8 STEP C. Take off the two screws in both sides of fireplace. Figure (C) STEP D. Have two person to take the glass panel out of the fireplace box. Place it to a soft and clean place. Figure (D) STEP E. Have two person to move the fireplace box to the wall hole. If the appliance is fully recessed into the wall: ...
  • Page 9 Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A. Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 10 HARD WIRING INSTALLATION WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANE. Logset /Crystal Ember Installation (Note: Please make the installation according to the embers which you bought or selected.) A.
  • Page 11 WARNING Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure do to so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 110-120V Volt 12 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).Make sure the outlet is in good condition and that the plug is not loose.NEVER exceed the maximum amperage for the circuit.
  • Page 12 FLAME button: Makes flame effect dimmer and brighter. 1. Press once. Flame brightness effect gets NOTE: Flame effect stays on until power button is turned changing. off. Flame effect must be on for heater to turn on. 2. Press again. Until desired setting is reached. FLAME HEATER button:Turn heater on and off.

  • Page 13: Care And Maintenance

    CARE AND MAINTENANCE Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury.
  • Page 14 WARNING DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SEVICE PERSON SHOULD SERVICE AND PEPAIR THIS ELECTRIC APPLAINCE. Problem Possible Cause Solution 1. Fireplace turns off 1. Fireplace has overheated 1. Reset switch by turning main and will not turn on.
