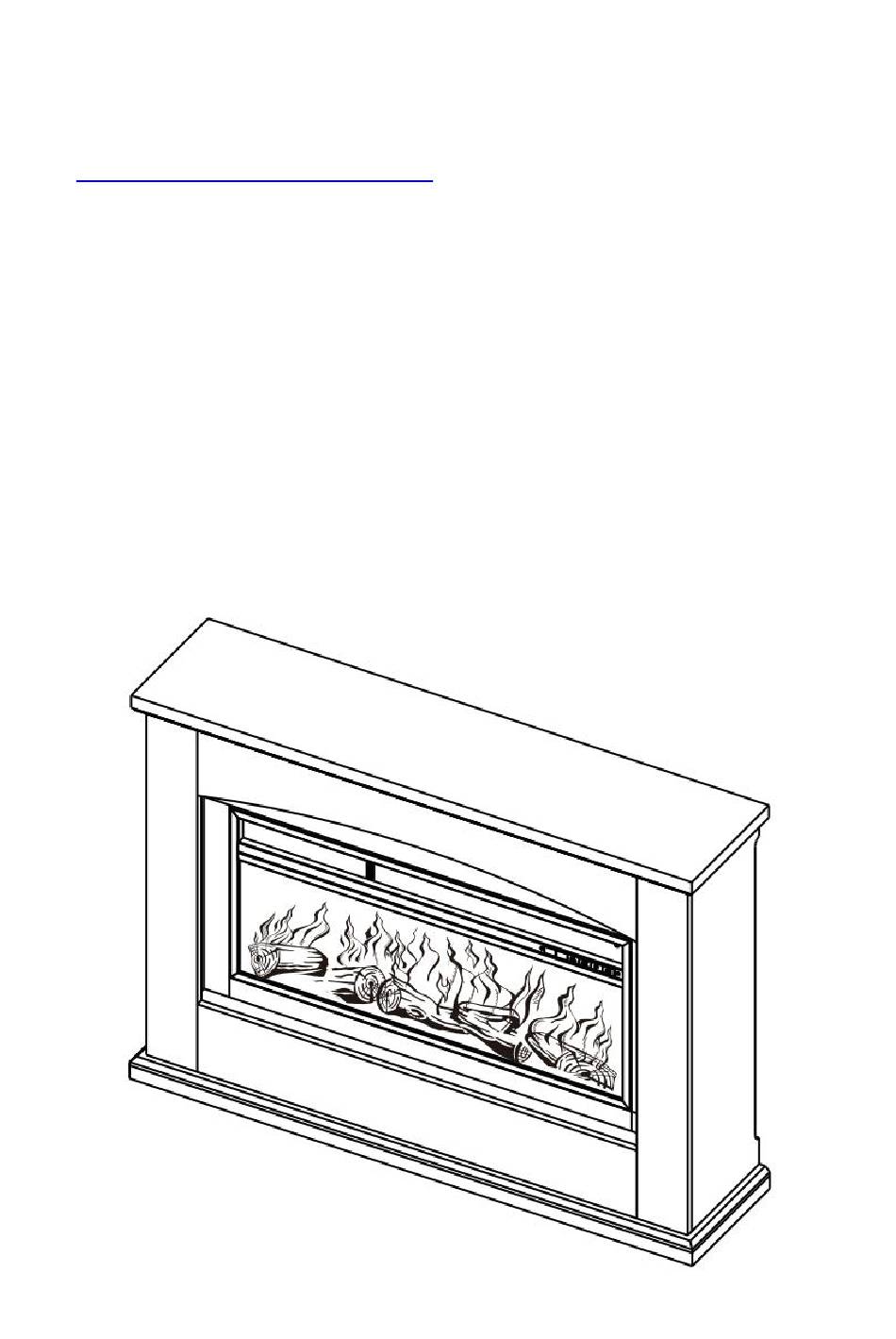

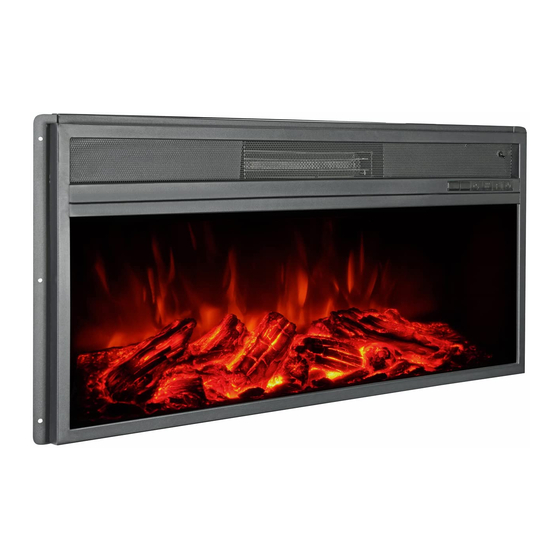

- Page 1 Choose GMHome Fireplace, Enjoy Gorgeous & Magnificent Home Any questions or problems, just find us at: customerservice@gmhomeus.com Instruction Manual Model # IF-34...
-
Page 2: General Assembly Guidelines
General Assembly Guidelines Ensure that all parts and hardware are available before beginning assembly. Follow each step carefully to ensure the proper assembly of this product. III. Two people are recommended for ease in the assembly of this product. The four main types of hardware used to assemble this product are: wood dowels, cam bolts and locks, bolts and screws. -
Page 3: Part List
Part List... - Page 5 Assembly Instructions 1. Connect part 15 to part 7 Fig 1 by bolt C. 2. Fix Cam lock A on part 4 and part 7 by bolt B to connect part 4 and part 7. 1. Connect part 15 to part 6 Fig.2 by bolt C.
- Page 6 1. Connect part 2 to assembly Fig.3 unit on Fig.1 by wood dowel D first 2. Fix Cam lock A on part 2 and assembly unit on Fig.1 by bolt B to connect them. 3. Connect part 2 to assembly Fig.4 unit on Fig.2 by wood dowel D first...
- Page 7 1. Connect part 5 to assembly Fig.5 unit on Fig.4 by bolt C. 1.Fix Cam lock A on 2 and Fig.6 part 5 part by bolt B.
- Page 8 1. Connect part 8 to assembly Fig.7 unit on Fig.6 by bolt C 1. Fix part 9 to assembly unit Fig.8 on Fig.7 as shows. 2. Connect part 10 to assembly unit on Fig.7 by bolt 3. Connect part 9 and part 10 by bolt E...
- Page 9 NOTE: Fig.9 There is electric wire in part 9, when you do last step, please ensure the wire terminal block exposed from the gap on mantel. 1. Connect part 1 to assembly Fig.10 unit on Fig.9 by bolt C.
- Page 10 1. Connect part 11, part 12, Fig.11 part 13 to assembly unit on Fig.10 by bolt C. 1. Connect parts 14 to Fig.12 assembly unit on Fig.11 by bolt C. The fireplace mantel finished...

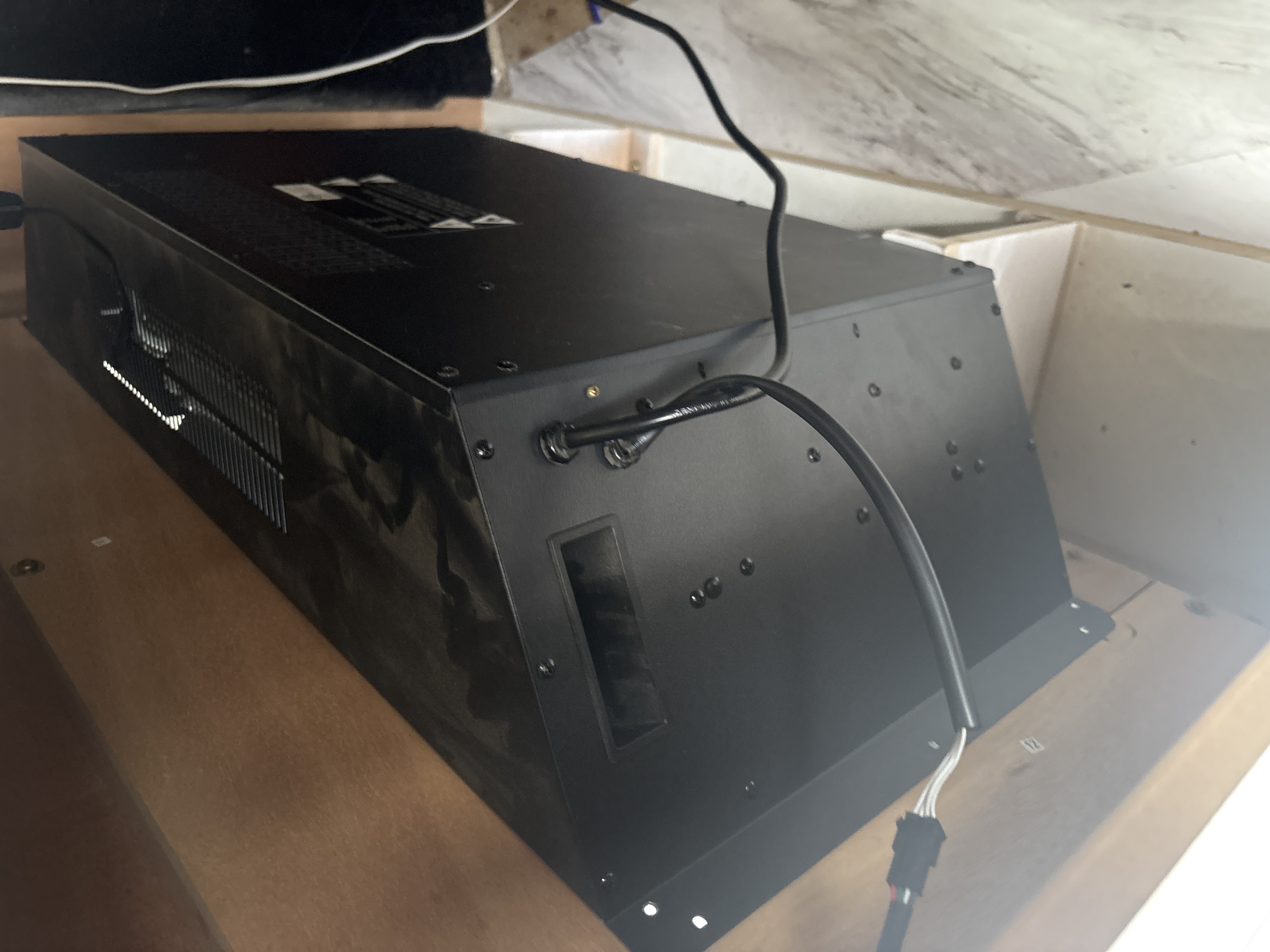

- Page 11 1. Fix the firebox in the Fig.13 mantel by screws. 1. Connect the wire terminal Fig.14 block(one is on firebox, one is one mantel)
- Page 12 Choose GMHome Fireplace, Enjoy Gorgeous & Magnificent Home Any questions or problems, just find us at: customerservice@gmhomeus.com...
