GMHome IF-1340 Manual

Hide thumbs

Advertisement

Table of Contents

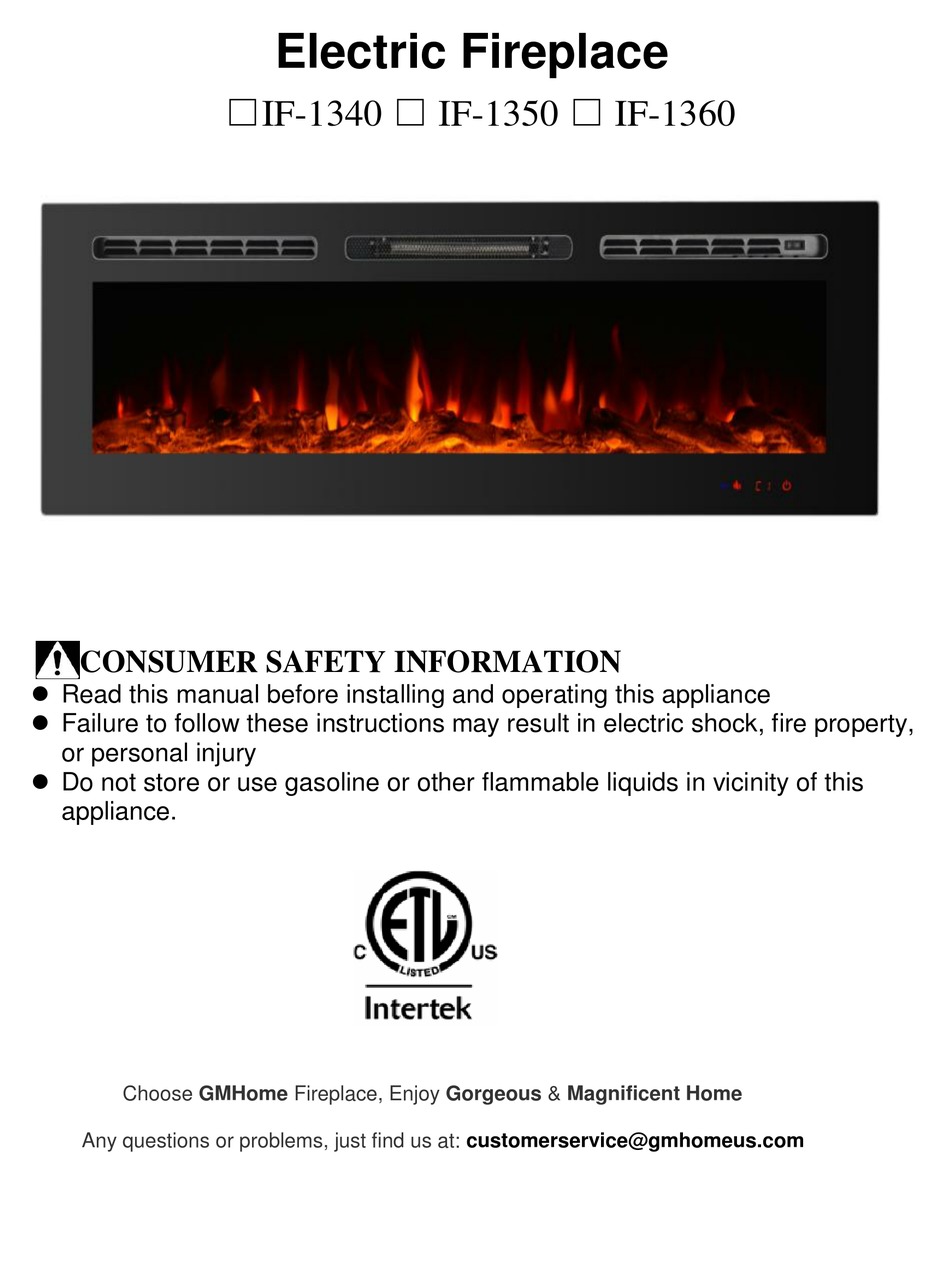

CONSUMER SAFETY INFORMATION
 Read this manual before installing and operating this appliance
 Failure to follow these instructions may result in electric shock, fire property,
or personal injury
 Do not store or use gasoline or other flammable liquids in vicinity of this
appliance.
Choose GMHome Fireplace, Enjoy Gorgeous & Magnificent Home
Any questions or problems, just find us at:

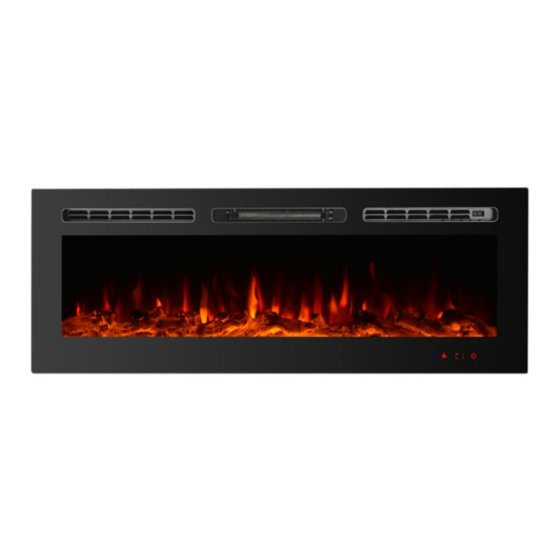

Electric Fireplace
□IF-1340 □ IF-1350 □ IF-1360
customerservice@gmhomeus.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IF-1340 and is the answer not in the manual?

Questions and answers

Related Manuals for GMHome IF-1340

Summary of Contents for GMHome IF-1340

  • Page 1  Failure to follow these instructions may result in electric shock, fire property, or personal injury  Do not store or use gasoline or other flammable liquids in vicinity of this appliance. Choose GMHome Fireplace, Enjoy Gorgeous & Magnificent Home Any questions or problems, just find us at: customerservice@gmhomeus.com...

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION! WARNING  Read all instructions before using this heater!  This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear.
  • Page 3  ALWAYS mount to wall bracket before use. DO NOT set on the floor, or other surface, to use.  NEVER use a wall mount bracket from another manufacturer.  This product is not intended to be a primary heat source. It is for supplemental heat only. ...

  • Page 4: Parts & Hardware

    A- Fireplace Remote control D-Metal Bracket E-Wall Bracket F-Decorative H-Log set I - Plastic Tray Fixed on back of firebox Crystals Specification and Dimension PRODUCT DIMENSIONS Model Number IF-1340 40” 16.97” 5.50” 36.32” 16.25” 9.21” 33.72” 101.6cm 43.1cm 14.07cm 92.24cm 41.27cm...

  • Page 5: Installation And Assembly

    Installation and Assembly Your appliance is a wall-mounted, recessed and /or mantel installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE： Follow all National and local electrical codes. MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front.
  • Page 6 RECESSED TO WALL INSTALLATION STEP A. Selection a dry wall to open a hole for fireplace box. Size of hole as below chat Figure (A) Framing Hole Size Model Number IF-1340 36.81”(93.5cm) 16.46”(41.8cm) IF-1350 46.85”(119.0cm) 16.46”(41.8cm) IF-1360 56.89”(144.5cm) 16.46”(41.8cm) STEP B. Fix the three wall anchors in each side of the fireplace box according to the dimensions...
  • Page 7 （D） STEP C. Take off the two screws in both sides of fireplace. Figure (C) STEP D. Have two person to take the glass panel out of the fireplace box. Place it to a soft and clean place. Figure (D) STEP E.
  • Page 8 Wall Mounted Installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. A. Select a location that is not prone to moisture and is located at least 36”(914mm) away from combustible materials such as curtain drapes, furniture, bedding, paper, etc.
  • Page 9 HARD WIRING INSTALLATION WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANE. Logset /Crystal Ember Installation (Note: Please make the installation according to the embers which you bought or selected.) A.
  • Page 10 WARNING Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure do to so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a 110-120V Volt 12 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3).Make sure the outlet is in good condition and that the plug is not loose.NEVER exceed the maximum amperage for the circuit.
  • Page 11 Touch panel/Remote control Operation BUTTON FUNCTION ACTION&INDICATION ON: Enables control panel functions and remote 1. Press once. Indicator light turns on. Power turns control.Turn on flame effect. on. All functions enabled. OFF: Disables control panel functions and remote 2. Press POWER control.Turn off flame effect.

  • Page 12: Care And Maintenance

    NOTE: Remote control battery used depends on the remote control type which selected above. NEVER dispose of batteries in fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center. CARE AND MAINTENANCE Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet before...
  • Page 13 WARNING DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE. ONLY A QUALIFIED SEVICE PERSON SHOULD SERVICE AND PEPAIR THIS ELECTRIC APPLAINCE. Problem Possible Cause Solution 1. Fireplace turns off 1. Fireplace has overheated 1. Reset switch by turning main and will not turn on.
  • Page 14 Choose GMHome Fireplace, Enjoy Gorgeous & Magnificent Home Any questions or problems, just find us at: customerservice@gmhomeus.com...

This manual is also suitable for:

If-1360If-1350
