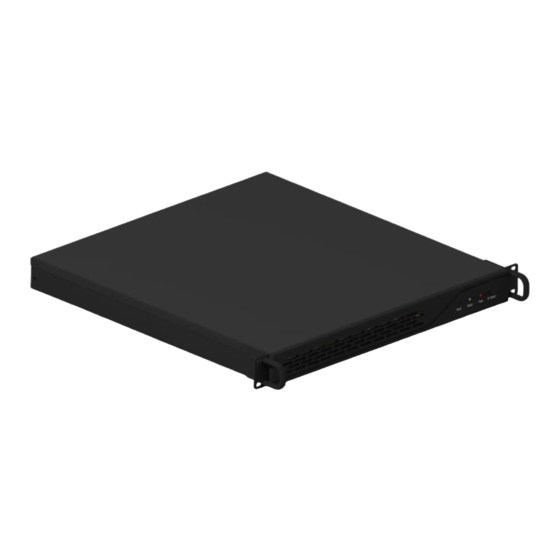

SUNLUNE JASMINER X4 Instruction Manual

High-throughput 1u /1u-c server
Hide thumbs Also See for JASMINER X4:

Advertisement

Quick Links

Download this manual
JASMINER X4 High-throughput 1U/1U-C Server Instruction
JASMINER X4
High-throughput 1U /1U-C Server Instruction
Manual
Tip: Follow the official account of SUNLUNE , then reply "course" to get the use
demonstration video of the device.
SUNLUNE Technology (Nantong) Co., Ltd.
August 2021
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JASMINER X4 and is the answer not in the manual?

Questions and answers

Related Manuals for SUNLUNE JASMINER X4

Summary of Contents for SUNLUNE JASMINER X4

  • Page 1 JASMINER X4 High-throughput 1U/1U-C Server Instruction JASMINER X4 High-throughput 1U /1U-C Server Instruction Manual Tip: Follow the official account of SUNLUNE , then reply “course” to get the use demonstration video of the device. SUNLUNE Technology (Nantong) Co., Ltd. August 2021...
  • Page 2 JASMINER X4 High-throughput 1U/1U-C Server Instruction Catalogue I Product introduction....................3 II Product features......................3 III Inspection before use....................3 IV Description........................5 V Settings...........................7...

  • Page 3: I Product Introduction

    ， solid and quite. with the integrated memory and computing architecture and high- throughput technology, JASMINER X4 suitable for PoW algorithms such as ETCHASH and ETHASH, satisfy various customers and bring them a good return on investment.
  • Page 4 JASMINER X4 High-throughput 1U/1U-C Server Instruction 2.Attention  The device should be connected to router or Exchanger without Poe function, only wired network connection can be used.  To avoid heat dissipation, do not stack or cover the device with other objects.
  • Page 5 JASMINER X4 High-throughput 1U/1U-C Server Instruction Hashrate（MH/s） 520/450±10% INPUT 200-240V~,50/60Hz,1.2A power consumption（Watt） 240±10% Energy efficiency ratio (25 ° C ambient temperature, J / MH) 0.46/0.53±10% Hardware Configuration Network connection RJ45 Ethernet 10/100/1000M Device size (mm) 482.2×44.5×450.0 Package size (mm) 586×126× 513 Device weight（kg）...
  • Page 6 JASMINER X4 High-throughput 1U/1U-C Server Instruction Network cable connection: Insert the RJ45 crystal head into the network interface marked with ETH of the router and the device interface respectively. Pay attention to the direction when inserting the cable. Please insert the crystal head in place.
  • Page 7 JASMINER X4 High-throughput 1U/1U-C Server Instruction  Check the machines need to be configured Copy and paste the obtained pool address into the pool, then copy and paste the sub-account (worker) into the wallet/account number (if you do not have a registered pool, you need to register for the pool first, refer to the pool registration tutorial for details).
  • Page 8 JASMINER X4 High-throughput 1U/1U-C Server Instruction  Select the algorithm, the device supports both ETH and ETC algorithms, with the default being the ETH algorithm；  select the operating frequency, the default is 200 MHz；  clicking on Configure Miner to start the configuration；...
  • Page 9 JASMINER X4 High-throughput 1U/1U-C Server Instruction At this point the configuration of the high throughput server has been completed and the machine can work normally. 3.Other settings: double click on the device in the group control software to enter the web page for modification and setting.
  • Page 10 JASMINER X4 High-throughput 1U/1U-C Server Instruction Enter the "miner" configuration interface to modify the ore pool settings  and let the device start to provide hashate for you. Enter the preferred and two alternative mining pool addresses, account  name and password.
  • Page 11 JASMINER X4 High-throughput 1U/1U-C Server Instruction 5.Other settings IP setting: If you need to change the network configuration such as IP  address, select the "network" configuration item, and the device will dynamically obtain the IP address by default. After the change, click "update" to take effect.
  • Page 12 JASMINER X4 High-throughput 1U/1U-C Server Instruction Upgrade system firmware: Select the "upgrade" option, select the  firmware to be upgraded, and click "upload image" to complete the upgrade operation. Restart the device: Select "reboot" and click "reboot now". ...
  • Page 13 Restore the device to the factory settings, select "reset", and click  "reset now".
