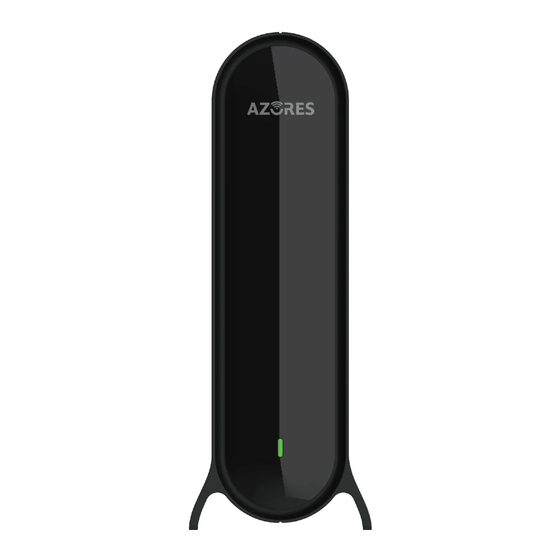

- Page 1 AX1800 PRO & AX1800 PRO-DUO WiFi-6 Wireless Router Manual Azores Networks, LLC...
-
Page 2: Table Of Contents
Contents 01 Product Overview.......................... 2 Product Mode:AX1800 PRO as single router................2 Product Mode:AX1800 PRO-DUO as mesh router set............2 02 Product Hardware Description.....................3 Product Appearance Description....................3 Button Description........................3 LED Description..........................3 03 SINGLE ROUTER SETUP STEPS.....................4 04 MESH SETUP STEPS........................4 Option 1: Wireless Networking....................5... -
Page 3: Product Overview
Thank you for choosing our product. Please read this manual before use. Product Mode:AX1800 PRO as single router AX1800 PRO is an AP without Mesh function by default.Please refer to SINGLE ROUTER SETUP STEPS for network setup. Product Mode:AX1800 PRO-DUO as mesh router set AX1800 PRO-DUO contains two APs(Main AP and satellite AP) distinguished by the label on the backside of the device. -
Page 4: Product Hardware Description
02 Product Hardware Description Product Appearance Description Button Description Button Function Set the WPS process. Short press (1 second) for reset the router; Reset Long press (5 seconds or longer) for reset to factory default settings. * Operate after the LED is Blinking Green/Steady Green. ON/OFF Power on and off the router. -
Page 5: Single Router Setup Steps
(SSID) & password (see the sticker on the backside of Azores Router) to connect to Internet. 04 MESH SETUP STEPS Choose one of the following methods to setup your Mesh Set(AX1800 PRO-DUO). — 4 —... -
Page 6: Option 1: Wireless Networking
Option 1: Wireless Networking 01 Main AP refers to SINGLE ROUTER SETUP STEPS to complete the connection. 02 Place the Satellite AP at a proper location based on your home layout. 03 Just power on the Satellite AP and wait for about 5 minutes.When the LED is Steady Green, then the Mesh networking is successful. -
Page 7: Option 2: Wired Networking
Option 2: Wired Networking 01 Main AP refers to SINGLE ROUTER SETUP STEPS to complete the connection. 02 Place the Satellite AP at a proper location based on the cable deployment in your home. — 6 —... -
Page 8: Management Methods
03 Connect the Satellite AP to LAN port of your Main AP via network cable. 04 Power on the Satellite AP. When the LED is Steady Green, then the Mesh networking is successful. *Note: (1) If you know there is a spot in your home, where the Wi-Fi signal is the weakest. Try place the Satellite AP midway between the Main AP and the weakest spot. -
Page 9: More Settings
03 Follow the APP guidance to log in. 04 Enter the “My Wi-Fi” menu to modify WiFi configuration or perform other operations. *Note: If you want to use the mobile device to perform other operations on the router, follow the instructions on the mobile APP. 06 MORE SETTINGS ※... - Page 10 03 Set Internet configuration. If the home broadband service has been opened and the home router has been deployed, you can connect this Router device to the home router's LAN Ethernet port (or wall Ethernet port), you can select "DHCP", then click "Next". ...
- Page 11 The device selects “The password is the same as the login password” by default, clicks “Next”directly, which means that the default wireless password is the same as the login password; If you do not check "The password is the same as the login password", you can set a new Wi-Fi password and click "Next".
-
Page 12: How To Add A Single Router To A Customized Mesh Network
Mesh network to improve WiFi network coverage. If you have purchased AX1800 PRO before,please refer to the following steps 01 and 02 to set an AP as Main AP firstly.And then continue to configure according steps 03,04,05. - Page 13 If you have purchased AX1800 PRO-DUO before,there is already a Main AP,no need to perform steps 01 and 02.And then continue to configure according steps 03,04,05. 03 (New item) Visit http://192.168.0.1(or http://azoresrouter.com) and using the login password to login. 04 (New item) "Router Mode Settings" select "Satellite AP" and click "Save", the device will restart automatically.
-
Page 14: How To Switch Router To Bridge Mode
05 Start networking. If you choose wired networking, connect to the Main AP the network port of new item LAN port. The wired network is successful when the new single product indicator is steady green; If you choose wireless networking, place the new item near the Main AP, press both device WPS buttons for 1s, then release. -
Page 15: Frequently Asked Questions
Q2 Internet is not accessable. Answer: (1) If the LED of AX1800 PRO or Main AP in AX1800 PRO-DUO mesh set keeps Blinking Red,check whether its WAN port is connected to your Broadband Gateway (i.e. DSL/Cable modem, PON gateway) with a network cable. - Page 16 when the LED turns off. Wait about 2 minutes for the device to restart. Q4 Azores Router APP cannot control Azores Router.What should I do? Answer: Please check your phone is connected to WiFi normally, and use the correct password for login. Q5 How to access the Satellite AP web management page(GUI) if the mesh pairing failed? Answer:Manually set the PC IP address to 192.168.0.X(e.g.192.168.0.100),the subnet mask...
