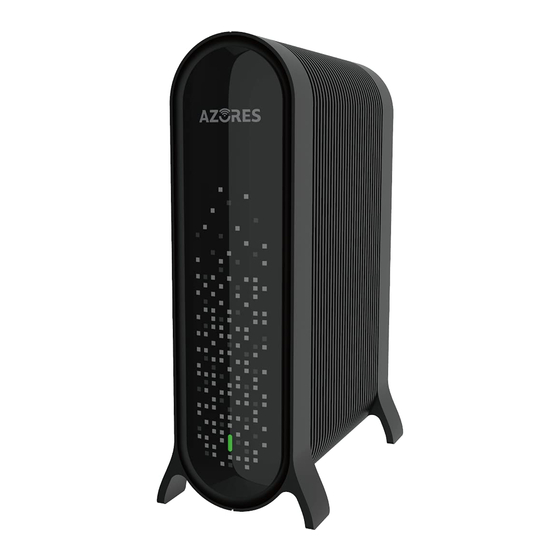

Azores Networks AX6600 Manual

Wifi-6 wireless router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AX6600 & AX6600-DUO
WiFi-6 Wireless Router
Manual
Azores Networks, LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX6600 and is the answer not in the manual?

Questions and answers

Related Manuals for Azores Networks AX6600

Summary of Contents for Azores Networks AX6600

  • Page 1 AX6600 & AX6600-DUO WiFi-6 Wireless Router Manual Azores Networks, LLC...

  • Page 2: Table Of Contents

    Contents 01 Product Overview...........................2 Product Mode:AX6600 as single router..................2 Product Mode:AX6600-DUO as mesh router set..............2 02 Product Hardware Description.....................3 Product Appearance Description....................3 Button Description........................3 LED Description..........................3 03 SINGLE ROUTER SETUP STEPS.....................4 04 MESH SETUP STEPS........................4 Option 1: Wireless Networking....................5...

  • Page 3: Product Overview

    Thank you for choosing our product. Please read this electronic manual before use. Product Mode:AX6600 as single router AX6600 is an AP without Mesh function by default.Please refer to SINGLE ROUTER SETUP STEPS for network setup. Product Mode:AX6600-DUO as mesh router set AX6600-DUO contains two APs(Main AP and satellite AP) distinguished by the label on the backside of the device.

  • Page 4: Product Hardware Description

    02 Product Hardware Description Product Appearance Description Button Description Button Function Set the WPS process. Short press (1 second) for reset the router; Reset Long press (5 seconds or longer) for reset to factory default settings. * Operate after the LED is Blinking Green/Steady Green. ON/OFF Power on and off the router.

  • Page 5: Single Router Setup Steps

    (SSID) & password (see the sticker on the backside of Azores Router) to connect to Internet. 04 MESH SETUP STEPS Choose one of the following methods to setup your Mesh Set(AX6600-DUO). — 4 —...

  • Page 6: Option 1: Wireless Networking

     Option 1: Wireless Networking 01 Main AP refers to SINGLE ROUTER SETUP STEPS to complete the connection. 02 Place the Satellite AP at a proper location based on your home layout. 03 Just power on the Satellite AP and wait for about 8 minutes.When the LED is Steady Green, then the Mesh networking is successful.

  • Page 7: Option 2: Wired Networking

     Option 2: Wired Networking 01 Main AP refers to SINGLE ROUTER SETUP STEPS to complete the connection. 02 Place the Satellite AP at a proper location based on the cable deployment in your home. 03 Connect the Satellite AP to LAN port of your Main AP via network cable. 04 Power on the Satellite AP.

  • Page 8: Management Methods

    (2) When Main AP and Satellite AP pairing successfully, the SSID and Password would be same, that is showing on the backside of Main AP. 05 Management Methods Option 1:HTTP 01 Connect your device to the Router using wireless or wired connection. 02 Open an Internet browser and enter http://192.168.0.1(or http://azoresrouter.com).

  • Page 9: More Settings

    06 MORE SETTINGS ※ How to change the Internet access method 01 Wireless access terminals (such as mobile phones, PAD, laptops, etc.) or wired access terminals can open the browser to visit http://192.168.0.1(or http://azoresrouter.com), and configure the router device. 02 Password needs to be set for the first time login, click "Next". Please remember this login password.
  • Page 10 If the home broadband service has been activated, but dial-up is required to activate the  Internet, you can select "PPPoE", fill in the broadband account and password, and click "Next". *Note:If you forget your broadband account password, you can inquire from the broadband operator. *Note:"Skip"...
  • Page 11 If you click "Skip", the Wi-Fi name and password will still be the information shown on the  backside of the device. Tips:The Smart Connect function is default enabled,this AP will use same SSID for both 2.4G and 5G Wi-Fi.Smart Connect allows mobile devices to automatically roam between 2.4G and 5G Wi-Fi depending on signal strength.

  • Page 12: How To Add A Single Router To A Customized Mesh Network

    For duplexes, villas, and large-area residents, you can purchase multiple Azores Routers to join the Mesh network to improve WiFi network coverage. If you have purchased AX6600 before,please refer to the following steps 01 and 02 to set an AP as Main AP firstly.And then continue to configure according steps 03,04,05.

  • Page 13: How To Switch Router To Bridge Mode

    WPS”,then click "Save", the device will restart automatically. 05 Start networking. If you choose wired networking, connect the network port of new item to the Main AP LAN  port. The wired network is successful when the new single product indicator is steady green; If you choose wireless networking, place the new item near the Main AP, press both device ...

  • Page 14: Frequently Asked Questions

    Q2 Internet is not accessable. Answer: (1) If the LED of AX6600 or Main AP in AX6600-DUO mesh set keeps Blinking Red,check whether its WAN port is connected to your Broadband Gateway (i.e. DSL/Cable modem, PON gateway) with a network cable.
  • Page 15 when the LED turns off. Wait about 2 minutes for the device to restart. Q4 Azores Router APP cannot control Azores Router.What should I do? Answer: Please check your phone is connected to WiFi normally, and use the correct password for login. Q5 How to access the Satellite AP web management page(GUI) if the mesh pairing failed? Answer:Manually set the PC IP address to 192.168.0.X(e.g.192.168.0.100),the subnet mask...
