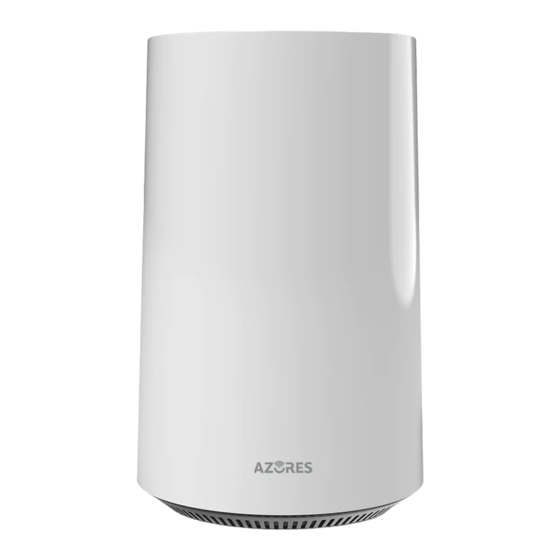

- Page 1 Azores AX1500 WiFi-6 Wireless Router Manual Azores Networks, LLC...
-
Page 2: Product Hardware Description
Product Hardware Description Product Backside Description： Short press (1 second) for reset the router Long press (5 seconds or longer) for reset to factory default settings... - Page 3 LED Description: LED Behavior Scenario DARK No Power STEADY RED Powering up BLINKING RED No network cable connected BLINKING GREEN Network connection in progress STEADY GREEN Function normally and can access the Internet BLINKING BLUE WPS or Mesh pairing in progress STEADY BLUE Paring successful...
-
Page 4: Product Manual
Product Manual For single router： Connect the provided network cable from the AX-1500 Router to your home Broadband Gateway (i.e. cable/DSL modem, PON gateway). Please refer to SINGLE ROUTER SETUP STEPS for network setup. For mesh router set: Master AP is used as the main router, which is to be connected, via provided network cable, to your home Broadband Gateway (i.e. - Page 5 ONE ROUTER SETUP STEPS The Single Router or Master AP in a Mesh Router Set can be connected according to the diagram above. Note the DSL/PON/Cable Gateway must be connected to the Port 1 of the AP. The AP is connected to the Internet when the LED light is steady green.
- Page 7 Azores Router APP 01 Connect your Mobile device to Wi-Fi network according to the Wi-Fi SSID and password sticker on the bottom of the Master AP. 02 Download mobile APP software from corresponding App Store (searching “azores router”) or Scan the following QR code. Scan QR code to download Azores Router APP 03 Login with Wi-Fi password on the bottom of the Master AP.
-
Page 8: More Settings
MORE SETTINGS ※ Refer to the following steps to change the Internet access method: 01 Wireless access terminals (such as mobile phones, PAD, laptops, etc.) or wired access terminals can open the browser to visit http://192.168.0.1, and configure the router device. 02 Password needs to be set for the first time login, click "Next". - Page 9 *Note:If you forget your broadband account password, you can inquire from the broadband operator. *Note:"Skip" defaults to "DHCP" mode. 04 Set Wi-Fi name and password (you can modify the Wi-Fi name). The device selects “The password is the same as the login password” by default, clicks “Next”directly, which means that the default wireless password is the same as the login password;...
- Page 10 Prompt "Setup Succeed", "Confirm" to jump to the login page. After "Confirm", the wireless terminal can reconnect to the new Wi-Fi name and password. ※ Refer to the following steps to switch Router to Bridge mode: 01 Log in to the http://192.168.0.1 page using the login password. 02 Change the "Uplink mode"...
- Page 11 03 Start networking. If you choose wired networking, connect the new single product network port to the Master AP network port. The wired network is successful when the new single product indicator is steady green; If you choose wireless networking, place the new item near the Master AP, press both device WPS buttons for 1s, then release.
-
Page 12: Frequently Asked Questions
Frequently Asked Questions (4) When all above are normal, try reboot the device and then check the network once it powers Q1 After connecting network cable from back on. DSL/PON/Cable gateway to the Azores AP or Azores Master AP in a mesh set, the AP's red Q4 How to manage Azores router network? LED is keep flashing.What should I do? Answer: Connect your device to the Router using...
