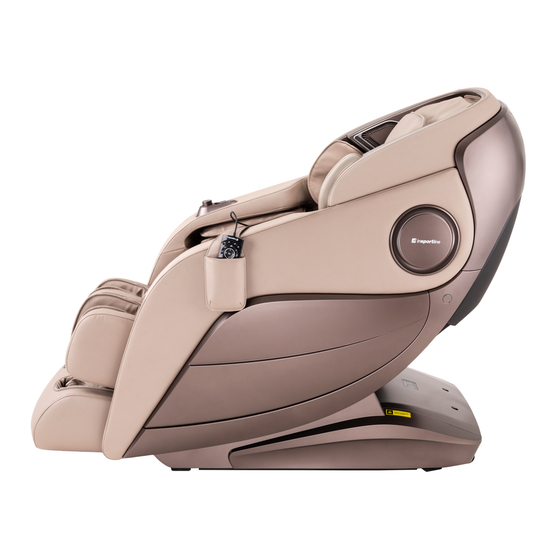

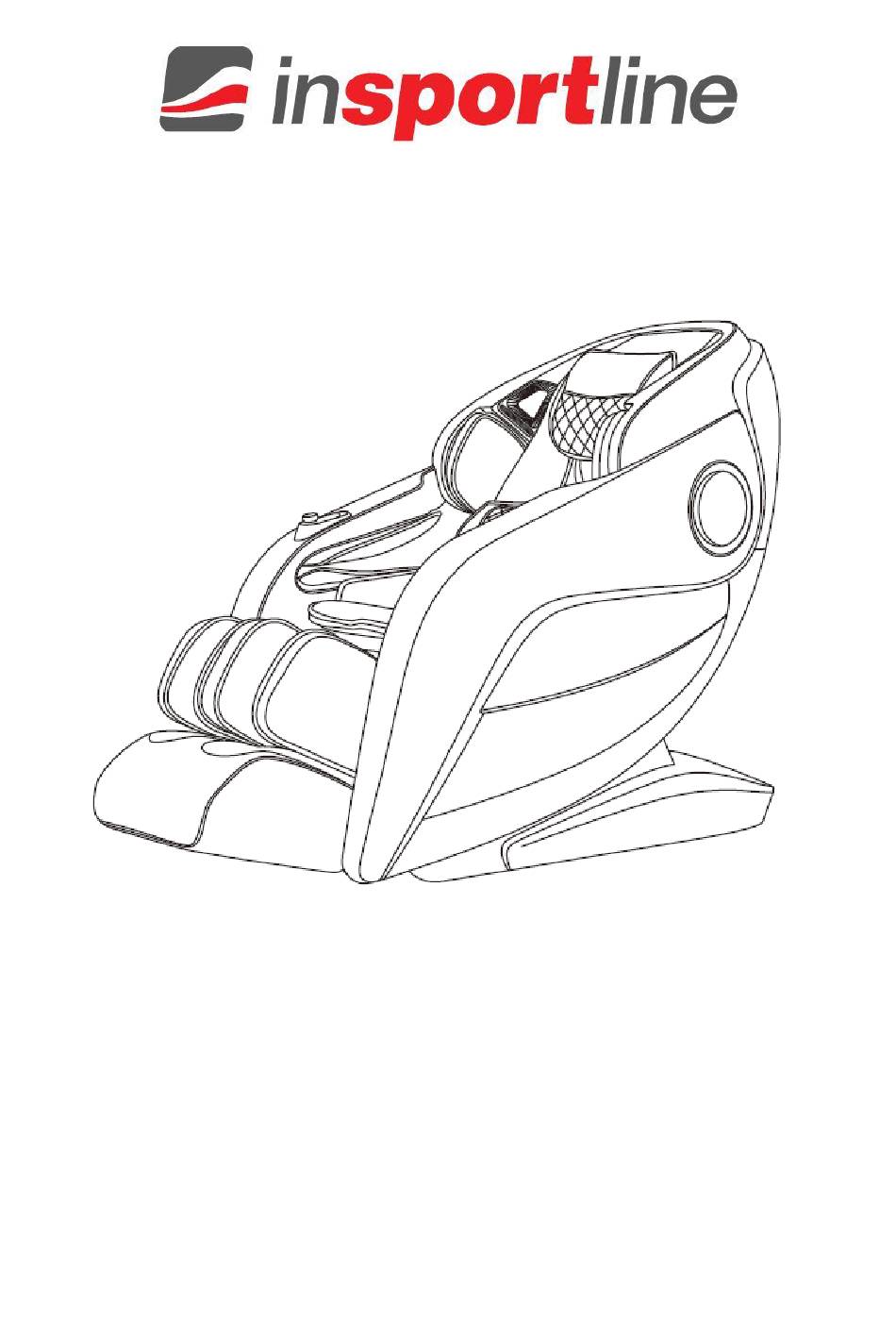

- Page 1 USER MANUAL – EN IN 23647 Massage chair inSPORTline Marcelli...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 WARNING ............................... 5 PRODUCT DESCRIPTION ........................6 FUNCTIONS ............................7 CONTROLLER DISPLAY ........................8 CONTROLLER BUTTONS ........................9 USE ............................... 10 POWER UP AND START-UP ......................10 STANDBY MODE ..........................10 STARTING THE MASSAGE ......................10 PAUSE ............................... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY WARNINGS • Place the product on flat and solid surface and keep at least 0.6 m free space around the product. • Kids can move around this product only under adult supervision. • Use only well-grounded socket and proper power cord. •... - Page 4 SAFETY • Maintenance should be done only by qualify person. Use should not disassemble the chair or do the maintenance by themselves. • After every use unplug the cord. • Do not use the product if the power cord, plug or socked are damaged. •...
-
Page 5: Warning
WARNING If the footrest rises, do not apply pressure to the Before sitting down, make sure that the massage footrest. You may damage the product or injure heads do not protrude from the seat. You may yourself. damage the heads or be injured. Never unplug the power cord during use or when Before using the angle adjustment function, the chair is in standby mode. -
Page 6: Product Description
PRODUCT DESCRIPTION Pillow 3D digital speakers with voice control on the left Ionizer Air cushions for upper arms Air cushions for the lower arms Quick setting buttons Waist massage pillows Seat cushion Leg rest Footrest Backrest Backrest air cushion Controller Pocket for the controller Armrests Side panel... -
Page 7: Functions
FUNCTIONS • The product was designed with smart and quiet 3D massage heads that can move up, down, forward, and backward. • It can automatically detect the position of the shoulders, but you can also adjust the position yourself. • It can perform a massage like a masseur by detecting the position and curves of the human body and moving the heads back and forth. -
Page 8: Controller Display
CONTROLLER DISPLAY TFT color display Adjusting the position of the shoulders The progress of the massage Bluetooth Ionization Type of massage Timer Massage location Tilt (zero gravity) Back and leg heating Tilt adjustment Width adjustment Arm cushion pressure Massage intensity The intensity of the air cushions of the Foot pad pressure arms... -
Page 9: Controller Buttons
CONTROLLER BUTTONS Power switch Chair position - laying down Adjusting the massage mode Chair position - zero gravity Automatic massage Pause Menu Manual mode Navigation button up Return to the previous menu Confirmation Navigation button right Navigation button left Lifting the footrest Lifting the armrest Lowering the footrest Lowering the backrest... -
Page 10: Use
POWER UP AND START-UP 1. Plug in the socket 2. Plug in the chair 3. Turn the switch up STANDBY MODE No function can be selected in standby mode. STARTING THE MASSAGE Press the power button to start, the chair enters the loading screen, the backrest remains in its original position, the footrest is slightly raised, selecting massage from the automatic function starts the massage. - Page 11 After setting the position of the shoulders, you will hear a sound signal, you can still adjust the position using the controller. The chair supports 11 levels of shoulder massage head positions. If you do not adjust the position within 10 seconds, the massage will start automatically. You can press the confirmation button to start immediately.
-
Page 12: Pause
PAUSE During the massage, you can press the "pause" button to pause the massage. Press again to start the massage. If the chair is paused for more than 20 minutes, the chair switches off. MENU To enter the menu, press the "menu", in the interface you will find a selection of the type of massage: automatic, manual, adjustment, custom, settings and device information. -
Page 13: Automatic Massage
AUTOMATIC MASSAGE To enter the automatic massage interface, you can enter via the menu or the "auto" button. Press "menu", select auto, then choose one of the massages; fast, comfortable, relaxing, stretching, full body, shoulders, and neck, back and waist and pressure massage. Navigate in the menu using the "up"... -
Page 14: Manual Mode
Neck and shoulder Massage focused on the neck and shoulders Back and waist Massage focused on the back and waist Full pressure Massage to relax the limbs (arms, legs, feet) MANUAL MODE Press "menu" and select "manual mode" in the interface: the wise interface "massage type", massage area "massage position", air "massage pressure"... - Page 15 Note: Press stop to stop all functions. Function Description Kneading Speed Tapping Speed and width Kneading and tapping Speed 5 levels of speed settings Shiatsu Speed and width 5 levels of width adjustment Shoulder massage Speed Speed and width Fixed point massage Fixed in one place, partial, whole back, upper and lower back.
- Page 16 Whole back Upper back Lower back Function Description Fixed Massage in one place Massage in one place In these modes, use the up and Partial Partial massage on a small scale down buttons to select a range Upper back Upper back massage Lower back Lower back massage Whole back...
- Page 17 Others Heating, foot massage rollers, ionization, Bluetooth Use the up and down buttons to select the function, confirm by pressing "ok". Use the up and down buttons to select the function, confirm by pressing "ok". Press "confirm" to start / stop heating. Use the up and down buttons to select the function, confirm by pressing "ok".
- Page 18 Use the up and down buttons to select the function, confirm by pressing "ok". Press "confirm" to start / stop ionization. Use the up and down buttons to select the function, confirm by pressing "ok". Press "confirm" to turn Bluetooth on / off. You can use Bluetooth to play music.
-
Page 19: Speed, Width, And Intensity Adjustment
SPEED, WIDTH, AND INTENSITY ADJUSTMENT In the main menu, select "adjustment". An interface appears where you can select a function by pressing the up and down buttons and adjust their value by pressing the right and left buttons. After setting, confirm by pressing "ok" or return to the menu without changes by pressing "back". -
Page 20: Place / Scope Of Massage
You can adjust the speed, width, and intensity. You can select the function with the up and down buttons, adjust the values with the right and left buttons. After setting, confirm by pressing "ok" or return to the menu without changes by pressing "back". -
Page 21: Custom Massage
OTHER Adjust the operating time, press "ok" to add 5 minutes. After adding more than 40 minutes, the time is reset. The minimum operating time must be 5 min. Confirm the time by pressing "confirm". CUSTOM MASSAGE Press "menu" and select "customize". An interface with 3 positions for saving the massage is displayed. -
Page 22: Settings
SETTINGS Press "menu" and select "setting" to set the language, backlight, display power saving, etc. In the menu, use the up and down buttons to navigate, and to change the value of the right and left buttons. Press "back" to return. LANGUAGE Language: select English or China In the menu, use the up and down buttons to navigate. - Page 23 DISPLAY POWER SAVING Lock screen: you can set the time, never turn off the screen, or automatically turn off the display after 2 seconds of inactivity. To adjust the time, press "ok", you can set 15 seconds, 30 seconds, 1 min, 2 min or never switch off. BACKLIGHT You can set 5 levels of backlight.
- Page 24 ZERO GRAVITATION SETTING Press and select "zero I" or "zero II" Dunction Description Zero gravity I Zero gravity II BACK BUTTON The "back" button is used to display information about the massage.
- Page 25 ADJUSTING THE ANGLE OF THE BACK AND LEG RESTS Function Description To raise the footrest: hold for lifting, release the button to stop. When done, it automatically detects the length of the legs. Lowering the footrest: hold to lower, release the button to stop. When done, it automatically detects the length of the legs.
-
Page 26: Armrest Controller
ARMREST CONTROLLER Power button: press to turn the chair on / off 3D massage: change the intensity of the 3D massage Adjusting the length of the footrest Ionization: press to turn on / off Heating: press to switch on / off Automatic massage: press to switch on / off Adjusting the angles of the armrests Voice control: press to turn on / off... -
Page 27: Voice Control
Zero gravity position setting. Two positions. VOICE CONTROL Voice control of the chair is in English only. If the chair is turned on or in standby mode, say "Hi Alice" to start voice control. After starting the voice control, you have 6 seconds to enter the next command. After 6 seconds, the voice control switches off again. -
Page 28: Assembly
ASSEMBLY ARMREST ASSEMBLY Locate the connectors and extend from the bottom to the center of the rear frame the end of the chair (Fig. 1). Then connect the connectors (Fig. 2). Connect the air hoses (Fig. 3). After connecting all the parts, carefully insert the cables and air hoses into the chair. Be careful not to pinch any parts (Fig. -
Page 29: Leg Rest Assembly
Attach the support to the metal frame with M5x16 screws (Fig. 9). Attach the cover (Fig. 10). LEG REST ASSEMBLY Attach the air hoses (Fig. 1). Attach the hoses and cables and then insert them into the chair frame. Be careful not to pinch the cables and hoses (Fig. - Page 30 Then slide the leg rest into the holders (5). Then fasten the covers with 2x screws M5x14 - 12.9 and 2x washers 6x12x1.5 (Fig. 6). Attach the cover (Fig. 7).
-
Page 31: Pillows
PILLOWS The cushions are fastened with a zipper for the backrest (1), the cushions for the headrest with Velcro (2). FLOOR PROTECTION We recommend using floor protection such as carpets or mats. The weight of the chair could damage the wooden floor. TRANSPORT Before moving, make sure that you have switched off the chair and pulled it out of the power. -
Page 32: Specifications
SPECIFICATIONS Model: A701 Configuration: Name: Massage armchair 110-120V 60 Hz Rated voltage: 220-240V 50Hz / 60Hz Rated power input 220 W Operation time 20 min Safety: Class I ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard. - Page 33 “The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not conclude and execute the Contract in order to run or promote his own trade or business activities. “The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the purpose of using the Goods or services for his own business activities.
- Page 34 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
