DFT-6600
Battery Charger-Discharger
Users Manual
THOMSON TECH CO LTD
www.thomsontesting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFT-6600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THOMSON DFT-6600

Summary of Contents for THOMSON DFT-6600

  • Page 1 DFT-6600 Battery Charger-Discharger Users Manual THOMSON TECH CO LTD www.thomsontesting.com...

  • Page 2: Table Of Contents

    1.2. DFT-6600 Tester Functions ............................ 7 1.3. DFT-6600 Tester Features ............................8 1.4. Working schematic diagram ........................... 9 1.5. DFT-6600 Tester series Technical index ........................ 9 Chapter 2 Shape and structure ............................11 2.1.The host schematic diagram： ..........................11 2.2. Package List ................................. 12 Chapter 3 Connection .................................

  • Page 3: Introduction

    Fully smart control to make the entire discharge process safer. The DFT-6600 Tester is to make the discharge test work simple and easy, which is not only to greatly reduce the labor intensity of professional maintenance personnel, but also to improve the scientific and smart control discharge testing.
  • Page 4 DFT-6600 Battery Charger-Discharger Users Manual There are traditional main 2 ways to monitor the voltage of a single-cell: manual and wired automatic measurement. Due to manual measurement inability to achieve continuous and synchronous in time with more human error and low precision, it is impossible to make a more accurate and objective judgment on the performance of the battery, and the workload is large.

  • Page 5: Use Notice & Reading Tips

     The DFT-6600 Tester belongs to the precision test equipment, in the process of use should be lightly handled, do not throw and throw, the result of the light will lead to the deformation of the shell, the heavy will lead to the failure of internal components, affecting normal use.
  • Page 6 DFT-6600 Battery Charger-Discharger Users Manual Important safety guidelines Warning  Explosion hazard! The gas produced by the battery is extremely explosive.  Reading & understanding and follow all guidelines with the tester, battery, and any other equipment near the battery.

  • Page 7: Chapter 1 Overview

    DFT-6600 Tester Usage This DFT-6600 Tester can charging, discharge, single body detection, online monitoring and activation as 5-in-1 multi-purpose, which Reduce the cost and reduce the labor intensity of maintenance personnel, and provide comprehensive scientific detection methods for battery and UPS power maintenance.

  • Page 8: Dft-6600 Tester Functions

    DFT-6600 Battery Charger-Discharger Users Manual 1.2. DFT-6600 Tester Functions  LCD touch screen display with full English menu prompts, easy to operate with high automation, it can set the Parameters of voltage, current, Tim, capacity, cycles No. and etc, and automatically complete the test monitor of various parameters of the battery string.

  • Page 9: Dft-6600 Tester Features

    1.3. DFT-6600 Tester Features  5- in-one of charging, discharging, single-cell detection, online monitoring and activation with complete functions as one DFT-6600 Tester for multi-purpose.  Smart three-stage charging, constant current discharge, real-time online circuit detection of each single-cell parameters.

  • Page 10: Working Schematic Diagram

    DFT-6600 Battery Charger-Discharger Users Manual 1.4. Working schematic diagram...

  • Page 11: Dft-6600 Tester Series Technical Index

    TFT 5 -inch color LCD Working power supply AC 3P4W 380V Working environment Temperature 0° C~50° C Humidity5%~90% Communication Data storage: USB parallel communication: WIFI interface Note: the DFT-6600 series tester current and voltage can be specially customized according to user’s details needs,...

  • Page 12: Chapter 2 Shape And Structure

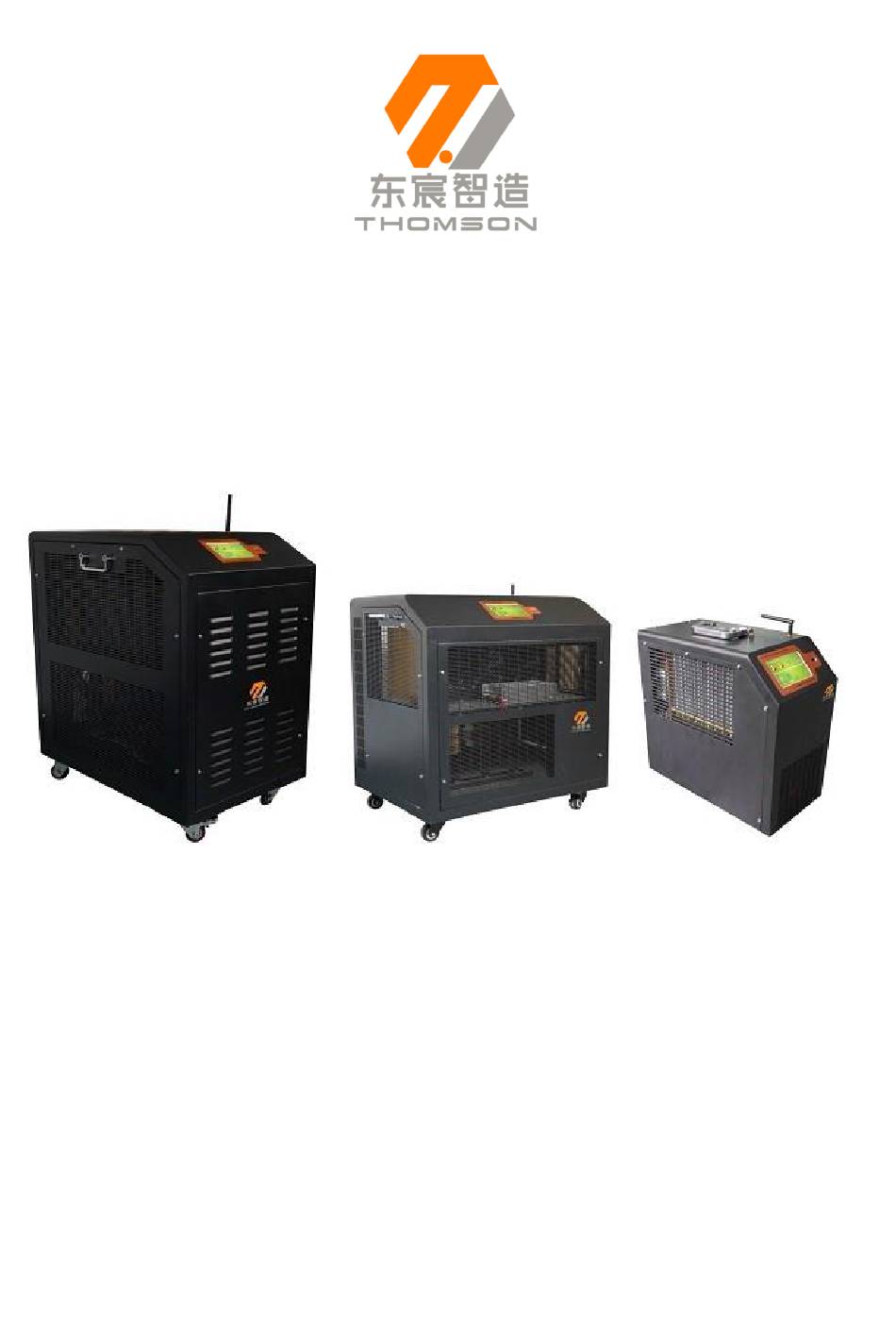

    DFT-6600 Battery Charger-Discharger Users Manual Chapter 2 Shape and structure 2.1. The host schematic diagram Figure 2-1 DFT-6600 series tester Host (images only for reference)

  • Page 13: Package List

    DFT-6600 Battery Charger-Discharger Users Manual 2.2. Package List Release Date Item Parts Name Quantity Host String Voltage line 1-Red + 1-Black Charge and discharge cable 1-Red + 1-Black U-disk Power Lead Ground wire Instruction manual Cell-Data-Case optional with PC Data Software No.
  • Page 14 DFT-6600 Battery Charger-Discharger Users Manual String Voltage line Charge and discharge cable Cell-Data-Case voltage line （12-Red Cell +1-Black Ground） Cell-Data-Case（2V，6V，12V） Antenna...
  • Page 15 DFT-6600 Battery Charger-Discharger Users Manual Cell-Data-Case ramp （12-Red +1 Black） Power Lead 380V 6pin...

  • Page 16: Chapter 3 Connection

    There are No flammable and explosive gases in the air. Check that the DFT-6600 Tester is in good condition and that the power switch is in an open state. There must be no inflammable and explosive materials around the work.
  • Page 17 If there is a spark found in the process of discharging the cable clip battery string electrode, please remove the clip, stop the discharge testing, and contact the THOMSON; When wiring, first connect the DFT-6600 Tester and then connect the battery, and first remove the clip at the battery end when disconnecting the wire;...
  • Page 18 Due to the large discharge current, in order to accurately measure the voltage of the battery string, a Special voltage test line is provided. One end of the voltage test line is connected to the voltage test socket of the DFT-6600 Tester, the other end of red clip is connected to the positive pole of the battery string (busbar), and the black clip is connected to the negative pole of the battery string (busbar).

  • Page 19: Cell-Data-Case Connection

    DFT-6600 Battery Charger-Discharger Users Manual 3.2.3 Others Connect the host antenna reliably to the antenna socket of the host of the DFT-6600 Tester. 3.3. Cell-Data-Case connection Cell-Data-Case is for each-cell voltage sampling of max 12-Cell, which is with magnetized screws for easy fixing standby.

  • Page 20: Chapter 4 Functions And Operating Procedures

    Chapter 4 Functions and operating procedures 4.1. Starting Boot Press the power switch on the back of the tester to activate the tester and enter the main menu of the DFT-6600 Tester. The main menu is as follows: 4.2. Battery Discharge In the main menu, press the icon "Discharge Test"...

  • Page 21: Battery Charge

    DFT-6600 Battery Charger-Discharger Users Manual Press the [Discharge Information] icon to enter the following interface Press the [Discharge Info] icon to enter the following interface: Press the [V-I Trend] icon to enter the following interface: 4.3. Battery Charge In the main menu, press the "Charging Test" icon to enter the charging settings interface. As shown in the following figure: At this window, you need to set the site No.
  • Page 22 DFT-6600 Battery Charger-Discharger Users Manual If monitor the single-cell, it is necessary to determine whether the total positive or total negative of the battery string where the first No. 1 battery on the located site, and then tick the total negative or total positive option.

  • Page 23: Discharge & Charge Cycle (Optional)

    DFT-6600 Battery Charger-Discharger Users Manual The Stop voltage set in the parameter setting plays a role in protecting the battery, which’s correct setting of the stop voltage value can avoid overcharge or over-discharge of the battery and avoid damage to the battery.
  • Page 24 DFT-6600 Battery Charger-Discharger Users Manual display the measurement results 4.5.2 Save to the U-disk In the data management menu, press the [Save U-disk] option to transfer the data, and there will be a prompt after the data is saved. Please plug in the U-disk first, and a green "U" symbol will appear in the upper right corner of the menu after plugging in.

  • Page 25: System Settings

    After setting the time, press the "Save" button to upgrade to the desired time. 4.6.2 Version Information & System Upgrade Press on the "System Info" menu item on the main menu page to view the DFT-6600 Tester system software version, as shown in the figure...
  • Page 26 DFT-6600 Battery Charger-Discharger Users Manual When inserting a U-disk containing upgrade files, press the "Upgrade" button to upgrade the system.

  • Page 27: Chapter 5 Routine Maintenance

    Do not scratch the metal part of the probe to avoid poor contact. 5.2. Storage When used, the host of the DFT-6600 Tester should be placed in the alloy box in time. All parts and cables should be organized and placed in the appropriate position in the box.
