DFT-6700 Battery Charger
Users Manual
THOMSON TECH CO LTD
www.thomsontesting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DFT-6700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for THOMSON DFT-6700

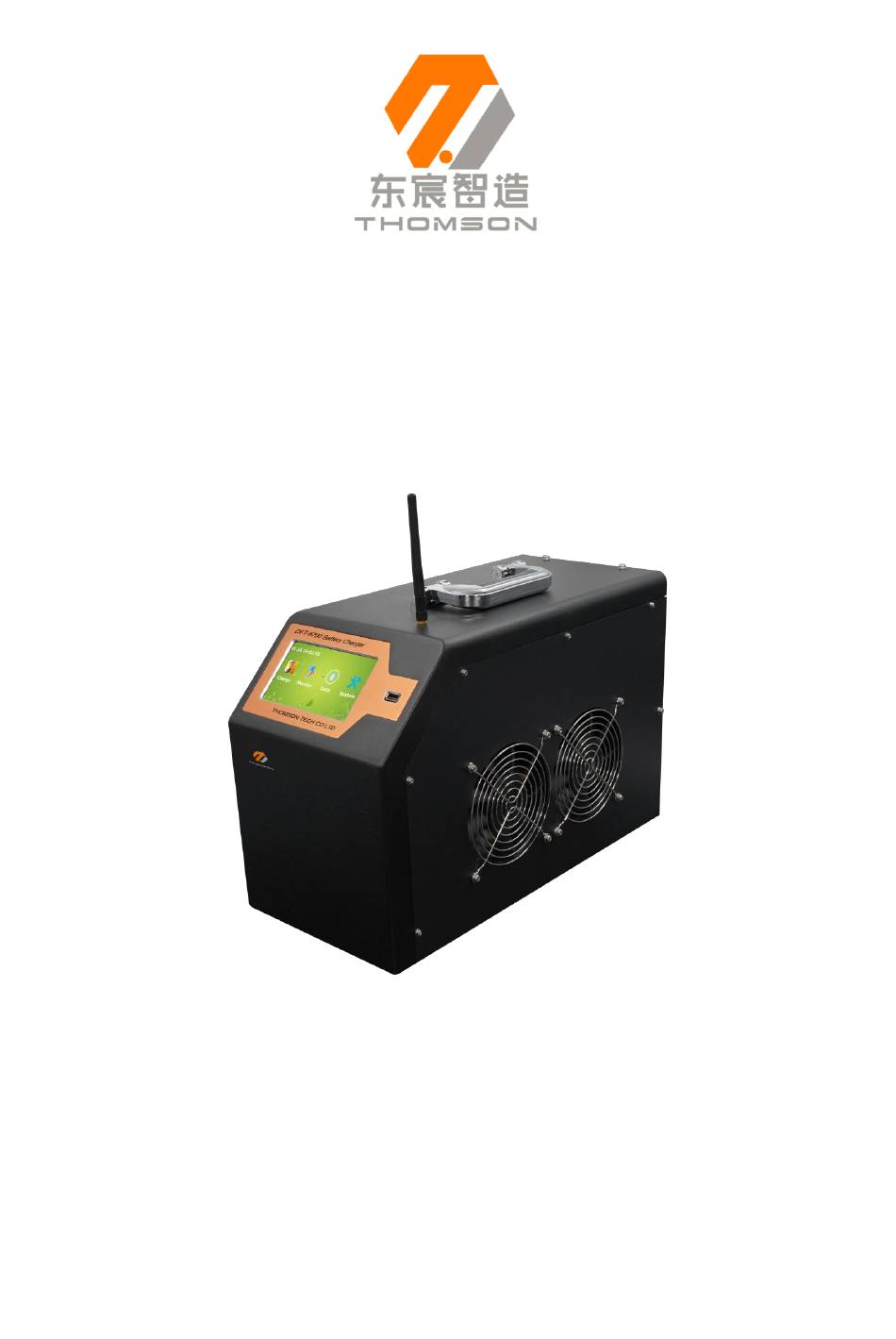

  • Page 1 DFT-6700 Battery Charger Users Manual THOMSON TECH CO LTD www.thomsontesting.com...
  • Page 2: Table Of Contents

    DFT-6700 Battery Charger Users Manual Table of Contents Use notice & Reading tips ..............................2 Chapter 1 Overview ................................4 1.1. DFT-6700 Tester Usage ............................4 1.2. DFT-6700 Tester Functions ............................ 4 1.3. DFT-6700 Tester Features ............................5 1.4. Working schematic diagram ........................... 6 Chapter 2 Shape &...
  • Page 3: Use Notice & Reading Tips

     The DFT-6700 Tester belongs to the precision test equipment, in the process of use should be lightly handled, do not throw and throw, the result of the light will lead to the deformation of the shell, the heavy will lead to the failure of internal components, affecting normal use.
  • Page 4 DFT-6700 Battery Charger Users Manual Important safety guidelines Warning  Explosion hazard! The gas produced by the battery is extremely explosive.  Reading & understanding and follow all guidelines with the tester, battery, and any other equipment near the battery.
  • Page 5: Chapter 1 Overview

    DFT-6700 Tester Usage This DFT-6700 Tester can charging, single cell testing, online monitoring as 3-in-1 multi-purpose, which reduce the cost and reduce the labor intensity of maintenance personnel, and provide comprehensive scientific testing methods for battery and UPS power maintenance.
  • Page 6: Dft-6700 Tester Features

    Provide a scientific basis for judging the advantages and disadvantages of whole Strings or Single batteries. 1.3. DFT-6700 Tester Features  3- in-one of charging, single-cell testing, online monitoring with complete functions as one DFT-6700 Tester for multi-purpose.  Smart three-stage charging, constant current charge, real-time online circuit testing of each single-cell parameters.
  • Page 7: Working Schematic Diagram

    DFT-6700 Battery Charger Users Manual 1.4. Working schematic diagram...
  • Page 8 DFT-6700 Battery Charger Users Manual 1.5. DFT-6700 Technical Index Item Project Technical indicators 3P4W input 380V 50Hz Voltage variation range 323V-437V Frequency variation range 50Hz± 10% AC input DC output rated voltage 220V, 176V-264V DC output rated current Output current limit range (10%-100%)×...
  • Page 9: Chapter 2 Shape & Structure

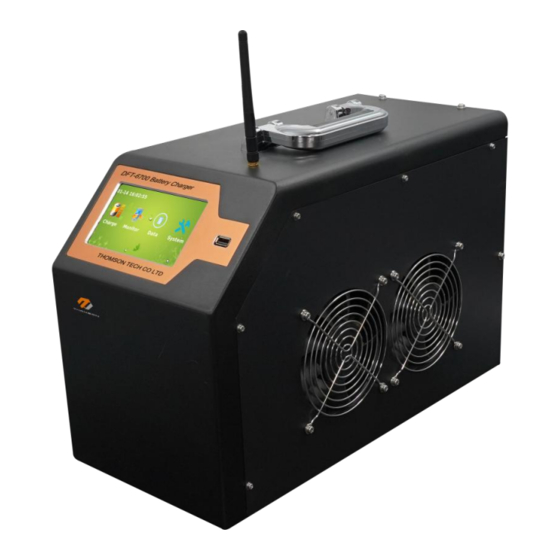

    DFT-6700 Battery Charger Users Manual Chapter 2 Shape & structure 2.1. The host schematic diagram Figure 2-1 DFT-6700 series tester Host (images only for reference)
  • Page 10: Package List

    DFT-6700 Battery Charger Users Manual 2.2. Package List Release Date Item Parts Name Quantity Host String Voltage line 1-Red + 1-Black Charge cable 1-Red + 1-Black U-disk Power Lead Ground wire Instruction manual Cell-Data-Case optional with PC Data Software No. differ to 2V,4V,6V,12V etc...
  • Page 11: Main Parts Pictures

    DFT-6700 Battery Charger Users Manual 2.3 Main Parts Pictures String Voltage line Cell-Data-Case voltage line Charge and charge cable (12-Red Cell +1-Black Ground) Antenna Cell-Data-Case(2V,6V,12V) Power Lead 220V Cell-Data-Case ramp (12-Red +1 Black)...
  • Page 12: Chapter 3 Connection

    There are No flammable and explosive gases in the air. Check that the DFT-6700 Tester is in good condition and that the power switch is in an open state. There must be no inflammable and explosive materials around the work.
  • Page 13: Charge Cable Connection

    If there is a spark found in the process of discharging the cable clip battery string electrode, please remove the clip, stop the charge testing, and contact the THOMSON; When wiring, first connect the DFT-6700 Tester and then connect the battery, and first remove the clip at the battery end when disconnecting the wire;...
  • Page 14: Voltage Test Line Connection

    Due to the large charge current, in order to accurately measure the voltage of the battery string, a Special voltage test line is provided. One end of the voltage test line is connected to the voltage test socket of the DFT-6700 Tester, the other end of red clip is connected to the positive pole of the battery string (busbar), and the black clip is connected to the negative pole of the battery string (busbar).
  • Page 15 DFT-6700 Battery Charger Users Manual The wiring harness of the 2V Cell-Data-Case does not have a separate power cord. The wiring is as follows: The first Case: Line 0 is connected to the 1st battery negative (total negative), Line 1 is connected to the 1st battery positive, and Line 2 is connected to the 2nd battery positive...
  • Page 16 DFT-6700 Battery Charger Users Manual Each Cell-Data-Case can monitor up to 12 batteries, if the number of batteries is less than the number of Cell-Data-Case, the remaining voltage clamp can be clipped together at the positive pole of the last battery.
  • Page 17 DFT-6700 Battery Charger Users Manual...
  • Page 18: Pc Connection

    DFT-6700 Battery Charger Users Manual 3.4 PC connection If real-time monitoring via a PC is required, Wi-fi of Tester and PC needs to be connected. 3.5. Running After checking that the wiring is correct, turn on the power switch; then the LCD screen should be displayed normally, now you can complete the setting of various test &...
  • Page 19: Chapter 4 Functions And Operating Procedures

    Chapter 4 Functions and operating procedures 4.1. Starting Boot Press the power switch on the back of the tester to activate the tester and enter the main menu of the DFT-6700 Tester. The main menu is as follows: 4.2. Battery Charge In the main menu, press the icon "Charge Test"...
  • Page 20 DFT-6700 Battery Charger Users Manual Finally, according to the actual situation, tick select to detect single-cell, or the single-cell is not monitored if not tick the single-cell means. After set the charge parameters and press the [Start] key to enter the charge state.
  • Page 21 DFT-6700 Battery Charger Users Manual At this window, you need to set the site No. Battery string No., Voltage level, Battery type, Nominal capacity, single-cell test, single-cell No., and single-cell stop voltage. If monitor the single-cell, it is necessary to determine whether the total positive or total negative of the battery string where the first No.
  • Page 22 DFT-6700 Battery Charger Users Manual Press the [V-I Trend] icon to enter the following interface: The Stop voltage set in the parameter setting plays a role in protecting the battery, which’s correct setting of the stop voltage value can avoid overcharge or over-charge of the battery and avoid damage to the battery.
  • Page 23: Data Management

    DFT-6700 Battery Charger Users Manual 4.3. Data management Test results in the data management menu. Can be exported and delete. Data management includes details charge measurement data & charging measurement data. 4.3.1 Data viewing Press "Data Management" in the main menu, and select the data type, select the data, then press the [Open] key, display the measurement results 4.3.2 Save to the U-disk...
  • Page 24: System Settings

    After setting the time, press the "Save" button to upgrade to the desired time. 4.4.2 Version Information & System Upgrade Press on the "System Info" menu item on the main menu page to view the DFT-6700 Tester system software version, as shown in the figure...
  • Page 25 DFT-6700 Battery Charger Users Manual When inserting a U-disk containing upgrade files, press the "Upgrade" button to upgrade the system.
  • Page 26: System Calibration (Authorization)

    DFT-6700 Battery Charger Users Manual 4.4.3 System Calibration (Authorization)
  • Page 27: Chapter 5 Routine Maintenance

    Do not scratch the metal part of the probe to avoid poor contact. 5.2. Storage When used, the host of the DFT-6700 Tester should be placed in the alloy box in time. All parts and cables should be organized and placed in the appropriate position in the box.
  • Page 28: Chapter 6 Faq & Tips

    DFT-6700 Battery Charger Users Manual Chapter 6 FAQ & Tips 6.1 No response after booting The power supply is not connected. Check that the power plug is plugged in. The binding post should be pressed tightly. 6.2 Charging no current Press the content of 3.2 to check, generally empty and not closed, the charging cable is reversed, or the contact is...
  • Page 29 DFT-6700 Battery Charger Users Manual 6.7 Attached II, simple check of whether the wiring is correct 1. After the case is connected to the line, open the host data monitoring interface 2. Observe the single voltage measurement value of the host, and after finding the abnormal value, check whether the wiring clip of the corresponding battery is clamped firmly, and whether there is a wiring problem such as wiring crossover.
  • Page 30 DFT-6700 Battery Charger Users Manual Battery Data Management PC Software Manual THOMSON TECH CO LTD...
  • Page 31 DFT-6700 Battery Charger Users Manual Table of Contents Chapter 1 Software Installation & Uninstallation 1.1. Software runtime environment........................... 31 1.2. Software installation ............................31 1.3. Software uninstallation ............................31 1.4. Software running ..............................31 1.5. Main Menu ................................. 32 Chapter 2 Data viewing and exporting to reports 2.1.
  • Page 32: Chapter 1 Software Installation & Uninstallation

    DFT-6700 Battery Charger Users Manual Chapter 1 Software Installation & Uninstallation 1.1. Software runtime environment Operating System: Windows XP. Windows7. Windows10 CPU: P42.0GHz or above, Intel dual-core 2.0G is recommended Memory: DDR 32G or above Hard Disk: The installation disk has at least 300M of space Display resolution: 1024×...
  • Page 33: Main Menu

    DFT-6700 Battery Charger Users Manual 1.5. Main Menu...
  • Page 34: Chapter 2 Data Viewing And Exporting To Reports

    DFT-6700 Battery Charger Users Manual Chapter 2 Data viewing and exporting to reports 2.1. Data Logger monitoring For the monitoring of the battery Data Logger, the Site must be added before monitoring, and the establishment process is shown in the following figure:...
  • Page 35: Data Viewing And Importing Old Report

    DFT-6700 Battery Charger Users Manual Select the sample data you want to view, click View details, or double click the data you want to view; the interface pops up as below screenshot shown: 2.2. Data viewing and importing old report...
  • Page 36: Export Result To The Report

    DFT-6700 Battery Charger Users Manual Select the corresponding imported data, double-click or right-click to view, and a new interface will pop up, as shown in the following figure: After clicking the Save button, you can see the actual data list, as shown in the following figure: 2.3.
  • Page 37: Exit The Software

    DFT-6700 Battery Charger Users Manual Exit the software Click Close Report to exit the data report. Click Close Recording to close the Data Logging page. Click Exit System to close the software.
