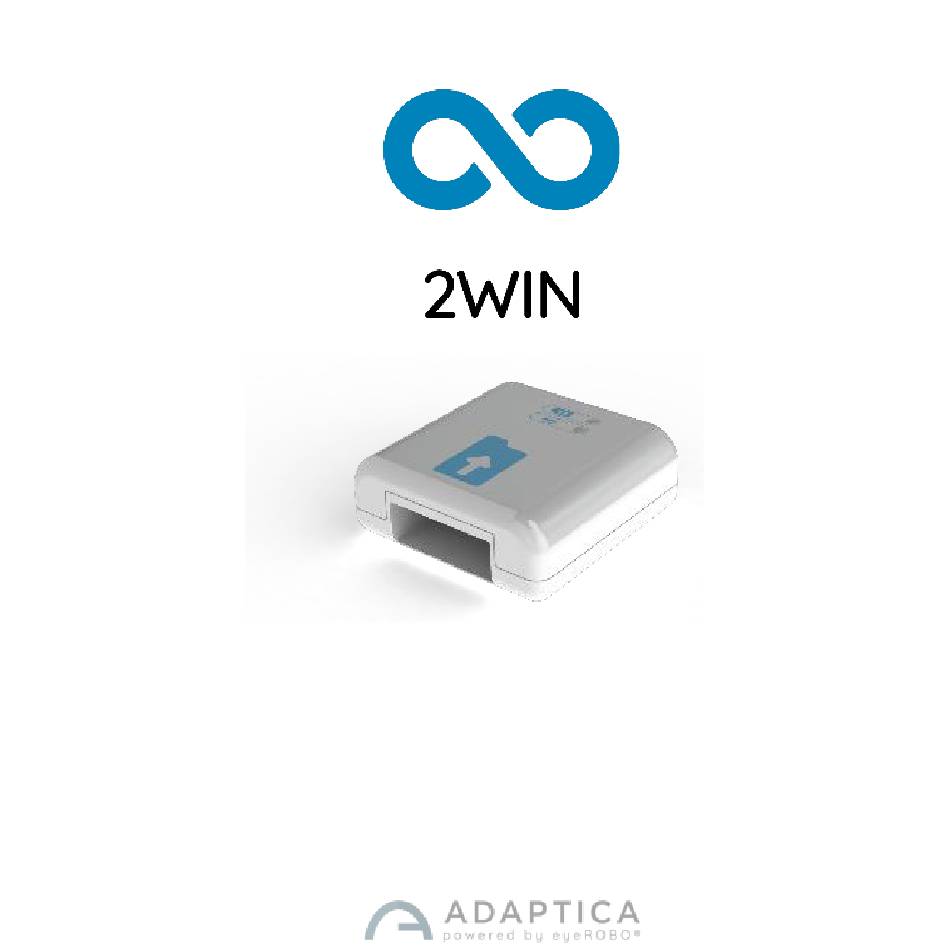

- Page 1 BATTERY CHARGER USER MANUAL...
- Page 3 INDEX Warnings pg. 2-4 Set Up pg. 5 Led Information pg. 6 Label and Symbol pg. 7-8 Technical Information pg. 9-10 EMC Tables pg. 11-16...
- Page 4 WARNINGS READ CAREFULLY THE OPERATING MANUAL OF 2WIN BEFORE USING THE BATTERY CHARGER THIS DEVICE MUST NOT BE USED IN OXYGEN RICH ENVIRONMENTS OR IN PRESENCE OF FLAMMABLE PRODUCTS TO REDUCE THE RISK OF INJURY, CHARGE ONLY BATTERY MODEL CS-SP112XL AND PSP110ML...
- Page 5 THIS DEVICE IS DESIGNED TO BE USED INDOOR. DO NOT EXPOSE TO WATER: THIS COULD LEAD TO ELECTRIC SHOCK USE ONLY WITH ACCESSORIES SUPPLIED BY ADAPTICA (USB CABLE, WALL ADAPTER) NO MODIFICATION OF THIS EQUIPMENT IS ALLOWED. ONLY TECHNICIANS AUTHORIZED BY THE...
- Page 6 IEC60601-1-2. The device may cause radio interference or may disrupt the operation of nearby equipment. It may be necessary to take mitigation measures, such as re- orientering or relocating the 2WIN Battery Charger or shielding the location.
- Page 7 SET UP Insert USB type-C cable into the charger, and connect it to power supply Insert the battery inside the charger Extract the battery and use it in the 2WIN...
-
Page 8: Led Information
LED INFORMATION Red Led: battery is charging Green Led: battery is charged Led off: no battery or damaged battery Green Led: Power on Led off: no power... - Page 9 LABEL AND SYMBOLS Electronic device subject to the WEEE Directive on waste disposal...
- Page 10 CE Marking Manufacturer ID Read user manual Date of manufacturing...
-
Page 11: Technical Information
TECHNICAL INFORMATION • AC/DC 110/240 VAC, 50/60 Hz • Power cable: USB type-C standard cable • Cable min-max length: 1-1.5 m • Weight: 70 g • Battery type: CS-SP112XL and PSP–S110 • Battery charger size: 6.5 X 7.0 X 2.5 mm •... - Page 12 • Standard charge: CC-CV method with charge current of 600 mA • Maximum operating temperature: 25°C • The battery charger can be attached to metallic surfaces...
-
Page 13: Emc Tables
EMC TABLES Guidance and manufacturer’s declaration – electromagnetic emissions The 2WIN Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of the 2WIN Battery Charger should assure that it is used in such an environment. - Page 14 Class B The 2WIN Battery Charger emissions is suitable for use in all CISPR 11 establishments, including domestic establishments Harmonic those directly emissions applicable connected to the public IEC 61000- low voltage power supply network that supplies Voltage Complies buildings...
- Page 15 Guidance and manufacturer’s declaration – electromagnetic immunity The 2WIN Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of the 2WIN Battery Charger should assure that it is used in such an environment.
- Page 16 Electrical ±2 kV for Complie Mains power fast power quality should transient/bu supply be that of a rst IEC lines typical 61000-4-4 ±1 kV for commercial or input/out hospital pour lines environment. Surge ±1 kV Complie Mains power IEC 61000-4- line(s) to quality should line(s)
- Page 17 (30 % dip operation during in U power mains for 25 interruptions, it is cycles recommended <5 % U that the 2WIN (>95 % dip Battery Charger in U be powered for 5 s from an uninterruptible power supply or...
- Page 18 NOTE U is the a.c. mains voltage prior to application of the test level.
- Page 20 Adaptica Srl Via San Marco 9/H, 35129 Padova (PD), Italy support@adaptica.com www.adaptica.com STESK00018_V0...
