Summary of Contents for Ovation PROFILE S300

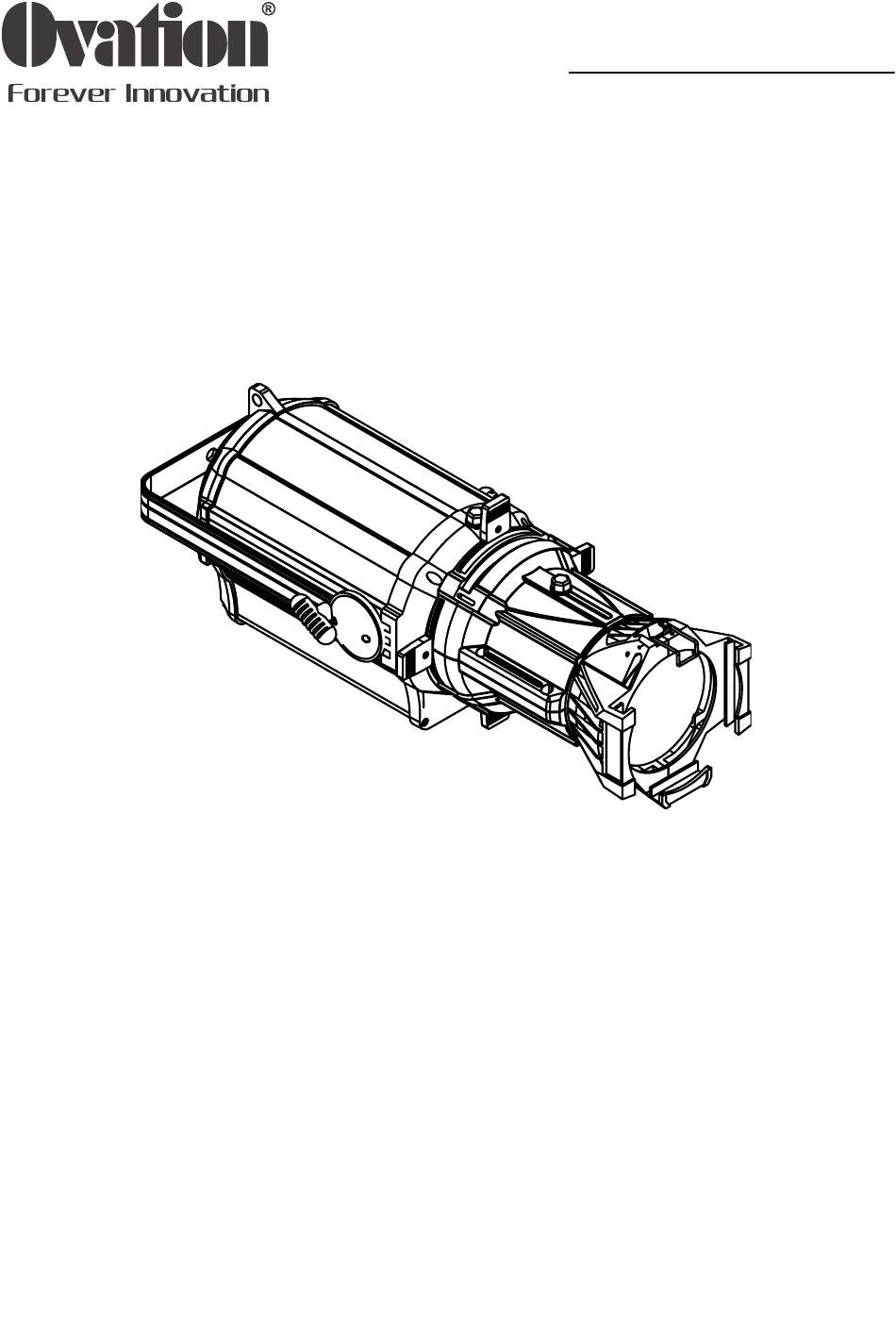

- Page 1 PROFILE S300 PROFILE S300 300W LED profile spot light USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 4 Read ‘Safety information’ before installing the fixture.................4 Fastening the fixture to a flat surface ......................4 Mounting the fixture on a truss ........................4 Securing with a safety cable .........................4 DMX-512 connection/connection between fixtures ..................5 Power connection ............................5 Operation ���������������������������������������������������������������������������������������������������������������������������������������������... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen Profile S300. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation. -
Page 4: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 5: Dmx-512 Connection/Connection Between Fixtures
Power connection Power Requirements The Profile S300 zoom luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an auto-ranging power supply. Power linking between fixtures: The fixture with powercon in and out socket. Connect the power out to the power in socket in the next fix- ture till all are connected. -
Page 6: Operation
Operation The Profile S300 zoom can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. -
Page 7: Universal Dmx Control
In the case of the Profile S300 zoom, which is 1/2/3 channels fixture. If you set, for example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control. -
Page 8: Dmx Protocol
DMX Protocol 1 Channel Mode Function Function Control Dimmer 000-255: 0-100% dimmer 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: Strobe with speed increasing 3 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Dimmer fine 000-255: 16 bit dimmer Strobe 000-255: Strobe with speed increasing... -
Page 9: Technical Specifications
Technical specifications Model Profile S300 Power supply: AC100 - 240V, 50/60Hz Light source: 300W COB LED Color temperature: 3200K or 5600K optional Color Rendition: CRI ≥ 97 Lens: 19°, 26°, 36°, 50° optional Power connection: PowerCON in & out Fuse:...
