Summary of Contents for Ovation Honor 350C Zoom

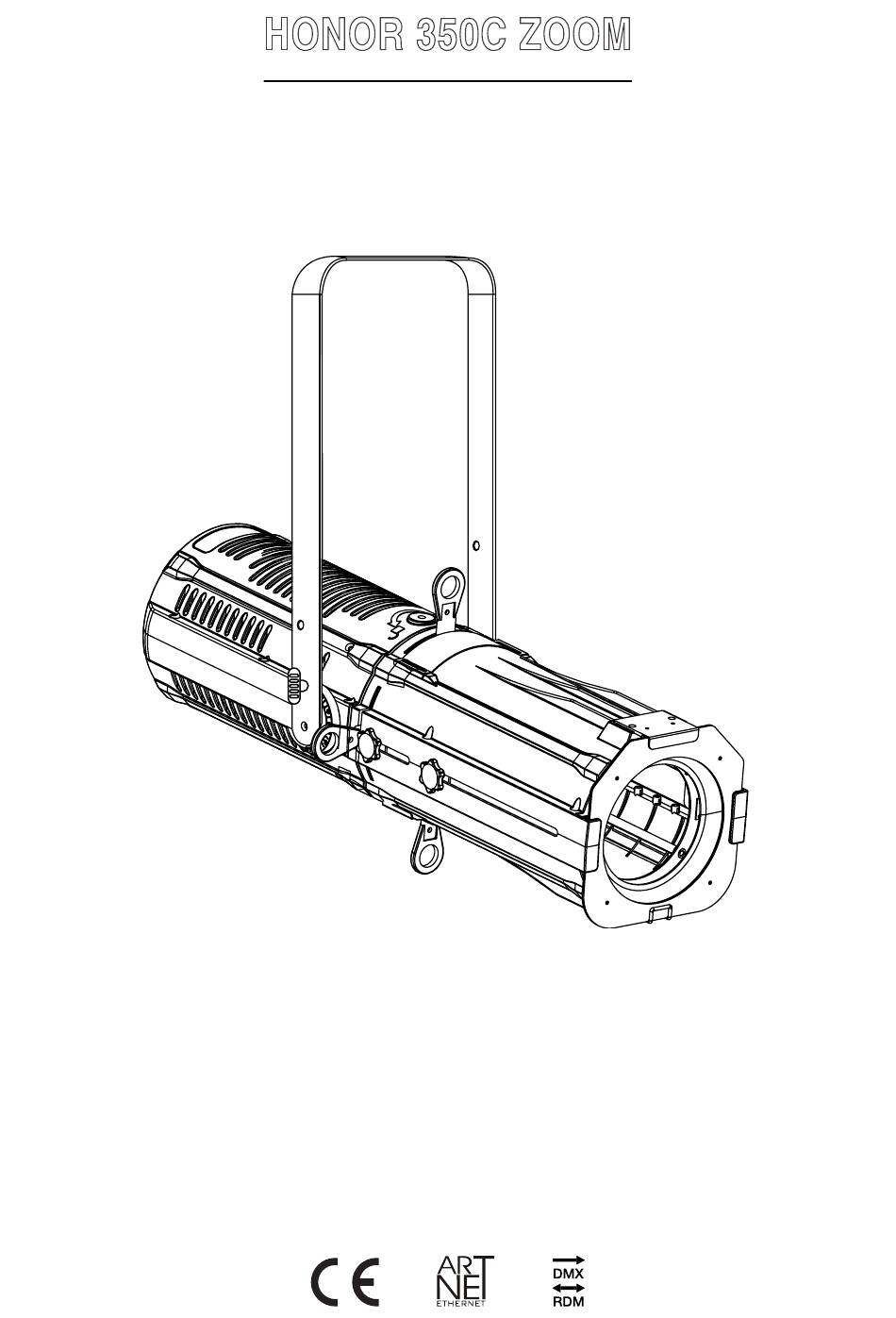

- Page 1 HONOR 350C ZOOM 350W RGBALC LED profile spot with zoom USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! .........................3 Introduction ......................3 Safety instructions ....................3 Overview........................3 Installation ......................5 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ......................DMX-512 connection/connection between fixtures ................. -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen Honor 350C Zoom. You will see you acquired a powerful and versatile de- vice. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation. - Page 4 V1.3...
-
Page 5: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 6: Securing With A Safety Cable
Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring point. Do not loop the safety cable around the fixture’s mounting bracket only, as this will leave the fixture un- secured if it separates from the bracket. -
Page 7: Art-Net Connection
Art-Net Switch/Router PC/Controller Occupation of the RJ45-connection: Honor 350C Zoom installs two RJ45 connectors for DMX data transmission. Pin 1 is for data +, Pin 2 for data -, Pin 7 & 8 for earthing. NET IN NET OUT Ground... -
Page 8: Operation
Earth(Ground) Operation The Honor 350C Zoom zoom can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. -
Page 9: Control Menu
Fade in Custom Custom dimmer curve (150 ms~2230 ms) Dimmer Mode Fade out (150 ms~2230 ms) Advanced settings/calibration(Only qualified technicians should perform Authorization On/Off this function. Inqure your local dealer for password.) Signal Priority DMX/Art-Net signal priority setting ArtNet Signal Hold On/Off Run if signal cut On/Off... -
Page 10: Addressing
In the case of the Honor 350C Zoom zoom, which is 2/8/12 channels fixture. If you set, for example, the address in the 2 channel mode to channel 3, the device will use the channel 3-4 for control. -
Page 11: Universal Dmx Control
RDM control The Honor 350C Zoom can communicate using RDM (Remote Device Management) in accordance with ESTA’s American National Standard E1.20-2006: Entertainment Technology RDM Remote Device Man- agement Over DMX512 Networks. -
Page 12: Rotary Knob Function
A single DMX512 frame of 512 channels is referred to as a Universe. Rotary Knob function The knob in the rear panel of the Honor 350C Zoom act as multi function. Including rotary control of dimmer, up/down/enter function function. Dimmer & strobe function: 1. -
Page 13: Zoom
Menu>Dimme r Curve Mode Standard Stage Architecture Theatre To set preset dimmer curves: 1. Press the MENU button to enter the main menu. 2. Press the UP or DOWN button to select Dimmer menu and press ENTER. 3. Press DOWN menu and select Mode sub menu. 4. -
Page 14: Dmx Protocol
DMX Protocol 2 Channel Mode Function Function Control Dimmer 000-255: 0-100% dimmer 000-005: No function 006-025: 2700K 026-046: 3000K 047-067: 3200K 068-088: 3500K 089-109: 4000K Color temperature 110-130: 4200K 131-151: 4500K 152-172: 5600K 173-193: 6000K 194-214: 6500K 215-235: 7200K 236-255: 8000K 8 Channels Mode Function Function Control... -
Page 15: Fixture Cleaning
12 Channels Mode Function Function Control 000-005: No function 006-025: 2700K 026-046: 3000K 047-067: 3200K 068-088: 3500K 089-109: 4000K Color temperature 110-130: 4200K 131-151: 4500K 152-172: 5600K 173-193: 6000K 194-214: 6500K 215-235: 7200K 236-255: 8000K 000-004: No function CH10 Color fading 005-255: Color fading 000-004: No function CH11... -
Page 16: Fuse Replacement
Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model Honor 350C Zoom Power supply: AC100 - 240V, 50/60Hz Light source: 350W LED...
