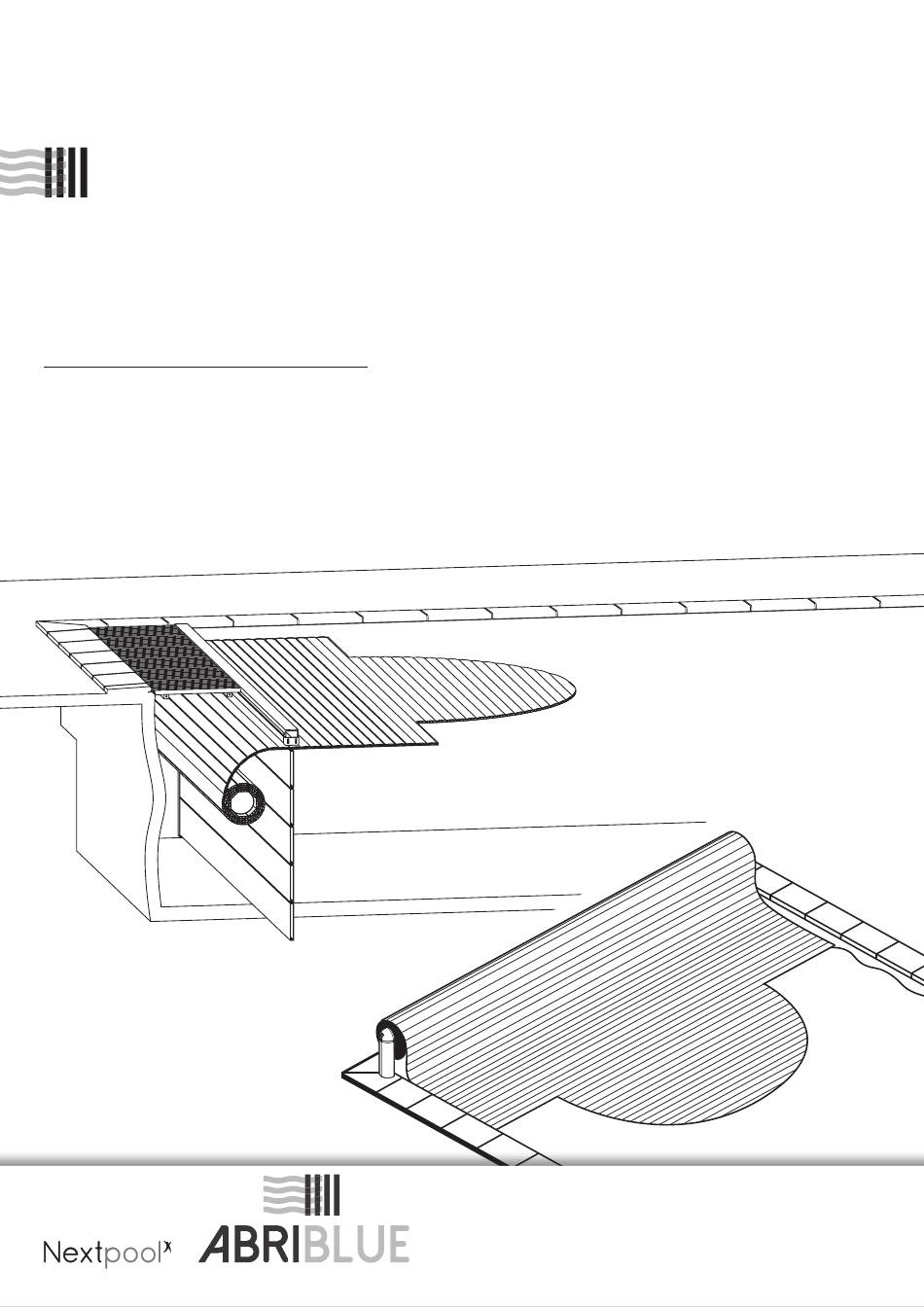

- Page 1 ABRIBLUE LINE Slat cover Installation manual Please read carefully and keep available for later use 02/2020 Version AE-12-018-9EN/02-2020...
- Page 2 Installation instructions for an automatic safety cover - 2/14 C O N T E N T S 1. Assembling the slats 1.1 Placing the slats on the water 1.2 Assembling the slats 1.3 Adjusting the number of slats 1.4 Controlling the fit 1.5 Installing the stair slats 1.6 Slat orientation skid (above water models only)
- Page 3 3/14 - Installation instructions for an automatic safety cover 1. Assembling the slats 1.2.2 Sliding slats Fig. 4 Special care needs to be taken when handling the slats. Shearing can cause irreparable damage to the caps. This is why they must not be assembled by threading Fig.
- Page 4 Installation instructions for an automatic safety cover - 4/14 1.4 Controlling the fit 1.6 Slat orientation skid (above water models only) Fig. 7 Fig. 9 Place the cover against a length of the pool. Check So that the slats unroll towards the opposite side that there is a gap greater than 2.5 cm between the of the pool, place the orientation ski on the lower ends of the wings and the sides of the pool (needed...
- Page 5 5/14 - Installation instructions for an automatic safety cover 2. Fixing the apron to the pool 2.1 Fixing the anti-lifting buckles 2.1.1 Fig. 11 Fig. 10 Fix the female loops on the sides at 40 mm above For IMM'Ax, IMM'Ax Solar Energy, IMM'Box, the water line, opposite the anti-lifting mechanisms VEESIO, IMM'One, BANC Classic and BANC Solar preinstalled on the blades.
- Page 6 Installation instructions for an automatic safety cover - 6/14 2.2 Fixing with the Coverlock system 2.1.2 Fig. 12 Option for fixing to the pool edge, fix the bracket Make sure to position the harpoons and triggers in support into the concrete belt, under the coping, relation to one another to obtain perfect alignment applying the bracket against the pool side.
- Page 7 7/14 - Installation instructions for an automatic safety cover 2.2.3 Fig 15: Option for fixing the triggers on the levelling 2.2.5 Fig. 17 course Secure the pool by pressing on the trigger. Fix part ② on support ③ using the TFHC M 5 x 16 mm screws and the M5 nuts.
- Page 8 Installation instructions for an automatic safety cover - 8/14 2.3 Fixing using the Feex'o fastening system 2.2.8 Fig. 20 Install the rear harpoon by jamming it in the female The number and position of the fixtures has been part of the last slat. defined in the factory depending on your pool specificities.
- Page 9 9/14 - Installation instructions for an automatic safety cover 2.3.3 Fig. 24 2.4.2 Fig. 26 Identify the hole positions by positioning the Pass the straps into one of the two notched slats fastening system opposite the openings in the slat. and clip the second slat behind it.
- Page 10 Installation instructions for an automatic safety cover - 10/14 2.4.5 Fig. 29 2.4.7 Fig. 31 In the closed position, check that the wing brush is Open the pool cover a few centimetres, then drill not too far from the wall or too compressed ± 5 mm the pool wall to diameter 6 to a depth of 50 mm.
- Page 11 11/14 - Installation instructions for an automatic safety cover 2.4.9 Fig. 33 2.4.12 Fig 36: Levelling course wall hook option. Close the pool to check the harpooning on each For levelling course fixing, the water level must be lock. between -5 cm and -10 cm. If necessary, horizontally adjust the wall hooks using the oblong holes.
- Page 12 Installation instructions for an automatic safety cover - 12/14 3. Fixing the apron to the shaft 2.4.15 Fig. 39 Make sure to position the wall hooks properly opposite each lock to obtain perfect alignment and Fig. 40 proper operation as shown in figure 30. Slide the black strap fixtures onto the shaft opposite Mark out the holes and drill to a diameter of 8 mm the fixture straps which are on the slats and then...
- Page 13 13/14 - Installation instructions for an automatic safety cover 4. Unclipping slats Fig. 44 Release the lower stud by pushing the slats apart until it is 20 cm clear. Fig. 41 Pull the slats away from each other. Fig. 41 Fig.
- Page 14 ZAC de la Rouvelière F-72700 SPAY- LE MANS Phone: +33 (0)811 901 331 Fax: +33 (0)243 479 850 contact@abriblue.com www.abriblue.com This document is the property of AS POOL - NextPool group and cannot be reproduced or communicated without our authorisation.
